Baaske Medical 2007205 e-medic socket MED5 ZPA 3m

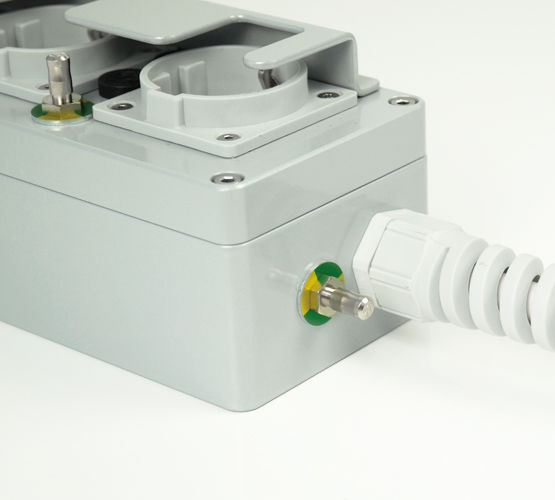

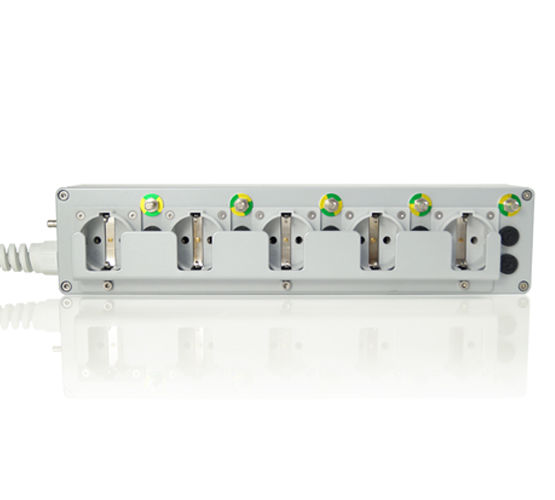

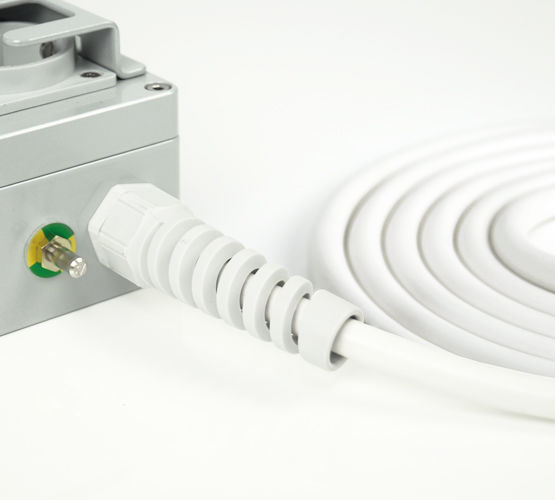

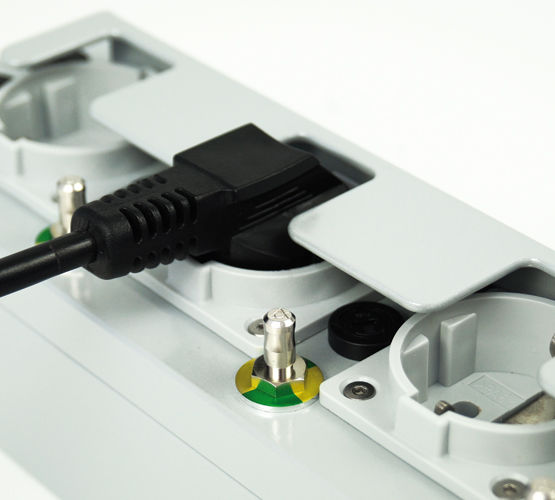

e-medic socket MED5 ZPA 3m TÜV tested accor ding 60601-1, 5 sockets with each socket insert Doppelsicherrung until 3600W dead load, sturdy and stable aluminum housing, trigger safety, power cable kinking. Made in Germany, TÜV-tested safety. MED5 The e-medic ZPA power strip is ideal for medical electrical systems operating in areas of application Group 2 accor ding to VDE Part 710 Unique are the five Individually fused socket inserts. With maximum can be charged up to 2000 W. The entire power strip is designed for a load of up to 3600W. For Increased Security, Ensures to additional potential equalization (ZPA) per socket insert, so did our medical power strip can therefore be used Simultaneously as a local distributor ZPA.

Technical data:

Secure socket type: 2 each: G fuse links 5 x 20 mm (DIN EN 60127-2 / VDE 0820-2)
ZPA Connector: DIN 42801
load per outlet: max. 2000 W
Load Entire power strip. Maximum 3600 W
Dimensions (L x W x H): 350 x 80 x 80 mm
Case: solid brushed aluminum, anodized
standards: DIN VDE 0620-1:2010 and EN 60601-1:2006 (potential equalization section)
