Baaske Medical 2006395 e-medic socket MED5 ZPA 5m

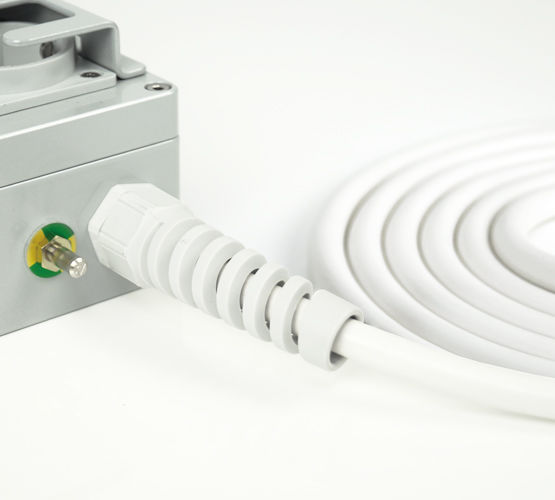

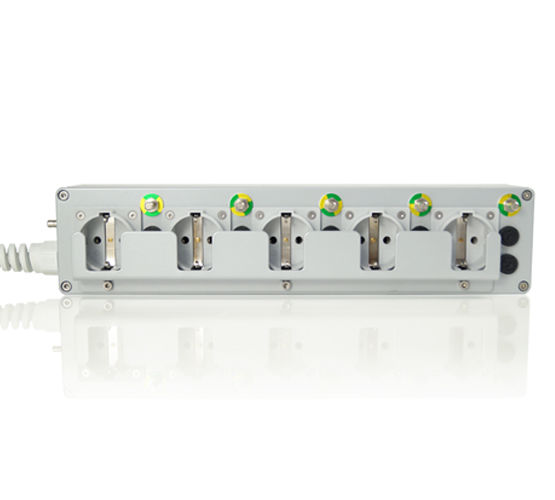

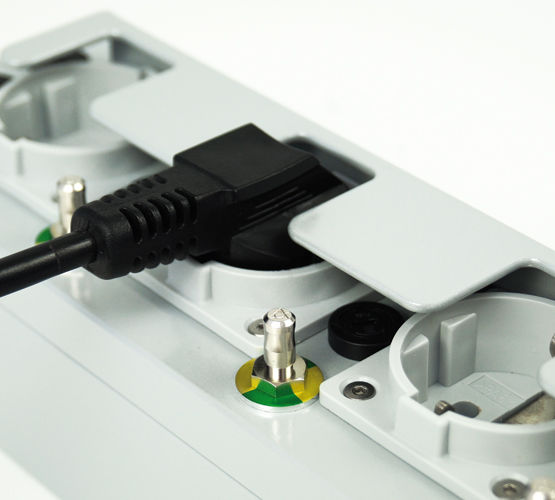

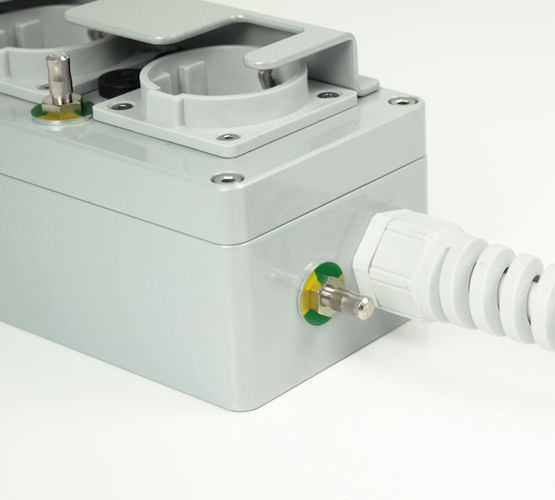

The e-medic MED5 ZPA power strip is specially designed for use in medical environments, particularly in areas classified under application group 2 according to VDE part 710. It stands out with its robust construction and adherence to the highest safety standards required by the EN 60601-1 norm. Each socket is individually double-fused, providing a high level of safety, making this power strip ideal for operating medical electrical devices. Each of the five sockets can handle up to 2000 W, with a maximum total load of 3600 W for the entire strip. Notably, the additional potential equalization (ZPA) on each socket ensures a secure grounding connection, allowing the strip to also function as a local ZPA distributor. The durable, anodized aluminum housing ensures longevity and protection in demanding environments. Features such as the pull-out safety and kink-resistant power cable complete the well-thought-out design. Manufactured in Germany, this product also comes with TÜV-certified safety, meeting strict regulations to ensure reliability.

Technical Data:

• Fuse per socket: 2 G-fuses 5 x 20 mm, according to DIN EN 60127-2 (VDE 0820-2)
• ZPA plug: according to DIN 42801
• Load per socket: max. 2000 W
• Total load capacity: max. 3600 W
• Dimensions (L x W x H): 350 x 80 x 80 mm
• Housing: Brushed and anodized full aluminum
• Standards: DIN VDE 0620-1:2010, EN 60601-1:2006 (section potential equalization)
