AUDEMO-SYSTEMS CSS-2002B Compact Speaker System 2x1200 / 800W

Compact sound system CSS-2002 2x 1200 / 800W
Compact Speaker System CSS-2002 2x 1200 / 800W
2 years warranty , quality product Made in Germany
Mobile use for up to 2,200 listeners
complete system for convenient Plug & Play
High transmission performance and feedback free reproduction of the microphones also at high volumes and without additional operation by the factory-configured AUDEMO-SYSTEMS ® sound design.
Especially suitable for public buildings, schools, government agencies and associations.
Ideal for applications such as:
-Lectures and presentations

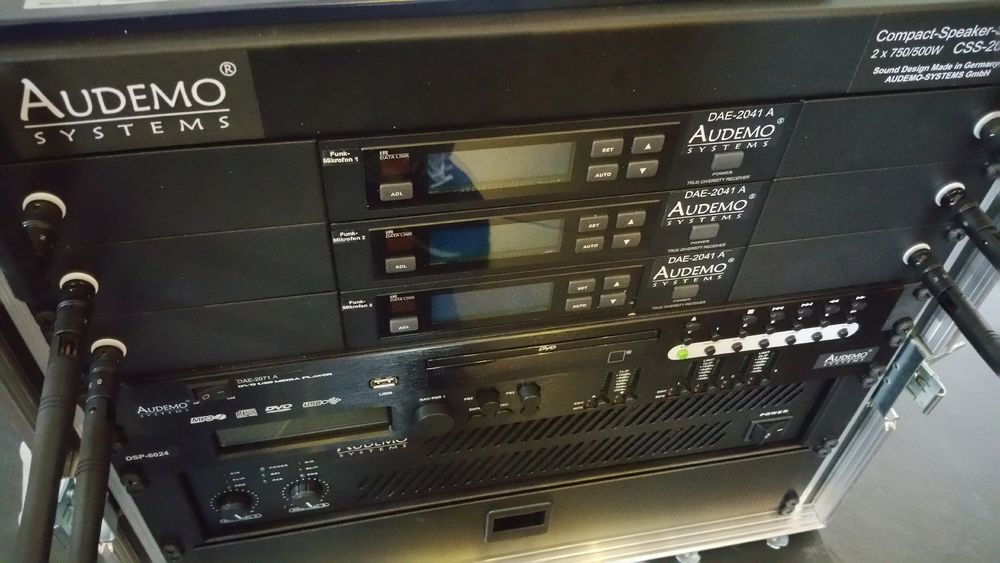

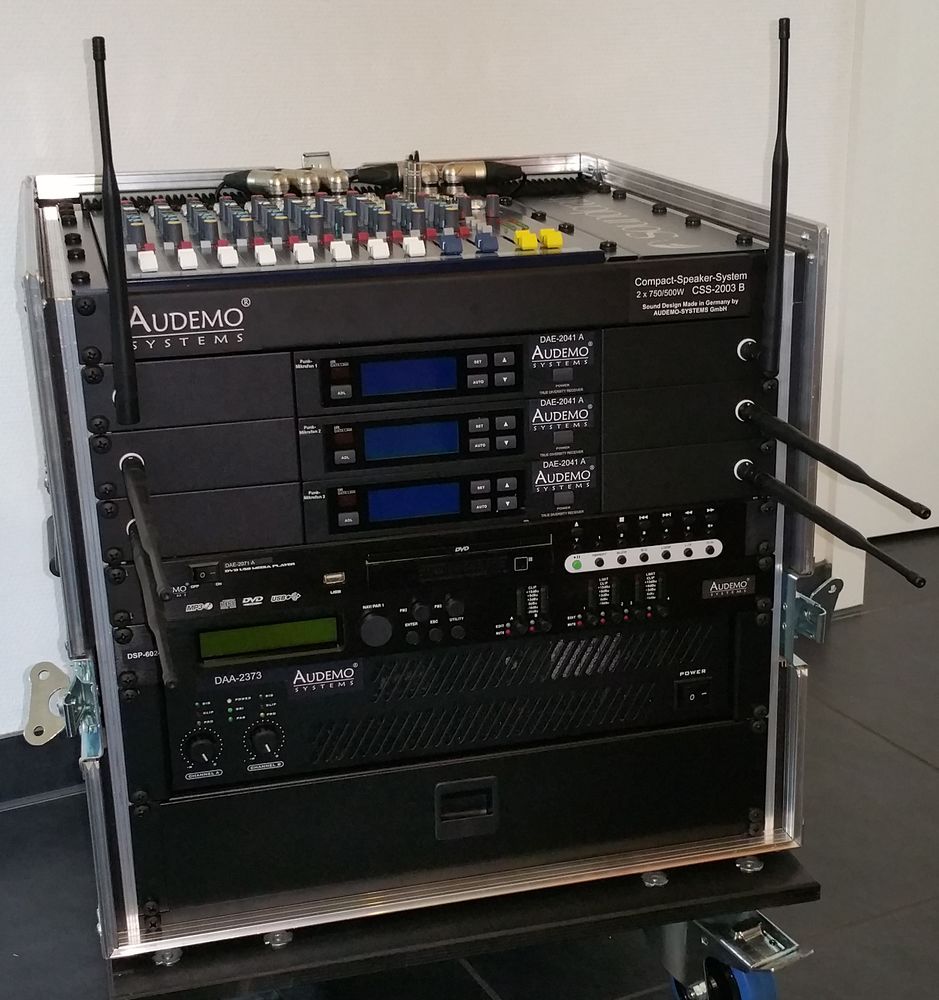

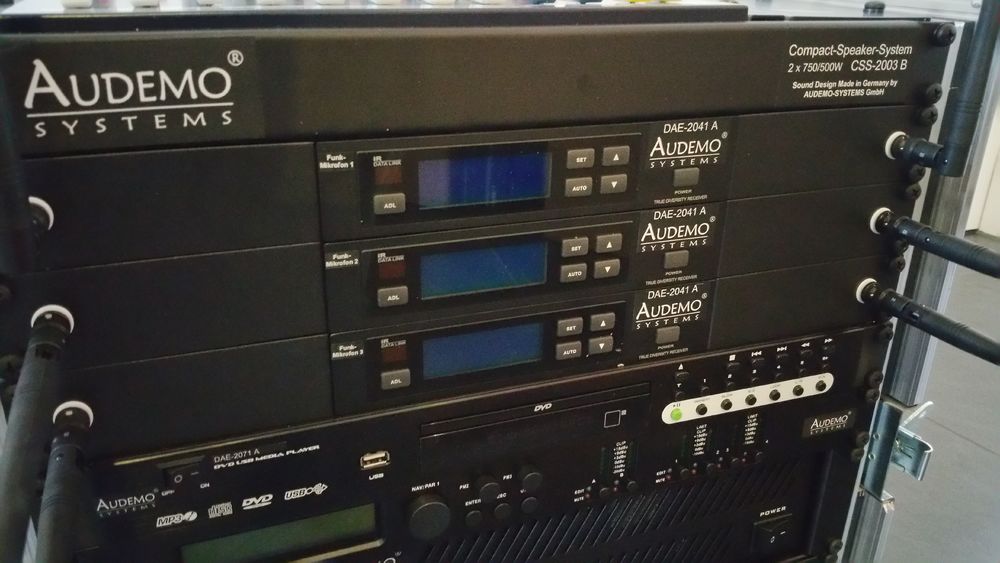

-Schulveranstaltungen, Day Open House "Trade Shows and Exhibitions -Sport and charity events -Werbepräsentationen -Festzelte, celebrations and anniversaries -Mobile stage and event technology The mobile, compact sound system CSS-2002 provides 2x 800W RMS and is suitable for professional sound reinforcement up to 2200 people. The optimal selection of high quality components precisely coordinated a highest transmission quality of music and speech playback is achieved. The system itself is built and ready for plug and play in a few minutes. The technique itself is completely housed in a flight case with skateboard and easy to transport. The compact sound system CSS-2002 is delivered ready for use and is suitable for both mobile as well as fixed locations. This complete system includes the following components: 1x professional mixing console with 14 input channels, including 8 x microphone mono, 3x Stereo Line 1x Professional amplifier with 2x 1200 / 800W output power into 4 ohms 1x Professional digital sound processor, already optimized at the factory by AUDEMO-SYSTEMS ® Sound Design 1x DVD / CD / MP-3, USB - SD card player with infrared remote control 1x Professional UHF wireless microphone system in diversity technology for interference-free transmission 1x Professional dynamic handheld microphone with on / off switch 1x Professional angle Flight Case 19 inch, 10U, skateboard with 4x 100mm blue wheels , 2 with brakes 4x Professional 2-way speaker with 38,1 cm ( 15 inch )/ 1.4 -Bestückung, large handles, tweeter 4x aluminum speaker stand, 1300 / 2000mm extendable 1x microphone stand with pivoting arm 1x Professional system documentation Quick start guide, technical notes, factory setting aid for the mixer , and detailed manuals of all components Wide range of accessories such as rack drawers, protective case for tripods, 4x speaker cable 10m, power cable (Schuko), Microphone cable 10m, depending on a microphone clamp for the hand-held microphone and the radio remote control, power distribution, etc. requests for changes concerning the compilation of the plant or extensions are naturally possible on request! * Available as an option: extension kit DHS-1000. An additional UHF wireless microphone system with handheld transmitter. Complementary Set DTS-1000. An additional UHF wireless microphone system with bodypack transmitter and headset. A maximum of 2 UHF wireless microphone systems per PA system possible. 2 years warranty on the PA system. This does not include items which a use-related or otherwise subject to wear (eg potentiometers, faders, moving parts, laser , connectors, cables, bags, etc.), as well as damage and product defects that have been caused by the use of non-original parts, unauthorized attempts to repair or improper use / lack of care.
Technical specifications:

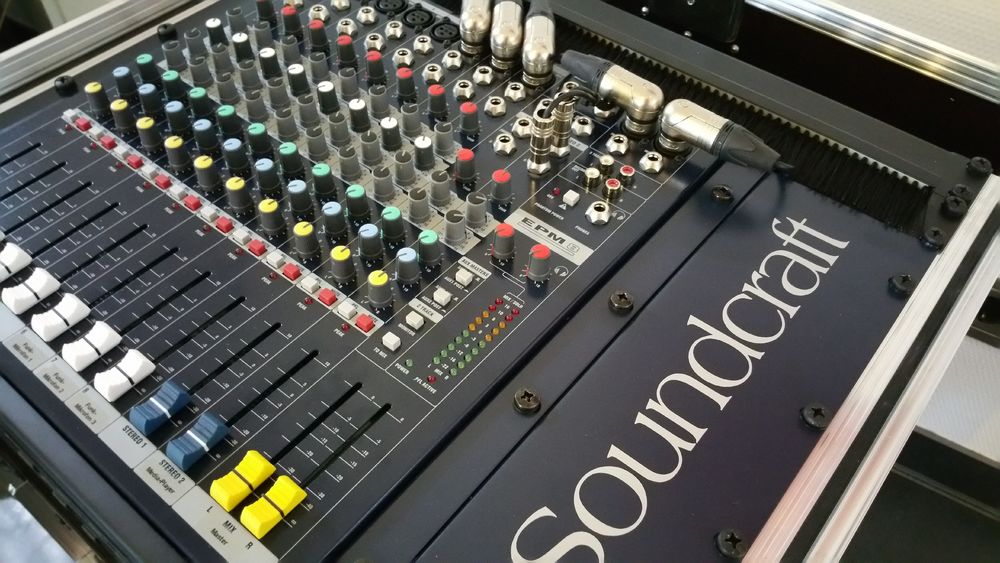

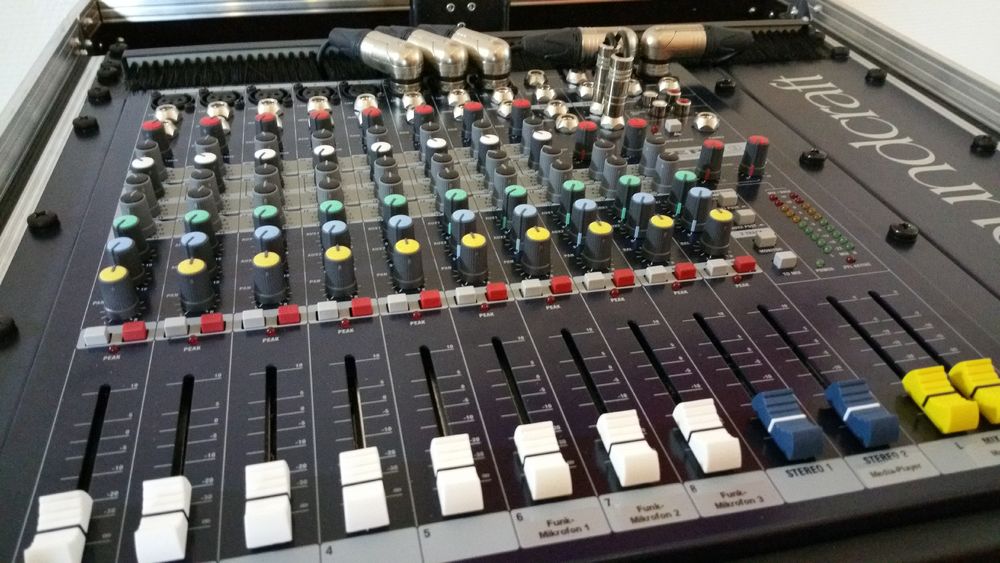

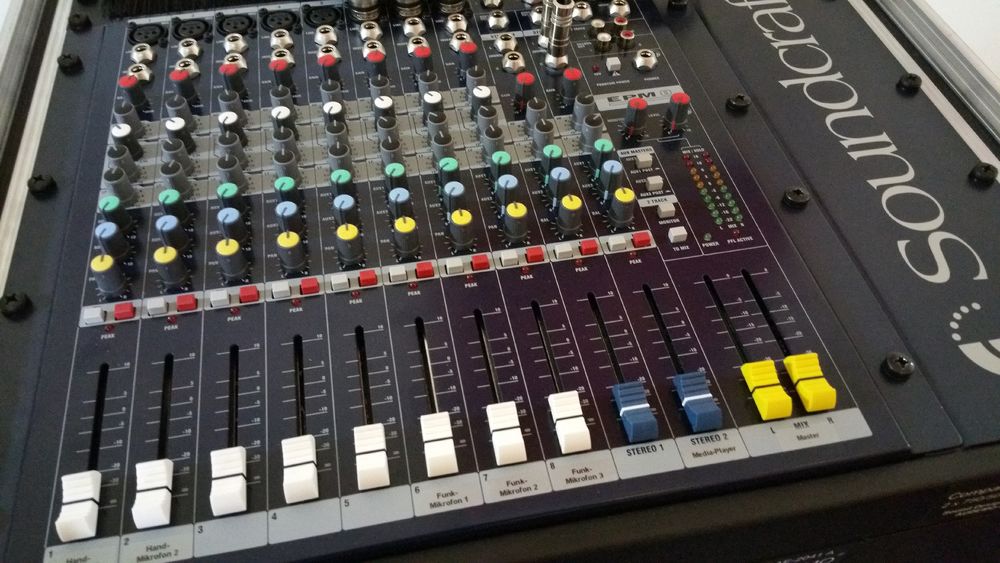

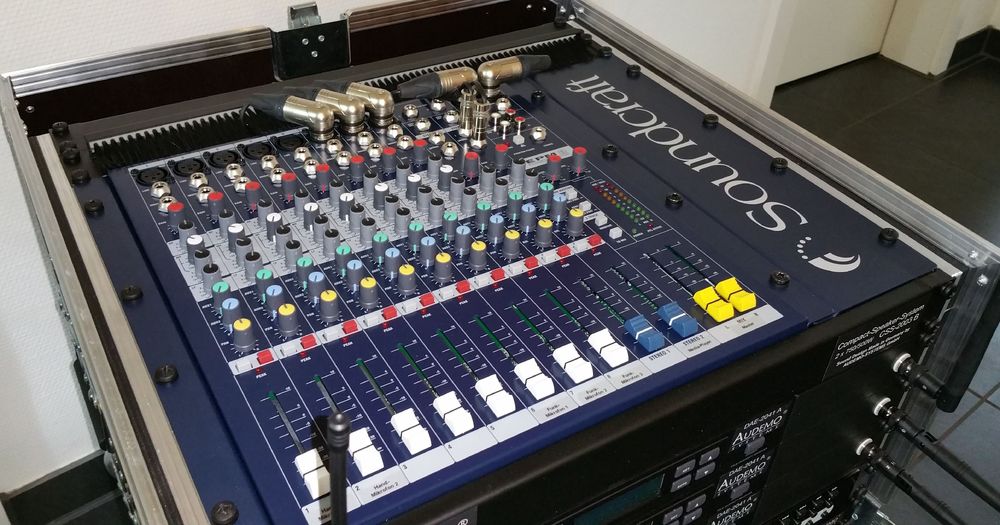

Professional mixing console EPM8:
noise (22Hz-22kHz measured bandwidth):
Mic EIN @ max. Gain, 150 O source impedance -128
dBu. MixMax, fader pulled down <-85 dBu Crosstalk (1kHz typ @.): Channel mute> 96 dB fader Cut-Off (rel +10 trademark.)> 96 dB Aux Send Regulators attenuation:

86dB

Frequency response:
Mic / Line input to any output +/- 0.5dB 20Hz - 20 kHz THD + N Noise: Mic Gain 30dB, -30 dBu Input Mix Out, Fader max. @ 1kHz <0.007% input & output impedances: Mic input 2.4 kO line input 11 KO's stereo input 100 kO outputs 75 O input & output level: Mic input max. +17 DBu level Line Input max. +30 DBu level stereo input max. +30 DBu level Mix Output max. +20 DBu level headphones (@ 200o) 300 mW EQ: EQ bands (mono input) +/- 15 dB Lo 80Hz Mid (Sweep) 14 Hz 3 kHz Hi 12 kHz Q 1.5 EQ bands (Stereo Input) + / - 15 dB Lo 80Hz Hi 12 kHz Dimensions (W x H x D): 483 x 91 x 363 mm
Weight: 4.6 kg

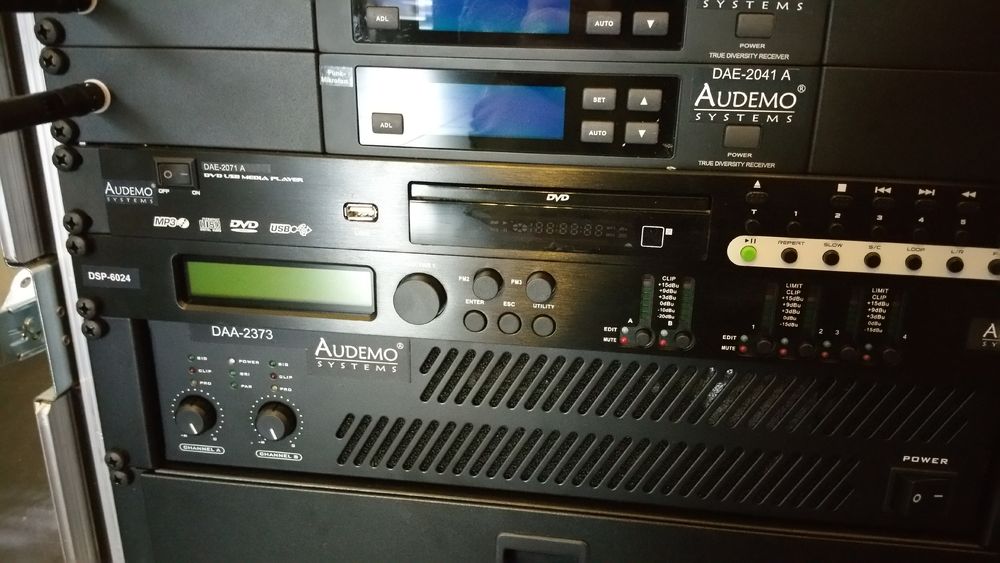

Professional power amplifiers DAA-2360:
Output power (peak / RMS): Stereo, 4: 2 × 1200/800 W
frequency response ± 1 dB: 20 H ... 20 kHz
Input sensitivity: 0.77 V / 26 dB / 1.4 dB
class : H, 2 steps
Noise Ratio:

100 dB (A-weighted)

THD, at 50% of the maximum output power: <0.03%
Inputs: XLR, 6.35-mm jack
Input Impedance: 20 k? (symmetrical), 10 k? (unbalanced)
Outputs: Speaker-type connector, screw terminals
Power consumption: 2450 W
Dimensions (W × H × D): 482 × 88 × 370 mm
Weight: 10.4 kg Professional digital sound processor DSP-24 Analog Input: ChA / ChB, sym. XLR Maximum Input Level: +20 dBu Analog Output: CH1 / CH2 / CH3 / Ch4 sym XLR connector. Maximum output level: +20 dBu Digital Signal Processing (DSP): SAM3716, 24-bit (data) x 96 bits (coeff.) A / D converter: AKM5392, 24-bit D / A converter: AKM4396, 24-bit sampling rate: 48 kHz S / PDIF digital stereo input: 32 kHz, 44.1 kHz and 48 kHz sources usable S / N ratio: 110 dBA THD + N: 0.005% Frequency Response (Bypass): 20 Hz to 20 kHz (+/- 1 dB) Remote control: USB, RS485 Dimensions (W × H × D): 437 x 44 x 300 mm
Weight: 3.7 kg
DVD / CD / MP3, USB, SD card player DMP-1001 A with IR Remote DMP-1002 A
Standby power consumption: <1 W
USB input: max. 100 mA
Batteries for remote control: 2 x 1.5V AAA / LR03
color TV system: PAL / NTSC
Laser power: Laser Class 1
Compatible disk formats: DVD (Digital Versatile Disk), DVD + R, DVD + RW,
DVD-R, DVD-RW , VCD, SVCD, CD-Audio, CD-R,
CD-RW, JPEG CD, MP3-CD, WMA, XviD, DivX
Compatible memory cards: SD cards, multimedia cards, Memory Sticks, Memory Stick PRO
Video: Video formats 4: 3/16: 9
Decoder MPEG 2
Audio: MPEG decoder; Dolby Digital (AC-3)
dts only possible with additional external decoder
Digital analogue converter: 24 Bit / 96 kHz
Dimensions (W × H × D): 437 x 44 x 215 mm
Weight: 2.3 kg
Professional UHF wireless microphone system with handheld transmitter DHS-1000
output: XLR connectors, balanced
6.35-mm jack, unbalanced
Carrier frequency: UHF band (600 MH900 MHz)
Number of channels: 208
Switching bandwidth: 25 MHz
Modulation type: Frequency Modulation (FM)
Sensitivity : 102 dBm
AF frequency response: 50 z15 kHz (± 3 dB)
Distortion: <0.8%
Signal to Noise Ratio:

105 dB (A)

Power supply: 12 V (DC)
Dimensions (W × H × D, excluding antennas): 212 × 44 × 160 mm
Weight: 0.9 kg Professional dynamic handheld microphone DM-2000 X terminal: XLR Transducer principle: dynamic
Polar pattern: supercardioid
Field Sensitivity [mV / Pa]: 0.9
Field Sensitivity [dB re 1V / Pa] -61.3
Equivalent noise level [dB (A)]: 36.0
noise ratio [dB (A)]: 58.0
maximum sound pressure [dB SPL @ 1 % THD]: 136
Impedance [Ohm @ 1 kHz]: 585

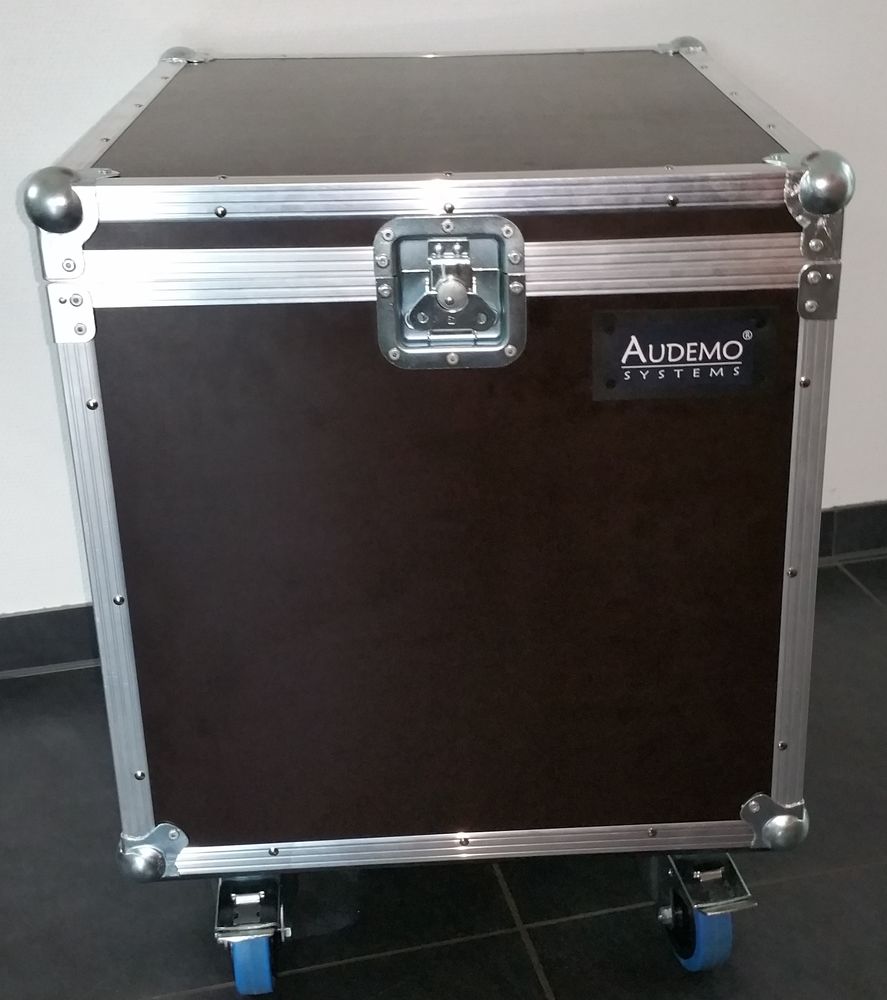

Frequency response 0.1m -10dB: 30-15000 Hz Professional angle Flightcase WFC 2010 A 19 inch, 10U, with skateboard
Features:
Bonnet, front, top and rear
variable rack strip system with rubber front and rear 10U
stepless Rackschiene with rubber strip above 10U (45cm)
from 7mm birch multiplex
25 x 25mm aluminum angle
4x folding handle
6x sprung butterfly locks
medium steel corners
Mounting depth: 45cm
4x 100mm blue wheels castors, 2x braked
Dimensions (WxHxD): 550 x 705 x 635 mm
Weight: 24.3 kg

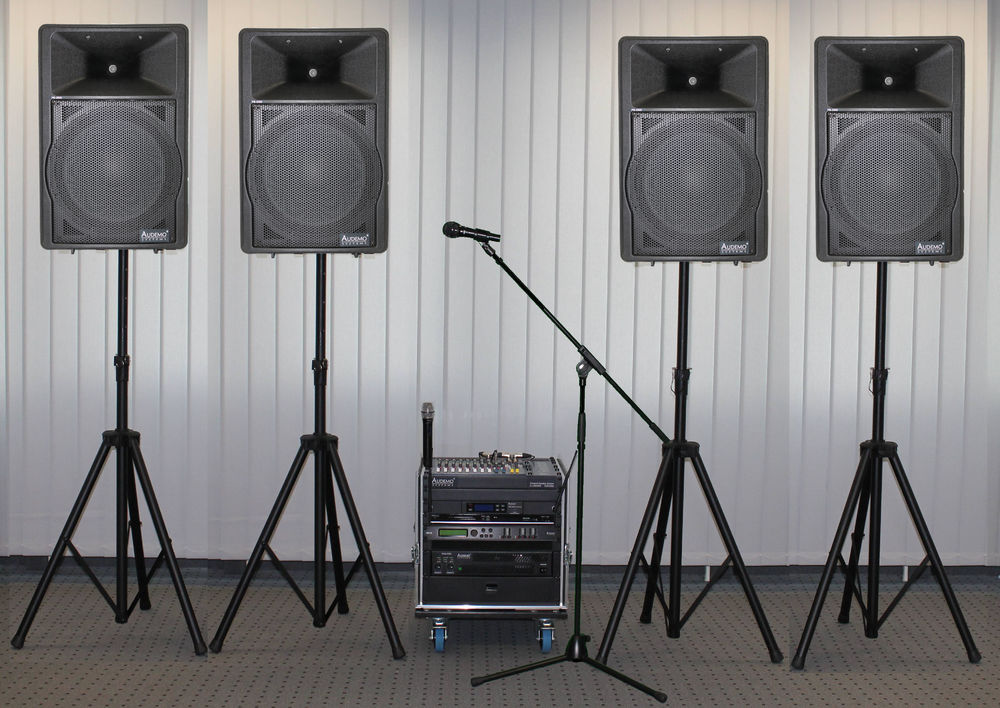

Professional 2-way speaker PB-1500 with 15-inch / 1.4-inch mounting
load capacity 300 W RMS, 600 W PEAK
Impedance: 8 ohms
Frequency response: 47 Hz to 19 kHz
Sensitivity: 96 dB SPL @ 1W / 1m
SPL (max.): 124dB
Woofer: 15-inch heavy-duty chassis
means HF Driver: 1-inch, 34mm titanium compression driver
overload protection: Internal high frequency driver
Tripod Mount: tripod base 36 mm
Dimensions (W x H x D): 453 x 728 x 374 mm
Weight: 22.5 kg
Aluminium Speaker Stand ST-200
Permissible centric load capacity: 30 kg
Minimum Support Height: 1300 mm
Maximum support height: 2000 mm
pole mount: 35mm diameter
Weight: 2.16 kg
Transport length when folded: 112 cm
Color: Black
