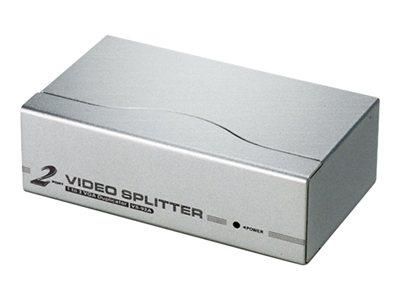

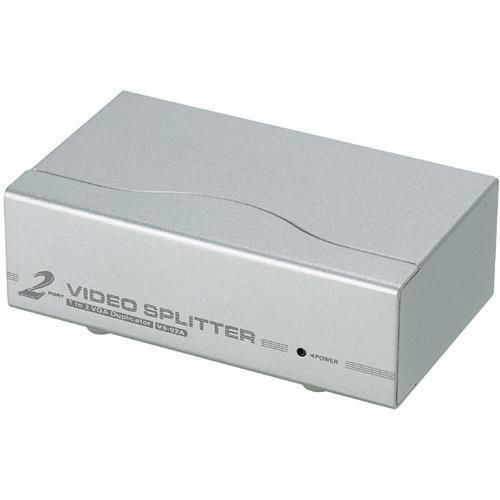

Aten VS92A VGA splitter 350 MHz 2-way content_copy

The Video Separator is a signal booster and splitter that is used to take video input from a single source and direct it to two video outputs for monitors using analog signals. The signal boost obtained by using the VS92A allows you to not only split the signal but to extend the distance so that you can send the signal to about 210 feet. (Your average VGA card, combined with a standard VGA cable, can send a clear VGA signal approximately 25 feet.) This makes public broadcasts from a single computer very feasible. If you want to display the same information on many monitors at once, such as in a classroom environment, or at a demonstration, this product performs incredibly well.Bandwidth is the term that is used to describe the signal capacity of these units. In general, bandwidth is directly proportional to the amount of data transmitted per unit of time. Specifically, in analog signals, bandwidth is the difference between the highest-frequency and the lowest frequency components of a signal. For example a voice telephone signal has a bandwidth of 3000 Hz (or 3000 cycles per second), where an analog TV signal has a bandwidth of approximately 6MHz (or 6 million cycles per second) which is approximately 2000 times greater than a simple voice phone call. These units have a bandwidth of 250MHz (which is 250 million cycles per second) and that over 40 times greater than a simple TV signal. This huge bandwidth allows for the transmission of large amounts of information at a very high rate of speed, and thus you can use the very high-resolution setting of 1920 x 1440 in 24 or 32-bit true color mode.

Features
Product colour	Silver
Housing material	Metal
Maximum resolution	1920 x 1440 pixels
Maximum operating distance	30 m
Maximum refresh rate	60 Hz
Bandwidth	350 MHz
LED indicators	Power
Logistics data
Master (outer) case net weight	9.62 kg
Harmonized System (HS) code	85176990
Master (outer) case width	315 mm
Master (outer) case length	490 mm
Master (outer) case height	338 mm
Master (outer) case gross weight	13.2 kg
Products per master (outer) case	20 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging content
Manual
AC adapter included
Packaging data
Quantity per pack	1 pc(s)
Package width	59 mm
Package depth	239 mm
Package height	160 mm
Package weight	130 g
Ports & interfaces
Video port type	VGA
Video out	2x VGA
Video ports quantity	3
DC-in jack
Power
AC input voltage	9 V
Power consumption (typical)	1.15 W
Weight & dimensions
Width	75.1 mm
Depth	130 mm
Height	44 mm
Weight	481 g

---
