ATEN VS482 Dual View HDMI Switch with 4 Ports
|
182,29 EUR |
|
|
( 216,93 EUR incl. VAT ) ≈ £152.21 | ≈ $204.35 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 687326 |
| Mfg Part No: | VS482-AT-G |
| UPC/EAN: | 4710423777750 |
| Weight: | 2.918 kg |
Product information for Aten VS482-AT-G:
Device Type: Video / audio switch Enclosure Type: Desktop, rack-mountable, Max Resolution: 1920 x 1200 / 1080p, features: - Screen, HDCP compatible, 3D TV support Status Indicators: Power, selection, interfaces: Audio / video: 4 x HDMI output - HDMI Type A 19 pin | Serial: 1 x RS-232 - D-Sub (DB-9), 9-pin - Management | Audio / Video: 2 x HDMI input - HDMI Type A 19 pin | Audio: 1 x SPDIF output - TOSLINK | Audio: 1 x line-out - RCA x 2 | Remote Control: 1 x mini-phone 3.5 mm Power Device: Power adapter - external, Power Consumption Operation: 7 Watt, width: 43.7 cm, depth: 15.9 cm, height: 5.5 cm, weight: 2.2 kg, Accessories: Wireless remote control, Rack Mounting Kit: Included, Standards: RoHS, Min Operating Temperature: 0 ° C, Max. Operating temperature: 50 ° C, Humidity Range Operating: 0 - 80% (non-condensing), Min. Storage temperature: -20 ° C, Max. Storage temperature: 60 ° C
| Features | |
| Material | Metal |
| Product colour | Black |
| Maximum operating distance | 15 m |
| Supported video modes | 480p, 720p, 1080i, 1080p |
| Bandwidth | 6.75 Gbit/s |
| Maximum resolution | 1920 x 1200 pixels |
| HD type | Full HD |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Input impedance | 100 Ω |
| Output impedance | 100 Ω |
| HDCP version | 1.4 |
| Consumer Electronics Control (CEC) support | |
| Extended display identification data (EDID) | |
| HDCP | |
| Rack mounting | |
| 3D | |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 9.6 kg |
| Products per master (outer) case | 3 pc(s) |
| Master (outer) case net weight | 7.11 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Mounting kit | |
| Remote control included | |
| User guide | |
| AC adapter included | |
| Packaging data | |
| Package width | 116 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 2.93 kg |

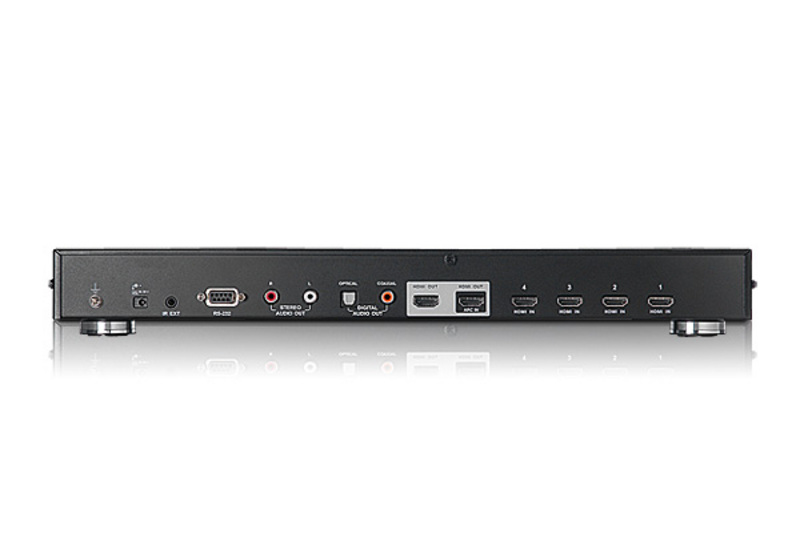

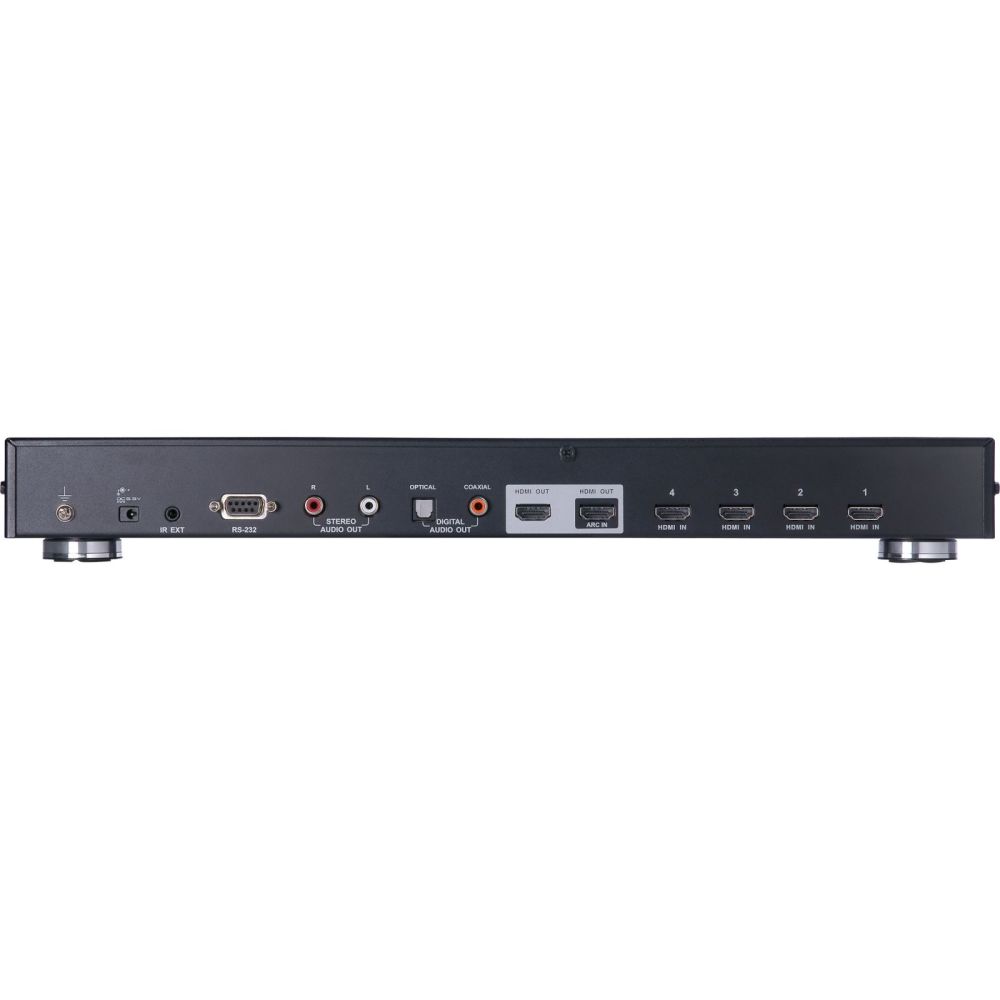

| Ports & interfaces | |
| Video port type | HDMI |
| HDMI ports quantity | 6 |
| HDMI in | 4 |
| Number of HDMI outputs | 2 |
| Audio (L/R) out | 1 |
| Digital audio coaxial out | 1 |
| RS-232 ports | 1 |
| DC-in jack | |
| Power | |
| Power consumption (typical) | 5.74 W |
| Technical data | |
| Number of inputs | 4 |
| Length packaging | 0.540m |
| Packaging volume | 0.0146m³ |
| Article type | Switch |
| Width packaging | 0.116m |
| Weight | 2.918kg |
| Height packaging | 0.233m |
| Interface | HDMI |
| Weight & dimensions | |
| Width | 158.6 mm |
| Depth | 437.2 mm |
| Height | 44 mm |
| Weight | 2.37 kg |
