Aten VS162 Video splitter, DVI/audio, 1x input, 2x output content_copy

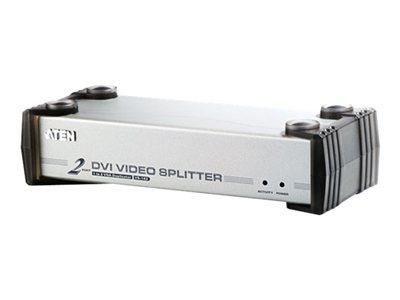

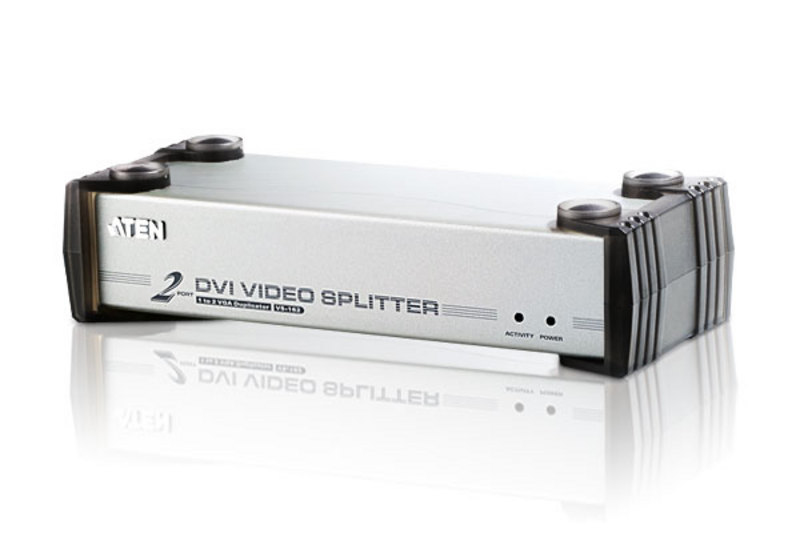

The Aten VS162 is a video/audio splitter with two outputs, distributing DVI video and audio signals from one input to two separate outputs. The device is designed for use in office environments, classrooms, presentation rooms, or media areas where content must be transmitted simultaneously to multiple monitors or projectors. It enables the connection of a computer with a DVI graphics output to two DVI-compatible display devices, also transmitting audio signals. The maximum resolution is 1920 x 1200 pixels, equivalent to Full HD resolution, ensuring clear and detailed display. Signals are transmitted via DVI-I connectors, which support both digital and analog signals, ensuring high compatibility with various monitors and projectors.

Applications

The VS162 is particularly suitable for scenarios where information must be transmitted simultaneously to multiple recipients. This includes public information displays (e.g., stock prices, flight or train departure times), school and university events, conferences, or training environments. Cascadability up to three levels allows distribution to up to eight outputs, making the device suitable for larger applications as well. The maximum cable length between device and display is 5 meters, sufficient for typical office and classroom setups.

Functions and Features in Detail

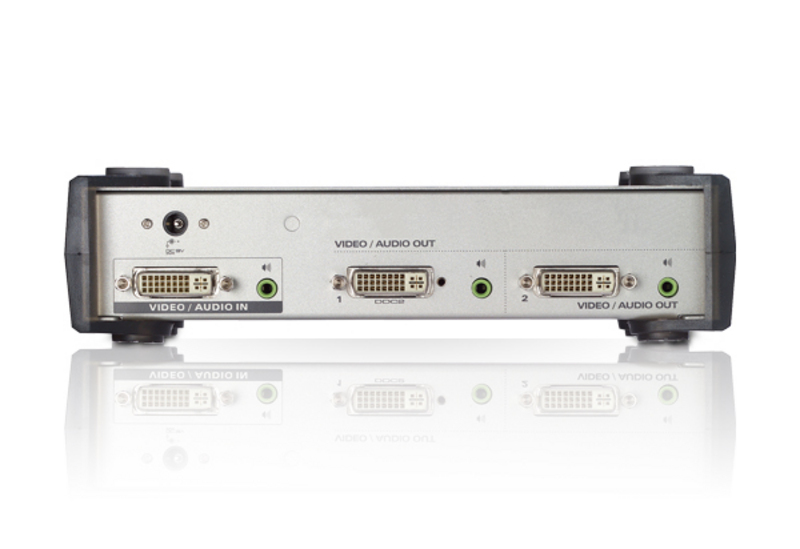

The device features one input for DVI video and one audio input via a Mini-Phone stereo 3.5 mm jack. The two outputs each deliver an identical DVI video and audio signal. HDCP compatibility ensures playback of protected content, as required by Blu-ray players or streaming services. Support for DDC/CI (Display Data Channel/Command Interface) enables control of settings such as brightness, contrast, and color tone via the graphics card, provided the monitor supports it. LED indicators signal operational status and connection. The device is HDCP-compatible and supports operating systems such as Windows 2000, Windows XP, Linux, Mac, and SunSoft Solaris.

Technology Explained Simply

The splitter amplifies and distributes the incoming signal to prevent losses when transmitting to two outputs. A bandwidth of 225 MHz ensures stable transmission even at high resolutions. Power supply is via an external power adapter with an input voltage of 5.3 V DC, with power consumption in standard operation at 2.36 W. The housing is made of metal, providing good heat dissipation and mechanical stability. Dimensions are 210 mm (length) × 88 mm (width) × 55.5 mm (height), and weight is 725 g. The device is designed for desktop use and can be installed quickly.

Compatibility and Accessories

The VS162 is compatible with DVI digital and DVI analog signals and supports the DDWG standard for DVI-compatible monitors. Cascadability up to three levels allows expansion of the number of outputs. Audio signals are transmitted via 3.5 mm jacks, enabling connection to speakers or headphones.

Installation and Mounting

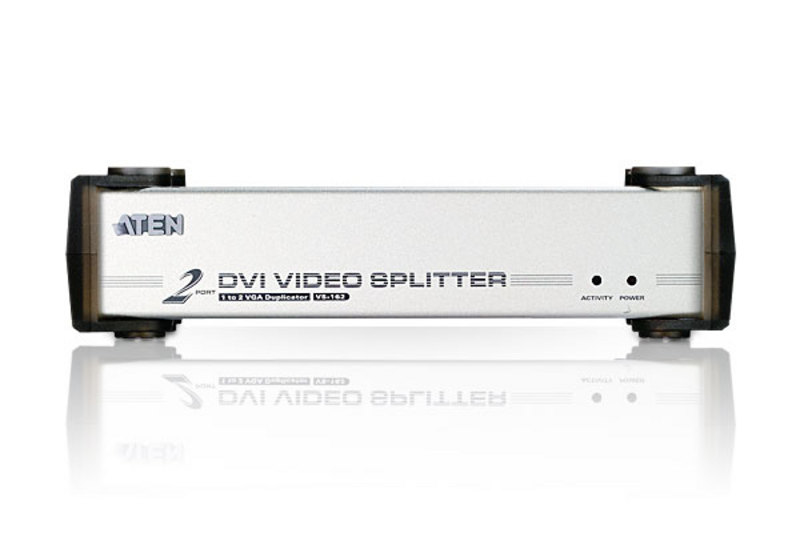

Installation takes only a few minutes. The device is placed between the signal source (e.g., computer) and the display devices. Connections are made via DVI cables for video and 3.5 mm cables for audio. The external power adapter is connected to the power outlet. LED indicators confirm correct connection. Operating temperature ranges from 0 °C to 50 °C, and operating humidity is 0 to 80 %. The device is intended for indoor use.

Operational Advantages

The VS162 provides reliable signal distribution with high resolution and integrated audio. Cascadability enhances flexibility in larger installations. DDC/CI support enables centralized control of display settings. The robust metal housing ensures long service life. Simple installation and low power consumption make the device a practical solution for various applications.

Note: Batteries are not included in the delivery scope.

Features
Product colour	Black, Silver
Housing material	Metal
Maximum resolution	1920 x 1200 pixels
HD type	Full HD
Maximum operating distance	5 m
Bandwidth	225 MHz
Windows operating systems supported	Windows 2000, Windows XP
HDCP
LED indicators
Mac operating systems supported
Logistics data
Master (outer) case net weight	3.62 kg
Harmonized System (HS) code	85176990
Master (outer) case width	300 mm
Master (outer) case length	336 mm
Master (outer) case height	194 mm
Master (outer) case gross weight	5 kg
Products per master (outer) case	5 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Packaging content
Manual
AC adapter included
Packaging data
Quantity per pack	1 pc(s)
Package width	100 mm
Package depth	283 mm
Package height	173 mm
Package weight	920 g
Ports & interfaces
Video port type	DVI
Video out	2x DVI-I
Video ports quantity	3
Audio ports quantity	3
DC-in jack
Power
AC input voltage	5.3 V
Power consumption (typical)	2.36 W
Technical data
Outputs	DVI-I socket x2
Height packaging	0.173m
Number of inputs	2
Length packaging	0.283m
Weight	0.920kg
Packaging volume	0.0049m³
Interface	DVI
Width packaging	0.100m
Weight & dimensions
Width	88 mm
Depth	210 mm
Height	55.5 mm
Weight	725 g

---
