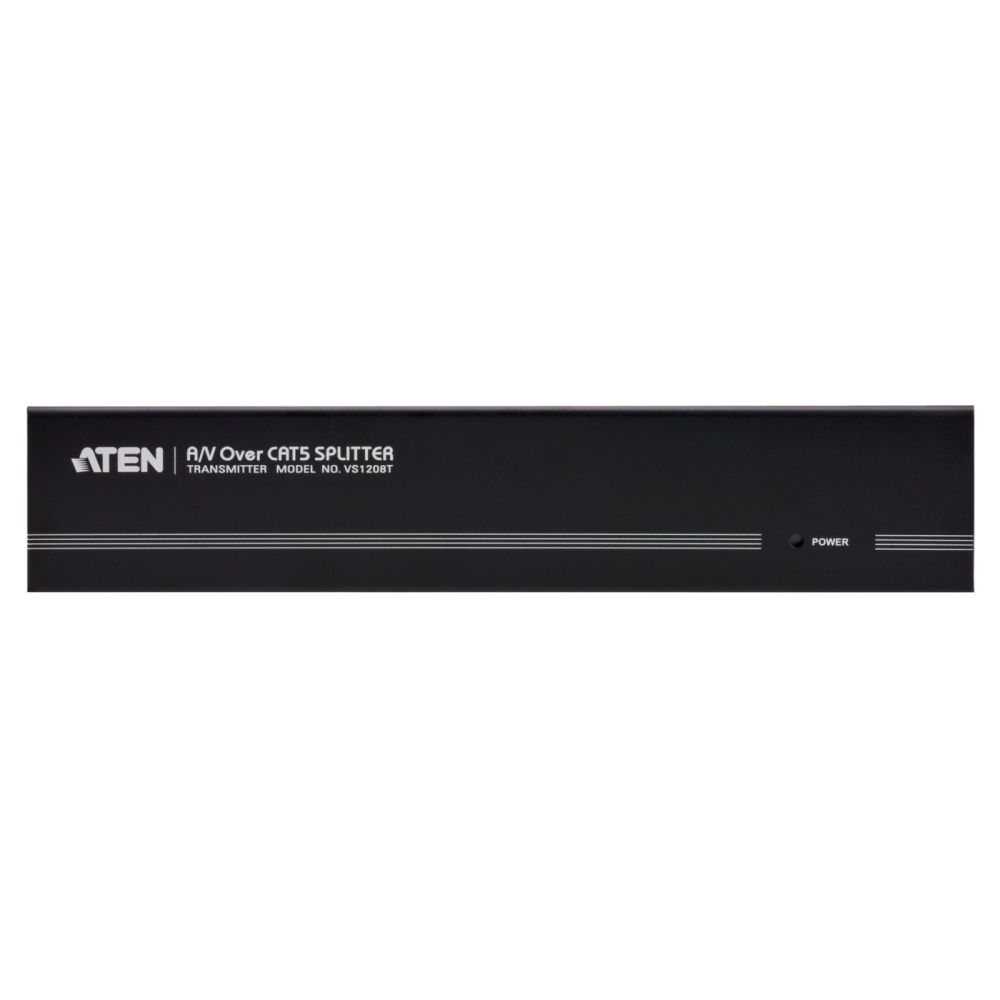

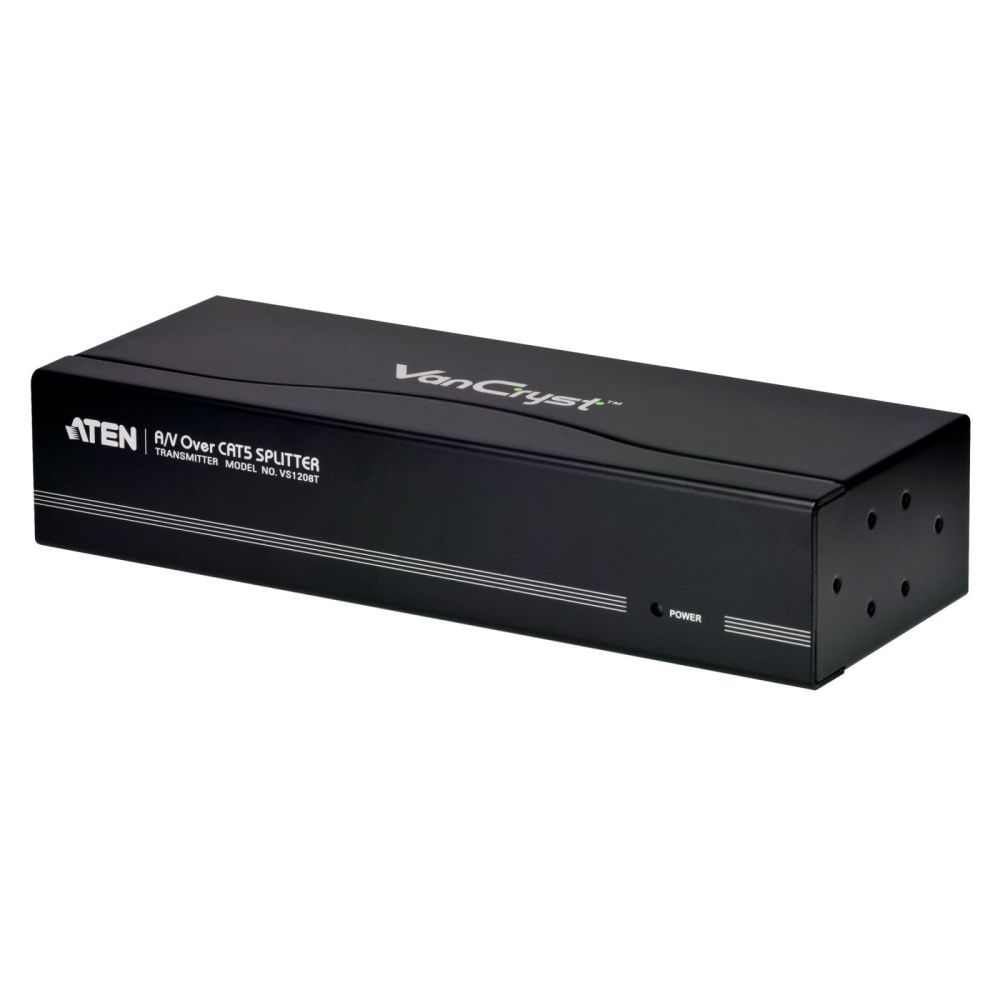

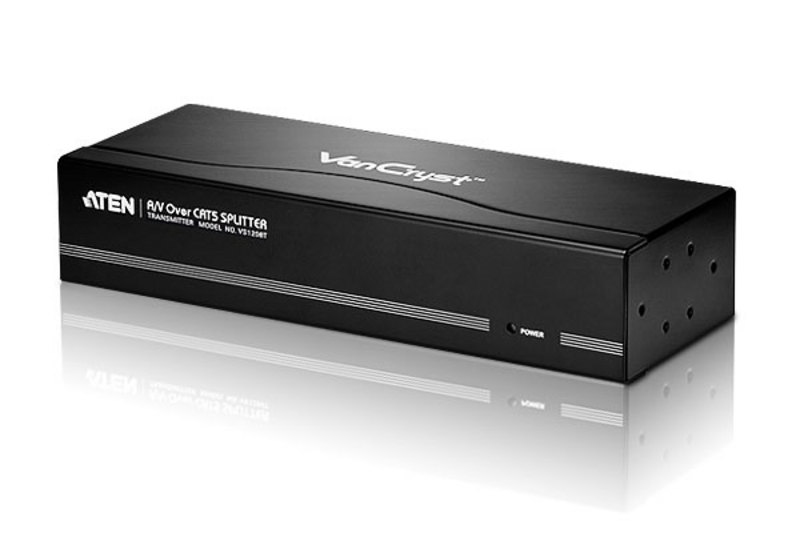

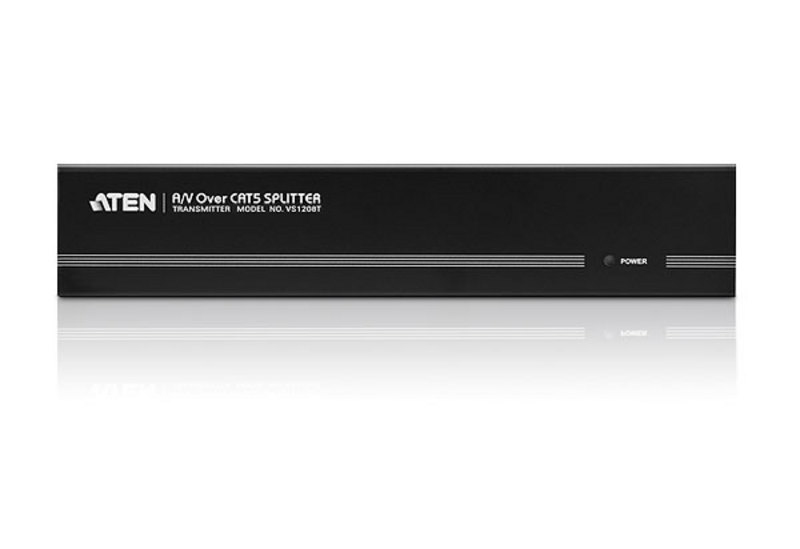

ATEN Video Splitter VS1208T-AT-G content_copy

8-Port A/V Over Cat 5 Splitter The VS1208T A/V Over Cat 5 Splitter is a cost-effective and efficient solution for sending high quality audio and video content to multiple displays. Connect to an ATEN A/V Over Cat 5 Receiver* via Cat 5e cable and the displays can be located up to 300 m (1000 ft) away from the single input source.
The VS1208T A/V Over Cat 5e Splitter is ideal for any professional A/V installation that requires multimedia content to delivered to multiple destinations.

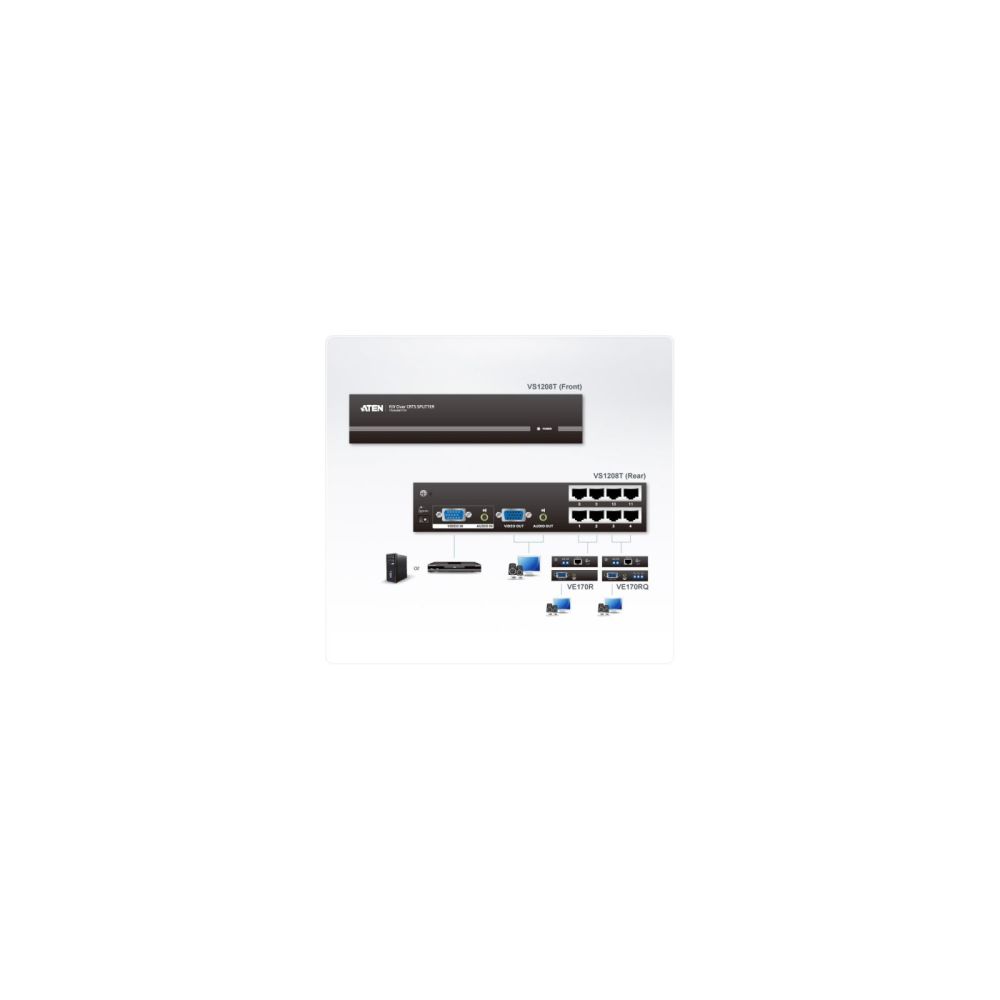

Compatible Receiver Units: VE170R A/V Over Cat 5e Receiver, VE170RQ A/V Over Cat 5 Receiver with Deskew
One audio/video input to 8 audio/video outputs via Cat 5e cable
Supports local display + 8 remote displays
Supports up to 225 MHz bandwidth
Uses Cat 5e cable to extend displays up to 300 m
Superior video quality up to 1920 x 1200@60Hz
Audio enabled (mono)
Built-in 8KV/15KV ESD protection
Rack-mountable
Package Content: 1x VS1208T A/V Over Cat 5 Splitter, 1x Power Adapter, 1x Rack Mount Kit, 1x Foot Pad Set (4 pcs), 1x Grounding Wire, 1x User Guide

Features
Product colour	Black
Housing material	Metal
Maximum resolution	1920 x 1200 pixels
Maximum operating distance	300 m
Maximum refresh rate	60 Hz
Bandwidth	225 MHz
Number of displays supported	8
Rack mounting
LED indicators
Logistics data
Master (outer) case net weight	5.1 kg
Harmonized System (HS) code	85176990
Master (outer) case width	250 mm
Master (outer) case length	325 mm
Master (outer) case height	175 mm
Master (outer) case gross weight	6.1 kg
Products per master (outer) case	5 pc(s)
Network
Cable types supported	Cat5, Cat5e
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Packaging content
Manual
AC adapter included
Packaging data
Quantity per pack	1 pc(s)
Package width	59 mm
Package depth	239 mm
Package height	160 mm
Package weight	1.13 kg

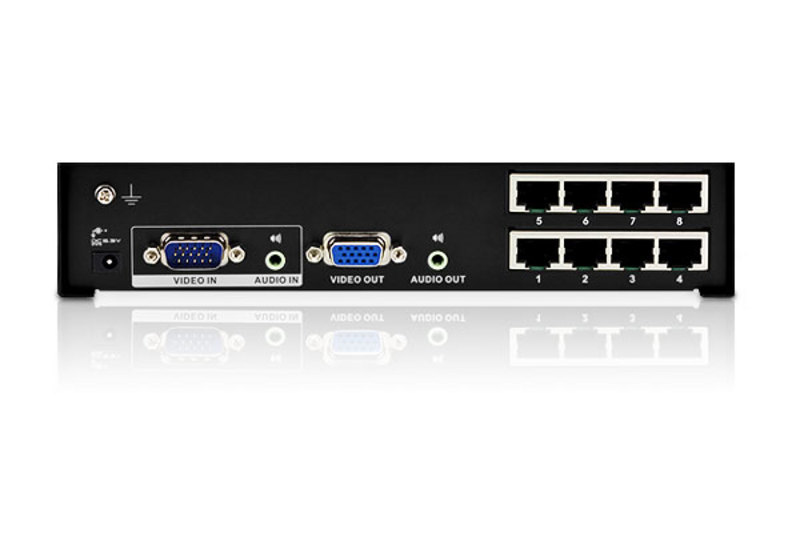

Ports & interfaces
Video port type	VGA
Video out	VGA
Ethernet LAN (RJ-45) ports	8
Video ports quantity	2
Audio ports quantity	2
DC-in jack
Power
AC input voltage	5.3 V
Power consumption (typical)	7.04 W
Technical data
Width packaging	0.059m
Packaging volume	0.0023m³
Interface	VGA, Audio
Height packaging	0.160m
Outputs	VGA socket x1, RJ45 socket x8
Number of inputs	8
Length packaging	0.239m
Weight	1.130kg
Weight & dimensions
Width	75.1 mm
Depth	200 mm
Height	44 mm
Weight	1.02 kg

---
