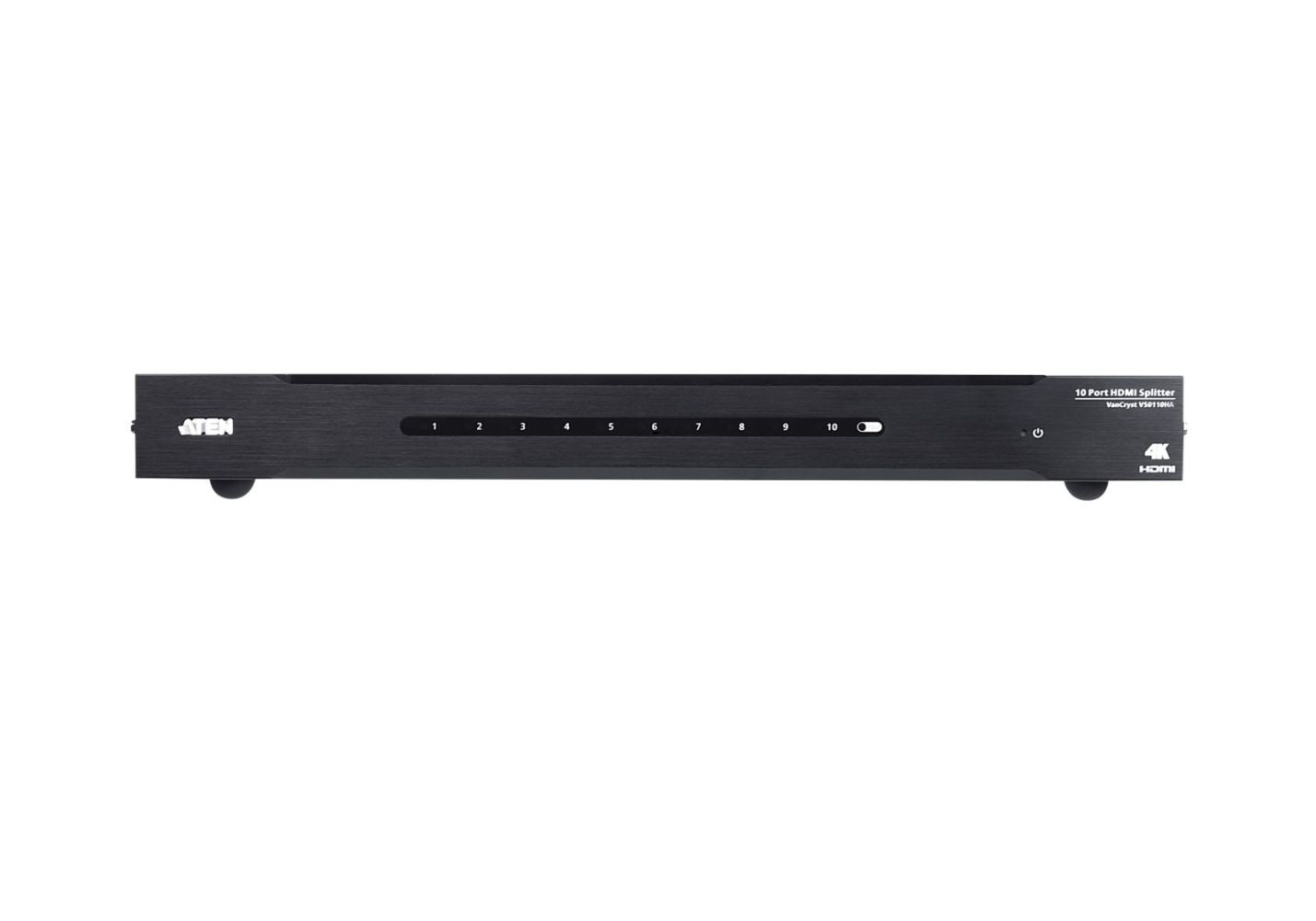

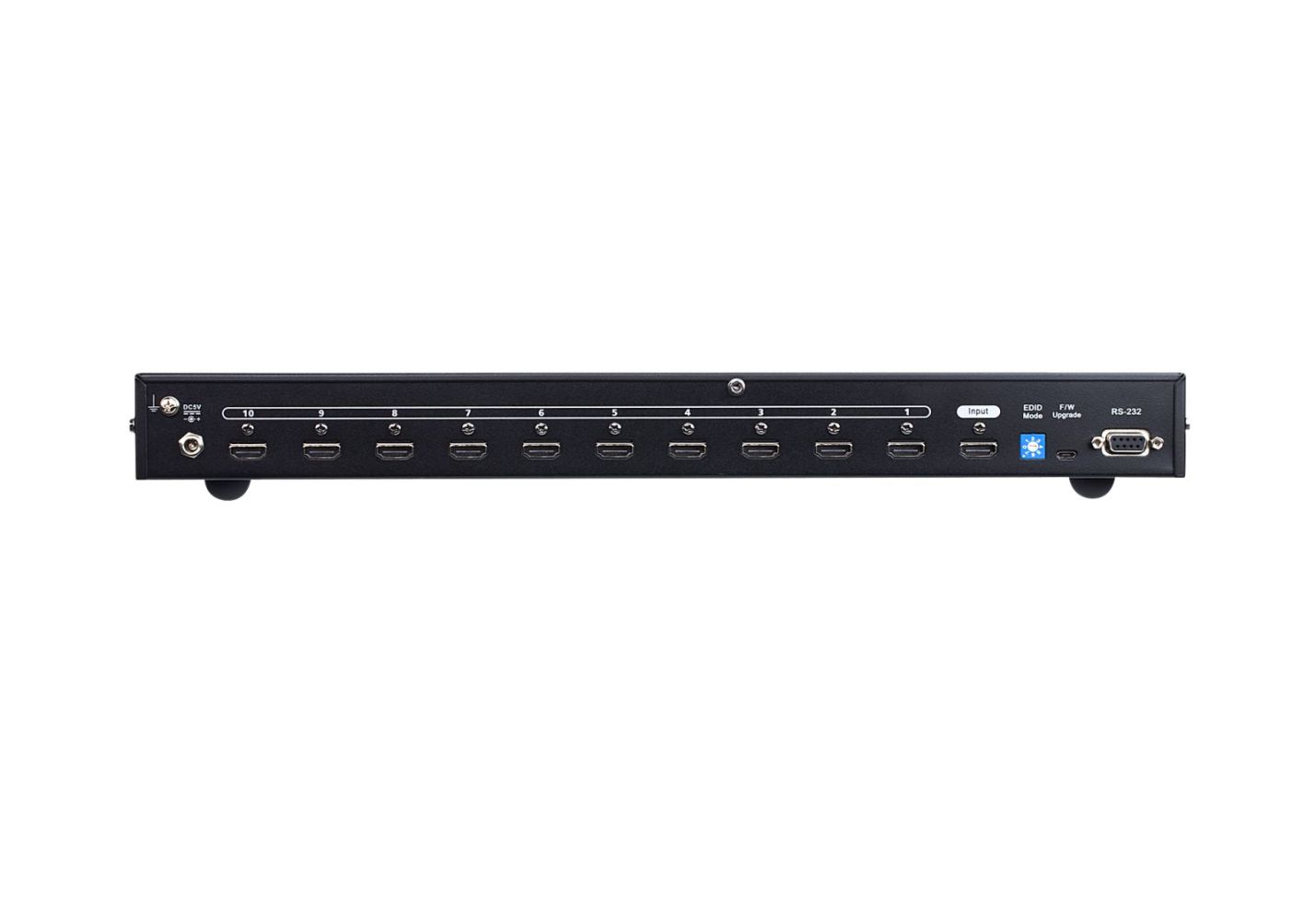

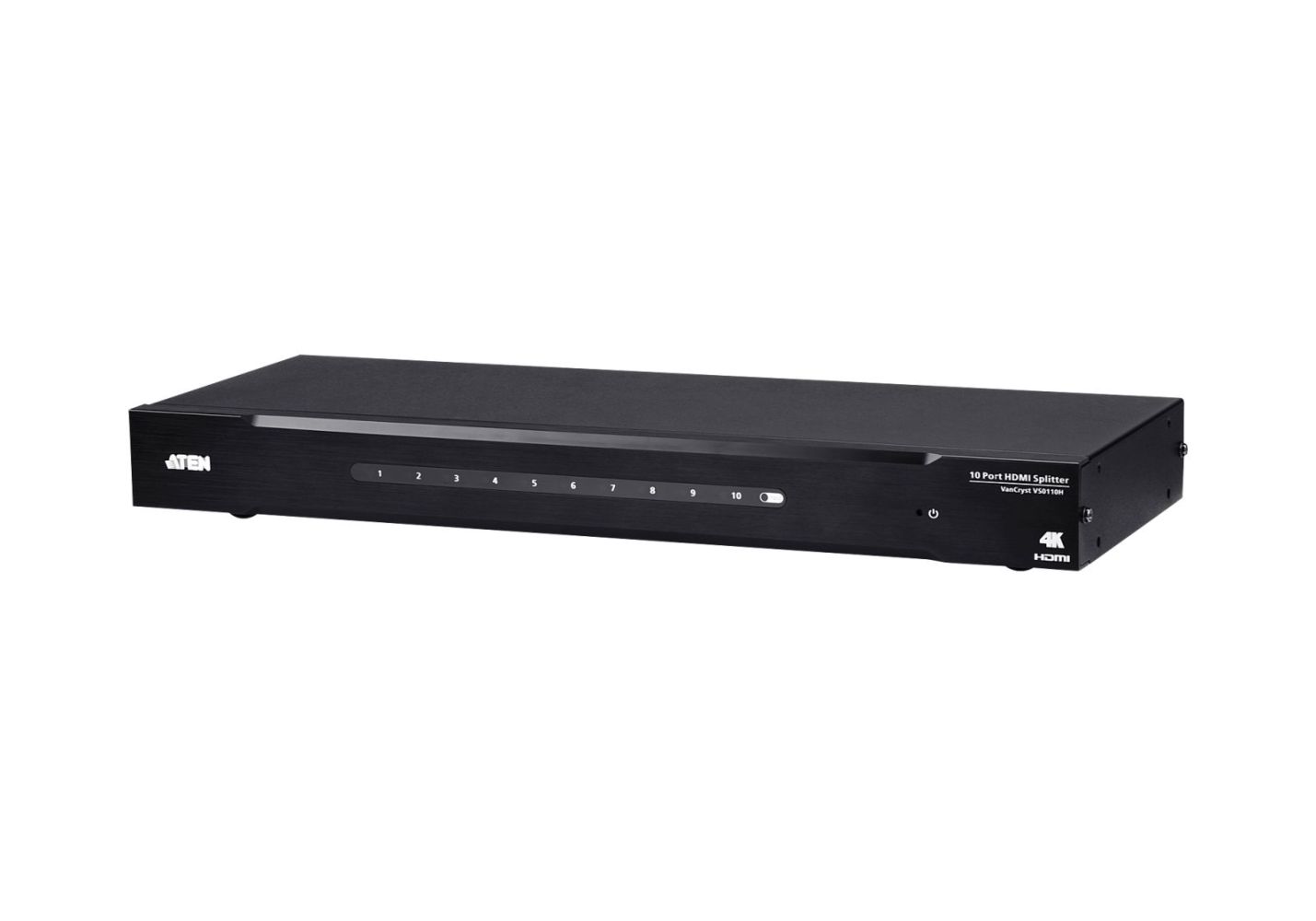

ATEN VS0110HA HDMI Splitter 4K 10 Ports content_copy

The VS0110HA 4K HDMI Splitter is a perfect solution for applications that require sending one source of high-definition 4K video to ten displays at the same time. The HDMI interface caters to most mainstream sources and sinks, such as DVD players, satellite set-top boxes, and any HDMI displays. Featuring ATEN EDID technology, the VS0110HA guarantees continuous EDID communication with connected devices and maintains optimum video outputs.
The VS0110HA 4K HDMI Splitter is HDCP (High-bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.Connects one HDMI source to up to ten HDMI displays at the same time
HDMI (3D, Deep color, 4K); HDCP 1.4 compliant
Superior video quality – up to 4K resolutions (4096 x 2160 @ 60Hz; 4:2:0)
Long distance transmission from source to output - up to 15 m
Built-in bi-directional RS-232 serial control port for high-end system control
Clear LED indication of device status
EDID Expert™ – Selects optimum EDID settings for smooth power-up, high quality display and use of the best resolution across different screens
Plug-and-play
Rack-mountable (1U design)
Package Contents:1x VS0110HA 10-Port 4K HDMI Splitter
1x Power Adapter
1x Mounting Kit
1x User Instructions
LEDs
Power1 x LED (Green)
Input1 x LED (Green)
Video Output10 x LED (Green)
Video Input
Interfaces1 x HDMI Type A Female (Black)
Impedance100 Ohms
Max. Distance5m (at 4K resolution)
Video Output
Interfaces10 x HDMI Type A Female (Black)
Impedance100 Ohms
Max. Distance10m (at 4K resolution)
Video
Max. Data Rate10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock340 MHz
ComplianceHDMI 1.4 (3D, Deep Color, 4K);
HDCP 1.4 Compatible
Max. ResolutionUp to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Control
RS-232Connector: 1 x DB-9 Female (Black)
Baud Rate: 19200 / Data Bits: 8 / Stop Bits:1 / Parity: No / Flow Control: No
EDID SettingsEDID Switch x1
EDID Mode: Default (1080p) / Port 1 / Auto
Connectors
Power1 x DC Jack
USB Port1 x Micro USB (FW upgrade)
Power ConsumptionDC5V:4.34W:20BTU
Environmental
Operating Temperature0 - 40 °C
Storage Temperature-20 - 60 °C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight2.10 kg ( 4.63 lb )
Dimensions (L x W x H)43.72 x 15.78 x 4.40 cm
(17.21 x 6.21 x 1.73 in.)
Carton Lot3 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Features
Product colour	Black
Housing material	Metal
Maximum resolution	4096 x 2160 pixels
HD type	4K Ultra HD
Maximum operating distance	15 m
Bandwidth	340 MHz
HDCP version	1.4
LED indicators	Link, Power
Certification	FCC, CE
3D
Rack mounting
HDCP
Plug and Play
Logistics data
Master (outer) case net weight	6.96 kg
Harmonized System (HS) code	85176990
Master (outer) case width	375 mm
Master (outer) case length	565 mm
Master (outer) case height	258 mm
Master (outer) case gross weight	9.21 kg
Products per master (outer) case	3 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging content
Manual
AC adapter included
Packaging data
Package width	116 mm
Package depth	540 mm
Package height	233 mm
Package weight	2.81 kg
Ports & interfaces
Video port type	HDMI
Video out	10x HDMI
HDMI version	1.4
Video ports quantity	11
Serial ports quantity	1
DC-in jack
Power
AC input voltage	5 V
Power consumption (typical)	4.34 W
Technical data
Width packaging	0.116m
Height packaging	0.233m
Packaging volume	0.0146m³
Number of inputs	10
Length packaging	0.540m
Weight	2.775kg
Technical details
Compliance certificates	RoHS
Weight & dimensions
Width	157.8 mm
Depth	437.2 mm
Height	44 mm
Weight	2.32 kg

---
