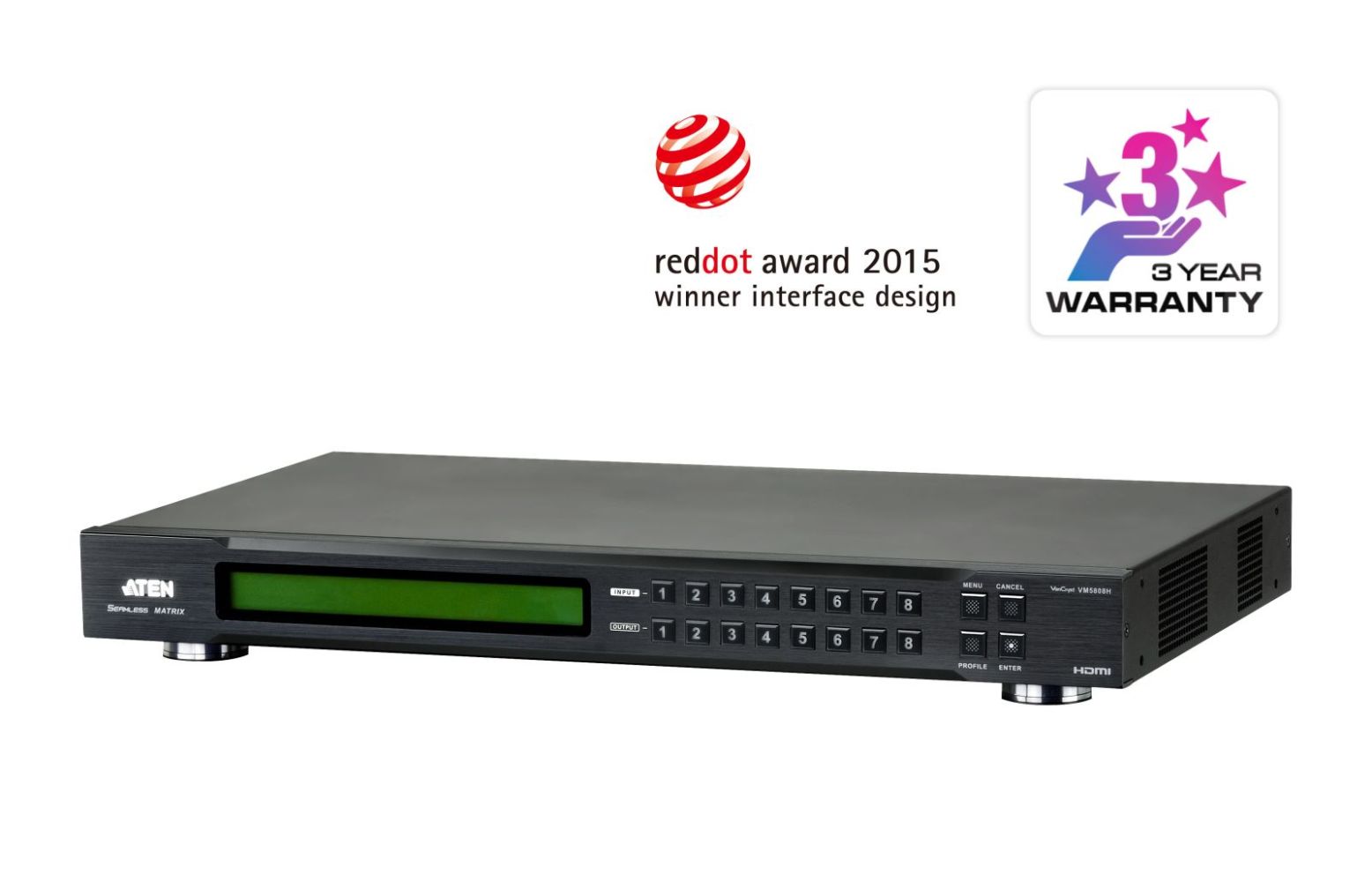

ATEN 8*8 HDMI Matrix Switch with Scaler & Advanced EDID feature content_copy

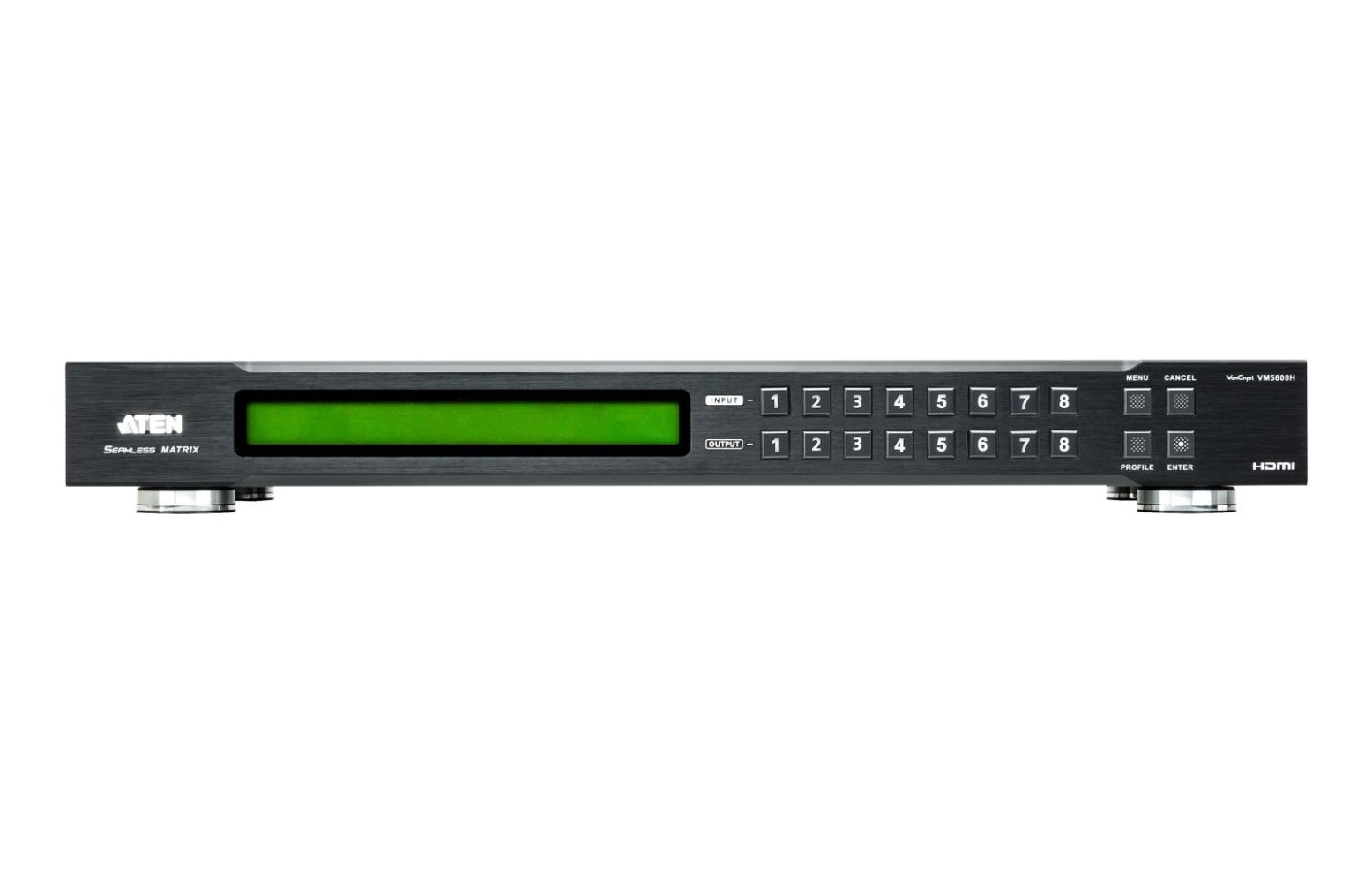

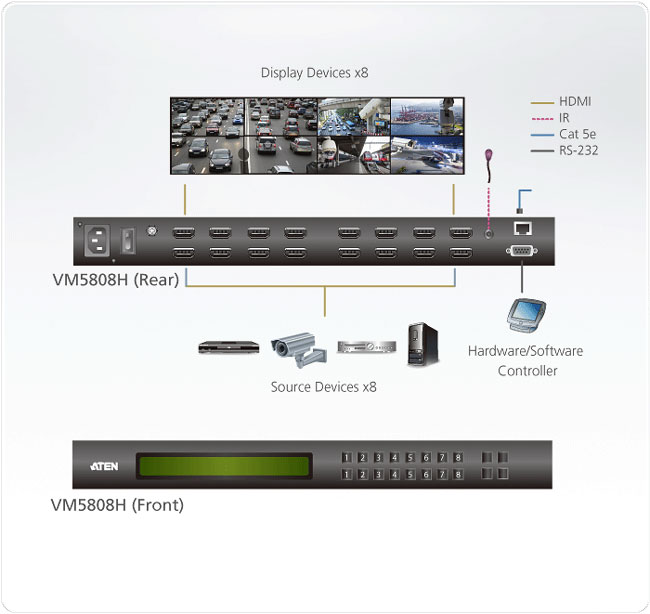

Order based, non-cancellable * Connects up to 8 HDMI sources with up to 8 HDMI displays Seamless Switch™ - ATEN's FPGA design unifies video formats to provide continuous video streams, real-time switching and stable signal transmissions HDMI (3D, Deep Color) HDCP 1.4 compatible Multiple control methods – System management via front panel buttons, IR, RS-232 and Ethernet connections (Telnet / Web interface) The VM5808H 8 x 8 HDMI Matrix Switch is a standalone HDMI solution that provides a simple and affordable way to route up to 8 HDMI video sources on up to 8 HDMI displays with a quick overview of all connections via the LCD on the front.

The VM5808H includes seamless switching that uses an FPGA matrix structure to ensure smooth video streams, real-time control and stable signal transmissions. With a built-in high-performance scaler, the VM5808H can easily convert different input resolutions to different output display resolutions, allowing viewers to enjoy the best video and image quality on the displays. The switch includes a video wall feature with an easy-to-use interface that allows you to create 16 connection profiles that can be customized for different video wall layouts.
The VM5808H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be set up in multiple locations, such as stage presentations, competitions, control centers and installations that require real-time reporting. Scope of delivery
1x VM5808H 8 x 8 HDMI Matrix Switch with Scaler * Order-related, non-cancellable * Connects up to 8 HDMI sources with up to 8 HDMI displays Seamless Switch™ - ATEN's FPGA design unifies video formats to provide continuous video streams, real-time switching and stable HDMI signal transmissions (3D, Deep Color) HDCP 1.4 compatible Multiple control methods - system management via front panel buttons, IR, RS-232 and Ethernet connections (Telnet / Web interface) The VM5808H 8 x 8 HDMI Matrix Switch is a standalone HDMI solution that provides a simple and inexpensive way to route up to 8 HDMI video sources to up to 8 HDMI displays with a quick overview of all connections via the front LCD.
The VM5808H includes seamless switching that uses an FPGA matrix structure to ensure smooth video streams, real-time control and stable signal transmissions. With a built-in high-performance scaler, the VM5808H can easily convert different input resolutions to different output display resolutions, allowing viewers to enjoy the best video and image quality on the displays. The switch includes a video wall feature with an easy-to-use interface that allows you to create 16 connection profiles that can be customized for different video wall layouts.
The VM5808H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be set up in multiple locations, such as stage presentations, competitions, control centers and installations that require real-time reporting. Scope of delivery
1x VM5808H 8 x 8 HDMI matrix switch with scaler 1x LIN2-418K-E12G power cable 1x 2XRT-0106G IR remote control 1x 2XRT-0003G IR receiver 1x mounting set 1x user manual

Design
Housing colour	Black
Housing material	Metal
Display
Built-in display
Features
Product type	Scaling matrix switcher
Data transfer rate	6.75 Gbit/s
Maximum pixel clock	225 MHz
Maximum resolution	1920 x 1080 pixels
HDCP version	1.4
HDCP
3D
Extended display identification data (EDID)
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case gross weight	5.83 kg
Master (outer) case length	515 mm
Master (outer) case width	338 mm
Master (outer) case height	155 mm
Master (outer) case net weight	4.55 kg
Harmonized System (HS) code	85299097
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging content
Cables included	AC
Manual

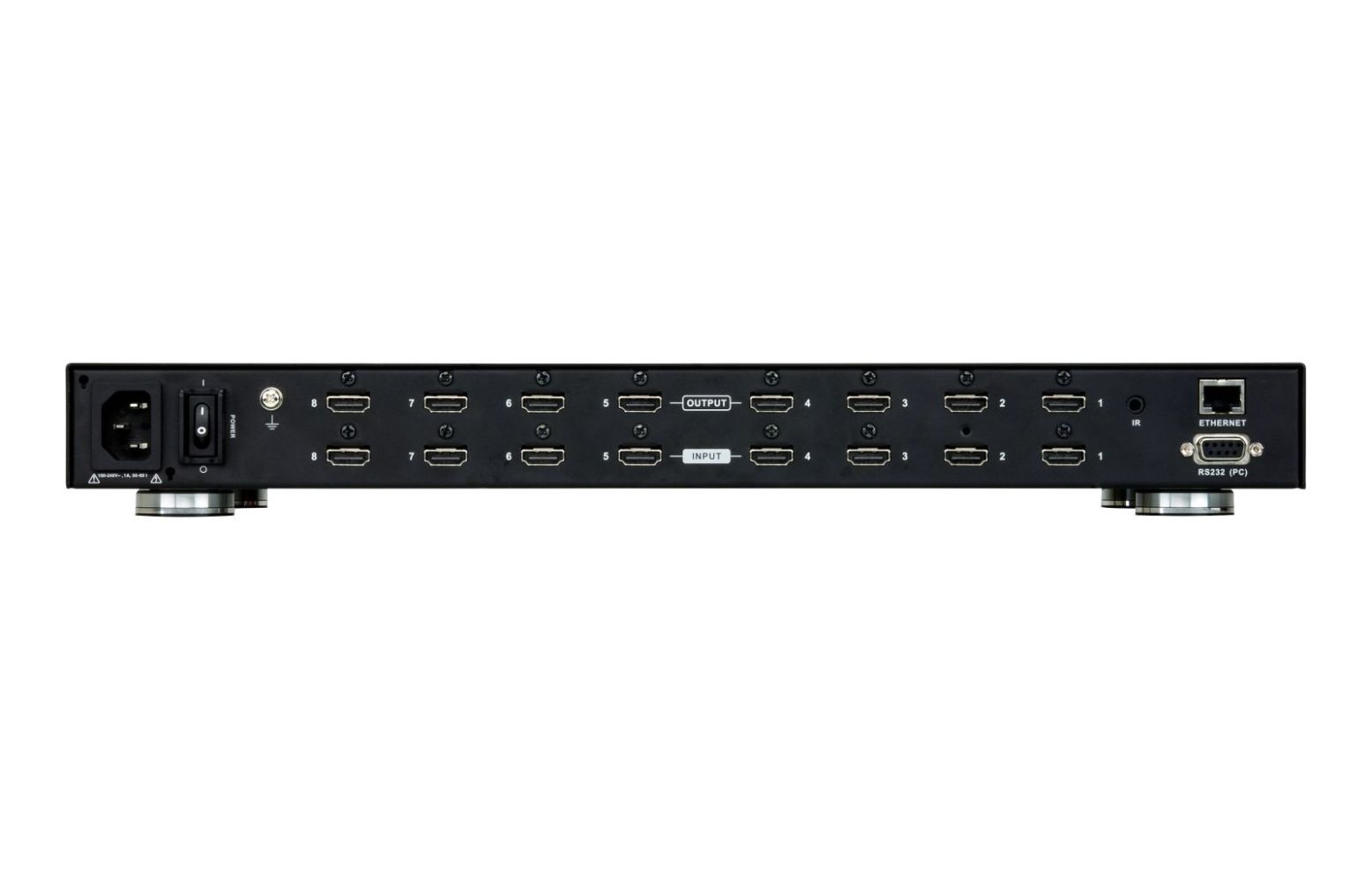

Ports & interfaces
HDMI input ports quantity	8
HDMI output ports quantity	8
RJ-45 input ports	1
Ethernet LAN (RJ-45) ports	1
RS-232 ports	1
Remote (IR) input	1
Power
Power consumption (typical)	56.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	1 A
Weight & dimensions
Width	262.3 mm
Depth	432.4 mm
Height	44 mm
Weight	4.55 kg
Package width	338 mm
Package depth	515 mm
Package height	155 mm
Package weight	5.89 kg

---
