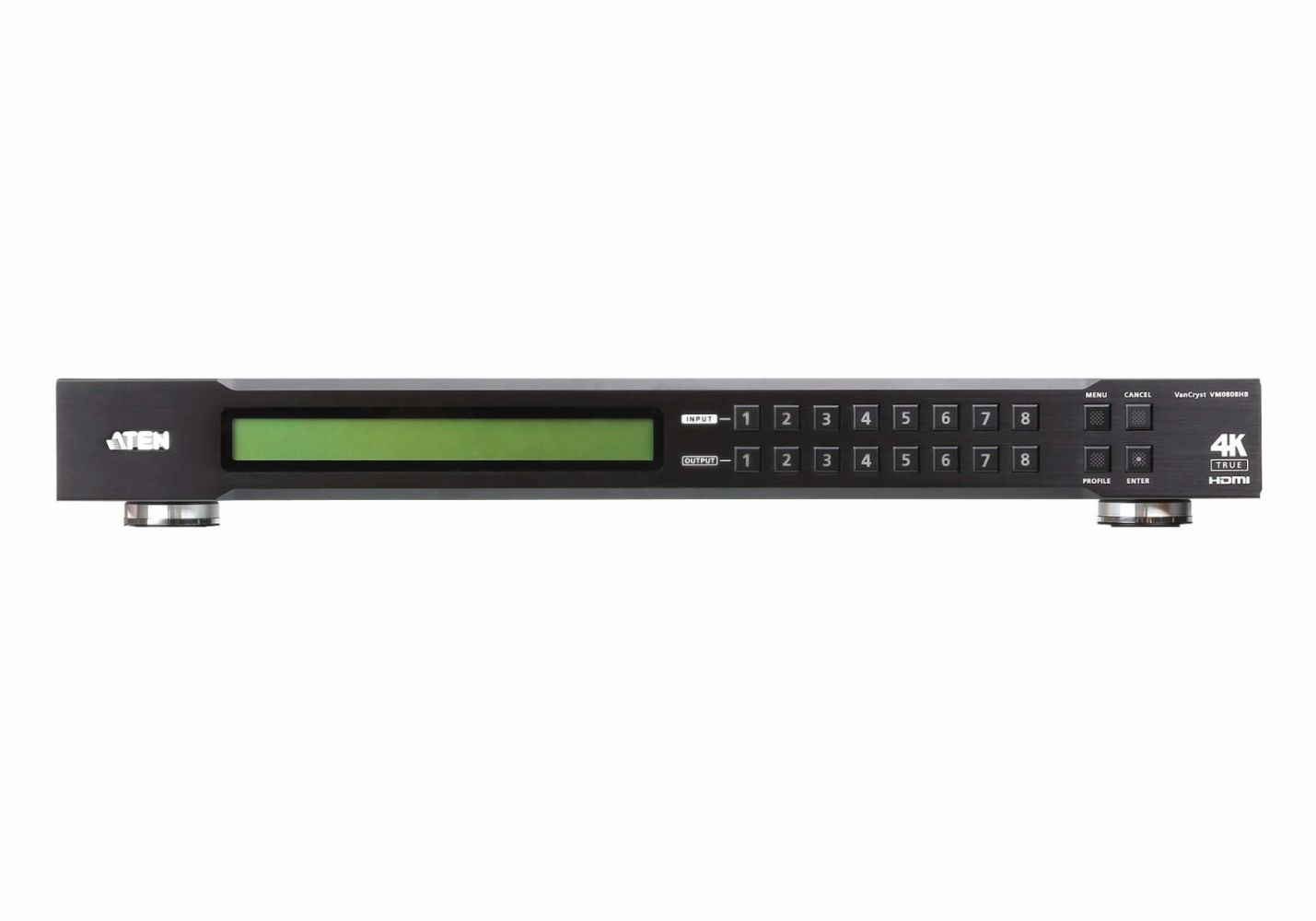

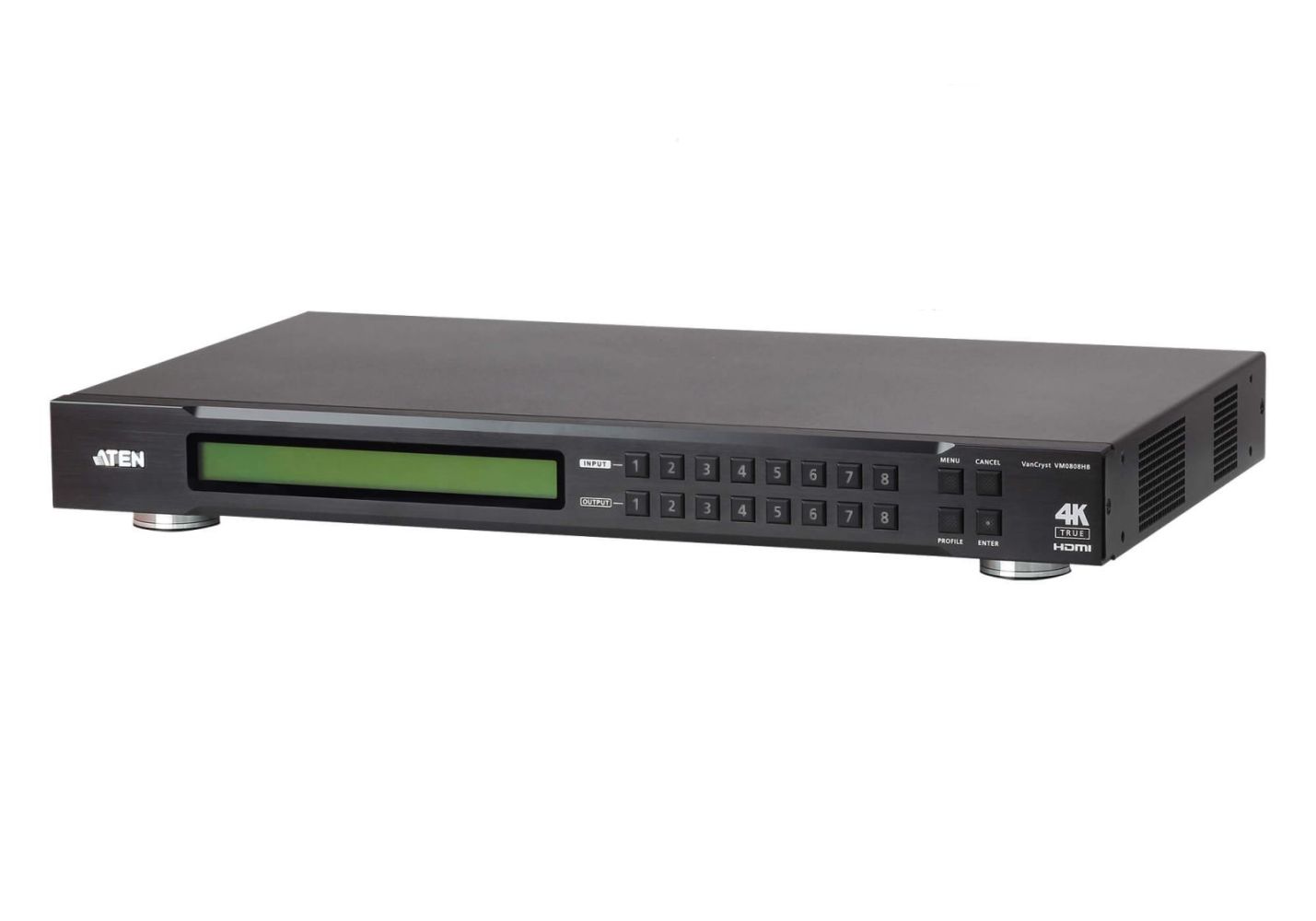

ATEN VM0808HB 8 x 8 True 4K HDMI Audio/Video Matrix Switch
|
-45% 809,79 EUR 1.469,17 EUR |
|
|
( 963,65 EUR incl. VAT ) ≈ £680.22 | ≈ $908.58 plus delivery charges: 83,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1476998 |
| Mfg Part No: | VM0808HB |
| UPC/EAN: | 4719264646836 |
| Weight: | 5.65 kg |
Product information for Aten VM0808HB:
| Design | |
| Housing colour | Black |
| Housing material | Metal |
| Rack capacity | 1U |
| Control type | Buttons |
| Rack mounting | |
| On/off switch | |
| LED indicators | |
| Remote control included | |
| Display | |
| Built-in display | |
| Features | |
| Product type | AV matrix switcher |
| Data transfer rate | 18 Gbit/s |
| Maximum pixel clock | 600 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP version | 2.2 |
| Supported resolutions | 4096 x 2160, 3840 x 2160, 1920 x 1200 |
| HDCP | |
| 3D | |
| High Dynamic Range (HDR) supported | |
| Extended display identification data (EDID) | |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Master (outer) case gross weight | 5.63 kg |
| Master (outer) case length | 515 mm |
| Master (outer) case width | 338 mm |
| Master (outer) case height | 155 mm |
| Master (outer) case net weight | 4.15 kg |
| Harmonized System (HS) code | 85299097 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Heat dissipation | 177 BTU/h |
| Heat dissipation (max) | 179 BTU/h |
| Packaging content | |
| Cables included | AC |
| Rack mount kit | |
| Quick start guide | |
| IR receiver included | |
| Ports & interfaces | |
| HDMI input ports quantity | 8 |
| HDMI output ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| Remote (IR) input | 1 |
| Power | |
| Power consumption (max) | 38.1 W |
| Power consumption (typical) | 37.8 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Input current | 1 A |
| Technical data | |
| Weight | 5.650kg |
| Width packaging | 0.338m |
| Packaging volume | 0.0270m³ |
| Inputs x outputs | 8x8 |
| Height packaging | 0.155m |
| Outputs | HDMI socket x8 |
| Length packaging | 0.515m |
| Weight & dimensions | |
| Width | 432.4 mm |
| Depth | 262.3 mm |
| Height | 44 mm |
| Weight | 4.15 kg |
| Package width | 338 mm |
| Package depth | 515 mm |
| Package height | 155 mm |
| Package weight | 5.63 kg |
Questions & answers
What is the delivery time of ATEN VM0808HB 8 x 8 True 4K HDMI Audio/Video Matrix Switch?
The article ATEN VM0808HB 8 x 8 True 4K HDMI Audio/Video Matrix Switch is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten VM0808HB to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN VM0808HB 8 x 8 True 4K HDMI Audio/Video Matrix Switch always at the best possible price. We can give you a discount of 2% on ATEN VM0808HB 8 x 8 True 4K HDMI Audio/Video Matrix Switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
