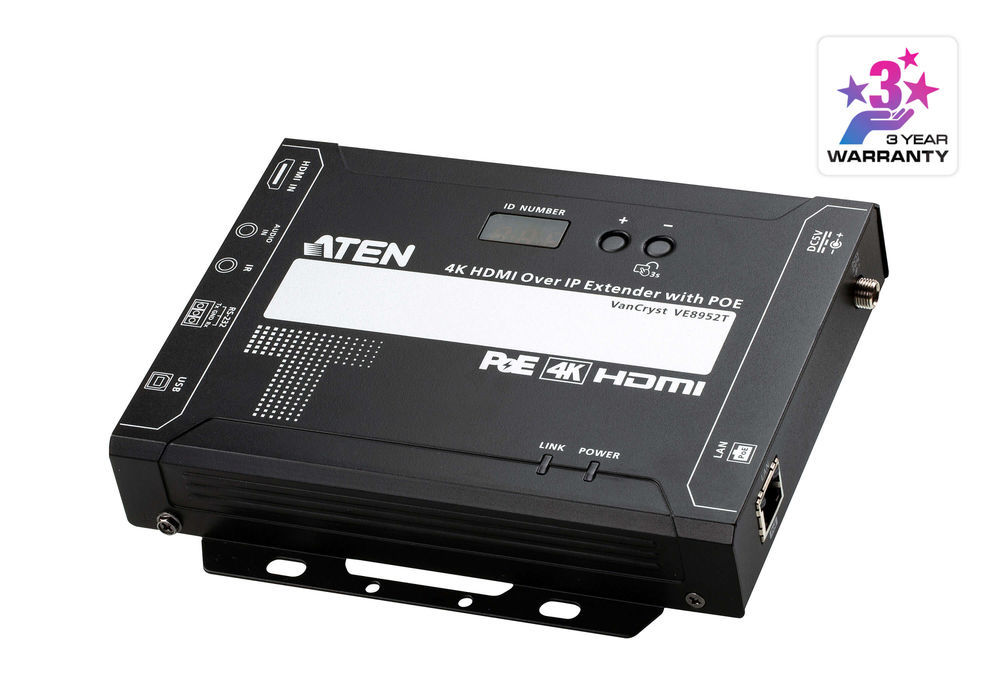

Aten 4K HDMI over IP Transmitter with PoE

VE8952T, *Order-related, cannot be canceled*,
ATEN VE8952T 4K HDMI over IP transmitter with PoE
extension for video/audio transmitter - up to 100 m
4096 x 2160 @ 60 Hz

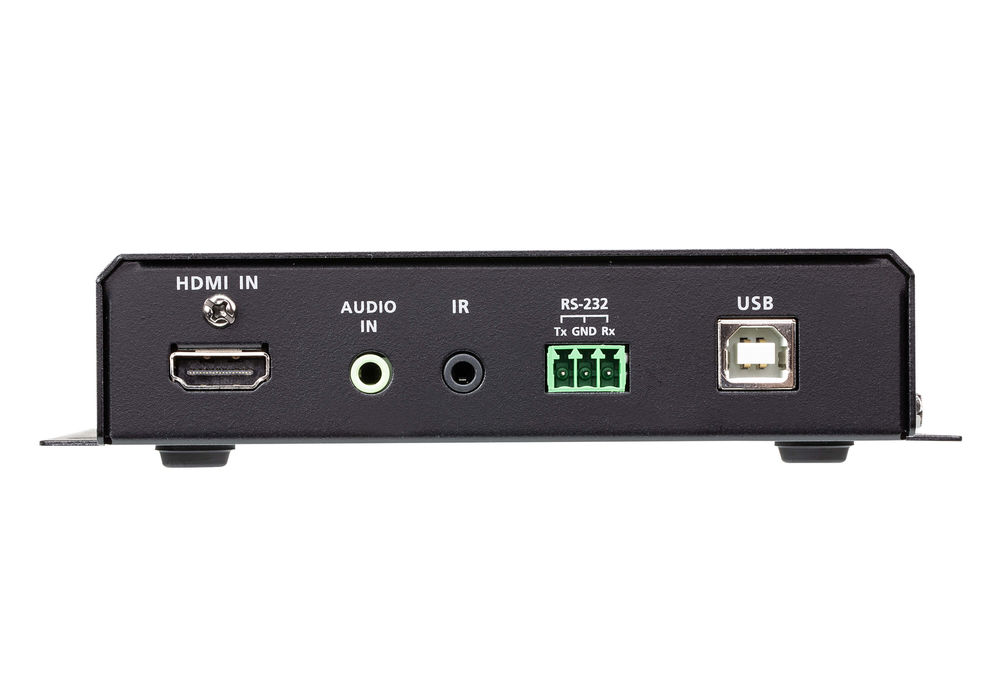

1 x HDMI (input) - HDMI type A, 19-pin female
1 x audio (input) - mini jack female

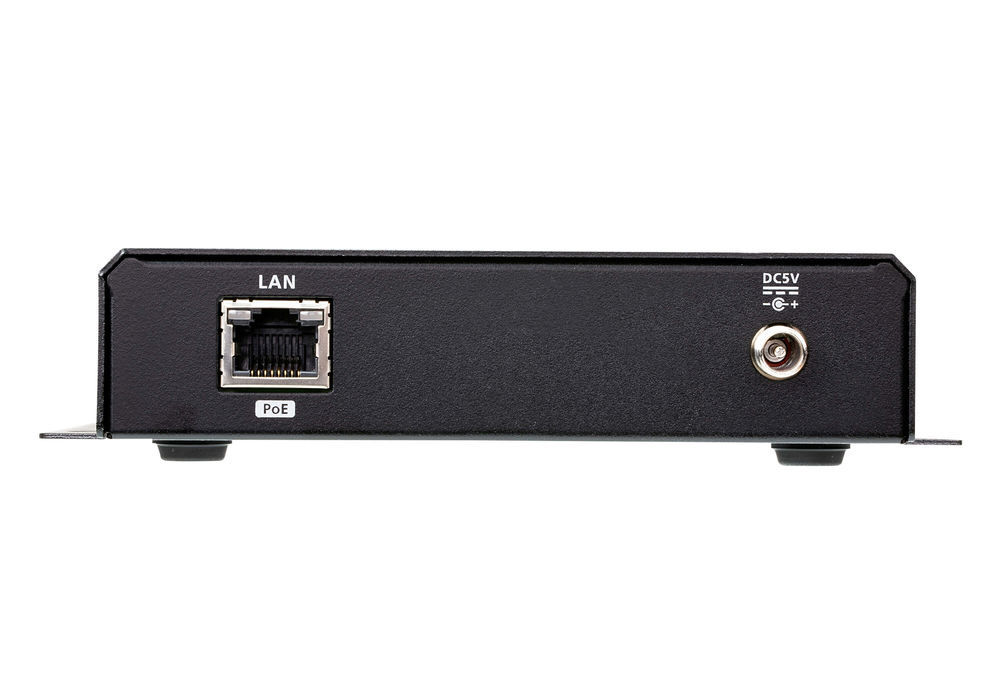

1 x network (PoE) - RJ-45
1 x IrDA (management) - mini jack
1 x RS-232 (management) - terminal block
1 x USB (management) - Type B
The ATEN VE8952T Transmitter with PoE delivers visually lossless 4K AV signals with low latency over long distance via a standard Gigabit network. It is an effective and easy-to-use solution that directly addresses the challenges system integrators encounter when deploying AV over IP.
Limitless Scalability and Flexibility
From a simple point-to-point setup to hundreds of endpoints, it offers flexibility, scalability and multi-functionality in extender, splitter, matrix switch, and video wall applications. No Complicated IP Setup
Allows you to effortlessly switch input sources via top panel pushbuttons/ID display and offers simple configuration that requires no extensive IT experience. No Additional Server PCs or Software Required
Effortlessly manage your AV over IP system by logging in to any transmitter from the intuitive web GUI with drag and drop operation. Go Further for Less with Daisy Chaining
Easily expand your AV network coverage without cable clutter or extra network switches while also lowering per-port costs. Locate Anywhere without the Need for Power Cabling
With PoE support, you can easily place VE8952T units where they are needed the most without having to install additional power cabling and outlets. Flexible Control with
Manage and control any VE8952T with a dedicated app (VE8950/VE8900 Control App) that allows instant preview, monitoring, and switching of video sources to streamline your operations.
*Note: For more information regarding installation and network switch requirements, please refer to the Implementation Guide : Video Input Interfaces 1 x HDMI Type A Female (Black) Impedance 100 O Max. Distance 3 m Video Max. Data Rate Average: 150 ~ 500Mbps Compliance HDMI (4K)
HDCP Compatible Max. Resolutions / Distance Up to 4K@100m (Cat 5e/6, point to point)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0)
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Audio Input 1 x HDMI Type A Female (Black)
1 x Mini Stereo Jack Female (Green) Connectors Unit To Unit 1 x RJ-45 Female Power 1 x DC Jack (Black ) with locking
or 1 x RJ-45 (Power Over Ethernet, POE) Control IR 1 x Mini Stereo Jack Female (Black) RS-232 Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1 , no parity and flow control USB 1 x USB Type B Female (White) Pushbuttons ID Number Selection 2 x Push buttons Power Consumption DC5V:3.49W:16BTU
POE:4.36W:20BTU Environmental Operating Temperature 0 - 40°C Storage Temperature -20 - 60°C Humidity 0 - 80% RH, Non-Condensing Physical Properties Housing Metal Weight 0.67 kg ( 1.48 lb ) Dimensions (L x W x H) with bracket 17.02 x 14.69 x 3.00 cm
(6.7 x 5.78 x 1.18 in.) Dimensions (L x W x H) without bracket 16.60 x 12.49 x 2.90 cm
(6.54 x 4.92 x 1.14 in.)
