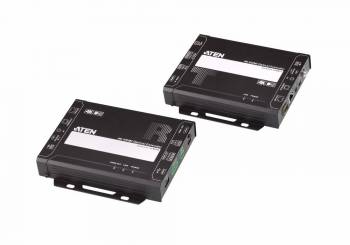

Aten video extender, 300mtr. over Fiber MM, HDMI, transmitter/receiver with SFP+ multimode modules
|
973,96 EUR 973,96 EUR |
|
|
( 1.159,01 EUR incl. VAT ) ≈ £812.28 | ≈ $1,087.91 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1705390 |
| Mfg Part No: | VE883K1 |
| UPC/EAN: | 4719264646249 |
| Weight: | 2 kg |
Product information for Aten VE883K1:
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Fiber |
| Maximum transfer distance | 300 m |
| Fiber optic wavelengths supported | 850 nm |
| Fiber mode structure | Multi-mode |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| Material | Metal |
| HDCP version | 2.2 |
| Product colour | Black |
| Bidirectional | |
| Electrostatic Discharge (ESD) protection | |
| LED indicators | |
| HDCP | |
| 3D | |
| Firmware upgradeable | |
| Plug and Play | |
| Logistics data | |
| Master (outer) case width | 342 mm |
| Master (outer) case length | 512 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case gross weight | 10.4 kg |
| Master (outer) case net weight | 8.3 kg |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Cables included | USB |
| AC adapter included | |
| IR emitter included | |
| IR receiver included | |
| Packaging data | |
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Package weight | 1.92 kg |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Fiber optic connector | LC |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB connector type | Micro-USB B |
| Ethernet LAN | |
| DC-in jack | |
| Power | |
| Operating voltage | 5 V |
| Power consumption (transmitter) (max) | 7.05 W |
| Power consumption (receiver) (max) | 6.77 W |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 166 mm |
| Depth | 124.9 mm |
| Height | 29 mm |
| Weight | 1.66 kg |
Questions & answers
What is the delivery time of Aten video extender, 300mtr. over Fiber MM, HDMI, transmitter/receiver with SFP+ multimode modules?
The article Aten video extender, 300mtr. over Fiber MM, HDMI, transmitter/receiver with SFP+ multimode modules is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten VE883K1 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Aten video extender, 300mtr. over Fiber MM, HDMI, transmitter/receiver with SFP+ multimode modules always at the best possible price. We can give you a discount of 2% on Aten video extender, 300mtr. over Fiber MM, HDMI, transmitter/receiver with SFP+ multimode modules if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
