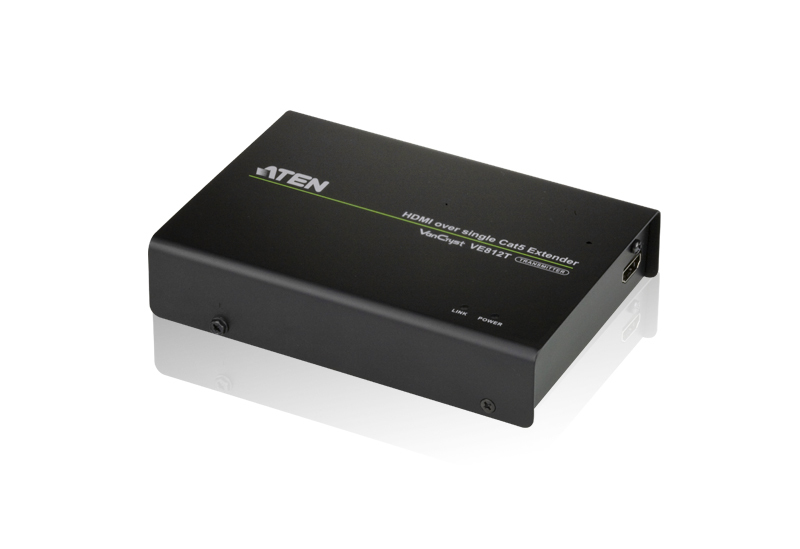

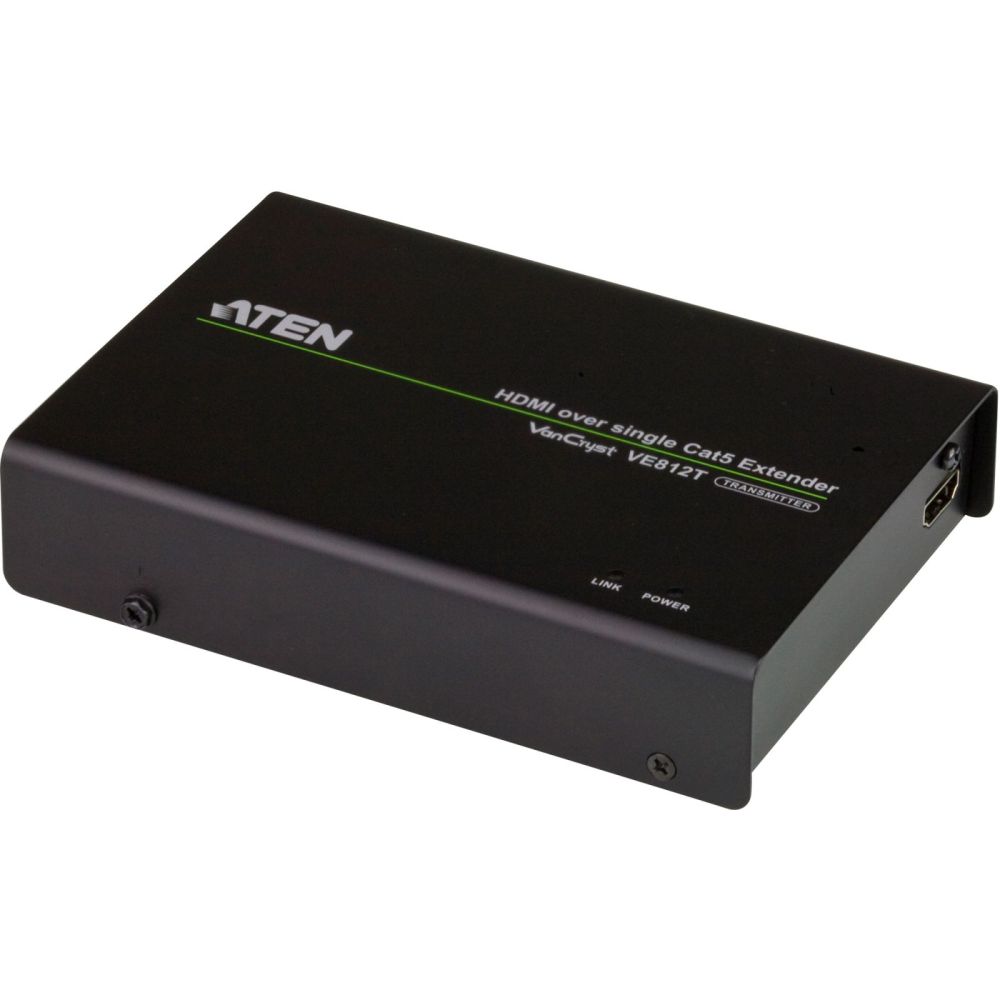

ATEN VE812T HDMI HDBaseT-Lite Extender Transmitter content_copy

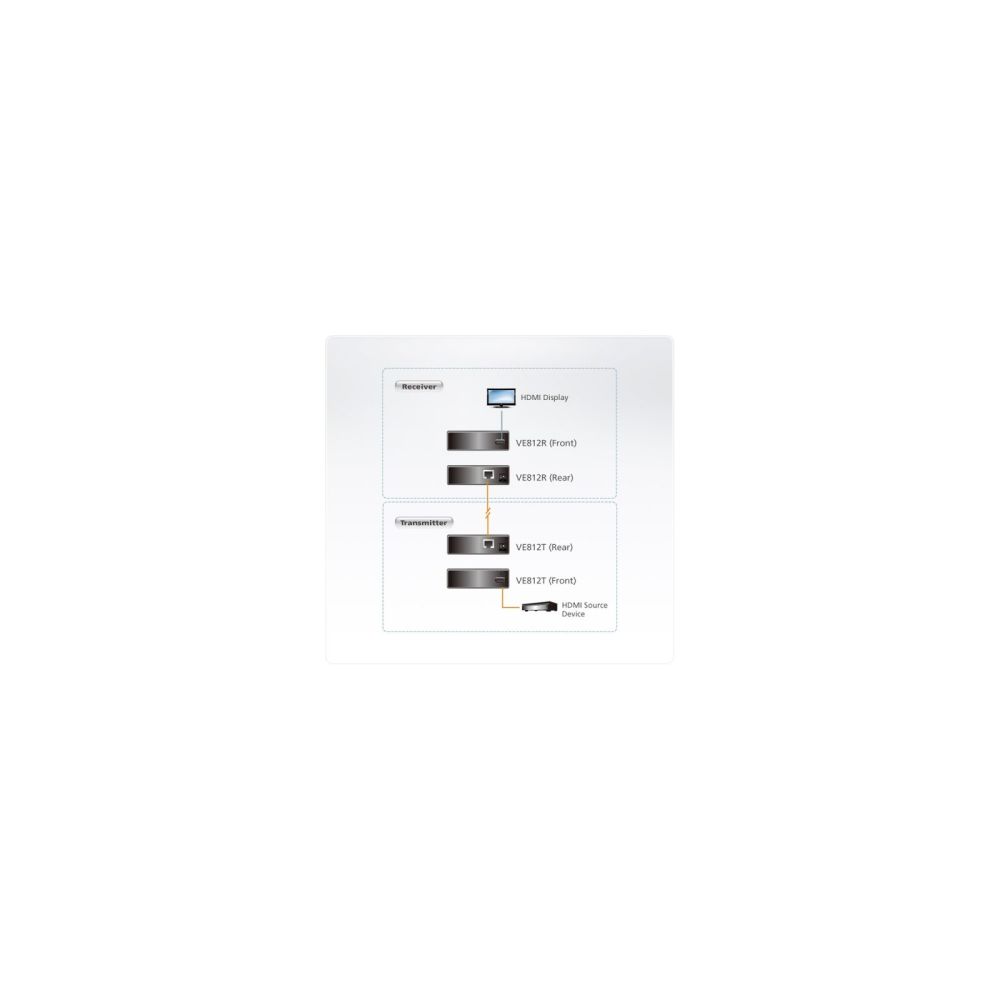

The VE812T HDMI Over Single Cat 5 Transmitter supports HDBaseT technology that uses a single Cat 5e cable to extend signals up to 100 m.The VE812T not only supports HDMI (3D, Deep Color ) but also Ultra HD (4k) and is HDCP compatible. Furthermore remote EDID pass-through ensures optimum video quality for your HDMI display. The VE812T is perfect for the meeting room, home theater or any installation that needs long distance transmission and superior video quality.Extends the distance between HDMI source and HDMI display
Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
Long distance transmission - up to 100m
Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
Supports up to 340MHz bandwidth for high performance video
Supports Dolby True HD and DTS HD Master Audio
Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)

Features
Type	AV transmitter & receiver
Maximum resolution	4096 x 2160 pixels
Cable types supported	Cat5e, Cat6, Cat6a
Maximum transfer distance	100 m
Supported video modes	1080p
Supported graphics resolutions	3840 x 2160, 4096 x 2160
Bandwidth	10.2 Gbit/s
Material	Metal
HDCP version	2.2
Product colour	Black
LED indicators
HDCP
3D
Logistics data
Master (outer) case width	250 mm
Master (outer) case length	325 mm
Master (outer) case height	175 mm
Master (outer) case gross weight	4.2 kg
Master (outer) case net weight	3.1 kg
Products per master (outer) case	5 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging content
Cables included	LAN (RJ-45)
AC adapter included
Manual
Mounting kit
Packaging data
Package width	59 mm
Package depth	239 mm
Package height	160 mm
Package weight	770 g
Ports & interfaces
Connectivity technology	Wired

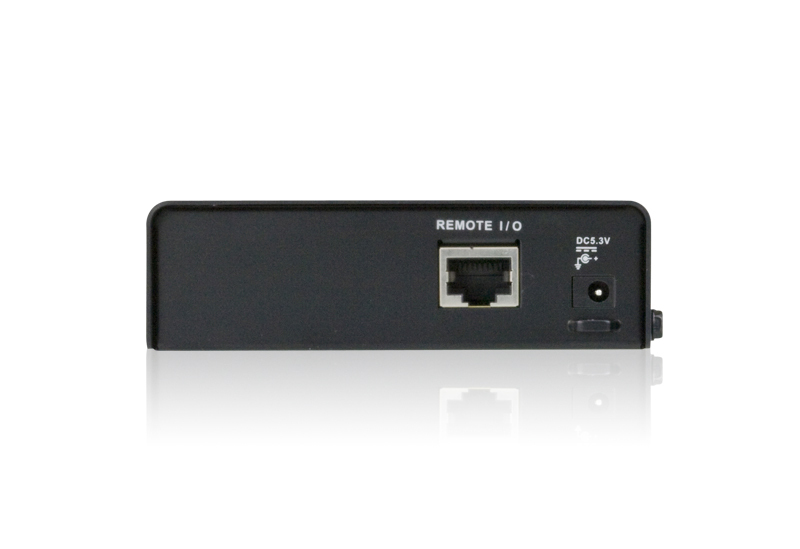

RJ-45 output ports	1

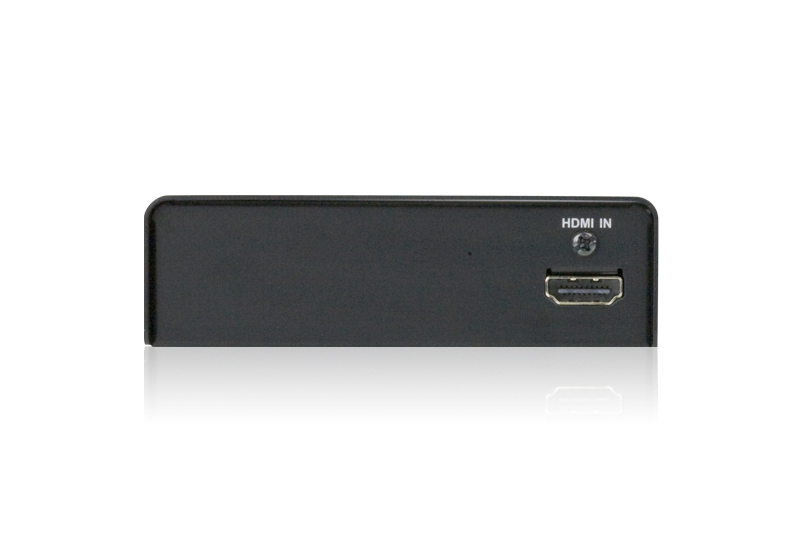

HDMI in	1
Video in	HDMI
Ethernet LAN
DC-in jack
Power
Operating voltage	5.3 V
Power consumption (typical)	1.8 W
Technical data
Weight	0.770kg
Packaging volume	0.0023m³
Height packaging	0.160m
Article type	Extender transmitter
Max. distance	100m
Length packaging	0.239m
Width packaging	0.059m
Technical details
Compliance certificates	RoHS
Weight & dimensions
Width	103 mm
Depth	141.7 mm
Height	30 mm
Weight	620 g

---
