Aten Video Extender, 40 / 70mtr. HDMI, 1080P / 4K,
|
-24% 143,93 EUR 189,89 EUR |
|
|
( 171,28 EUR incl. VAT ) ≈ £121.19 | ≈ $161.63 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 697981 |
| Mfg Part No: | VE801 |
| UPC/EAN: | 4719264642715 |
| Weight: | 1 kg |
Product information for Aten VE801:

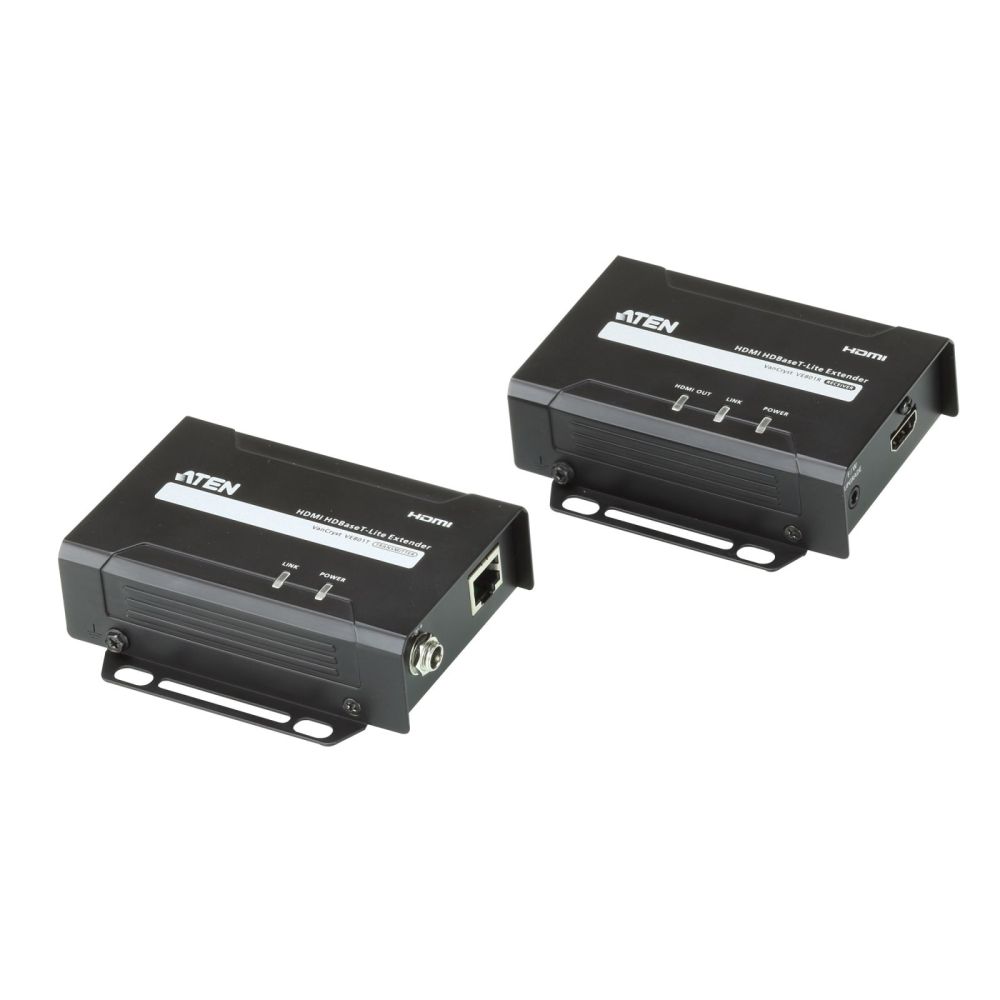

Transmitter / receiver set, up to 4K @ 35m (Cat 5e / 6) / 40m (Cat 6a), 1080p @ 60m (Cat 5e / 6) / 70m (Cat 6a) Channel: HDMI jack / 1x RJ45 socket receiver : HDMI jack / 1x RJ45 jack on order *
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5, Cat6, Cat6a |
| Maximum transfer distance | 70 m |
| Supported video modes | 1080p |
| Bandwidth | 340 MHz |
| Material | Metal |
| Product colour | Black |
| LED indicators | |
| HDCP | |
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.6 kg |
| Master (outer) case net weight | 3.9 kg |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| AC adapter included | |
| Packaging data | |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 841 g |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | |
| Technical data | |
| Class | B |
| Weight | 0.852kg |
| Width packaging | 0.059m |
| Length packaging | 0.239m |
| Packaging volume | 0.0023m³ |
| Height packaging | 0.160m |
| Article type | Extender bundle |
| Max. distance | 40m |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 780 g |
| Receiver dimensions (WxDxH) | 34.3 x 98.6 x 30 mm |
| Receiver weight | 250 g |
| Transmitter dimensions (WxDxH) | 34.3 x 98.6 x 30 mm |
| Transmitter weight | 240 g |
Questions & answers
What is the delivery time of Aten Video Extender, 40 / 70mtr. HDMI, 1080P / 4K,?
The article Aten Video Extender, 40 / 70mtr. HDMI, 1080P / 4K, is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten VE801 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Aten Video Extender, 40 / 70mtr. HDMI, 1080P / 4K, always at the best possible price. We can give you a discount of 2% on Aten Video Extender, 40 / 70mtr. HDMI, 1080P / 4K, if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
