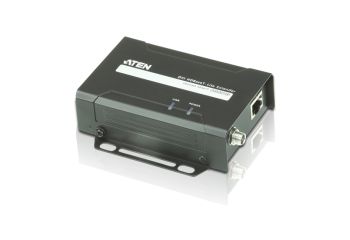

ATEN VE601T DVI HDBaseT-Lite Extender Transmitter content_copy

The VE601T DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.HDBaseT connectivity – extends a DVI connection up to 70 m
Superior video quality – 1920 x 1200 @ 35 m (Cat 5e / 6) / 40 m (Cat 6a) ; 1080p @ 60 m (Cat 5e / 6) / 70 m (Cat 6a / ATEN 2L-2910)
DVI (3D, Deep Color); HDCP 1.4 compliant
HDBaseT Anti-Jamming – resists signal interference during video transmission
Plug-and-play
Rack-mountable
Package Contents1x VE601T DVI HDBaseT-Lite Transmitter
1x Power Adapters
1x User Instructions
Video Input
Interfaces1 x DVI-D Female (White)
Impedance100O
Max. DistanceUp to 1.8m
Video
Max. Pixel Clock340 MHz
Max. Data Rate10.2Gbps (3.4Gbps per lane)
ComplianceDVI (3D, Deep Color)
HDCP compatible
Max. Resolutions / DistanceUp to 1920x1200@35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60 m (Cat 5e/6) / 70 m (Cat 6a/ATEN 2L-2910 Cat6)
Connectors
Power1 x DC Jack with locking
Unit To Unit1 x RJ-45 Female
Power ConsumptionDC5V:1.84W:9BTU/h
Note:
? The measurement in Watts indicates the typical power consumption of the device with no external loading.
? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Storage Temperature-20 - 60°C
Operating Temperature0-50°C
Humidity0% - 80% RH, Non-condensing
Physical Properties
HousingMetal
Weight0.25 kg ( 0.55 lb )
Dimensions (L x W x H) with bracket10.20 x 8.70 x 3.00 cm
(4.02 x 3.43 x 1.18 in.)
Dimensions (L x W x H) without bracket9.42 x 6.60 x 2.90 cm
(3.71 x 2.6 x 1.14 in.)

Features
Type	AV transmitter
Maximum resolution	1920 x 1200 pixels
Cable types supported	Cat5e, Cat6, Cat6a
Maximum transfer distance	70 m
Supported video modes	1080p
Supported graphics resolutions	1920 x 1200 (WUXGA)
Bandwidth	10.2 Gbit/s
Cable length	1.8 m
Resolution	1920 x 1200 pixels
Power	1.85 W
Material	Metal
Impedance	100 Ω
Product colour	Black
Compatible products	VE601R, VE801R
HDCP
3D
Rack mounting
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Ports & interfaces
DVI input ports	1
Video in	DVI-D Female
Ethernet LAN
DC-in jack
Power
Operating voltage	5 V
Power consumption (typical)	1.85 W
Technical data
Length packaging	0.239m
Width packaging	0.059m
Height packaging	0.160m
Article type	Extender transmitter
Max. distance	70m
Weight	0.630kg
Packaging volume	0.0023m³
Class	B
Technical details
Connector type	DC Jack with locking
Number of connectors	1
Quantity	1
Frequency	340 MHz
Weight & dimensions
Transmitter dimensions (WxDxH)	87 x 103 x 30 mm
Transmitter weight	250 g

---
