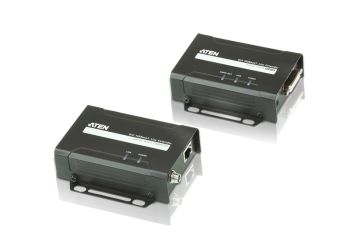

ATEN VE601 DVI HDBaseT-Lite Extender content_copy

The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to mention slip-resistant DC Jack lock mechanism, the VE601 can be installed nearly anywhere while ensuring peace of mind with its unerring reliability.HDBaseT Connectivity – extends a DVI 1080p connection up to 70 meters via a single Cat 6a/ATEN 2L-2910 Cat 6 cable
DVI (3D, Deep color); HDCP 1.4 compliant
Superior video quality –1920 x 1200@35m (Cat 5e/6) / 40m (Cat 6a); 1080p@60m(Cat 5e/6) / 70m (Cat 6a)
HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
Plug-and-play
Rack-mountable
Package Contents:1x VE601T/R DVI HDBaseT-Lite Extender
2x Power Adapters
1x User Instructions
DeviceVE601RVE601T
Video Input
InterfacesN/A1 x DVI-D Female (White)
ImpedanceN/A100 O
Max. DistanceN/AUp to 1.8m
Video Output
Impedance100 ON/A
Interfaces1 x DVI-D Female (White)N/A
Video
Max. Pixel Clock340 MHz340 MHz
Max. Data Rate10.2Gbps (3.4Gbps per lane)10.2Gbps (3.4Gbps per lane)
ComplianceDVI (3D, Deep Color)
HDCP compatibleDVI (3D, Deep Color)
HDCP compatible
Max. Resolutions / DistanceUp to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60 m (Cat 5e/6) / 70 m (Cat 6a/ATEN 2L-2910 Cat6)Up to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60 m (Cat 5e/6) / 70 m (Cat 6a/ATEN 2L-2910 Cat6)
Connectors
Power1 x DC Jack with locking1 x DC Jack with locking
Unit To Unit1 x RJ-45 Female1 x RJ-45 Female
Power ConsumptionDC5V:4.36W:20BTUDC5V:1.84W:9BTU
Environmental
Operating Temperature0-50°C0-50°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0% - 80% RH, Non-condensing0% - 80% RH, Non-condensing
Physical Properties
HousingMetalMetal
Weight0.25 kg ( 0.55 lb )0.25 kg ( 0.55 lb )
Dimensions (L x W x H) with bracket10.20 x 8.70 x 3.00 cm
(4.02 x 3.43 x 1.18 in.)10.20 x 8.70 x 3.00 cm
(4.02 x 3.43 x 1.18 in.)
Dimensions (L x W x H) without bracket9.42 x 6.60 x 2.90 cm
(3.71 x 2.6 x 1.14 in.)9.42 x 6.60 x 2.90 cm
(3.71 x 2.6 x 1.14 in.)

Features
Type	AV transmitter & receiver
Maximum resolution	1920 x 1200 pixels
Cable types supported	Cat5e, Cat6, Cat6a
Maximum transfer distance	70 m
Supported graphics resolutions	1920 x 1200 (WUXGA)
Bandwidth	340 MHz
Material	Metal
Impedance	100 Ω
Product colour	Black
HDCP
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging content
Manual
Ports & interfaces
DVI input ports	1
DVI output ports	1
DC-in jack
Power
AC input frequency	60 Hz
Operating voltage	5 V
Power consumption (transmitter) (max)	1.85 W
Power consumption (receiver) (max)	4.23 W
Technical data
Packaging volume	0.0023m³
Width packaging	0.059m
Article type	Extender bundle
Max. distance	70m
Height packaging	0.160m
Weight	0.880kg
Length packaging	0.239m
Class	B
Weight & dimensions
Receiver dimensions (WxDxH)	87 x 103 x 30 mm
Receiver weight	250 g
Transmitter dimensions (WxDxH)	87 x 103 x 30 mm
Transmitter weight	250 g

---
