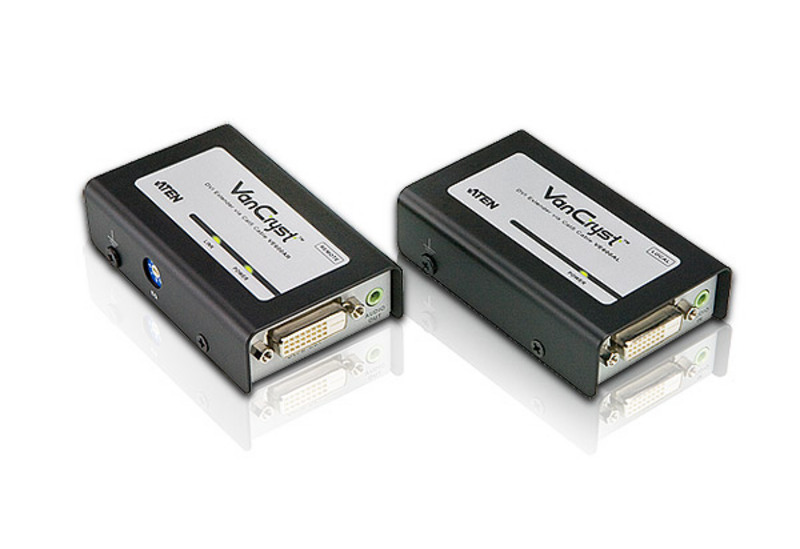

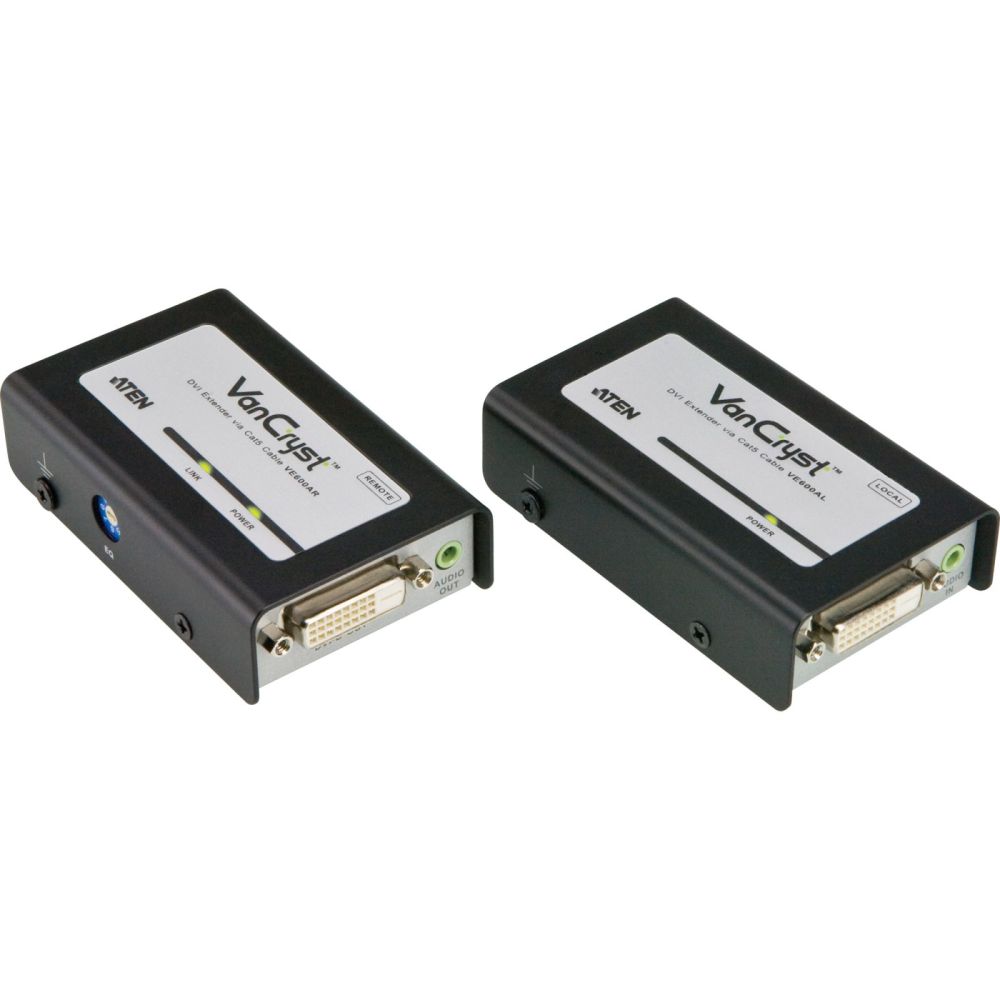

ATEN VanCryst VE600A DVI Extender with Audio - video/audio extender
|
-12% 75,28 EUR 85,25 EUR |
|
|
( 89,58 EUR incl. VAT ) ≈ £63.39 | ≈ $84.54 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 256612 |
| Mfg Part No: | VE600A-AT-G |
| UPC/EAN: | 4710423777736 |
| Weight: | 0.655 kg |
Product information for Aten VE600A-AT-G:
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 1920 x 1200 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 60 m |
| Supported video modes | 1080i, 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Bandwidth | 6.75 Gbit/s |
| Material | Metal |
| Impedance | 100 Ω |
| Product colour | Black |
| HDCP | |
| Logistics data | |
| Master (outer) case width | 315 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 338 mm |
| Master (outer) case gross weight | 14 kg |
| Master (outer) case net weight | 9.8 kg |
| Products per master (outer) case | 20 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| AC adapter included | |
| Manual | |
| Grounding wire | |
| Mounting kit | |
| Packaging data | |
| Quantity per pack | 2 pc(s) |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 660 g |

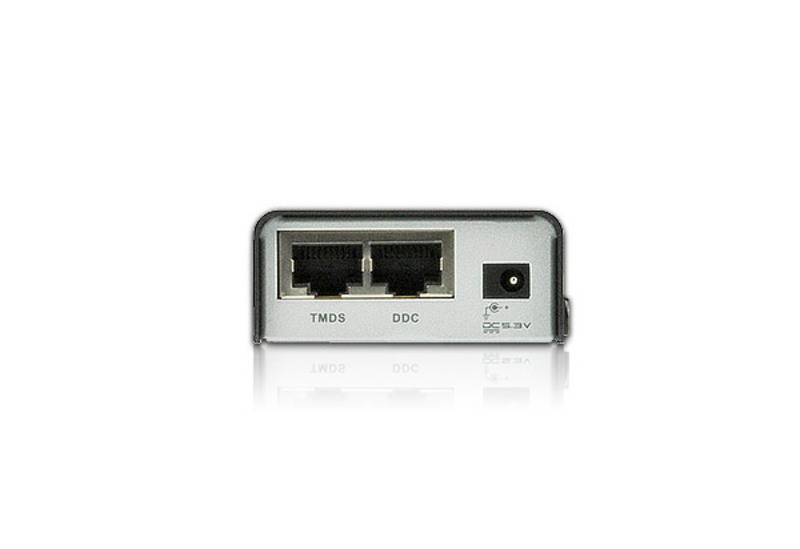

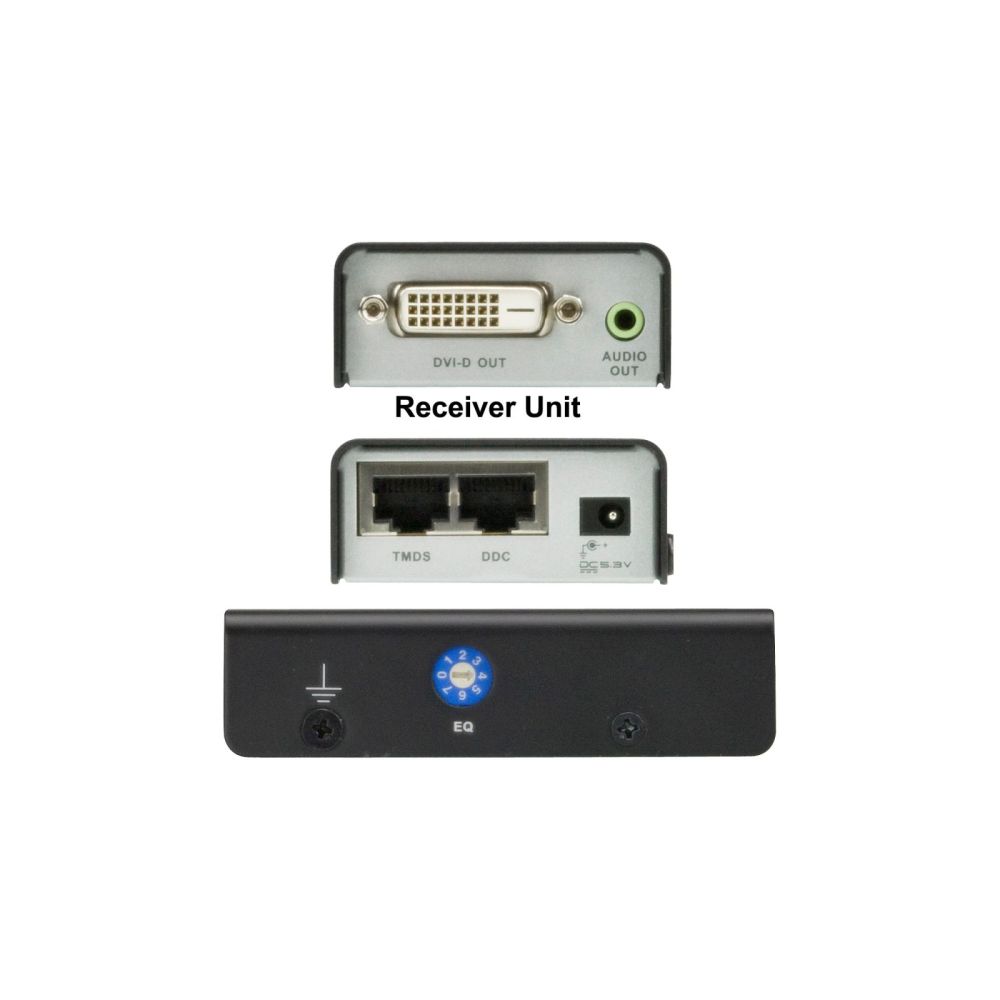

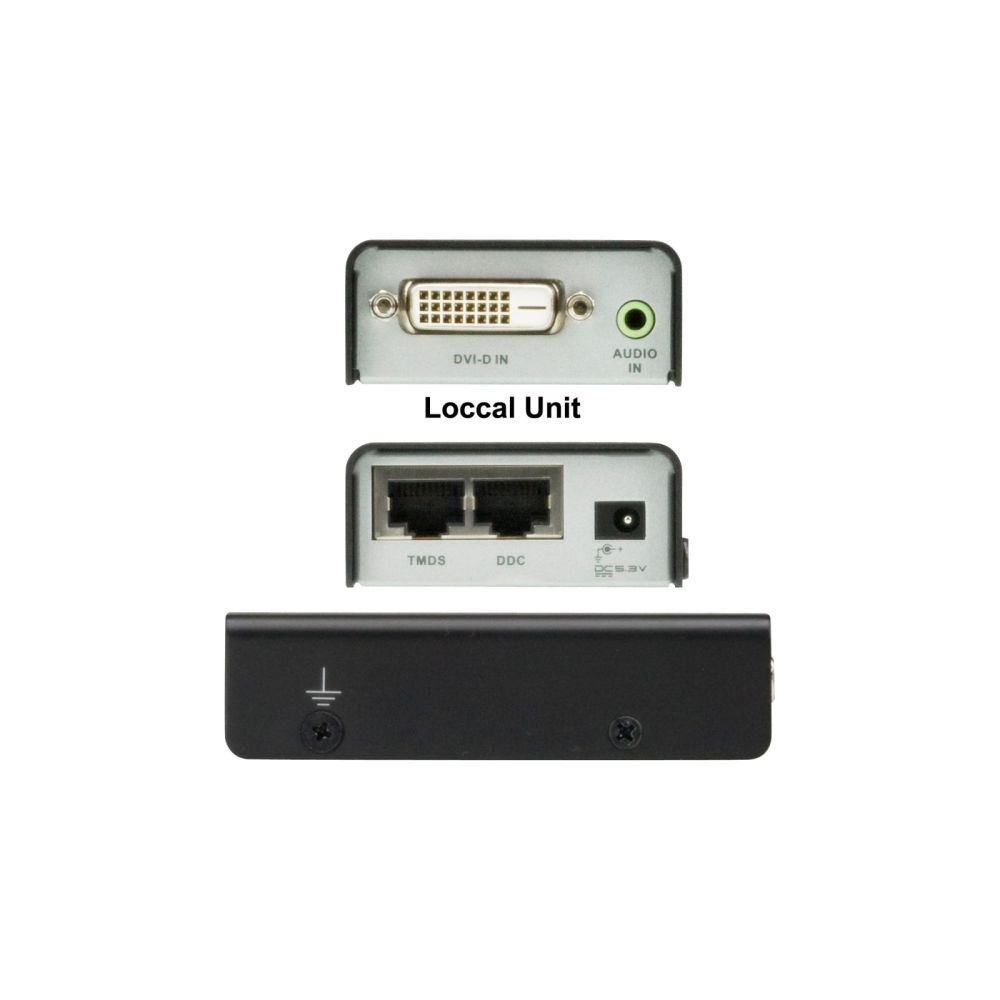

| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 2 |
| DVI input ports | 2 |
| DVI output ports | 2 |

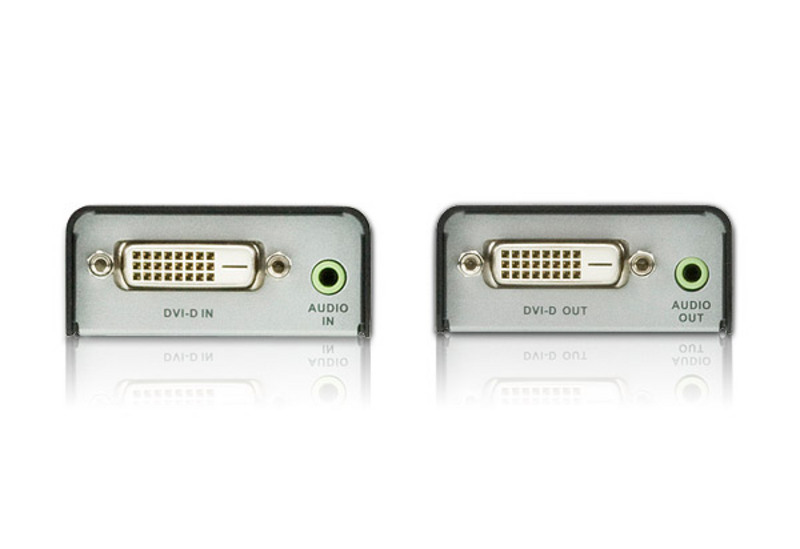

| Video in | 1 x DVI-D |
| Video out | 1 x DVI-D |
| Audio input | 1 |
| Audio output | 1 |
| Ethernet LAN | |
| Power | |
| Power consumption (max) | 2.05 W |
| Power consumption (transmitter) (max) | 1.56 W |
| Power consumption (receiver) (max) | 0.76 W |
| Technical data | |
| Width packaging | 0.059m |
| Weight | 0.635kg |
| Interface | DVI |
| Length packaging | 0.239m |
| Max. distance | 60m |
| Packaging volume | 0.0023m³ |
| Height packaging | 0.160m |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 490 g |
| Receiver dimensions (WxDxH) | 56 x 91.3 x 24 mm |
| Receiver weight | 170 g |
| Transmitter dimensions (WxDxH) | 56 x 91.3 x 24 mm |
| Transmitter weight | 170 g |
Questions & answers
What is the delivery time of ATEN VanCryst VE600A DVI Extender with Audio - video/audio extender?
The article ATEN VanCryst VE600A DVI Extender with Audio - video/audio extender is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten VE600A-AT-G to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN VanCryst VE600A DVI Extender with Audio - video/audio extender always at the best possible price. We can give you a discount of 2% on ATEN VanCryst VE600A DVI Extender with Audio - video/audio extender if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
