ATEN VE44PB 4-Output POH/POE Power Injector content_copy

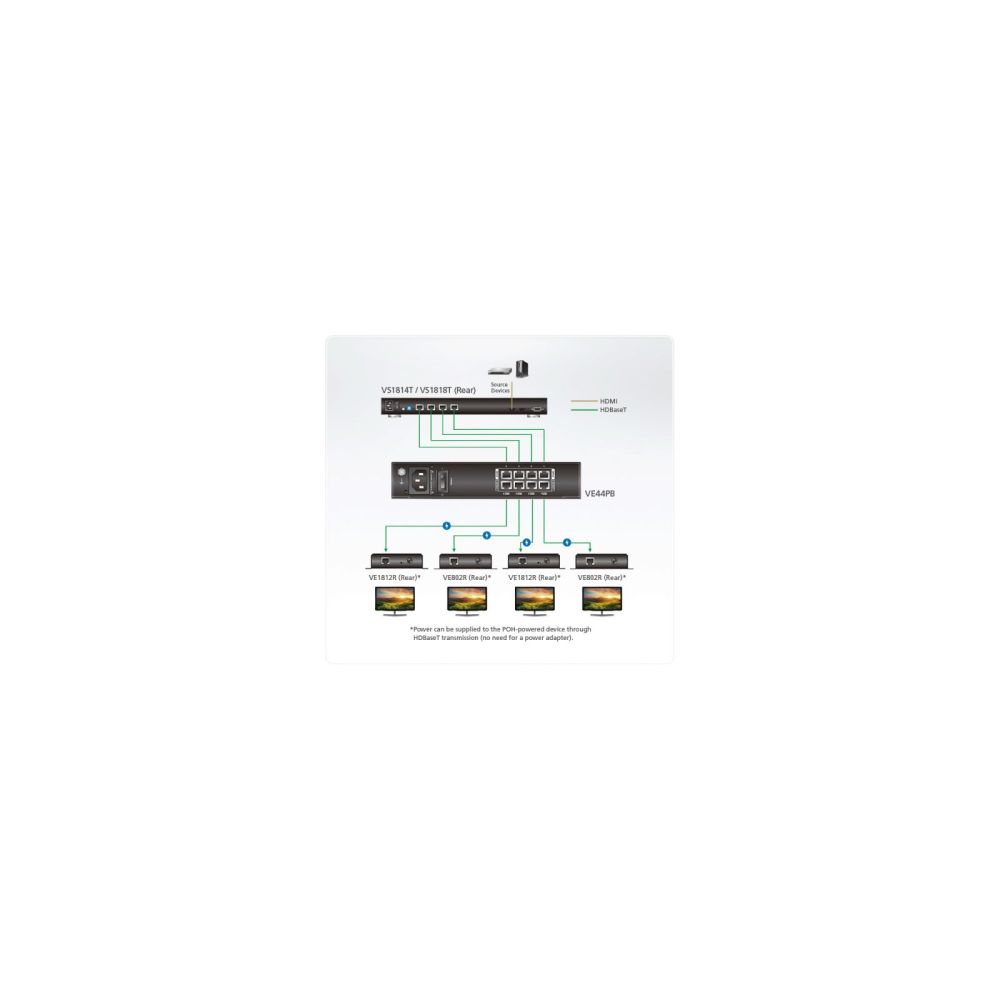

The ATEN VE44PB is a 4-port power injector for remote power supply for up to four compatible ATEN PoH-powered or PoE-powered devices via Cat 5e/6/6a cables. Deploying the VE44PB in your Pro AV facilities eliminates the need for local power supplies of the connected devices. It supplies up to 15.4W of power per PSE port. Featuring HDBaseT connectivity, the VE44PB can extend HDMI connection over a long distance via Cat 6/6a cables; meanwhile, still ensures unaffected video and image quality. Besides, the status LEDs on its front panel indicates an at-a-glance overview of the connected devices, allowing you to perform real-time monitoring and trouble shooting in the case of emergency. With its compact and rack mountable design, the VE44PB can be flexibly installed anywhere between the transmitter and receiver that require remote PoH / PoE powering.Supplies power for up to four ATEN Power-over-HDBaseT (PoH) /Power-over-Ethernet (PoE) compatible products over Cat 5e/6/6a cables
HDBaseT connectivity – extends HDMI connection over a long distance via Cat 6/6a cable
Compatible ATEN PoH-powered/PoE-powered models:
VE2812AT, VE2812AEUT/AUST, VE1812R, VE802R, VK108US, VK112EU, VK224, VK236, VK248, KE8952, or future ATEN PoH-powered/PoE-powered products which follow IEEE 802.11 af standard
Built-in 8KV/15KV ESD protection
Plug-and-play without additional settings
Rack-mountable
Supplies up to 15.4W of power per PSE port

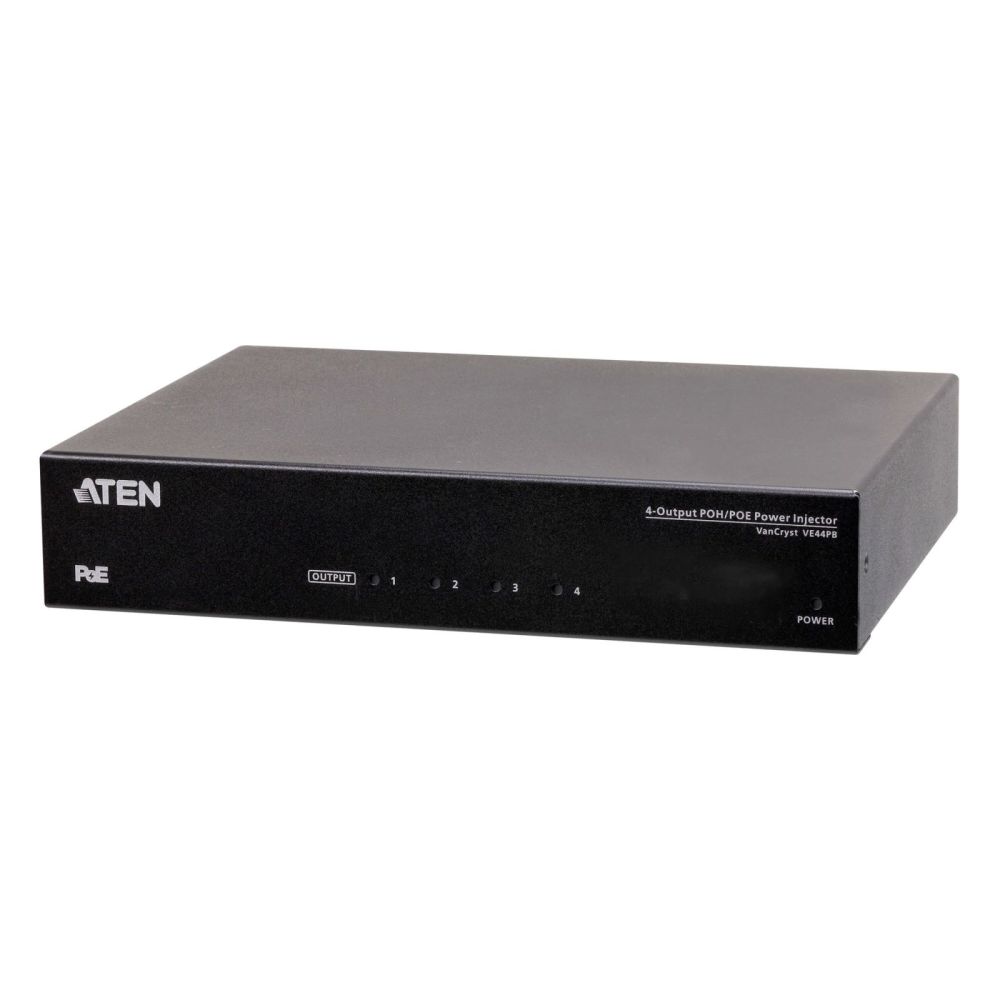

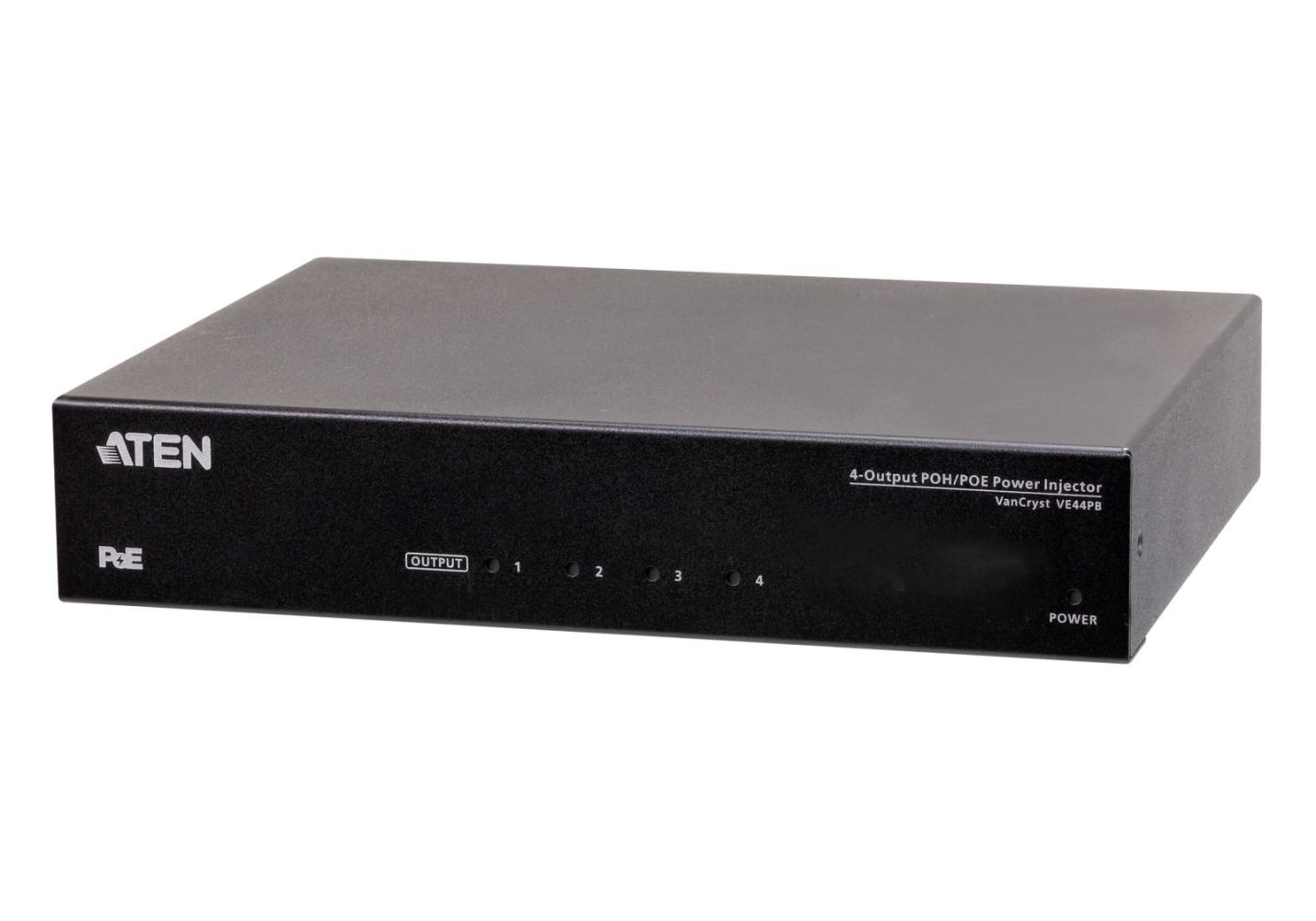

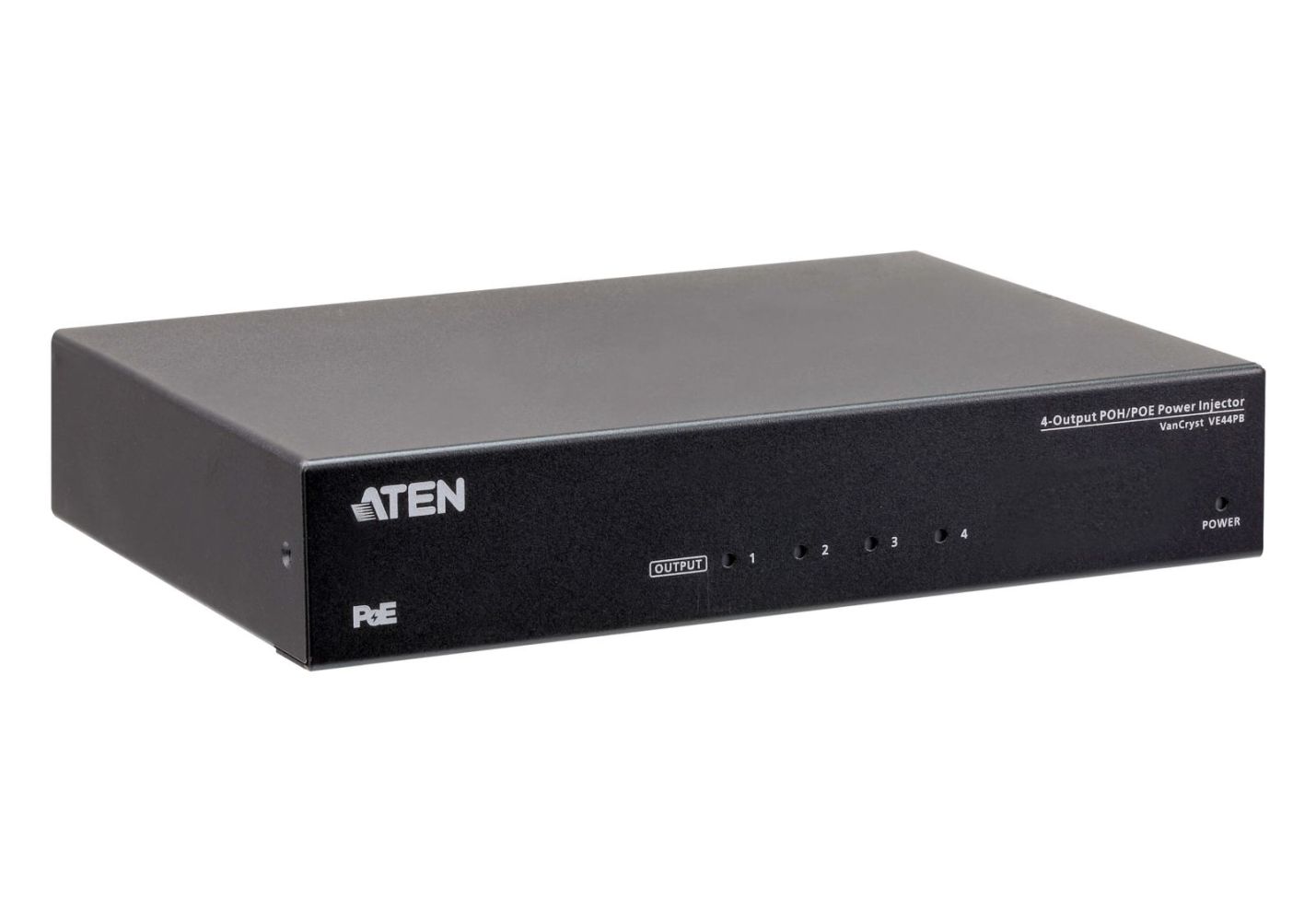

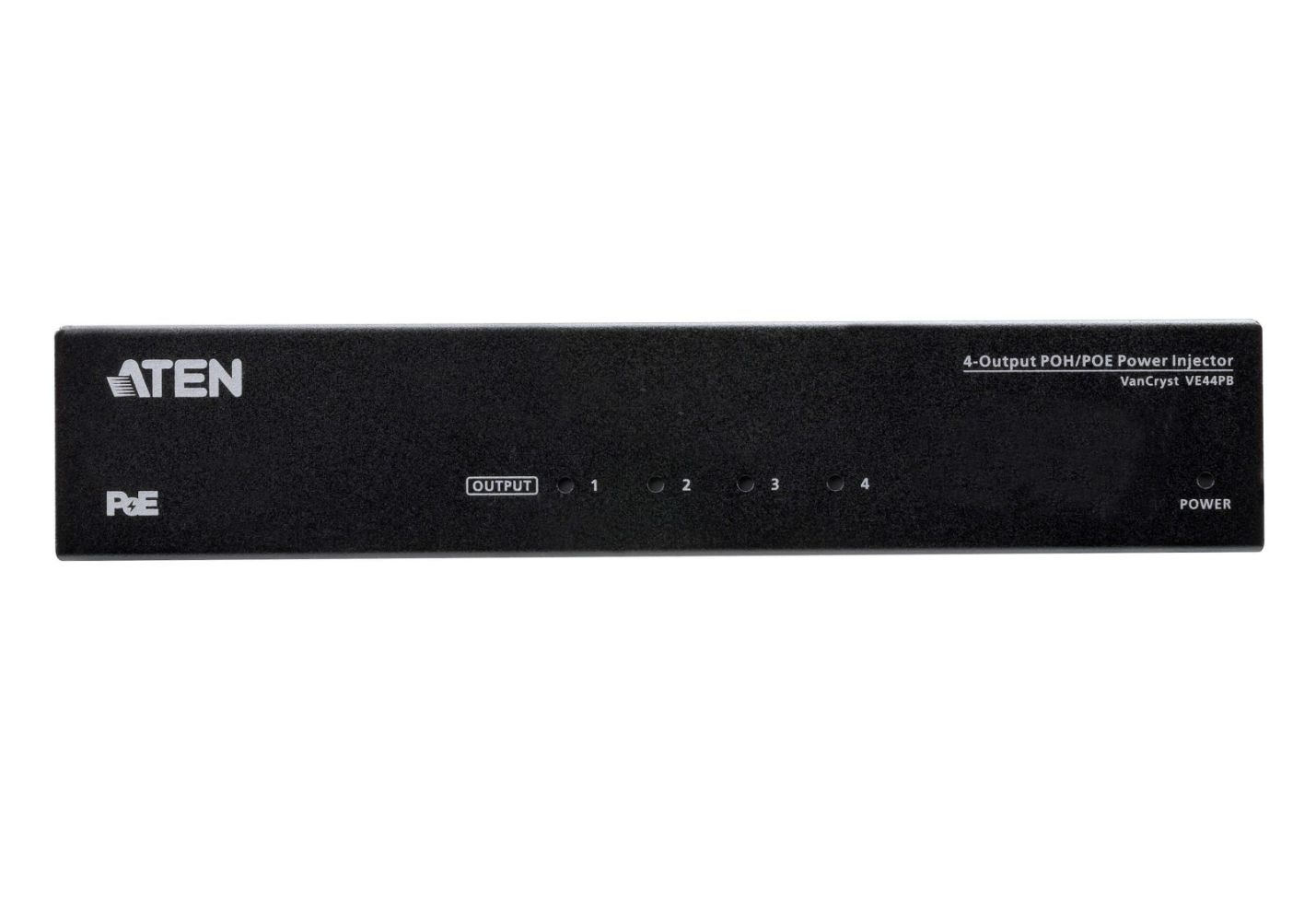

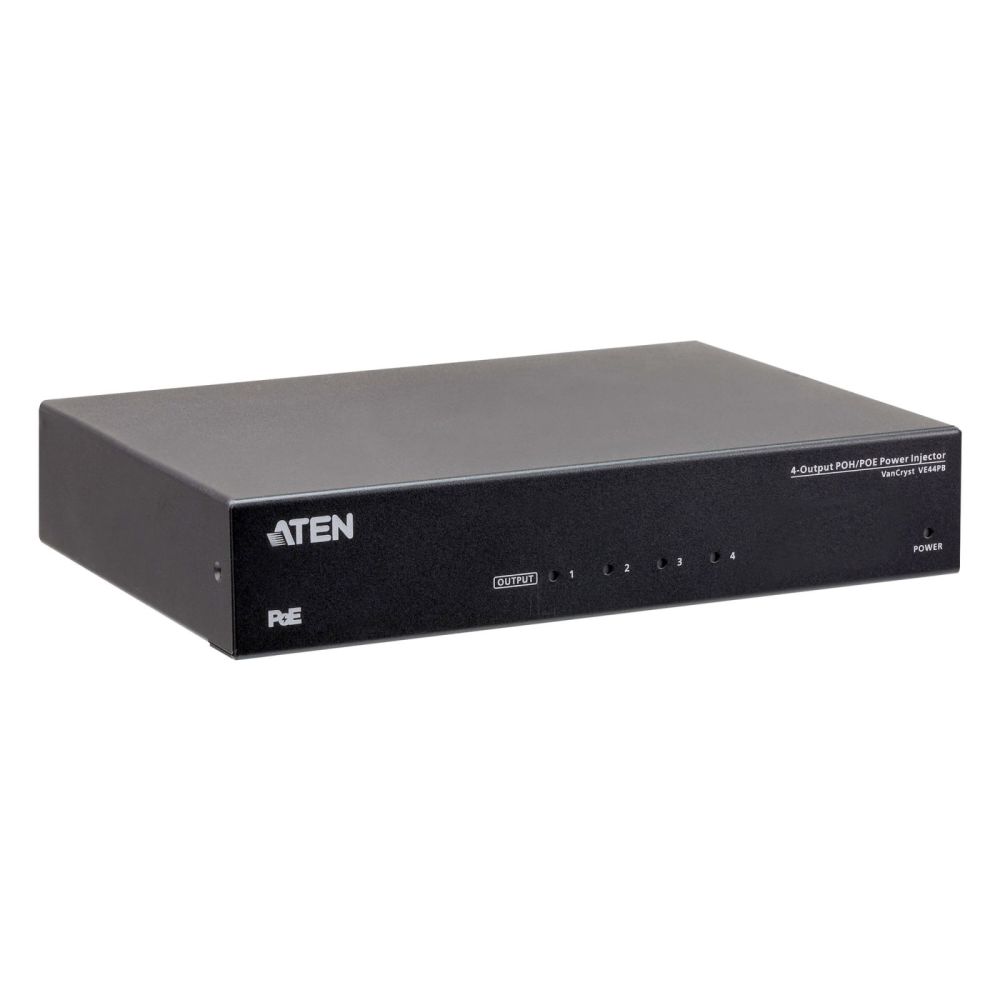

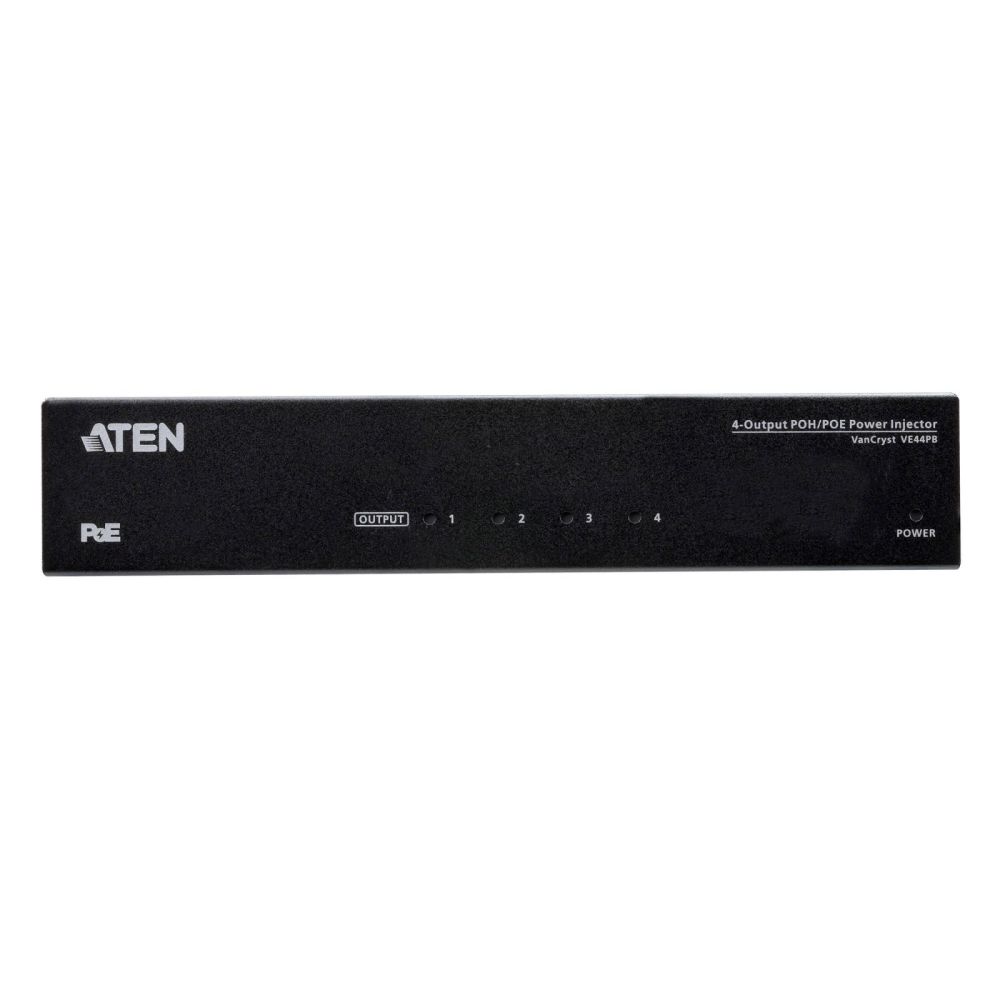

Status LEDs to provide an at-a-glance overview of device status, improving real-time monitoring and troubleshooting
Assured signal quality – usage of the VE44PB power injector does not affect the signal quality of the video, audio, bi-directional RS-232, and Ethernet transmission (The transmission distance maybe reduced to 80% of the original distance.)
Package Contents1x 4-Output POH/POE Power Injector
1x Mounting Kit
1x Power Cord Cable
1x User Instructions

Design
Product colour	Black
Housing material	Metal
Rack mounting
LED indicators
On/off switch
Logistics data
Master (outer) case net weight	4.68 kg
Harmonized System (HS) code	85176990
Master (outer) case width	370 mm
Master (outer) case length	427 mm
Master (outer) case height	232 mm
Master (outer) case gross weight	6.73 kg
Products per master (outer) case	3 pc(s)
Network
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3af
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Packaging data
Package width	207 mm
Package depth	414 mm
Package height	117 mm
Package weight	1.91 kg
Performance
Type	Network transmitter & receiver
Data transfer rate	10.2 Mbit/s
Cable types supported	Cat5e, Cat6, Cat6a
Plug and Play
Ports & interfaces

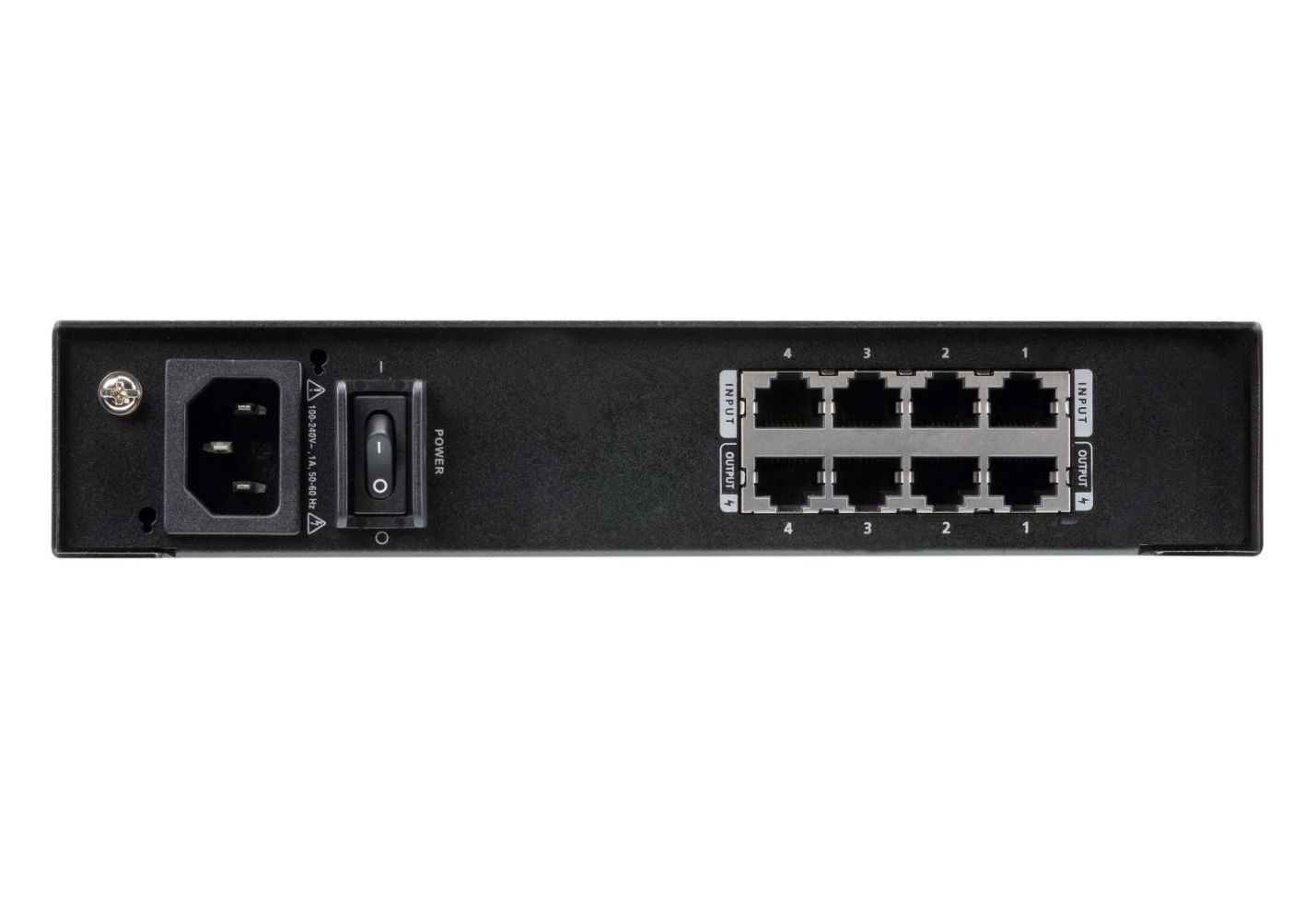

Ethernet LAN (RJ-45) ports	8
RJ-45 ports quantity (transmitter)	4
Power over Ethernet (PoE) ports quantity	4
DC-in jack
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	1.1 W
Power consumption (max)	1.2 W
Total Power over Ethernet (PoE) budget	15.4 W
Power over Ethernet (PoE)
Technical data
Weight	1.910kg
Height packaging	0.117m
Number of ports	4
Type	Injector
Length packaging	0.414m
Width packaging	0.207m
Packaging volume	0.0101m³
Weight & dimensions
Width	161 mm
Depth	215 mm
Height	41 mm
Weight	1.56 kg

---
