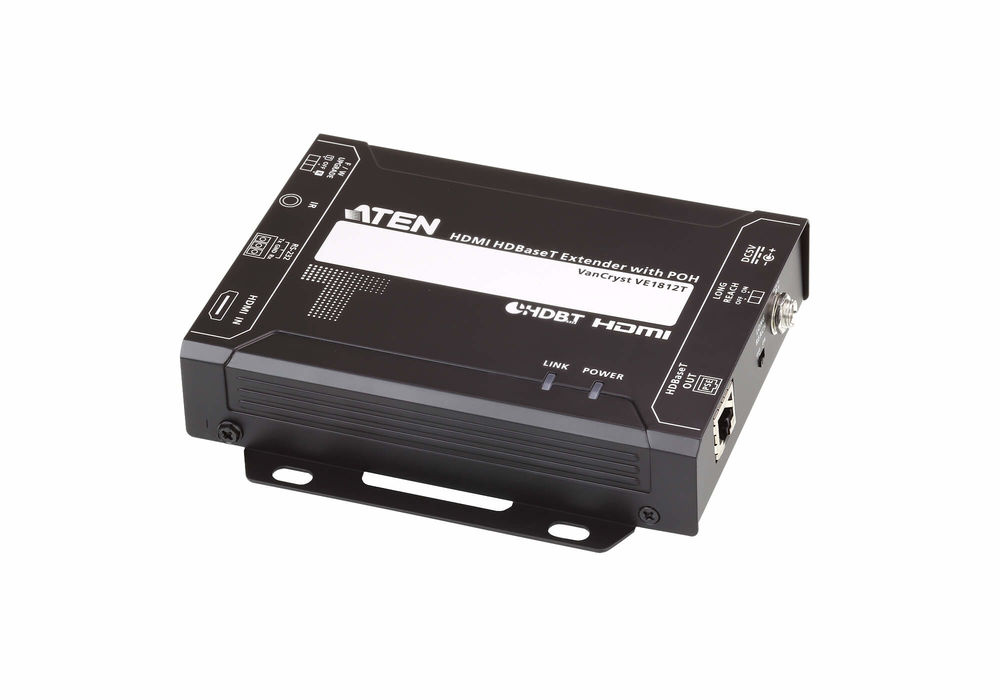

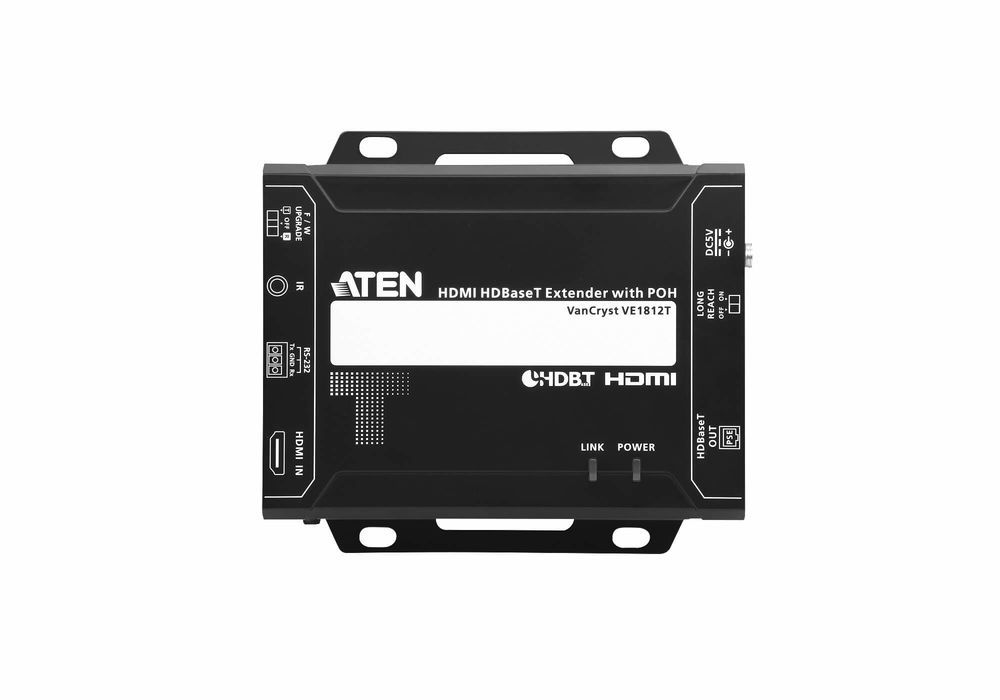

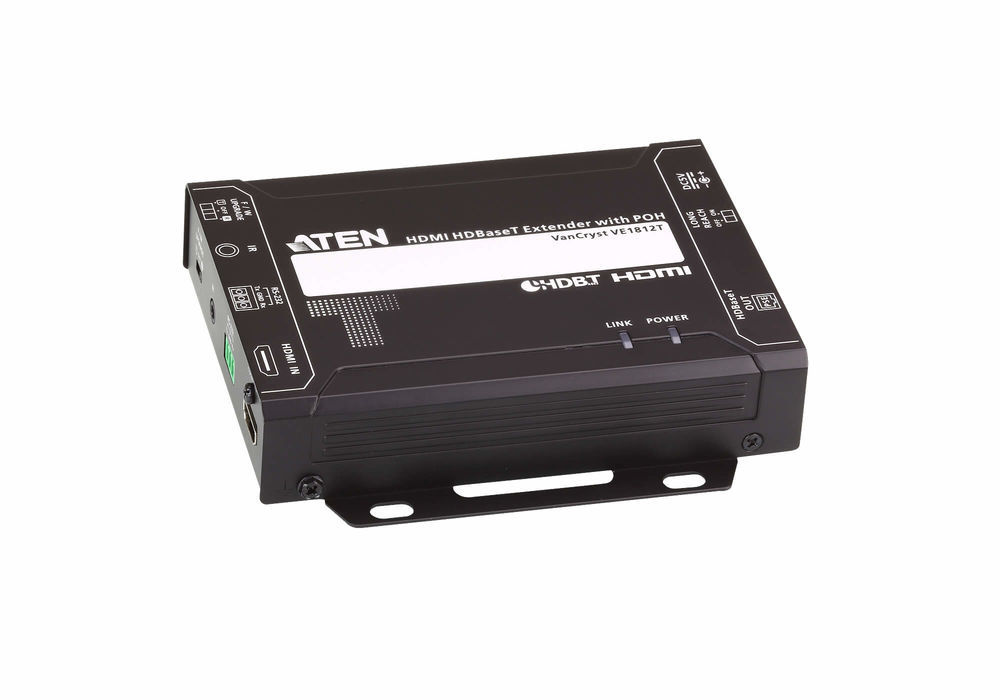

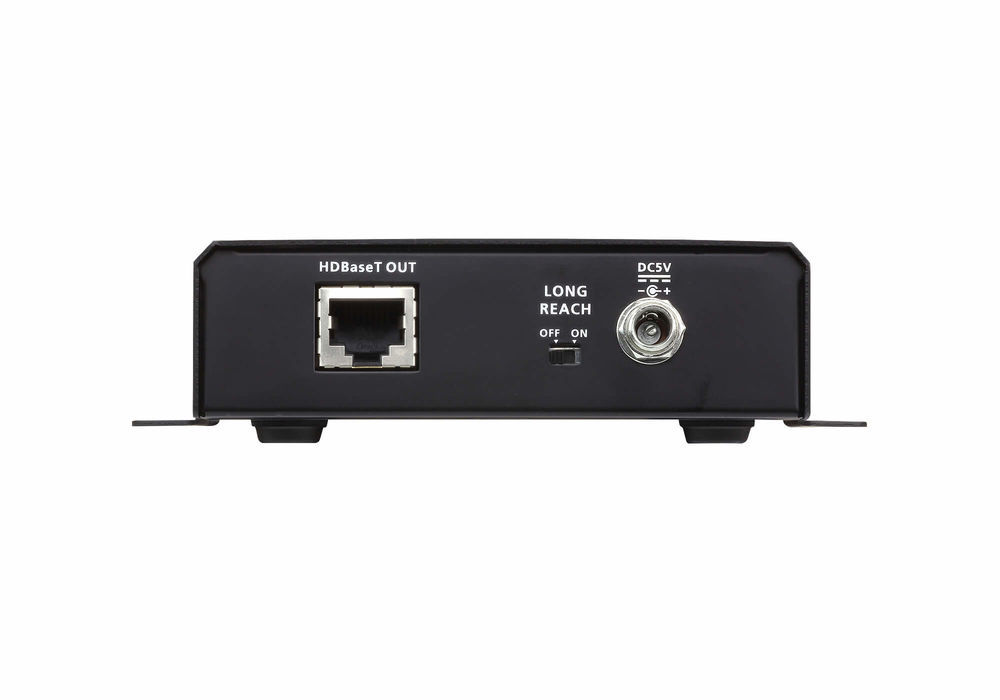

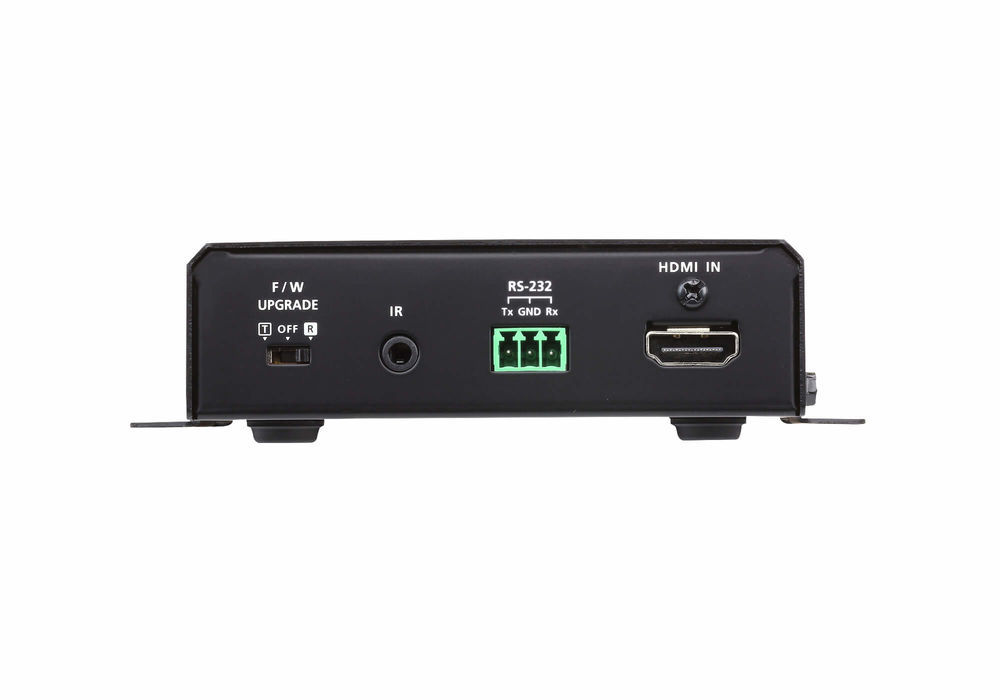

Aten video/audio extender, 70/100m, HDMI, transmitter, with POH (4K at 100 m)
|
-42% 199,06 EUR 344,51 EUR |
|
|
( 236,88 EUR incl. VAT ) ≈ £167.61 | ≈ $223.54 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1367777 |
| Mfg Part No: | VE1812T |
| UPC/EAN: | 4719264645778 |
| Weight: | 1 kg |
Product information for Aten VE1812T:
Made to Order *Up to 4K @ 70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6) 1080p @ 100m (Cat 5e/6/6a) *4K Support: 4096 x 2160 / 3840 x 2160 at 60 Hz (4:2:0) 4096 x 2160 / 3840 x 2160 at 30 Hz (4:4:4 Transmitter: HDMI socket, RJ45 socket,
Receiver: HDMI socket, RJ45 socket,
Receiver: HDMI socket, RJ45 socket,
| Features | |
| Type | AV transmitter |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6, Cat6a |
| Maximum transfer distance | 150 m |
| Supported video modes | 1080p |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Bandwidth | 10.2 Gbit/s |
| Material | Metal |
| Impedance | 100 Ω |
| Product colour | Black |
| LED indicators | |
| HDCP | |
| 3D | |
| Consumer Electronics Control (CEC) support | |
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.8 kg |
| Master (outer) case net weight | 3.05 kg |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| AC adapter included | |
| Quick start guide | |
| Packaging data | |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 735 g |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| RS-232 input ports | 1 |
| Video in | 1 |
| Remote (IR) input | 1 |
| HDBaseT port | |
| 3.5 mm (1/8-inch) out | |
| DC-in jack | |
| Power | |
| Operating voltage (transmitter) | 5 V |
| Power consumption (transmitter) (max) | 4.3 W |
| Technical data | |
| Height packaging | 0.160m |
| Width packaging | 0.059m |
| Weight | 0.735kg |
| Article type | Extender transmitter |
| Max. distance | 100m |
| Packaging volume | 0.0023m³ |
| Length packaging | 0.239m |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 610 g |
| Transmitter dimensions (WxDxH) | 123 x 140.4 x 30 mm |
| Transmitter weight | 470 g |
Questions & answers
What is the delivery time of Aten video/audio extender, 70/100m, HDMI, transmitter, with POH (4K at 100 m)?
The article Aten video/audio extender, 70/100m, HDMI, transmitter, with POH (4K at 100 m) is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten VE1812T to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Aten video/audio extender, 70/100m, HDMI, transmitter, with POH (4K at 100 m) always at the best possible price. We can give you a discount of 2% on Aten video/audio extender, 70/100m, HDMI, transmitter, with POH (4K at 100 m) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
