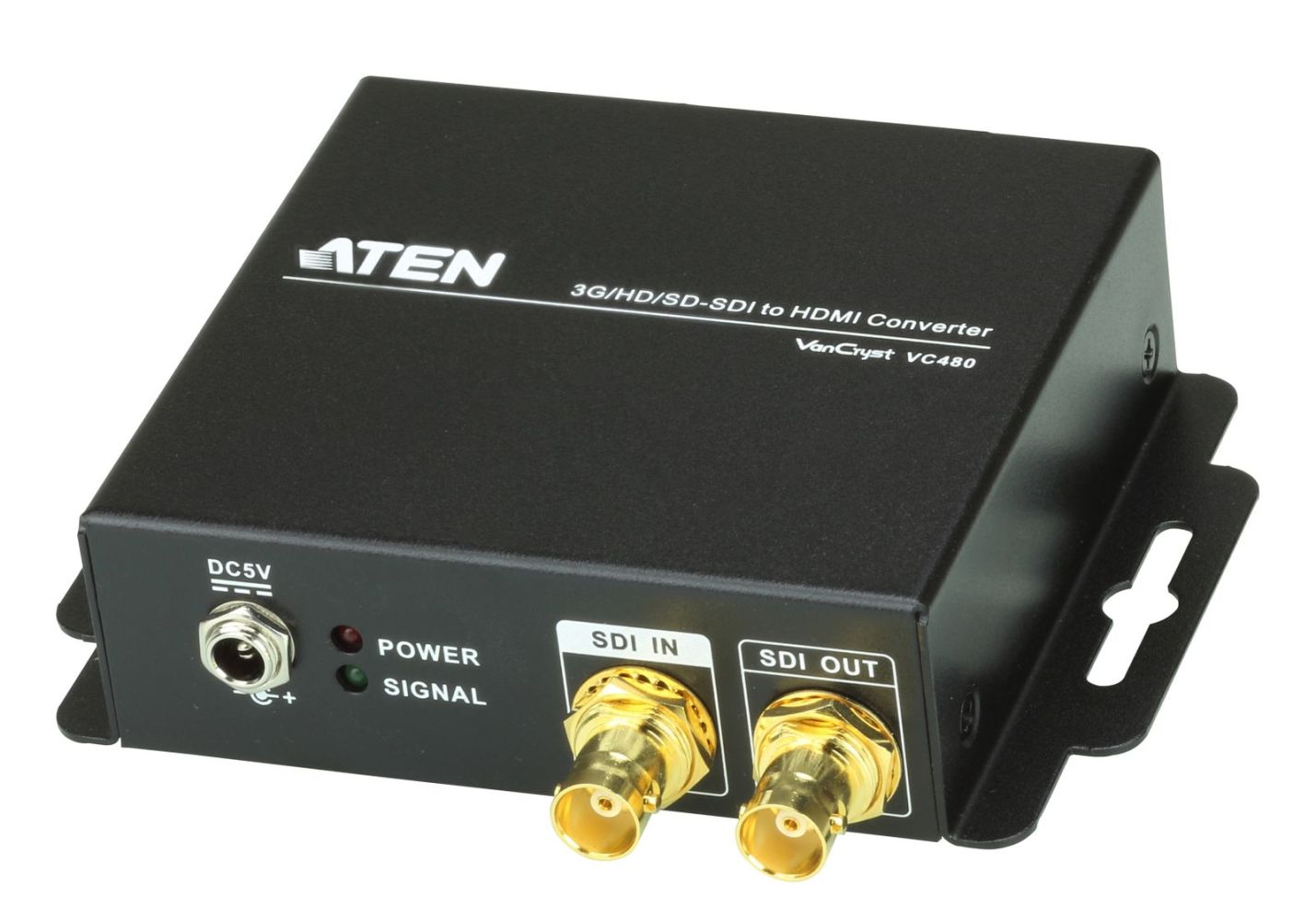

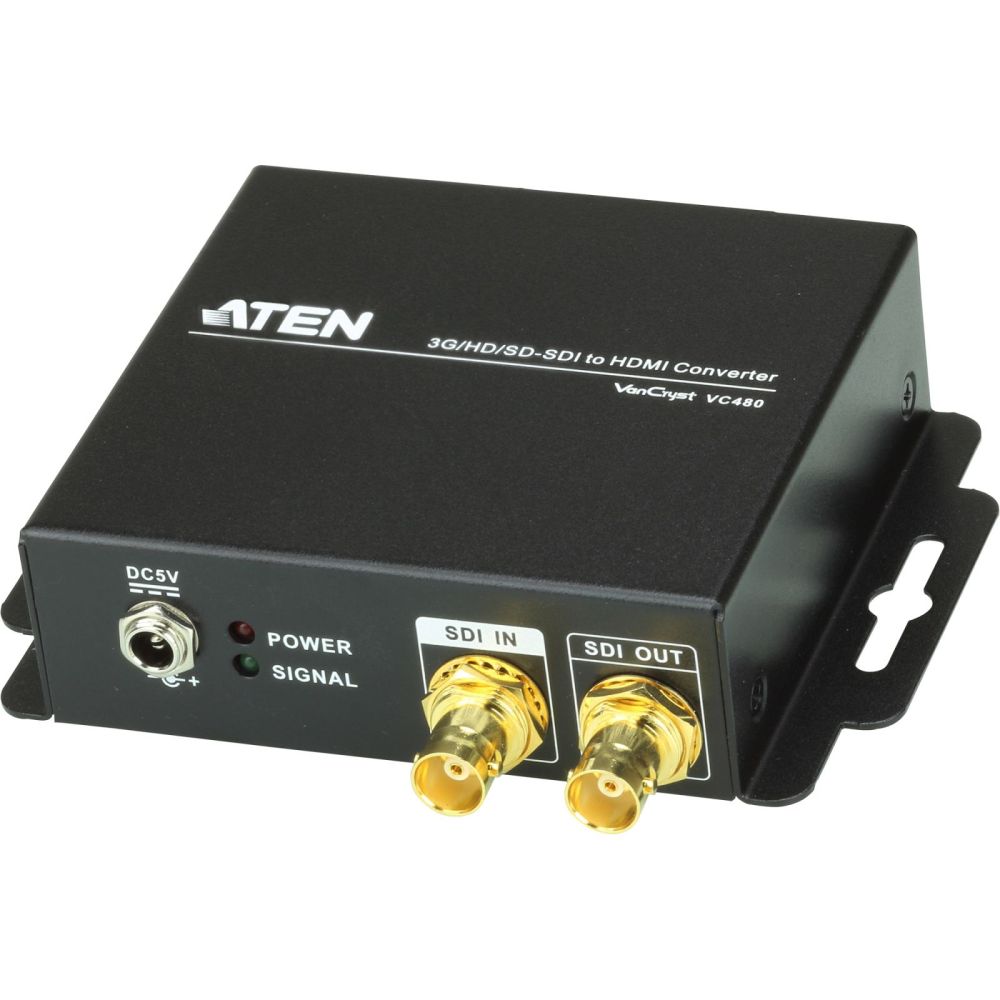

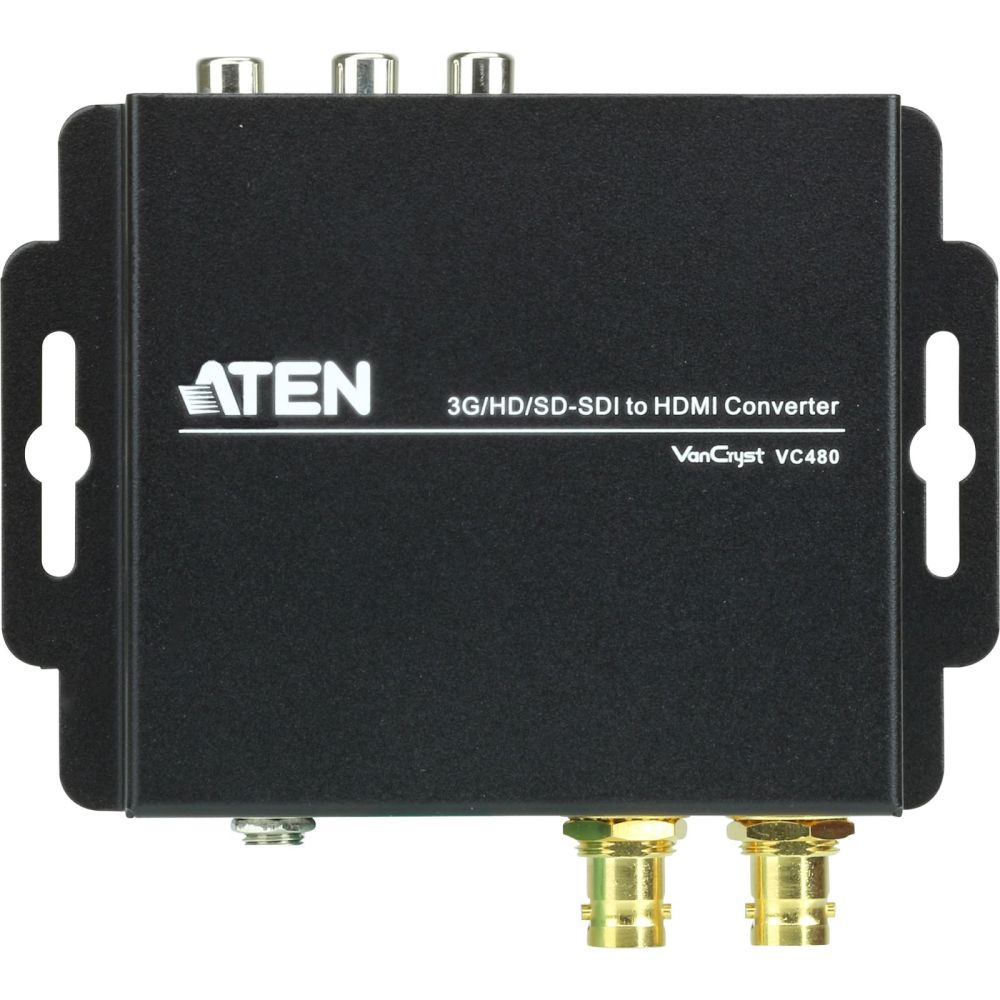

ATEN VC480 3G/HD/SD-SDI to HDMI Converter content_copy

The VC480 3G/HD/SD SDI to HDMI Converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission. The VC480 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application.
Features:Converts an 3G/HD/SD-SDI input signal to HDMI formats in real time while avoiding transformation loss for both audio and video signals
Supports additional analog stereo audio and coaxial digital audio
HDMI (Deep Color)
LED indication of power and signal status
Supports an SDI distance of up to 90M (3G-SDI), 150M (HDSDI) or 300M (SD-SDI) of RG6
Supported SDI formats:SD-SDI (SMPTE 259M, up to 270Mbps)
HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
3G-SDI (SMPTE 424M, 425M level A,B, up to 2.97Gbps)
Video Support:525i@59.96, 625i@50
720p@23.98/24/25/29.94/30/50/59.94/60
1080i@50/59.94/60
1080p@23.97/24/25/29.97/30/50/59.94/60
2048 x 1080
Buffered loop-through output provides extended monitoring
Supports 8 audio channels @48kHz rate
Features automatic detection of 3G/HD/SD-SDI signals
Reclocking SDI signals for cascading and thus longer transmission
Locking power connector for secure communications

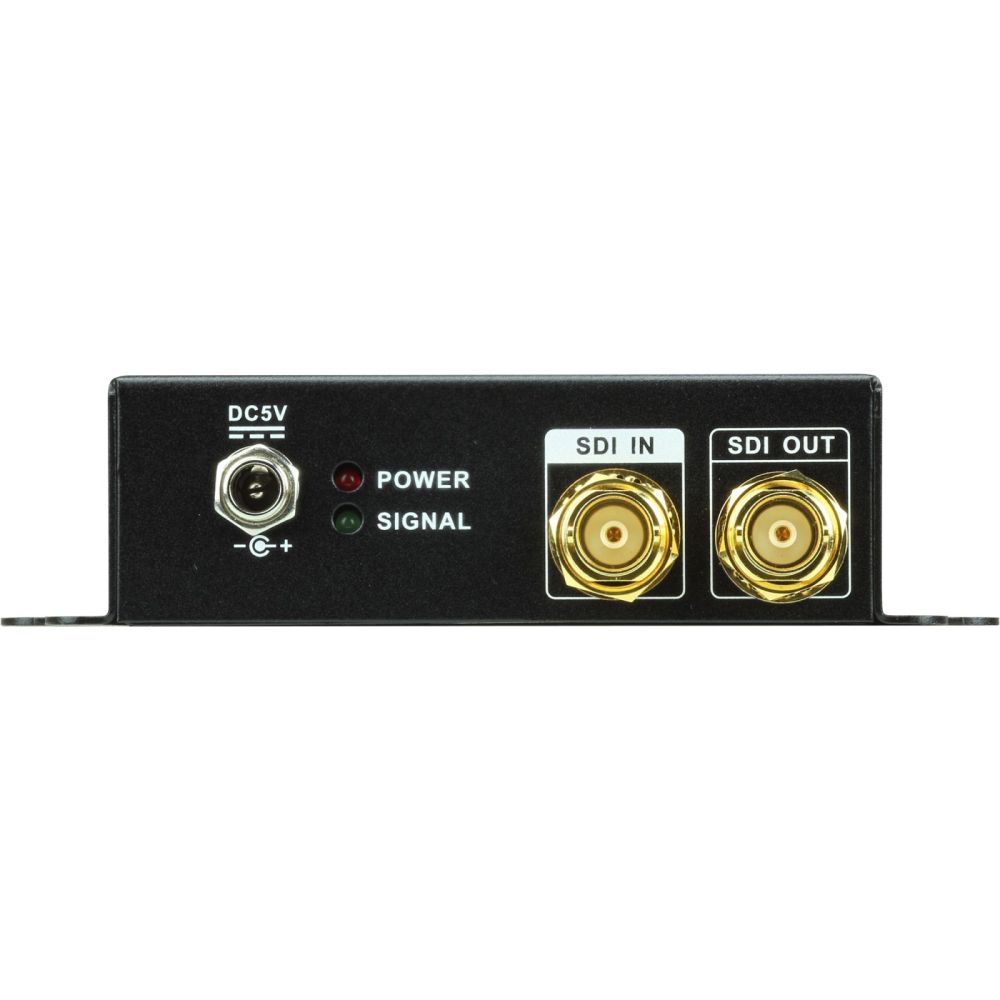

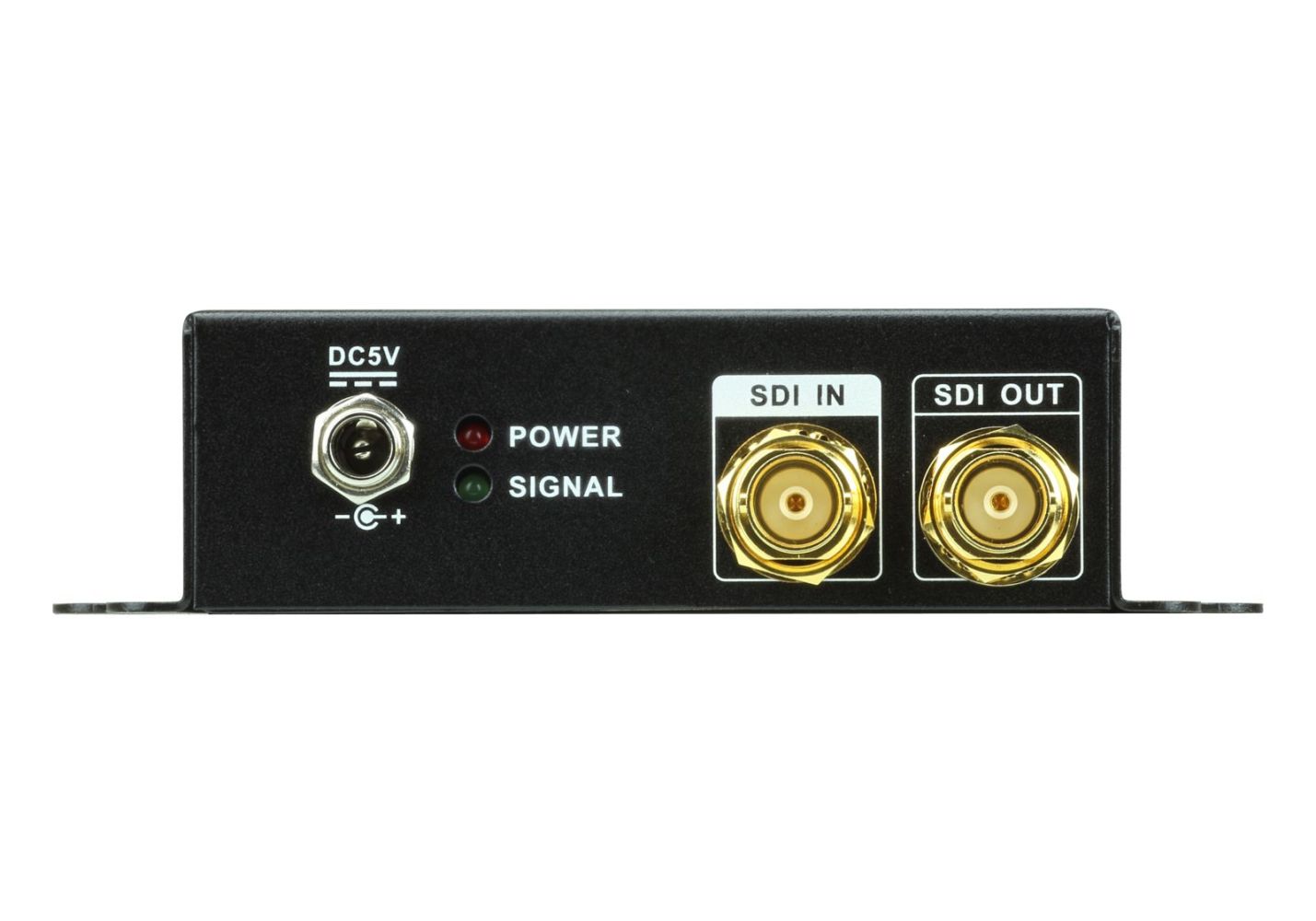

Specifications:Video Input:Interfaces: 1 x BNC (Gold)
Impedance: 75 Ohm
Video Output:Interfaces:1 x HDMI Type A Female (Black)
1 x BNC (Gold)
Impedance: 100 OHm
Video:Max. Data Rate: 2.97 Gbps
Max. Pixel Clock: 148.5 MHz
Supported Resolutions:NTSC@59.96Hz, PAL@50 Hz
720p@50/59.94/60 Hz
1080i@50/59.94/60 Hz
1080p@23.97/24/25/29.97/30/50/59.94/60 Hz
Max. Distance:90m (3G-SDI)
150m (HD-SDI)
300m (SD-SDI)

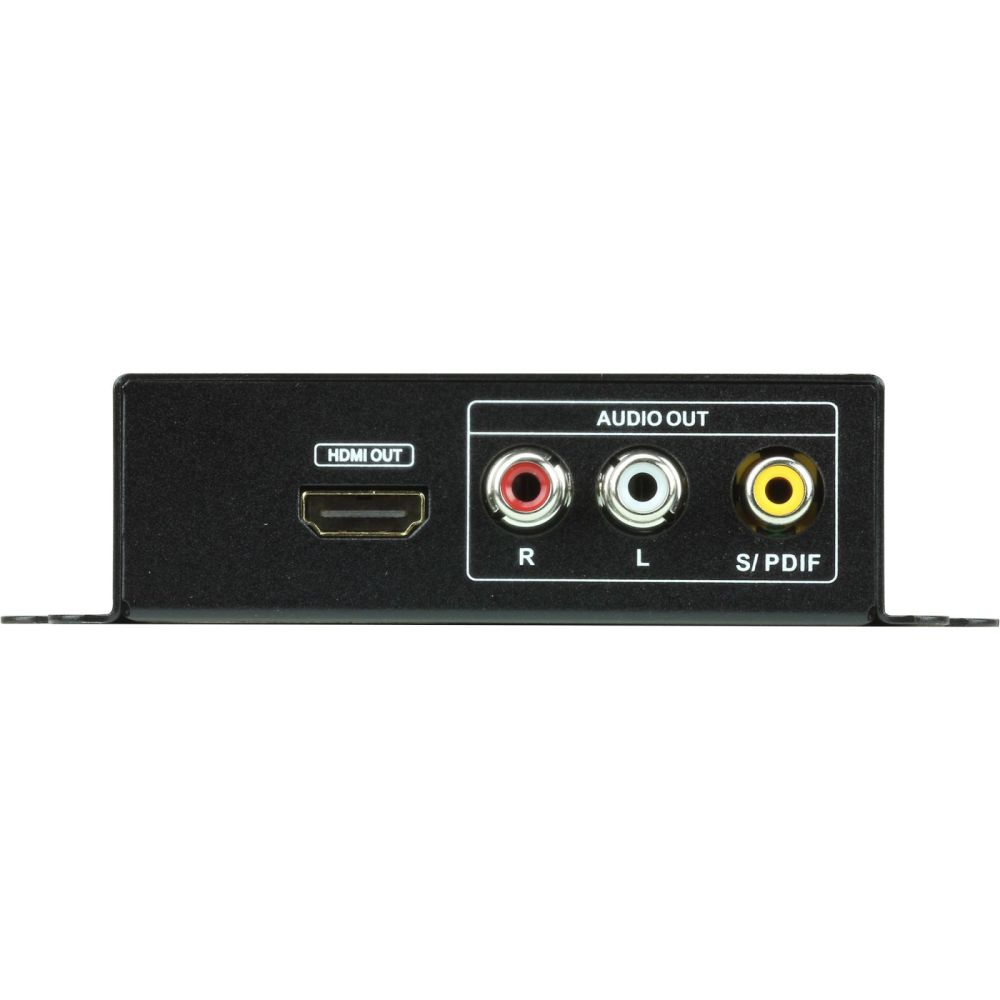

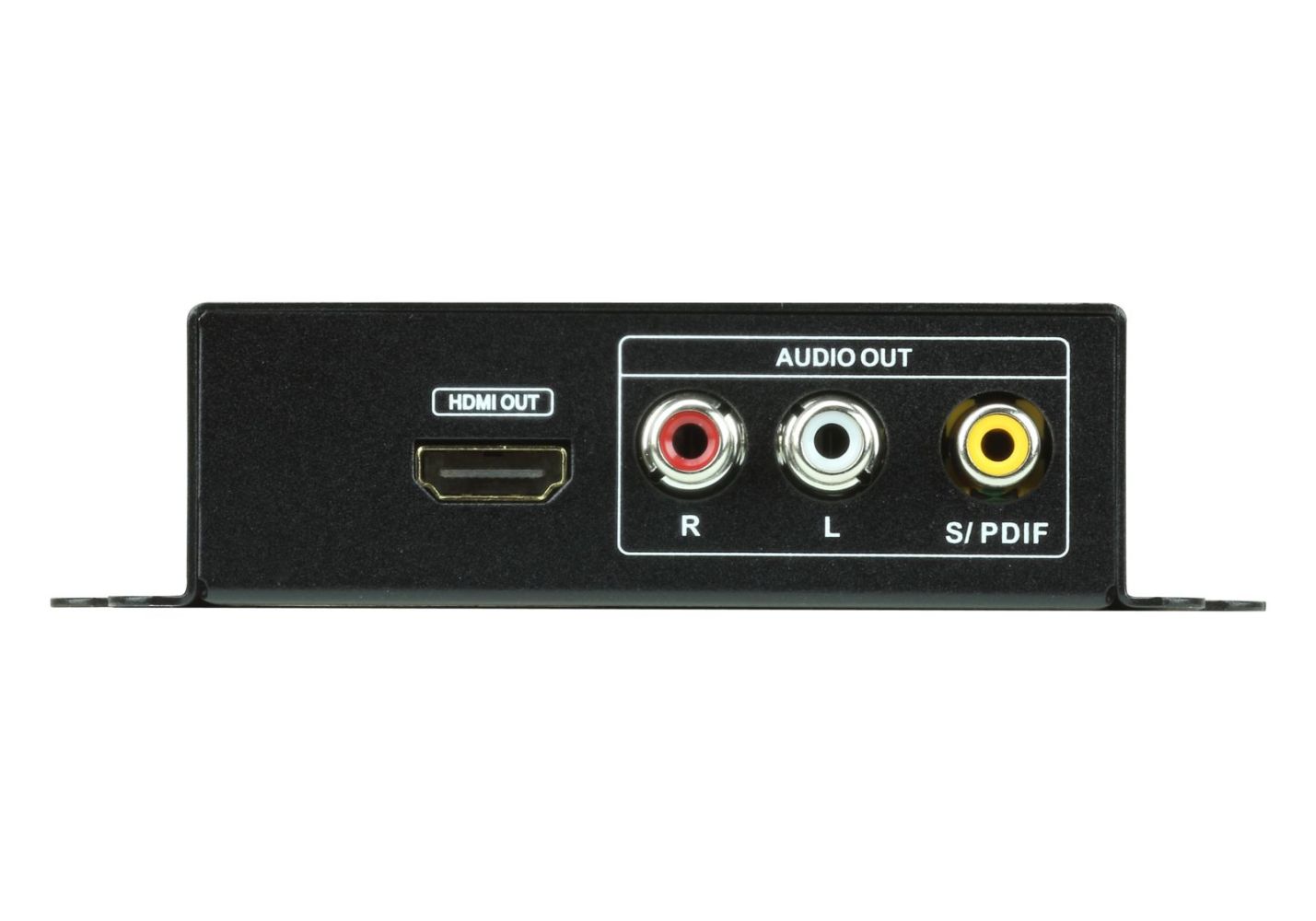

Audio:Output:Analog: 2 x RCA (Red/White)
Digital: 1 x RCA (Yellow)
SDI Formats:SD-SDI (SMPTE 259M, up to 270 Mbps)
HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps)
3G-SDI (SMPTE 424M, 425M level A, up to 2.97 Gbps)
Power:Connectors: 1 x DC Jack
Consumption: 5 VDC, 10W
Environmental:Operating Temperature: 0 - 40 ºC
Storage Temperature: -20 - 60 ºC
Humidity: 20 - 90% RH, Non-Condensing
Physical Properties:Housing: Metal
Weight: 0.29 kg
Dimensions (L x W x H): 12.30 x 10.87 x 3.05 cm
Package Contents:1x VC480 3G/HD/SD-SDI to HDMI Converter
1x Power Adapter
1x User Instructions

Features
Product colour	Black
Logistics data
Harmonized System (HS) code	85176990
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Ports & interfaces
Host interface	BNC
Output interface	HDMI, BNC
Power
Input voltage	5 V
Technical data
Weight	0.594kg
Power supply	DC voltage connection
Max. pixel clock	148.5MHz
Side B	HDMI A female, BNC (golden), Analog: 2x cinch (red/white), Digital: 1x cinch (yellow)
Signal	Audio/Video
Supported display resolution	2048 x 1080, 720p at 23.98/24/25/29.94/30/50/59.94/60Hz, 1080i at 50/59.94/60Hz, 1080p at 23.97/24/25/ 29.97/30/50/59.94/60Hz
Impedance output	100ohm
Impedance input	75ohm
Output	HDMI A female, BNC female (golden), Analog: 2x cinch (red/white), Digital: 1x cinch (yellow)
Height packaging	0.160m
Power consumption	5 V DC, 10 W
Width packaging	0.059m
Supported HDTV resolution	720p @ 23.98/24/25/29.94/30/50/59.94/60 Hz, 1080i bei 50/59.94/60 Hz, 1080p bei 23.97/24/25/29.97/30/50/59.94/60 Hz
Length packaging	0.239m
Input	BNC (golden)
Supported resolution	2048 x 1080
Packaging volume	0.0023m³
Side A	BNC female
Weight & dimensions
Width	108.7 mm
Depth	123 mm
Height	30.5 mm
Weight	290 g

---
