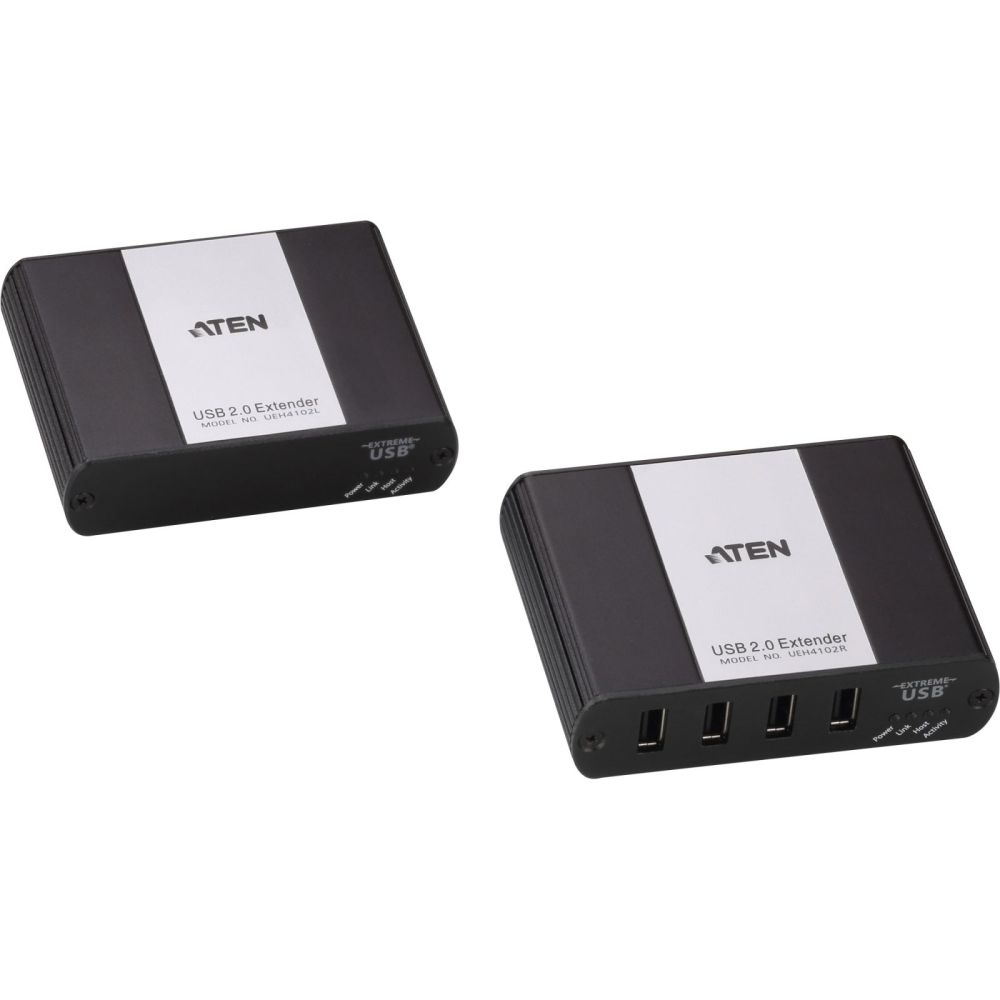

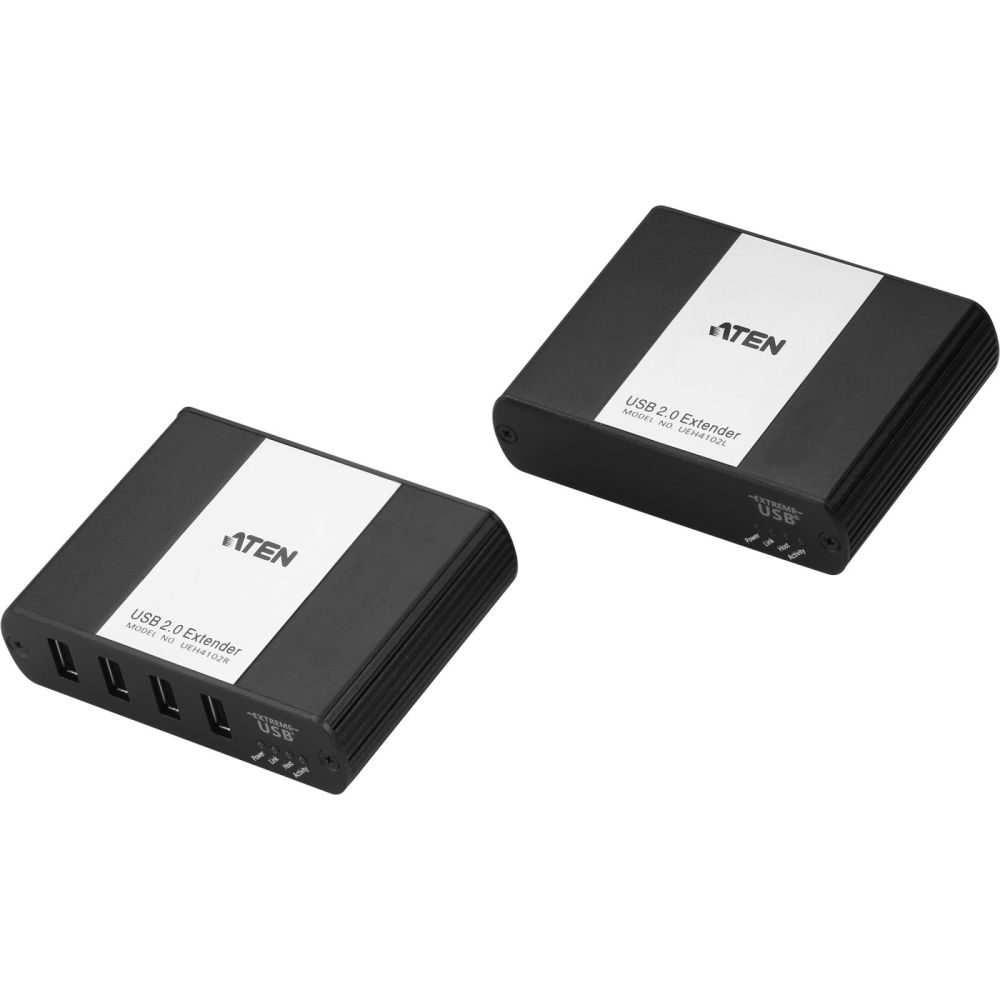

Aten USB Extender, 4-Port USB 2.0 Cat 5 Extender over LAN
|
-14% 429,43 EUR 497,56 EUR |
|
|
( 511,02 EUR incl. VAT ) ≈ £364.16 | ≈ $481.39 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Lieske Part No.: | 2027583 |
|---|---|
| Mfg Part No: | UEH4102-AT-G |
| UPC/EAN: | 4719264646454 |
| Weight: | 0.613 kg |
Product information for Aten UEH4102-AT-G:

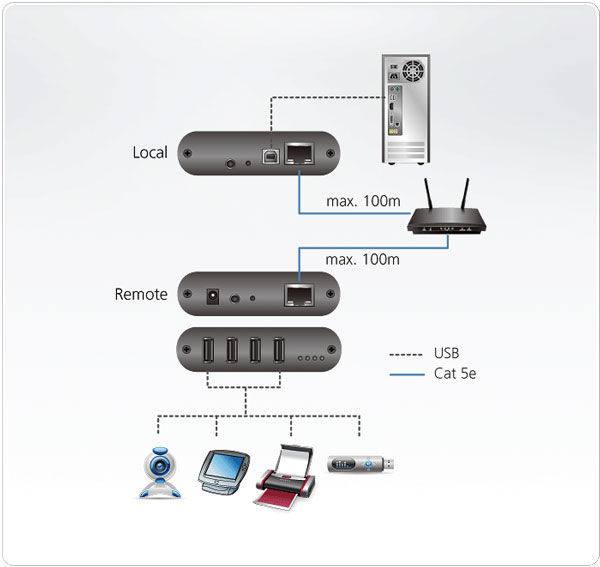

The UEH4102 offers true USB 2.0 extension at up to 480 Mbps over a Gigabit Ethernet Local Area Network (LAN). The local and remote devices are connected via MAC address; no pairing actions are required during installation.
As a true plug-and-play solution, the UEH4102 is compatible with all leading operating systems and supports all USB peripherals such as keyboards, mice, interactive whiteboards, flash drives, hard drives, audio devices, webcams and all other USB devices. The UEH4102 utilizes the full power of the USB 2.0 standard, which enables long-lasting, reliable and high-quality data communication. Scope of delivery

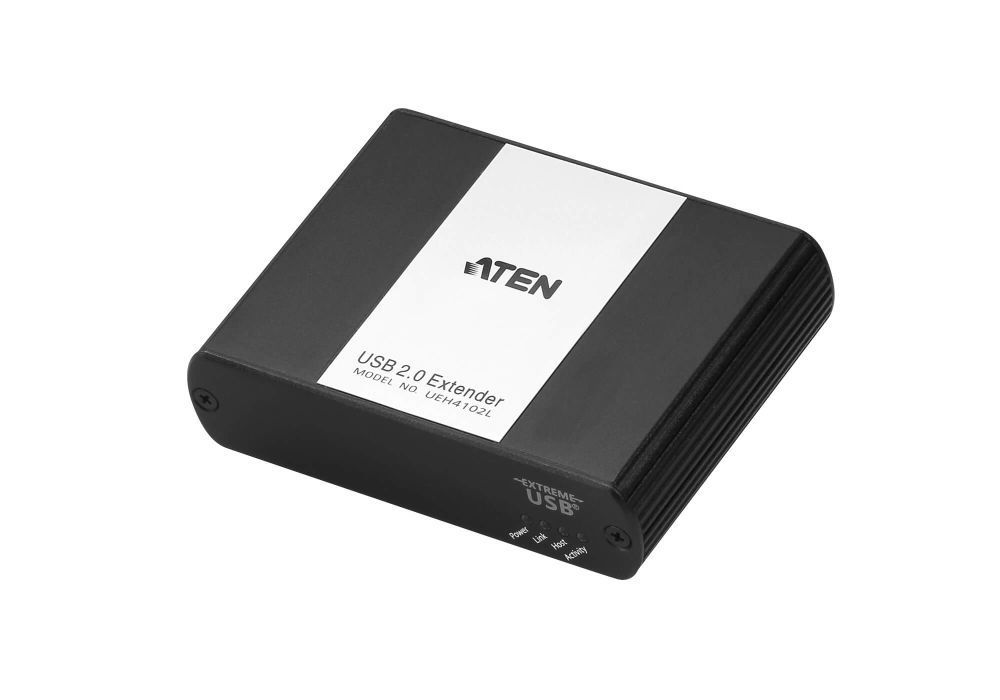

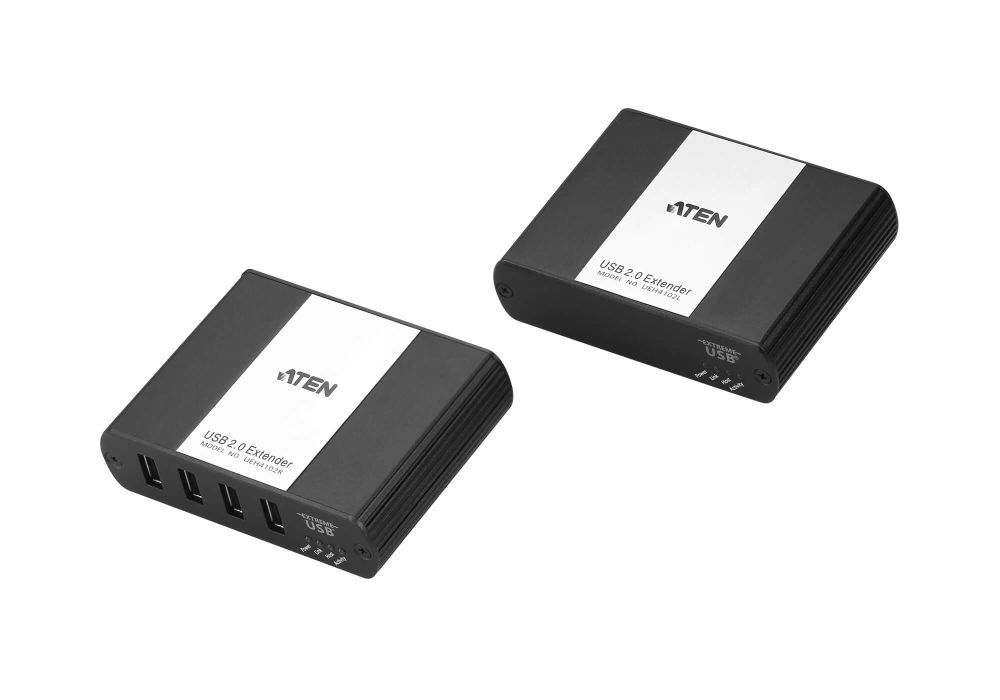

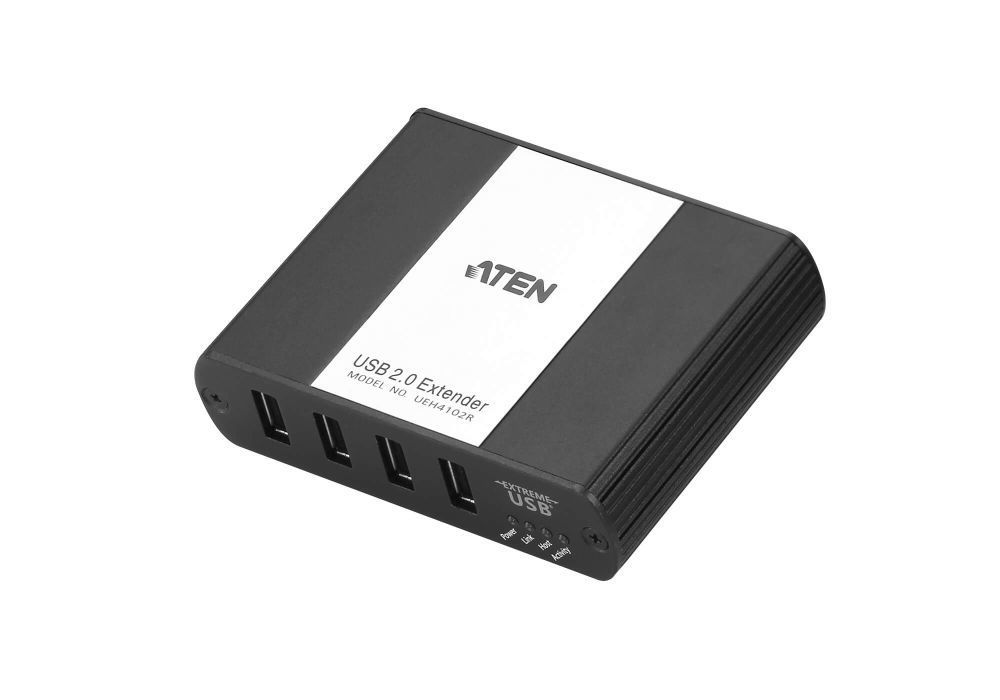

1x UEH4102L 4-port USB 2.0 Cat 5 extender over LAN (local device) 1x UEH4102R 4-port USB 2.0 Cat 5 extender over LAN (remote device) 1x 0AD9-1B05-30EG power supply 1x LIN6-04U1-V1BG USB 2.0 Type-A to Type-B cable 1x user manual
| Design | |
| Product colour | Black |
| Housing material | Metal |

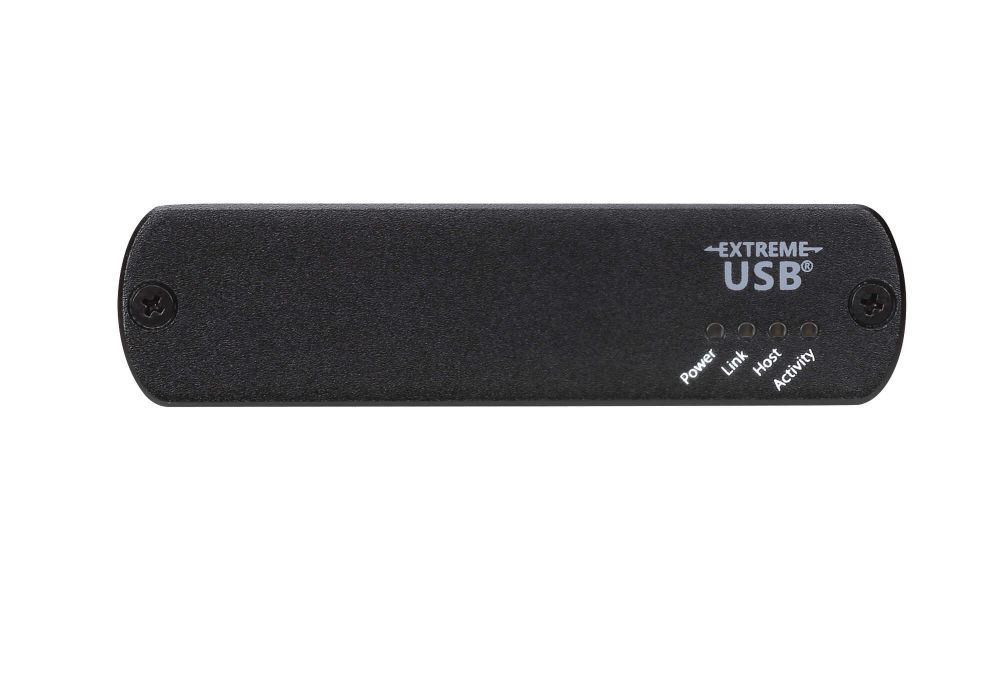

| LED indicators | |
| Logistics data | |
| Master (outer) case net weight | 2.7 kg |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 175 mm |
| Master (outer) case gross weight | 4.22 kg |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Cables included | USB |
| Manual | |
| AC adapter included | |
| Packaging data | |
| Package width | 59 mm |
| Package depth | 239 mm |
| Package height | 160 mm |
| Package weight | 754 g |
| Performance | |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 100 m |
| Data transfer rate | 480 Mbit/s |
| Cable types supported | Cat5, Cat6, Cat7 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Windows operating systems supported | |
| Mac compatibility | |
| Linux operating systems supported | |

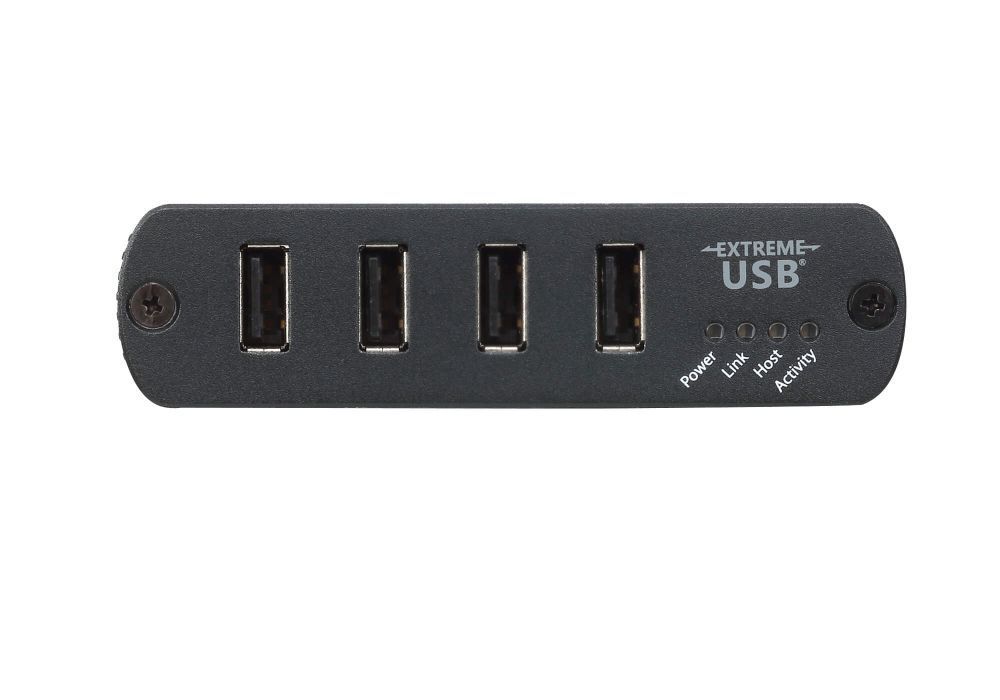

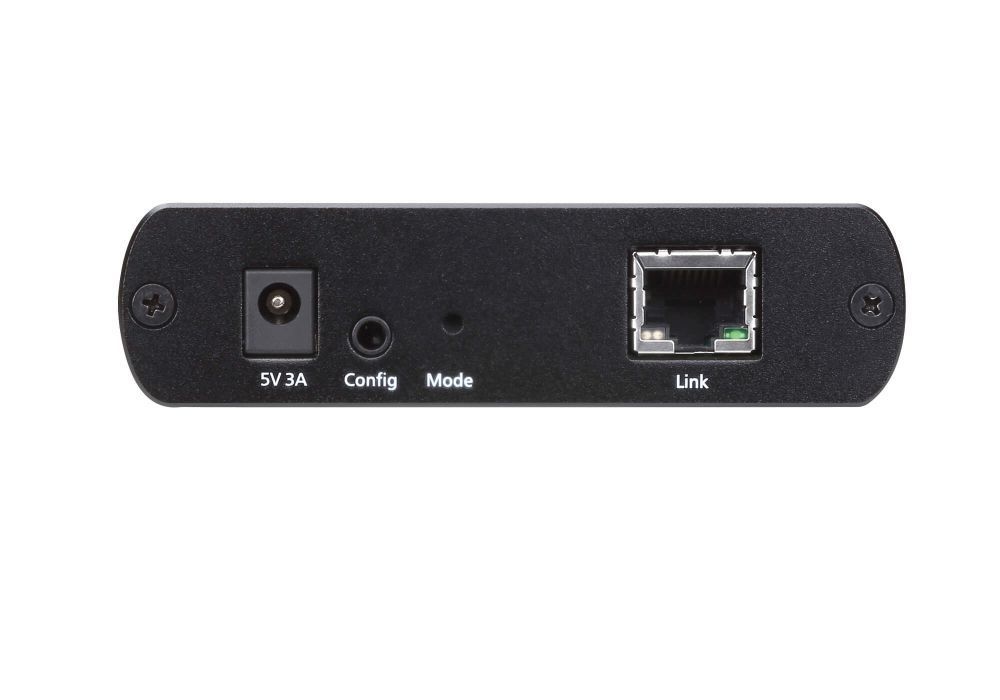

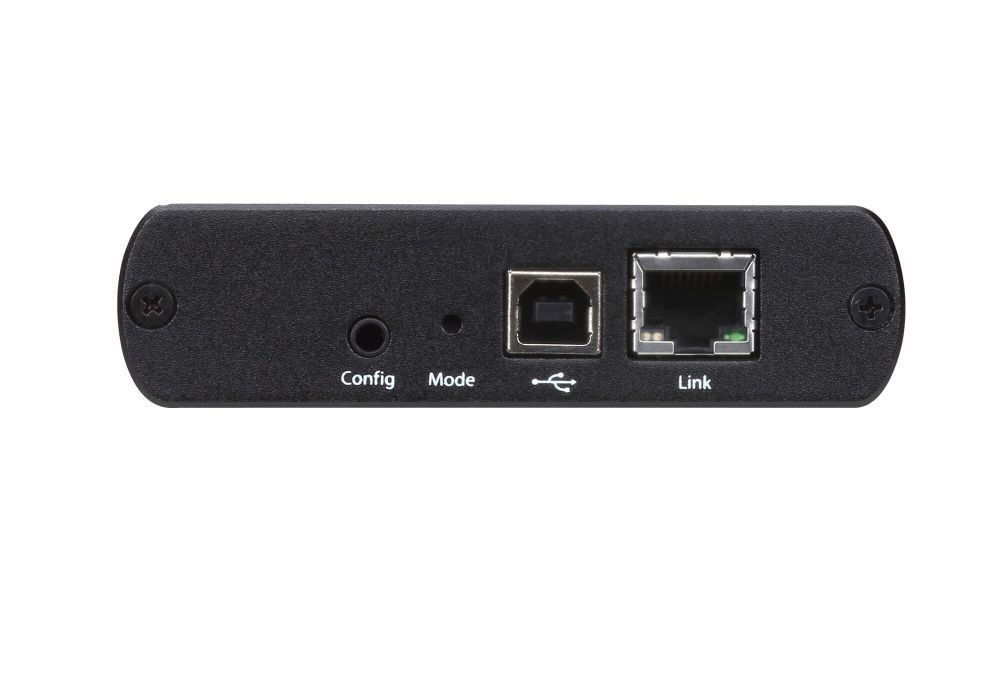

| Ports & interfaces | |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| USB 2.0 ports quantity | 5 |
| DC-in jack | |
| Power | |
| Power consumption (receiver) (max) | 15 W |
| Output voltage | 5 V |
| External power adapter | |
| Weight & dimensions | |
| Width | 76 mm |
| Depth | 100 mm |
| Height | 26 mm |
| Weight | 540 g |
