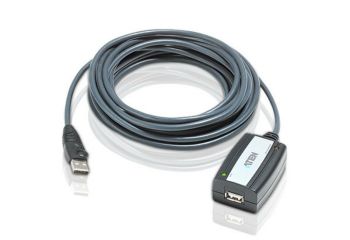

Aten UE250-AT UE250 USB 2.0 Extender cable black 5m

Your rating:
Average rating
product review for Aten UE250-AT UE250 USB 2.0 Extender cable black 5m
( 0 / 5 ) 0 ratings
Aten UE250-AT
This image may differ from the desired article.
Aten UE250-ATAten UE250-ATAten UE250-AT
-7% 13,44 EUR 14,45 EUR
( 15,99 EUR incl. VAT )
≈ £11.24  |  ≈ $14.77
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
In Stock: >5 pieces
1x Aten UE250-AT UE250 USB 2.0 Extender cable black 5m
Datasheet:file_download Download
Lieske Part No.:856437
Mfg Part No: UE250-AT
UPC/EAN: 4710423770737
Weight:0.256 kg

Product information for Aten UE250-AT:

The Aten UE250-AT is an active USB extension cable that enables the connection between a computer and a USB device over a distance of up to 5 meters. It is specifically designed for use in office environments, small businesses, as well as SOHO and SMB environments, where flexible placement of peripheral devices such as printers, scanners, or digital cameras is required. The cable operates according to the USB 2.0 specification and ensures a data transfer rate of up to 480 Mbit/s, supporting even demanding applications with high data rates. Signal regeneration ensures that signal integrity is maintained over the entire length, securing the reliability of data transmission.

Applications
This cable is suitable for use in workstations where USB devices cannot be directly connected to the computer due to space constraints or spatial arrangement. It is compatible with Windows systems from version 2000 and XP, as well as with Mac systems. The device operates without external power supply, being powered via USB bus power (Bus Powered). This reduces the number of required power sources and simplifies installation. The maximum extension length depends on the power supply of the connected USB device, with the specification defining a maximum distance of 5 meters.

Functions and Features in Detail
The cable features a USB Type-A male connector on the computer side and a USB Type-A female port on the device side. The connection is made via a standard USB port, ensuring compatibility with a wide range of devices. The LED indicators, consisting of a green and a red LED, provide status indication: the green LED indicates a successful connection (Link), while the red LED lights up in case of overcurrent situations. This visual feedback facilitates error diagnosis and system maintenance.

Technology Explained Simply
The UE250-AT operates as an active repeater, actively amplifying and regenerating the USB signal, similar to a USB hub. This maintains signal quality over the full length of 5 meters, enabling stable and error-free data transmission. Daisy-chaining is possible, allowing multiple extension cables to be connected in series to achieve a total length of up to 25 meters. Power is supplied through the USB cable itself, eliminating the need for additional power sources. The operating temperature range is 0 to 40 °C, and the storage temperature range is -20 to 60 °C, making the cable suitable for use in rooms with moderate environmental conditions.

Compatibility and Accessories
The cable is fully compatible with the USB 2.0 specification and meets the electrical and timing requirements for USB hubs. It is certified by USB-IF, confirming compliance with official USB standard requirements. The cable is hot-pluggable, meaning it can be connected or disconnected during operation without requiring a computer restart. The packaging includes the extension cable and an instruction manual explaining installation and operation.

Installation and Mounting
Installation is performed by simply connecting the USB Type-A male plug to the computer and the USB Type-A female port to the USB device. Daisy-chaining multiple cables is possible, with a total length of up to 25 meters. The connection is plug-and-play, requiring no additional software installation. The LED indicators assist in verifying the connection and identifying errors.

Operational Advantages
The cable provides a reliable and stable connection over a distance of up to 5 meters, enabling more flexible placement of USB devices. Signal regeneration ensures high data integrity, and the bus-powered function reduces the number of required power sources. The hot-plug capability allows for flexible use, and the LED indicators simplify maintenance. Daisy-chaining extends the range of applications, especially in larger work environments where multiple extensions are needed.

Logistics data
Master (outer) case net weight3.88 kg
Harmonized System (HS) code84733020
Master (outer) case width297 mm
Master (outer) case length385 mm
Master (outer) case height330 mm
Master (outer) case gross weight5.66 kg
Products per master (outer) case20 pc(s)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Storage relative humidity (H-H)0 - 80%
Packaging content
ManualYes
Ports & interfaces
USB 2.0 Type-A ports quantity1
Power
Power source typeUSB
Technical data
Side BUSB-A male
Article length500.0cm
Length packaging0.185m
ColourBlack
Packaging volume0.0092m³
TypeUSB 2.0
Weight0.256kg
USB specificationUSB 2.0
SignalData
Height packaging0.155m
PackingRetail
Width packaging0.055m
Data transmission rate480Mb/s
Side AUSB-A female
Length5m
Gold plated contactsNo
ULNo
Technical details
TypeConsole transmitter & receiver
Data transfer rate480 Mbit/s
Maximum transfer distance5 m
Product colourBlack
Housing materialPlastic
LED indicatorsYes
Daisy chainYes
Weight & dimensions
Width60.2 mm
Depth40 mm
Height24 mm
Weight194 g
Package width55 mm
Package depth185 mm
Package height155 mm
Package weight256 g


Product data sheet
Datasheet for Aten UE250-AT, EAN: 4710423770737

Questions & answers

What is the delivery time of Aten UE250-AT UE250 USB 2.0 Extender cable black 5m?

The article Aten UE250-AT UE250 USB 2.0 Extender cable black 5m is currently in stock

According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten UE250-AT to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Aten UE250-AT UE250 USB 2.0 Extender cable black 5m always at the best possible price. We can give you a discount of 2% on Aten UE250-AT UE250 USB 2.0 Extender cable black 5m if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
