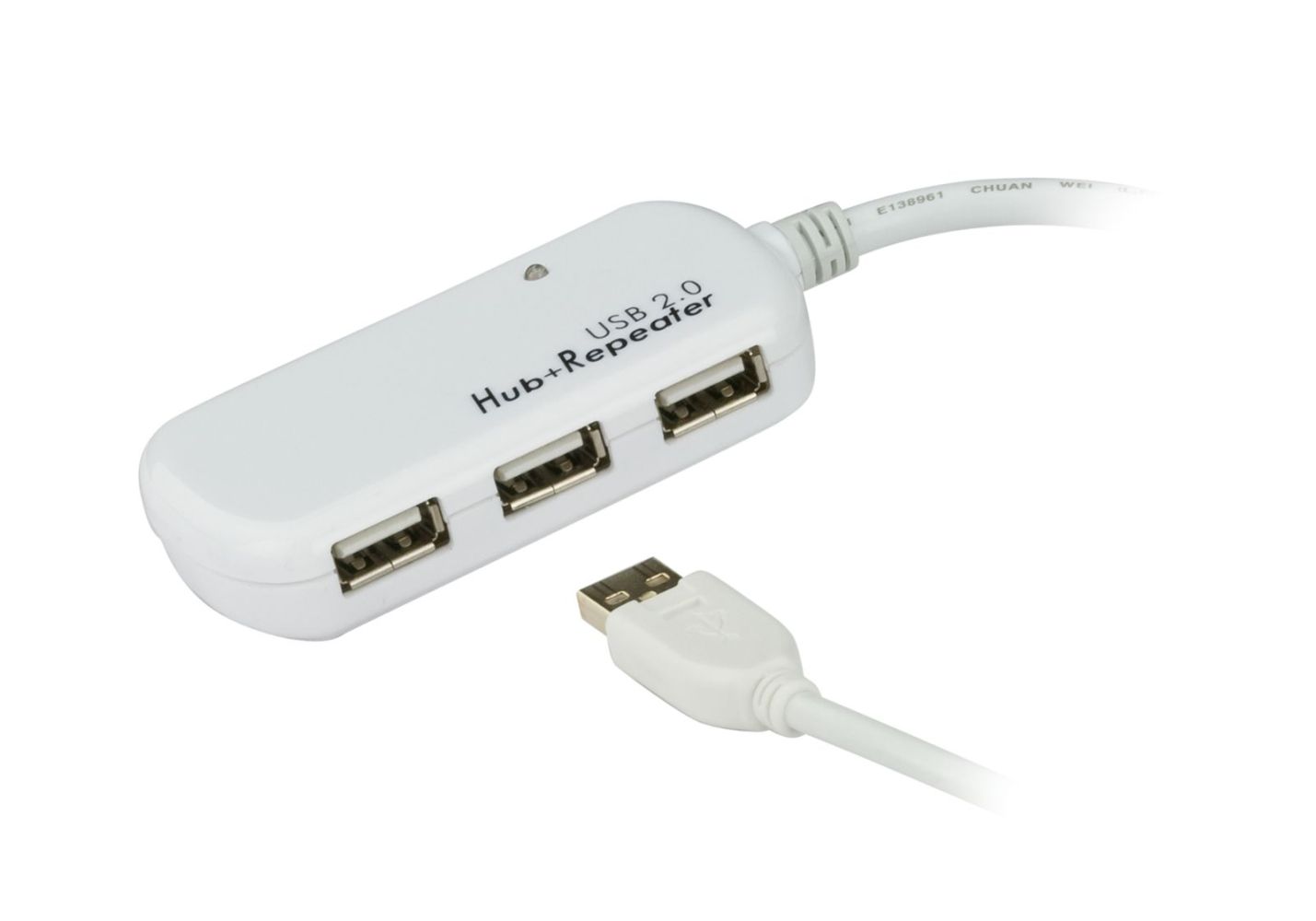

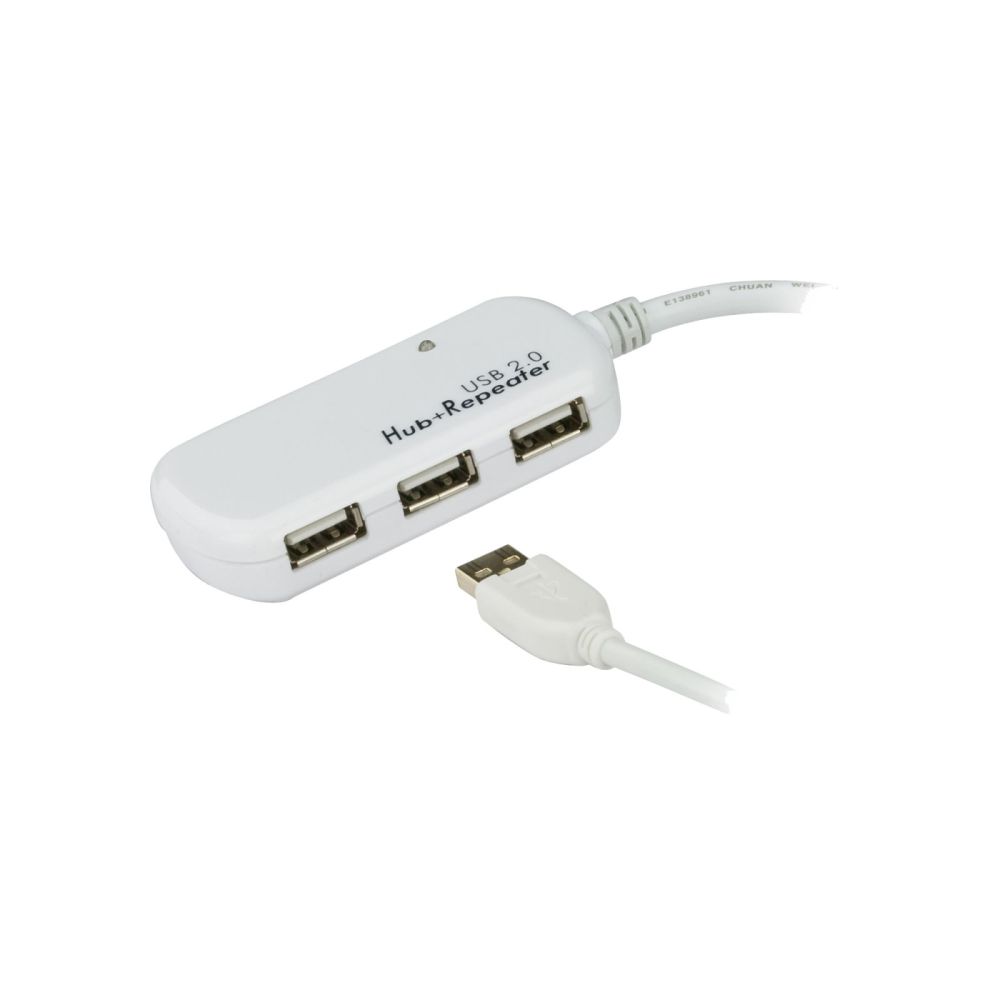

Aten UE2120H USB Extender 4 Port Hub grey 12m

Your rating:
Average rating
product review for Aten UE2120H USB Extender 4 Port Hub grey 12m
( 5 / 5 ) 1 ratings
Aten UE2120H
This image may differ from the desired article.
Aten UE2120HAten UE2120HAten UE2120H
-5% 32,92 EUR 34,83 EUR
( 39,17 EUR incl. VAT )
≈ £27.42  |  ≈ $36.11
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Aten UE2120H USB Extender 4 Port Hub grey 12m
Datasheet:file_download Download
Lieske Part No.:1550274
Mfg Part No: UE2120H
UPC/EAN: 4710423775619
Weight:0.554 kg

Product information for Aten UE2120H:

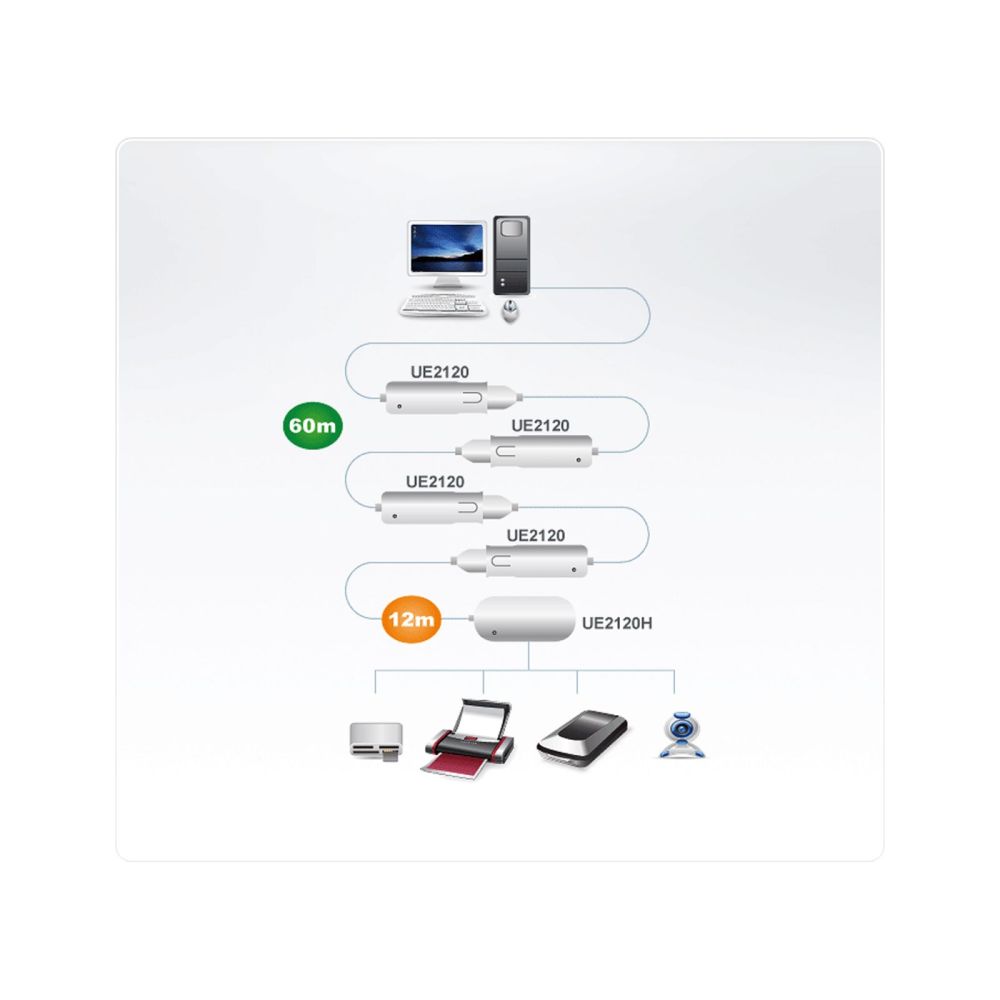

The active USB 2.0 extension actively amplifies the signal like a hub. This enables a USB cable to be extended in accordance with USB specifications. No external power supply required. The maximum extension depends on the power supply of the USB device.USB 2.0 extension
Data transfer rate up to 480Mbit/s
Active without external power supply
for Windows from 2000 / XP, Mac FreeBSD

Features
Data transfer rate480 Mbit/s
Product colourWhite
Housing materialPlastic
Cable length12 m
CertificationRoHS
LED indicatorsYes
Plug and PlayYes
Logistics data
Master (outer) case net weight9.68 kg
Master (outer) case width305 mm
Master (outer) case length390 mm
Master (outer) case height335 mm
Master (outer) case gross weight11.8 kg
Products per master (outer) case20 pc(s)
Harmonized System (HS) code84719000
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Packaging data
Package width56 mm
Package depth186 mm
Package height157 mm
Package weight592 g
Ports & interfaces
Host interfaceUSB 2.0
Hub interfacesUSB 2.0
USB 2.0 ports quantity4
Ports quantity4
Card reader integratedNo
DC-in jackNo
Power
Input voltage5 V
Technical data
Width packaging0.056m
SignalData
TypeUSB 2.0
Side BUSB-A male
USB specificationUSB 2.0
Side AUSB-A female
Length12m
Length packaging0.186m
Article length1200.0cm
Weight0.550kg
Packaging volume0.0092m³
Data transmission rate480Mb/s
PackingRetail
Height packaging0.157m
ColourBlack
Gold plated contactsNo
ULNo
Weight & dimensions
Width41 mm
Depth82 mm
Height17 mm
Weight484 g


Product data sheet
Datasheet for Aten UE2120H, EAN: 4710423775619

Questions & answers

What is the delivery time of Aten UE2120H USB Extender 4 Port Hub grey 12m?

The article Aten UE2120H USB Extender 4 Port Hub grey 12m is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten UE2120H to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Aten UE2120H USB Extender 4 Port Hub grey 12m always at the best possible price. We can give you a discount of 2% on Aten UE2120H USB Extender 4 Port Hub grey 12m if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
