ATEN UCE3250 4-Port USB 2.0 CAT5 Extender up to 50meters content_copy

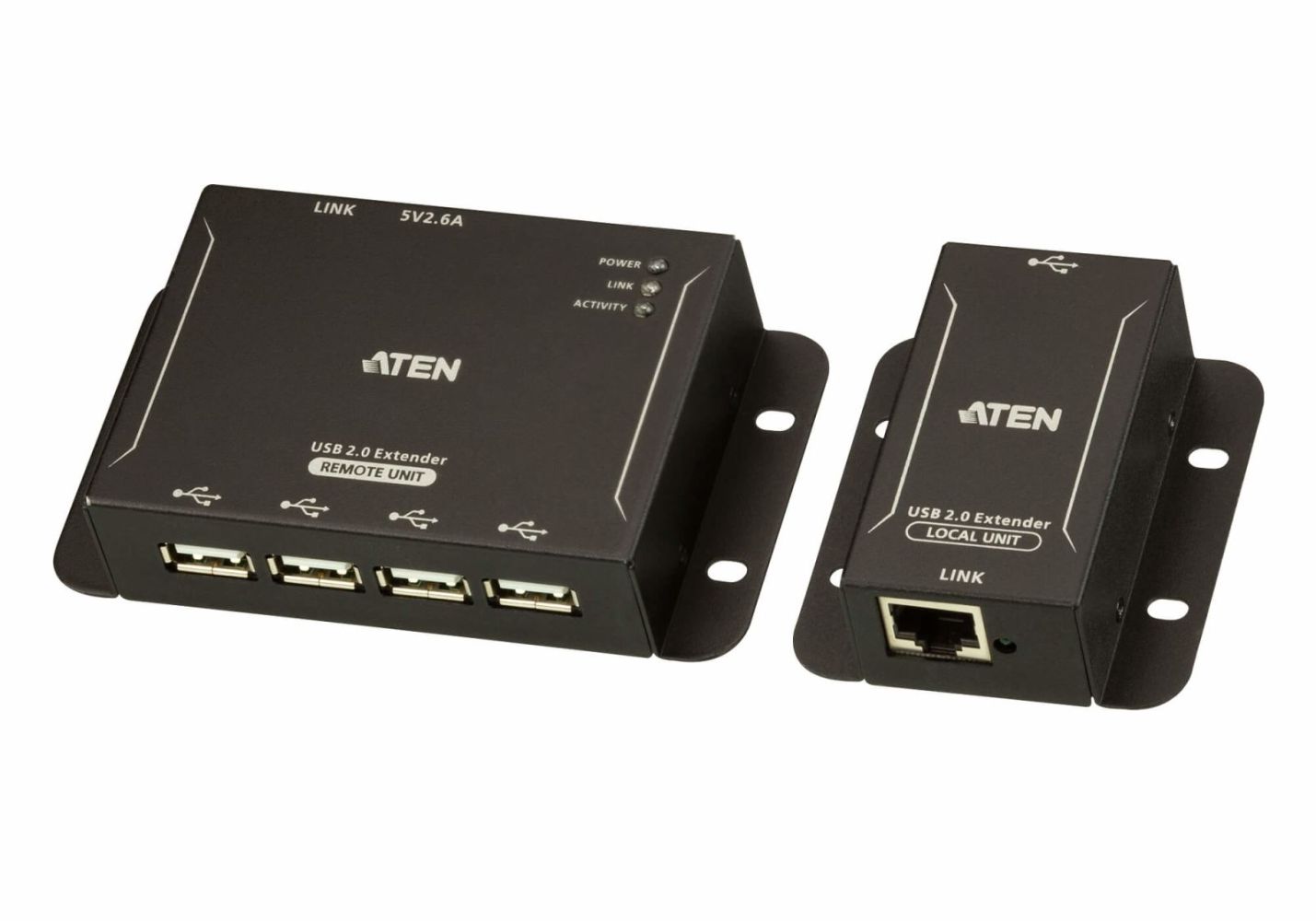

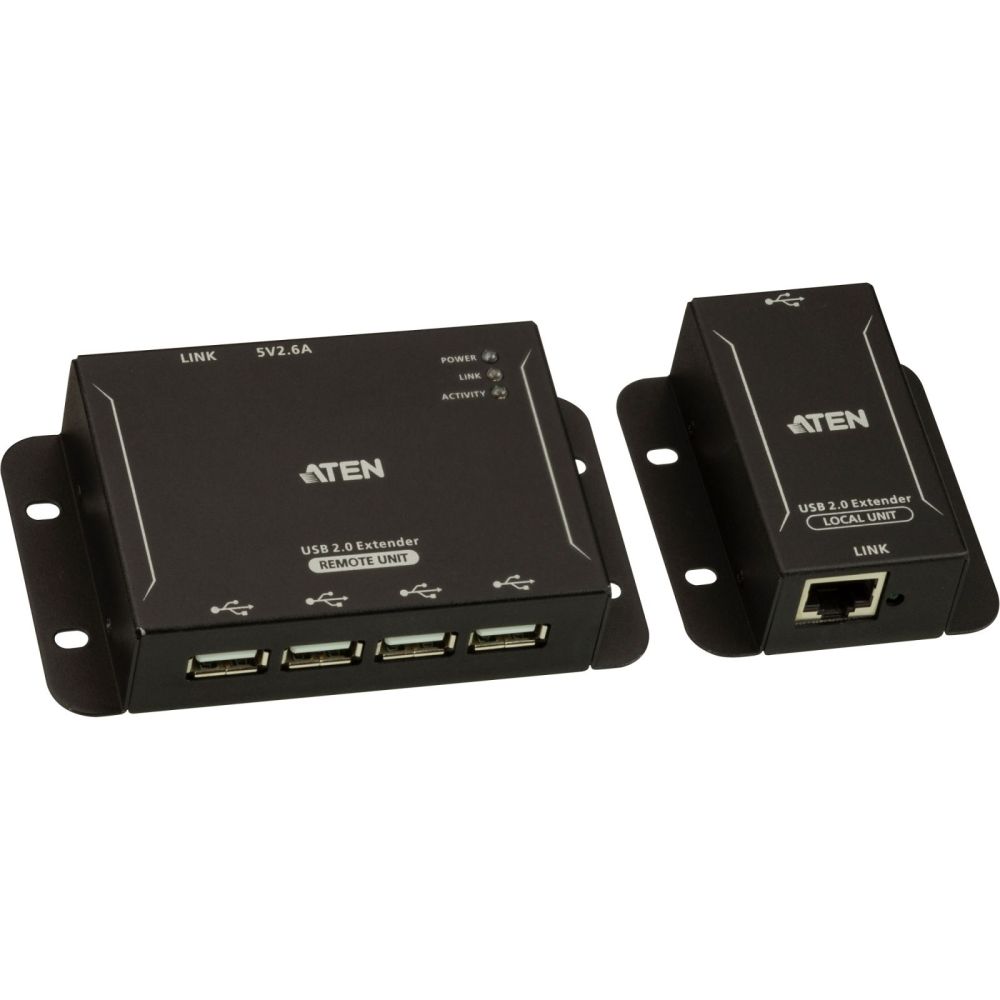

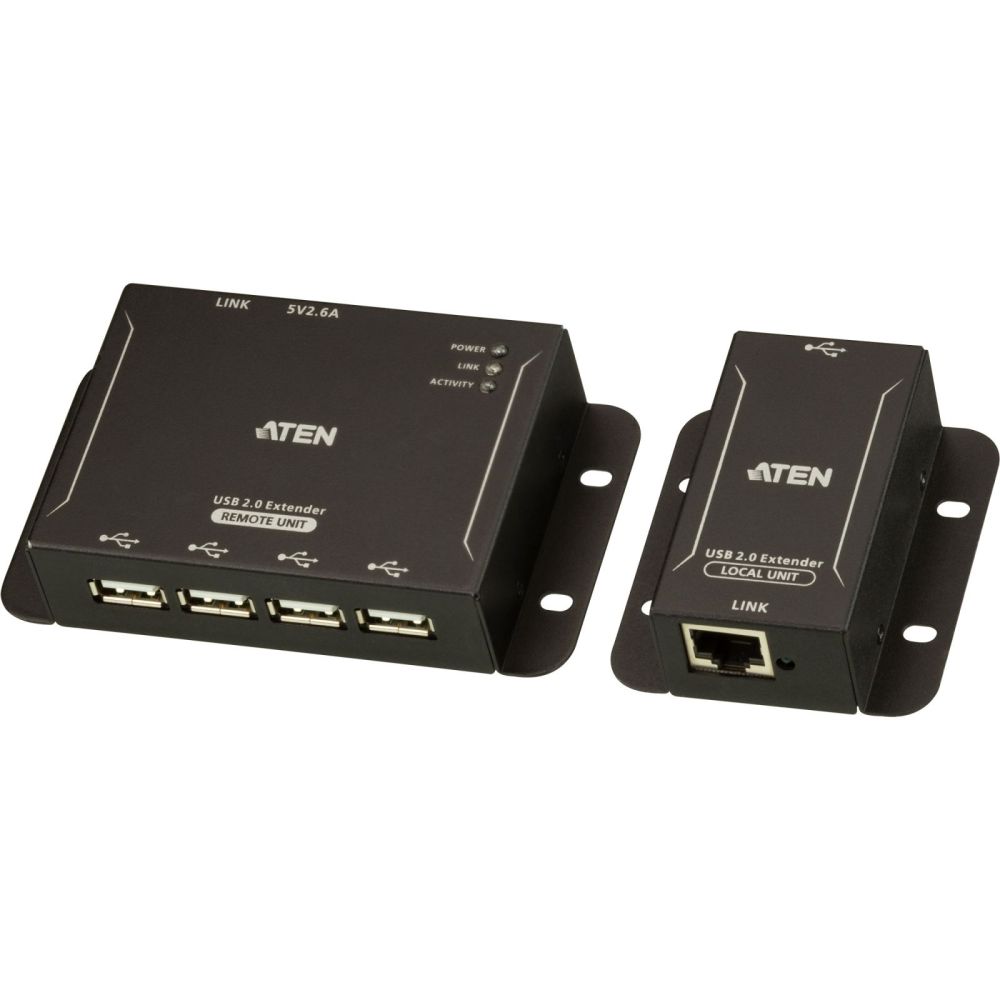

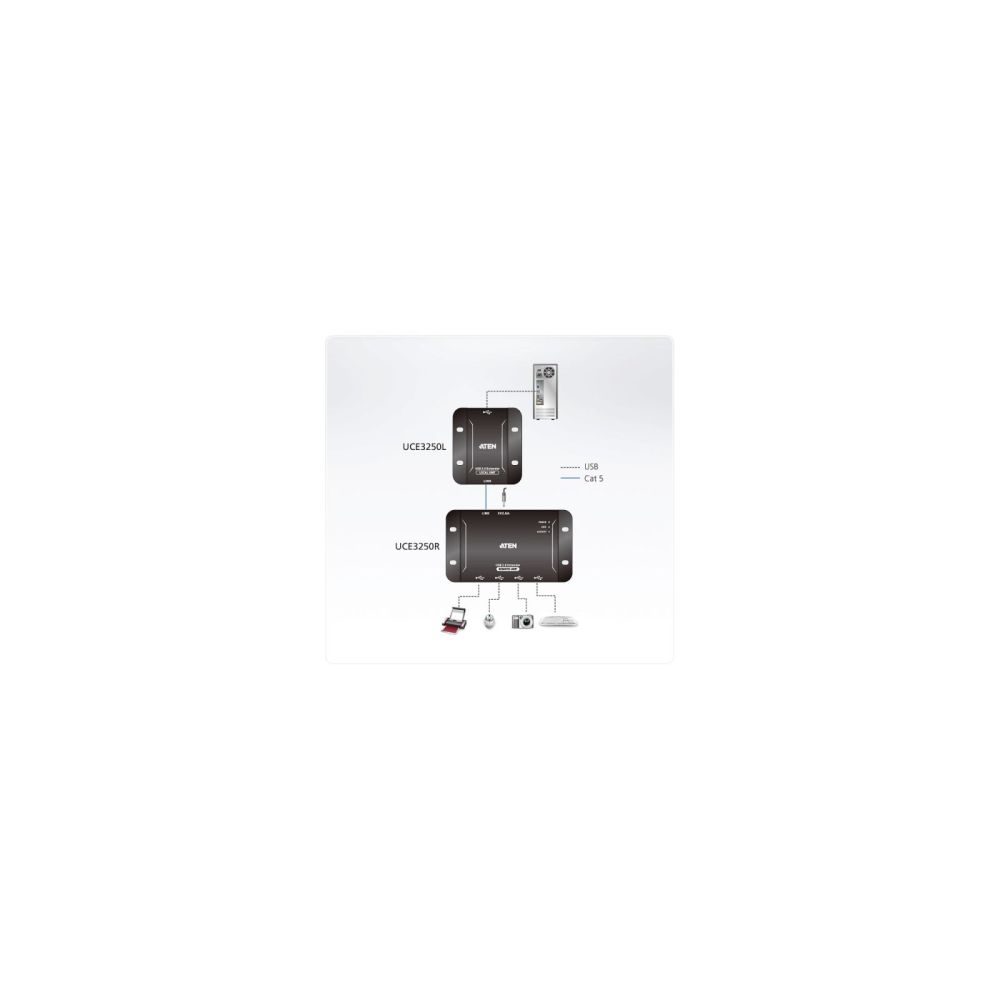

The UCE3250 4-port USB 2.0 Cat 5 Extender is a two-unit device that serves as a USB hub and a USB extender. The UCE3250 unit can connect as many as 4 USB peripherals from up to 50 meters away from your computer over a Cat 5 / 5e / 6 Ethernet cable.
The UCE3250 transmits data through signal packages with better compatibility and preserves the integrity of the data over long distances. The power supply at the remote UCE3250 unit helps provide suffi cient power to any type of USB device, such as flash drives, Keyboards, mice, webcams, scanners, or printers, etc.
With its durable metal housing, this high-quality USB extender provides a fast and fl exible solution for industrial applications. In addition, the compact size and integrated wall mounting enables space-saving installation.High-Speed USB 2.0 compliant with a data transfer rate of up to 480 Mbps
Extension distance of up to 50m over a Cat 5/5e/6 cable
Receives up to 4 USB peripherals of all types – flash drives, keyboards, mice, webcams, scanners, printers and more
Metal mechanical with wall mount design supports industrial deployment
Supports Windows, MacOS and Linux
Plug- and- play

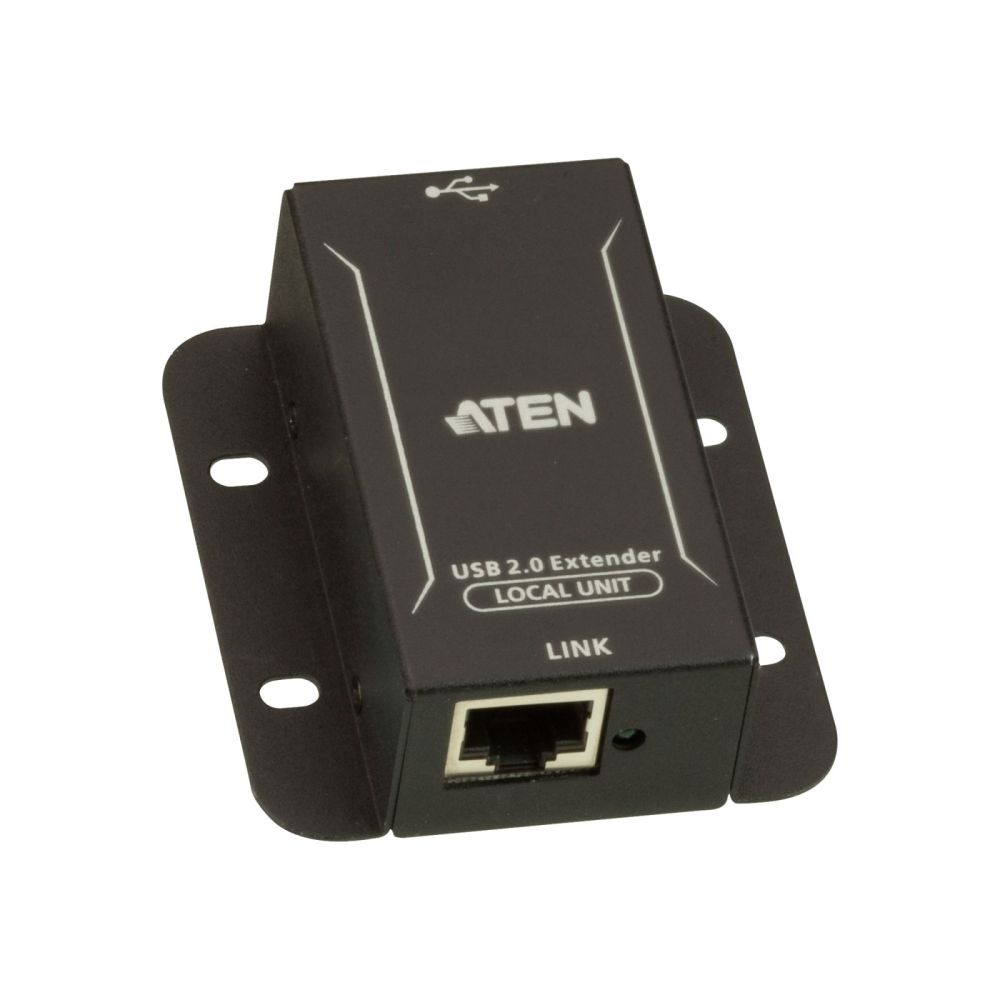

Package Contents:1x UCE3250L 4-port USB 2.0 CAT 5 Extender (Local unit)

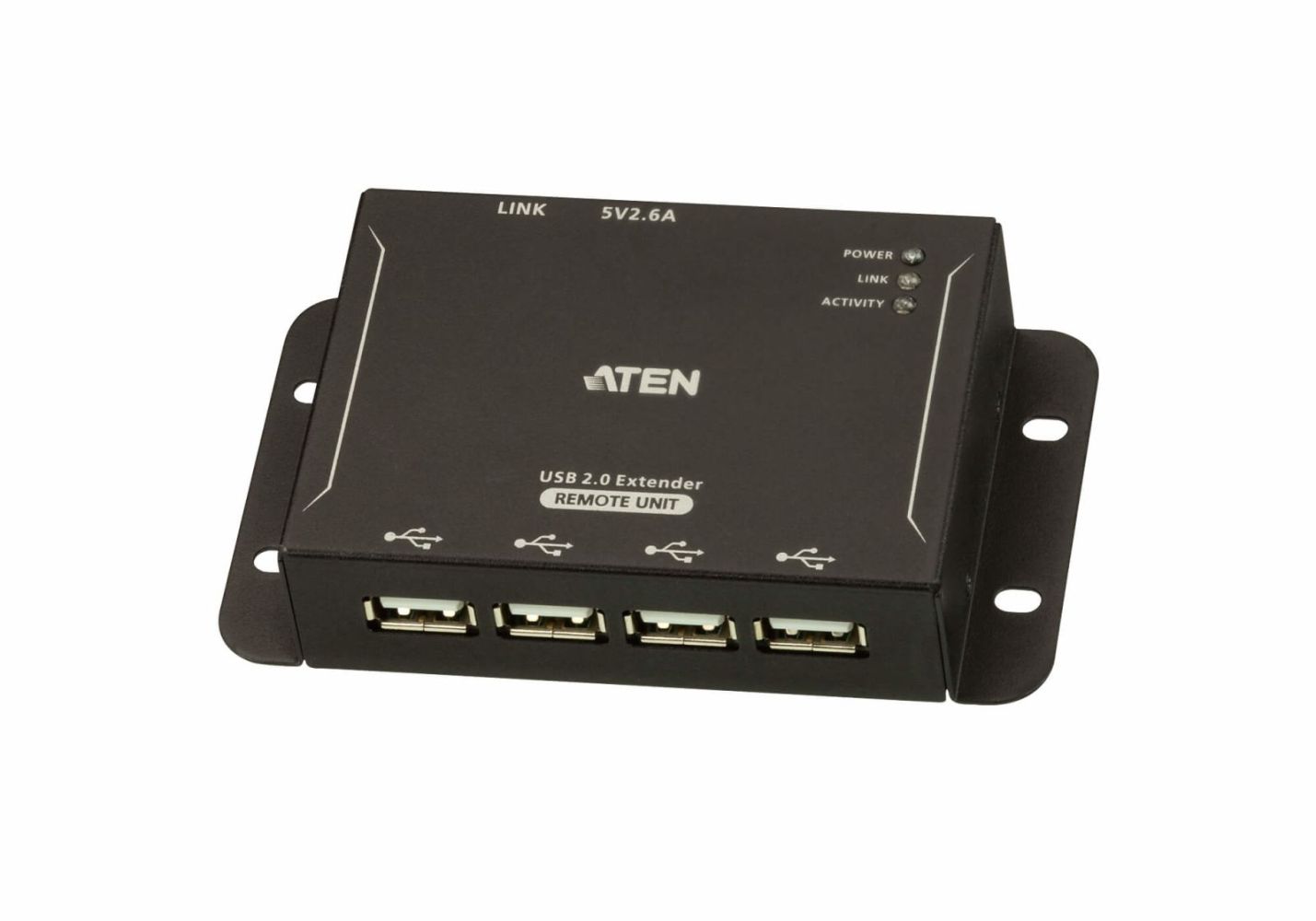

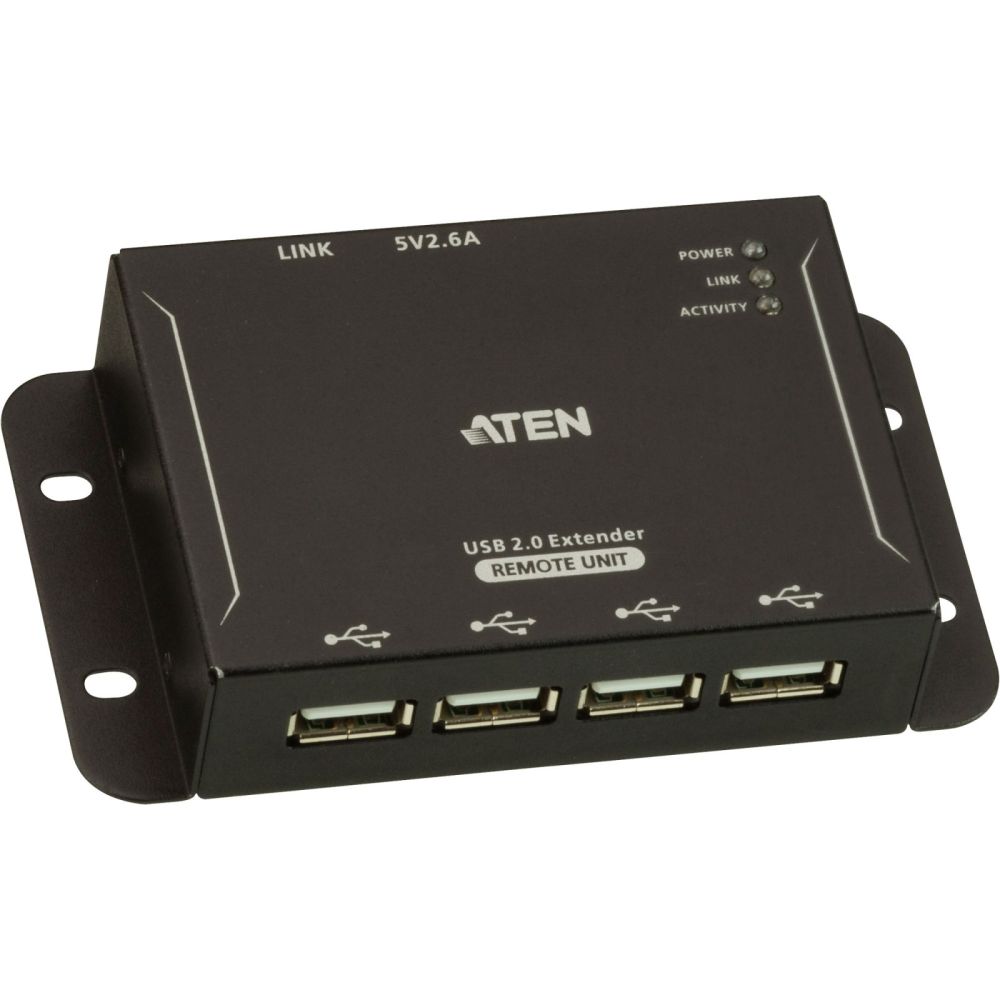

1x UCE3250R 4-port USB 2.0 CAT 5 Extender (Remote unit)
1x USB Type-A Male to Type-B Male Cable
1x Power Adapter
1x User lnstructions
Device:UCE3250LUCE3250R
Connectors

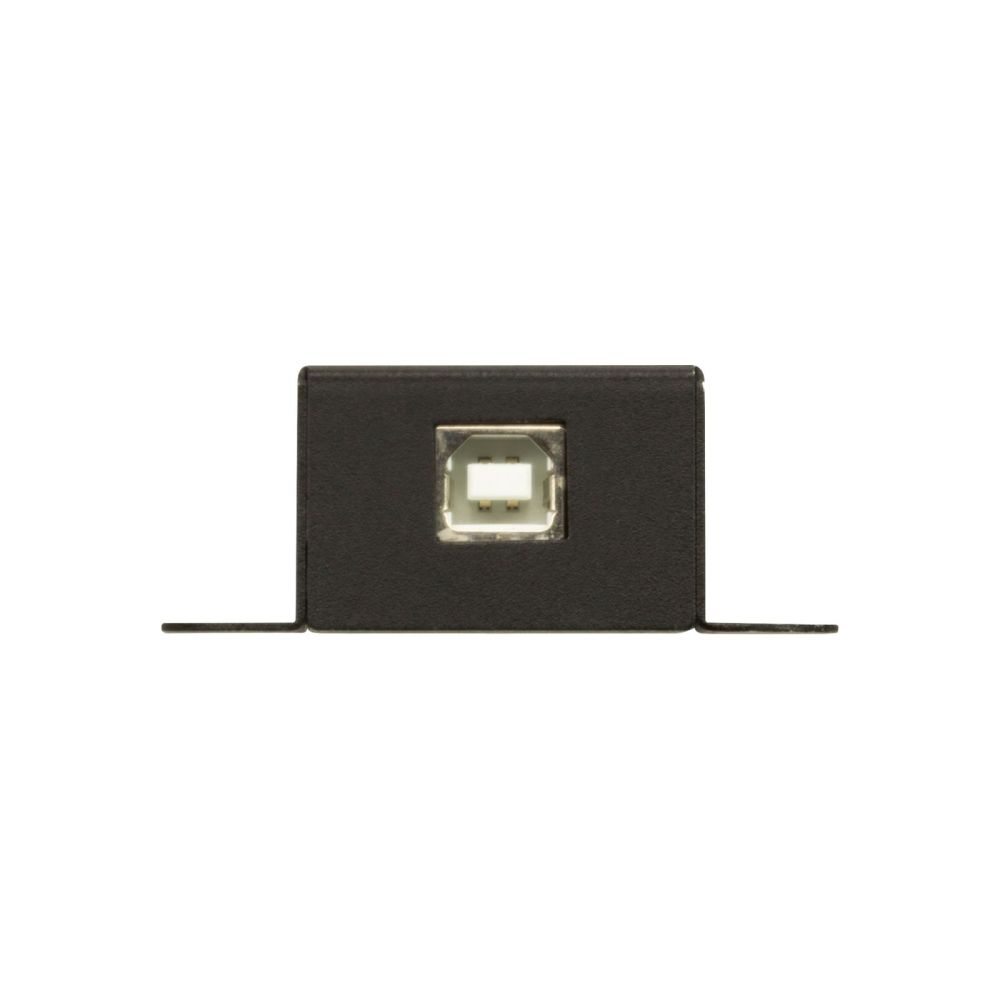

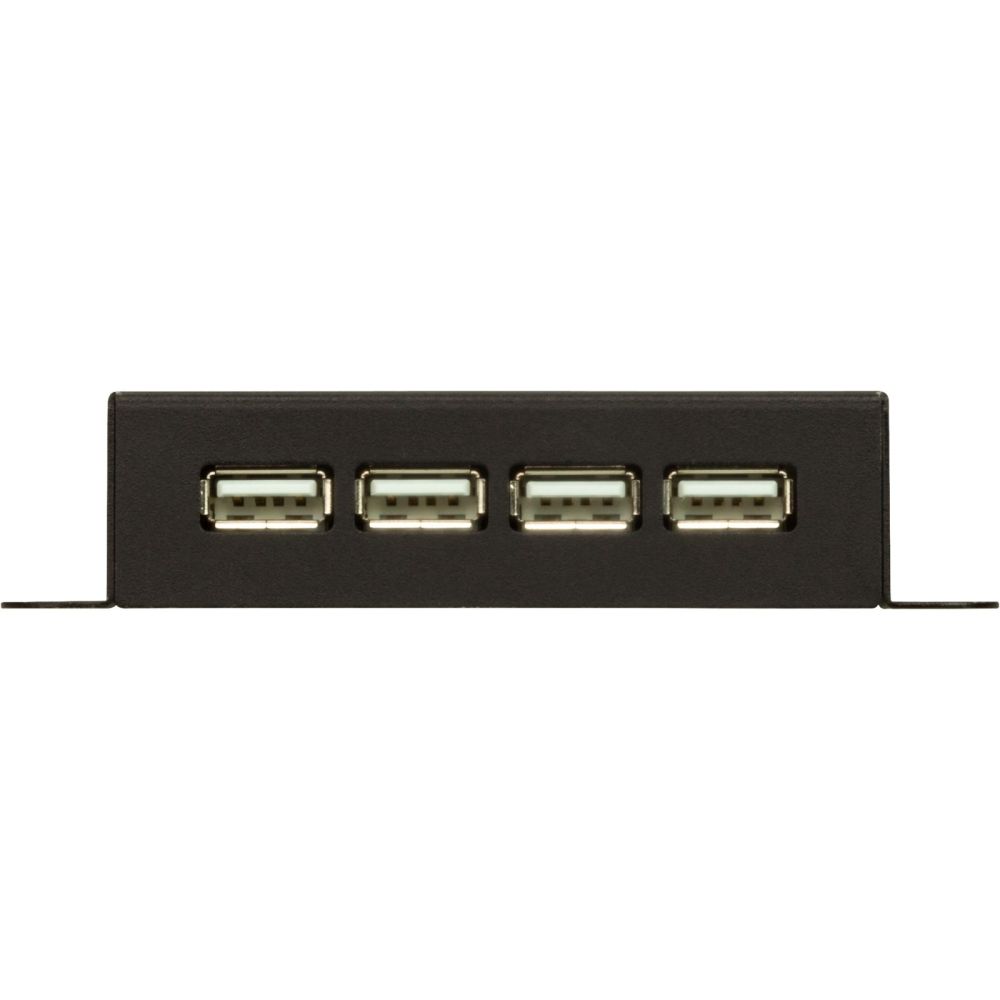

USB Port1 x USB Type B Female4 x USB Type A Female

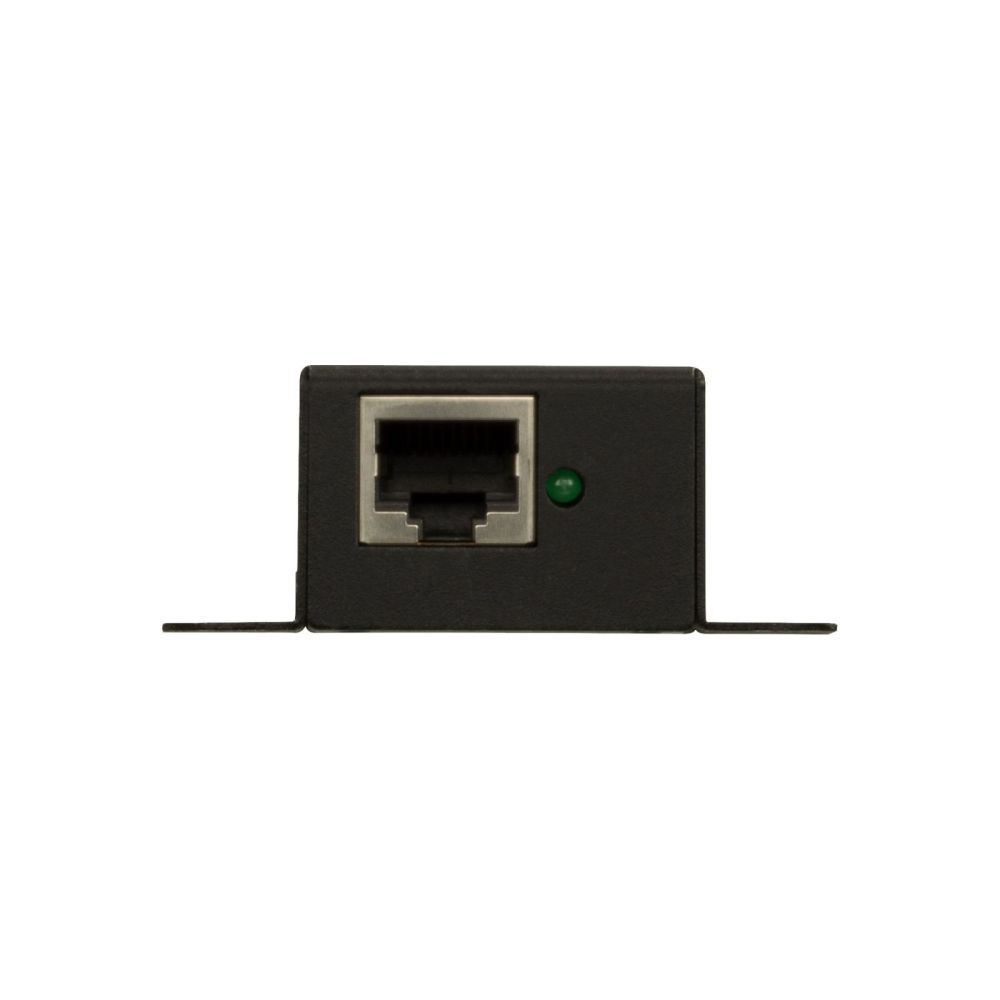

Link1 x RJ45 Female1 x RJ45 Female

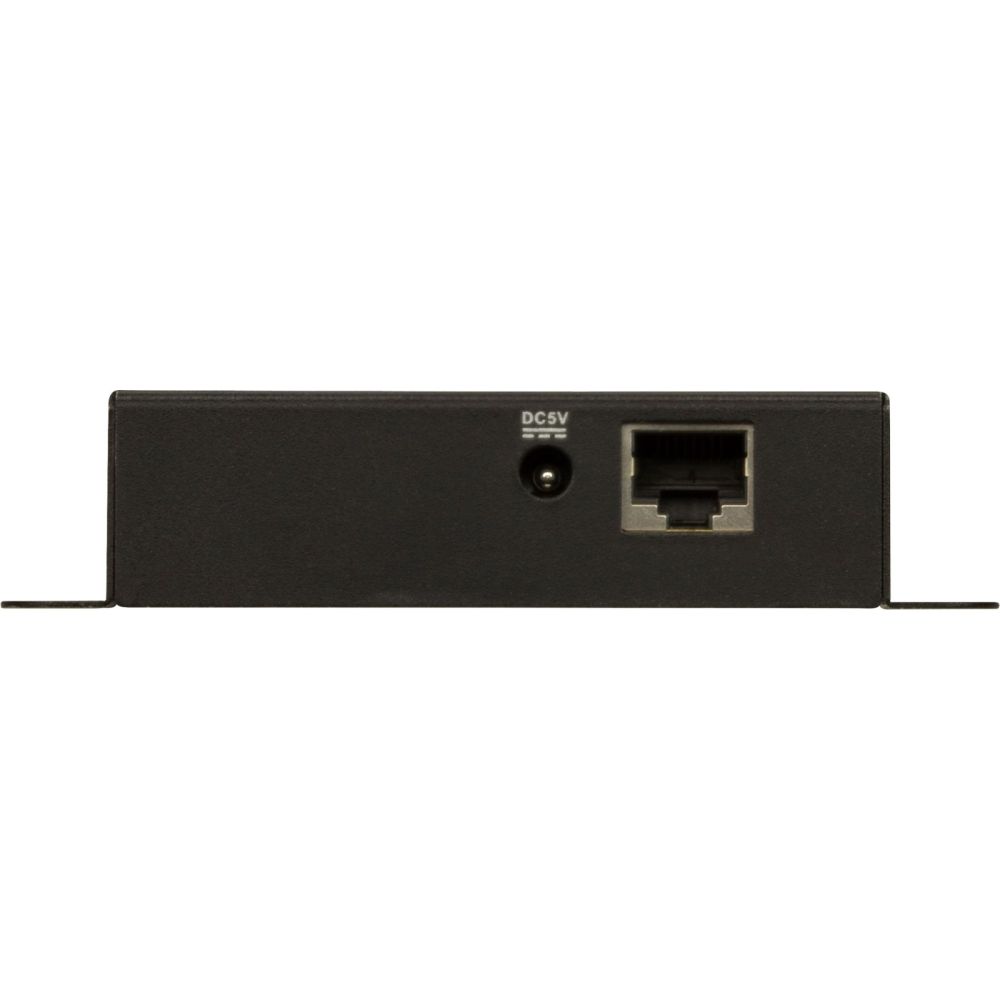

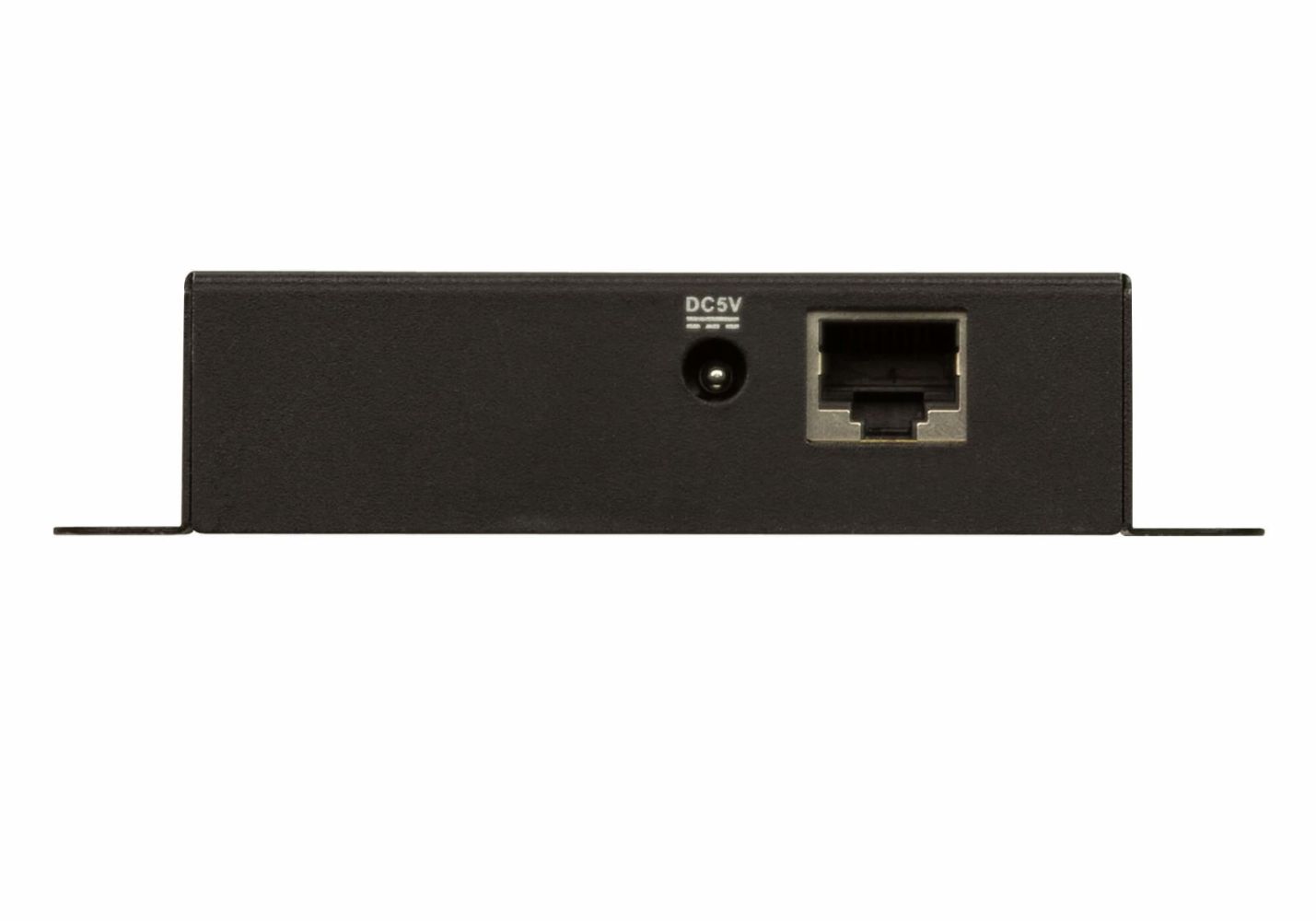

PowerN/A1 x DC Jack
USB Specification2.0 / 1.1 High / Full / Low Speed2.0 / 1.1 High / Full / Low Speed
USB Devices SupportedN/A4 Devices
Power Consumption
Power ConsumptionBus-PoweredSelf-Powered, 5V, 13W
Environmental
Operating Temperature0–50°C0–50°C
Storage Temperature-20–70°C-20–70°C
Humidity0–80% RH, Non-condensing0–80% RH, Non-condensing
Physical Properties
Weight0.09 kg ( 0.2 lb )0.16 kg ( 0.35 lb )
HousingMetalMetal
Dimensions (L x W x H)6.70 x 6.02 x 2.37 cm
(2.64 x 2.37 x 0.93 in.)6.33 x 11.04 x 2.41 cm
(2.49 x 4.35 x 0.95 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	50 m
Cable types supported	Cat5, Cat5e, Cat6
Product colour	Black
Material	Metal
LED indicators
Logistics data
Master (outer) case net weight	2.1 kg
Harmonized System (HS) code	84733080
Master (outer) case width	250 mm
Master (outer) case length	325 mm
Master (outer) case height	175 mm
Master (outer) case gross weight	3.13 kg
Products per master (outer) case	5 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Packaging content
Quick installation guide
Packaging data
Package width	59 mm
Package depth	239 mm
Package height	160 mm
Package weight	626 g
Ports & interfaces
USB 2.0 ports quantity	5
Receiver
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1
Technical data
Length packaging	0.239m
Weight	0.560kg
Interface	USB
Height packaging	0.160m
Width packaging	0.059m
Packaging volume	0.0023m³
Max. distance	50m
Technical details
Weight	420 g
Transmitter
Transmitter local keyboard/mouse port type	USB
RJ-45 ports quantity (transmitter)	1
Weight & dimensions
Transmitter width	6.7 cm
Transmitter depth	6.02 cm
Transmitter height	2.37 cm
Transmitter weight	90 g
Receiver width	6.33 cm
Receiver depth	11 cm
Receiver height	2.41 cm
Receiver weight	160 g

---
