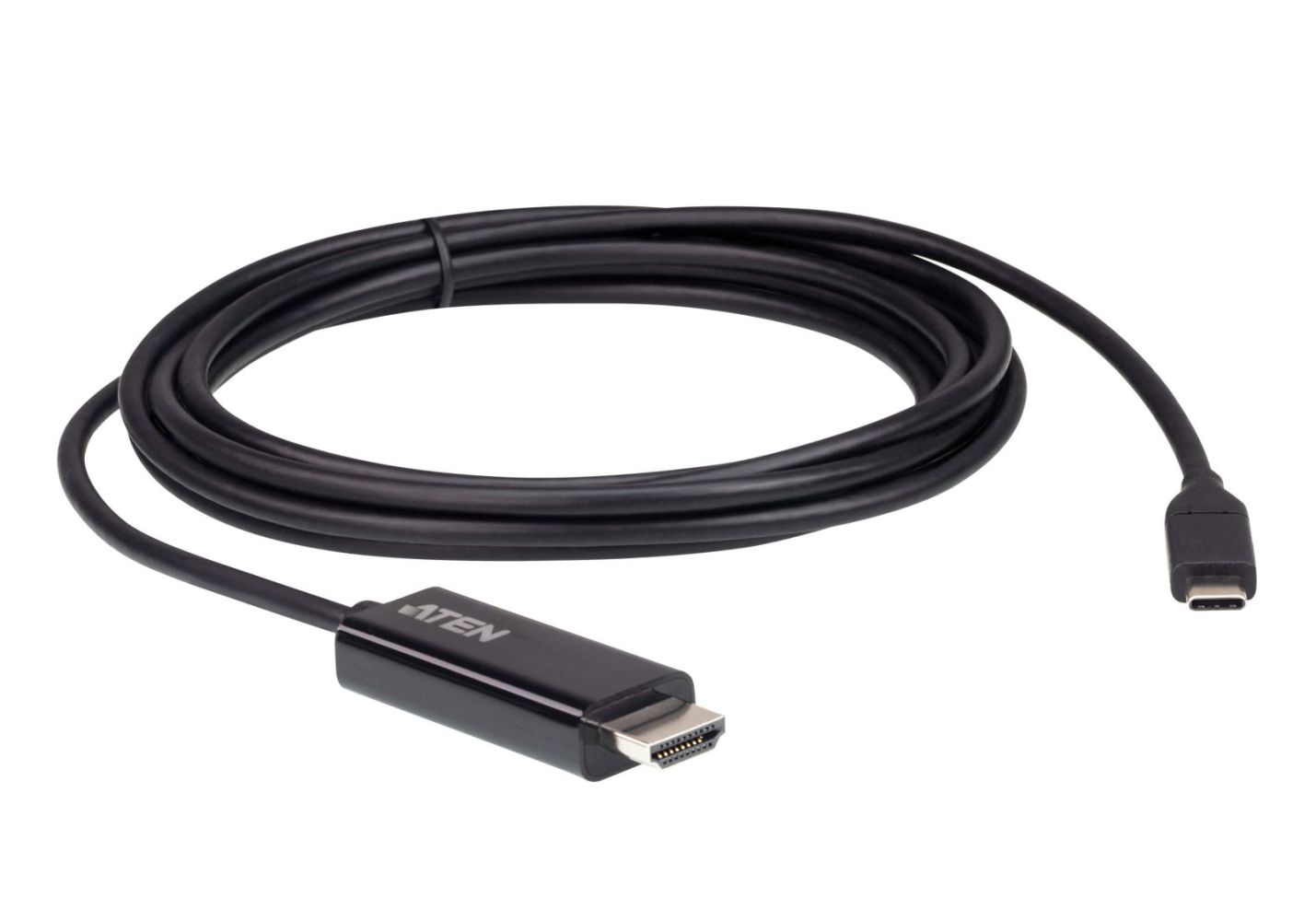

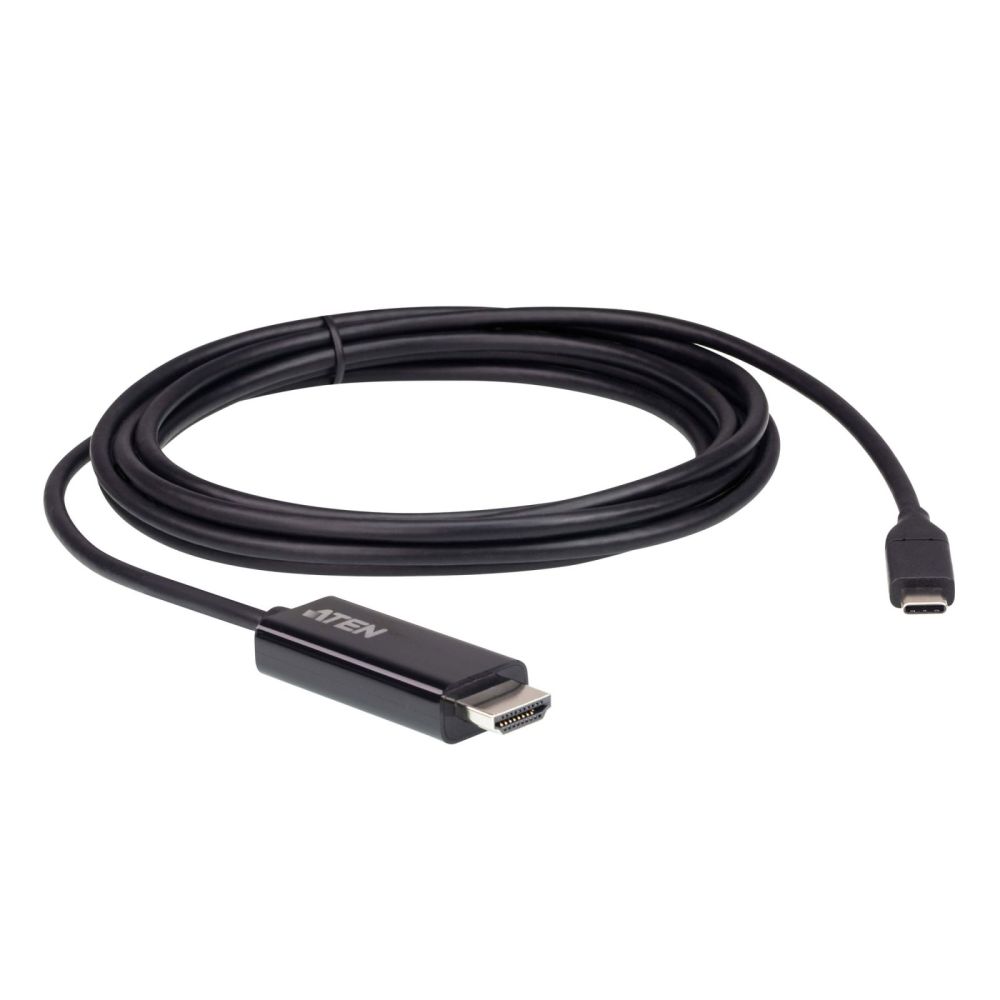

ATEN UC3238 USB-C to 4K HDMI Cable 2.7m content_copy

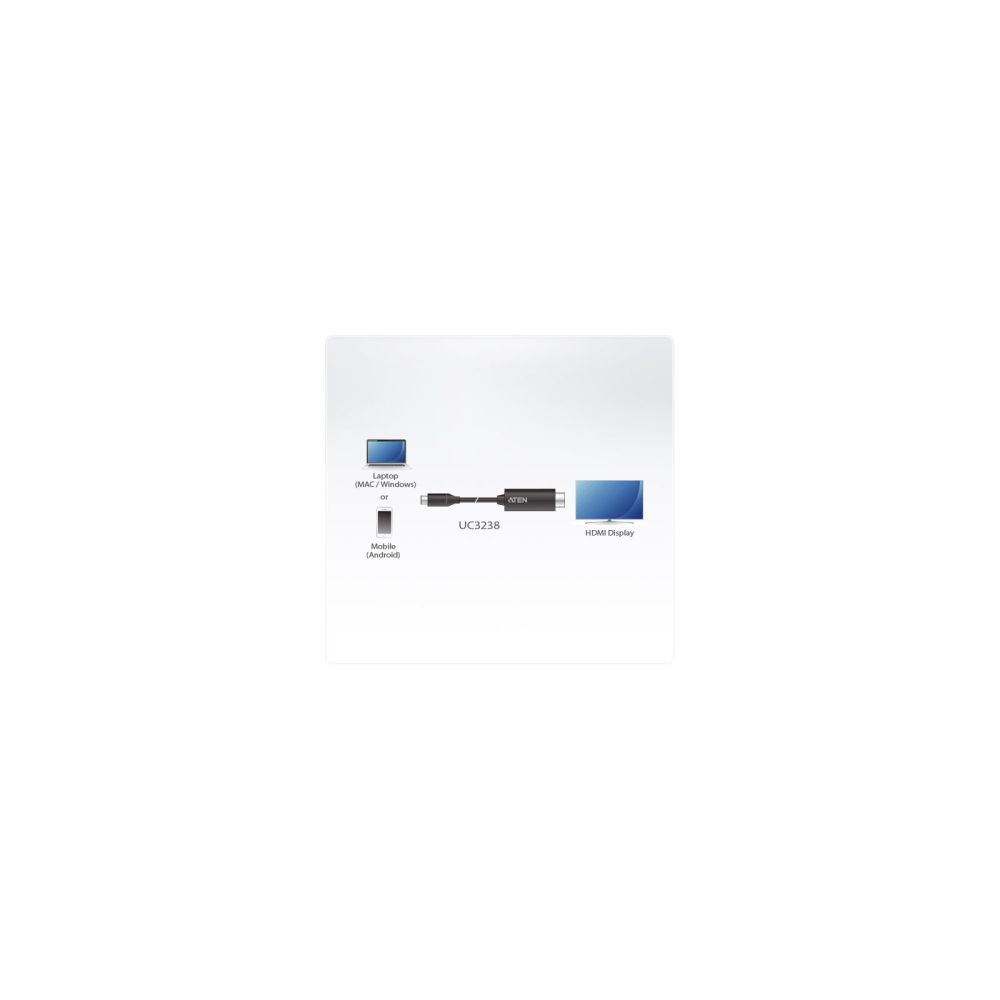

UC3238 is a seamless, single cable solution for connecting from USB-C laptop to an HDMI display, allowing for tidy installation and cable management without the needs for additional dongles or HDMI extension cables.
It supports HDMI 2.0 with a 4K (3840 x 2160 @ 60 Hz) resolution. Users can transmit high-definition video and audio from computer to an HDTV for video streaming or gaming. In addition, you can connect and configure your monitor for a mirrored display or an extended desktop view.
Moreover, UC3238 does not require external drivers or additional power. It works with USB-C port computers and smartphones with DP Alt mode, compatible with Android, Mac OS X and Windows operating systems, and is convenient to use and carry around.
It has a fully reversible USB-C interface with 2.7 meters longdistance connectivity that is capable of providing maximum conductivity and improving signal transmission.Connect a USB-C enabled laptop or Smartphone which utilizes “DP Alt Mode” functionality to an HDMI compatible display using a single cable (With Intel 7th-Generation Core Processor (Kaby Lake) and above. For video output to work through a USB-C port, it must support DP Alt Mode.)
Supports resolutions up to 4K@60Hz (3840 x 2160 @ 60 Hz)
Supports a long-distance connectivity of up to 2.7 meters
No additional dongles and HDMI extension cables needed
Plug and play – no drivers or external power adapter needed
Works with all major operating systems: Windows, MacOS X and Android (Support Android mirror mode only)
Package Contents:1x USB-C to 4K HDMI Converter (2.7M)
1x User Instructions
Computer Connections1
Connectors
USB Port1 x USB-C Male
Video Output1 x HDMI Type-A Male
Video
Max. Pixel Clock594MHz
Max. Resolution3840 x 2160 @ 60 Hz
ComplianceUSB 3.1 Type-C with DP Alt Mode (Thunderbolt™ 3 Compatible)
USB Billboard Device Class
HDCP 2.2
HDMI 2.0
Audio
Output1 x HDMI Type A Male
Environmental
Operating Temperature0 - 40 ºC
Storage Temperature-20 – 60 ºC
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingPlastic
Weight0.16 kg ( 0.35 lb )
Dimensions (L x W x H)6.40 x 2.10 x 1.10 cm
(2.52 x 0.83 x 0.43 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Certificates
Certification	RoHS
Features
Maximum resolution	3840 x 2160 pixels
Product colour	Black
HDCP
Windows operating systems supported
Logistics data
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Technical data
Weight	0.160kg
Active/Passive	Passive
Height packaging	0.035m
System requirements	Windows 10, Windows 8, Windows 7, Mac OS 10.9 or higher
Packaging volume	0.0008m³
Type	USB-C to 4K HDMI Converter
Length packaging	0.125m
USB specification	USB 3.2 Gen.1
Device type	Graphic adapter
Video output	1x HDMI (max. 3840x2160 @ 60Hz)
Width packaging	0.180m
Connection	USB-C
Video input	USB-C male
Power supply
Ethernet
Weight & dimensions
Weight	160 g
Width	21 mm
Depth	64 mm
Height	11 mm

---
