Aten UC2324 USB-to-Serial RS-232 Hub 4-Port

Your rating:
Average rating
product review for Aten UC2324 USB-to-Serial RS-232 Hub 4-Port
( 5 / 5 ) 2 ratings

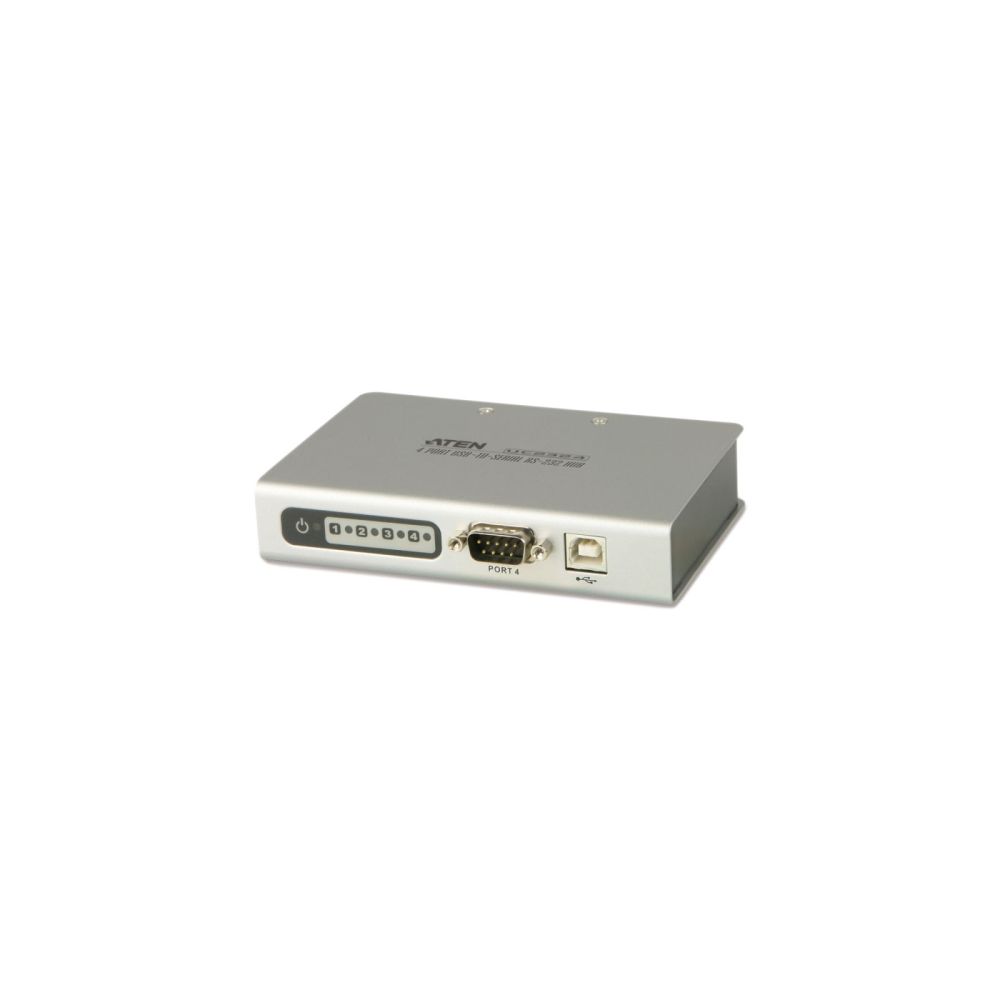

Aten UC2324
This image may differ from the desired article.
Aten UC2324Aten UC2324Aten UC2324Aten UC2324
64,38 EUR
( 76,61 EUR incl. VAT )
≈ £53.63  |  ≈ $70.62
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x Aten UC2324 USB-to-Serial RS-232 Hub 4-Port
Datasheet:file_download Download
Lieske Part No.:234554
Mfg Part No: UC2324
UPC/EAN: 4710423773110
Weight:0.594 kg

Product information for Aten UC2324:

The ATEN UC2324 is an external USB-to-serial converter hub with four RS-232 ports, providing a serial interface for computers, notebooks, laptops, and other USB-enabled devices. The device serves as a plug-and-play solution for communication and automation applications requiring connection to older or specialized equipment via RS-232, such as modems, ISDN systems, PDAs, or industrial control devices. The conversion is performed via a USB 2.0 Type-B interface, connected to the host computer, making the serial ports accessible through the USB network.

Applications

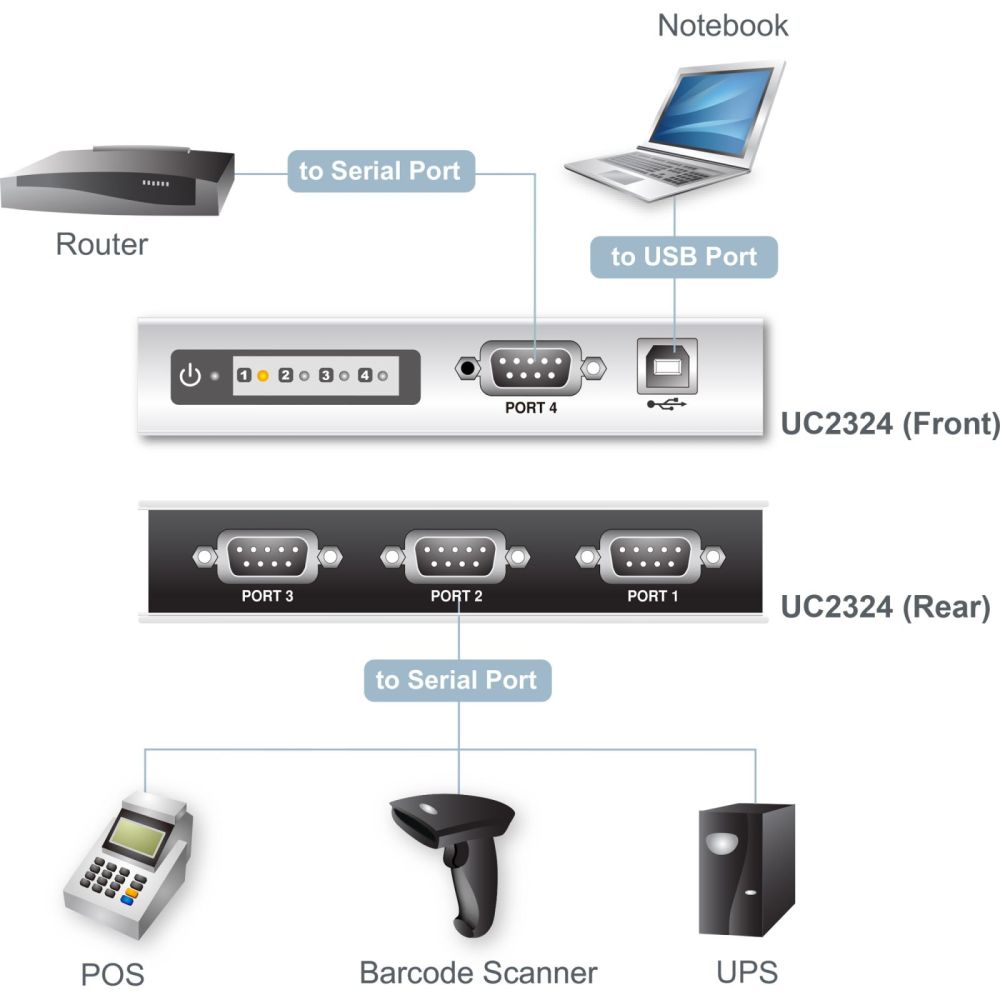

The UC2324 is suitable for applications requiring multiple serial devices to be connected to a USB-enabled system. Typical use cases include integrating industrial sensors, printers, measuring instruments, or communication modules that communicate via RS-232. The 4 serial ports allow simultaneous connection of up to four devices, with each port supporting a maximum data transfer rate of 115.2 Kbps. The RS-232 signals include TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI, and GND, ensuring complete signal transmission for standard and extended control functions.

Functions and Features in Detail

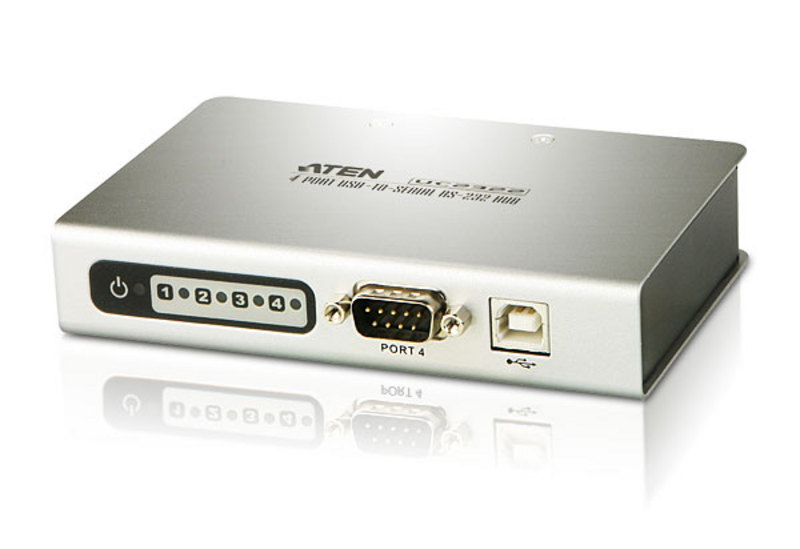

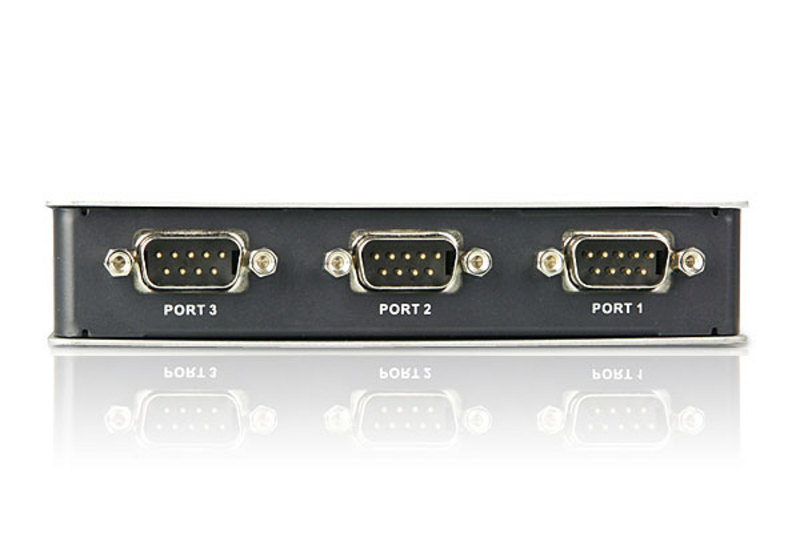

The device features 4 DB-9 connectors (9-pin) as serial interfaces, each equipped with a green LED status indicator for port status. Additionally, an orange LED indicates the device’s operational status. Power is supplied via bus power, meaning through the USB network, with an external power supply being optional. Data transmission is supported by a hardware FIFO buffer (16 bytes), enhancing data transfer efficiency between the host and serial ports. The device supports hot-swapping and plug-and-play, allowing it to be connected and used without restarting the system.

Technology Explained Simply
The USB-to-RS-232 conversion is handled by an integrated USB controller, which translates USB protocol requirements into serial signals. USB 2.0 compatibility (also with USB 1.1) ensures broad usability across various computers. The bus-powered supply reduces the need for a separate power adapter, making the device compact and easy to install. The ESD protection function (16 kV) safeguards the device against electrostatic discharges, which is particularly important in industrial environments. The data transfer rate of 115.2 Kbps is sufficient for most serial applications, including terminal and modem communication.

Compatibility and Accessories
The UC2324 is compatible with USB 2.0 and supports the RS-232 interface. Operating system support includes Microsoft Windows Vista / 2000 / XP as well as Linux 2.6 or higher. The metal housing construction provides mechanical stability and offers some protection against electromagnetic interference. The dimensions are 12.5 cm (L) × 8.0 cm (W) × 2.5 cm (H), making the device compact and space-saving. The operating temperature ranges from 0 to 50 °C, the storage temperature from -20 to 60 °C, and the relative humidity during operation is 0 to 80 % (non-condensing).

Installation and Mounting
Installation is performed by connecting the device to a USB port on the host computer using the included USB cable. Serial devices are connected to the DB-9 connectors. The installation CD contains the necessary drivers and documentation. The user manual provides instructions for configuration and troubleshooting. The LED indicators assist in visually verifying the operational status and port connections.

Operational Advantages
The UC2324 offers a cost-effective and simple extension of a computer’s serial interface capacity. The plug-and-play functionality reduces installation time, and the bus-powered supply reduces the number of required cables. The ESD protection function enhances reliability in environments with electrostatic charging. The metal housing construction ensures robust and long-lasting use. The support for hot-swapping allows devices to be connected and disconnected without restarting the system.

Scope of Delivery
The device is delivered with hub with converter, USB cable, installation CD, and user manual. These components are explicitly mentioned in the manufacturer’s description and are part of the standard scope of delivery.

Logistics data
Products per master (outer) case20 pc(s)
Master (outer) case width315 mm
Master (outer) case length490 mm
Master (outer) case height338 mm
Master (outer) case gross weight12.6 kg
Master (outer) case net weight7.82 kg
Harmonized System (HS) code84719000
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Packaging data
Quantity per pack1 pc(s)
Package width59 mm
Package depth239 mm
Package height160 mm
Package weight594 g
Performance
Product colourMetallic
Hub interfacesVGA
Housing materialMetal
LED indicatorsYes
Ports & interfaces
Host interfaceUSB 2.0 Type-B
USB 2.0 ports quantity1
VGA (D-Sub) ports quantity4
DC-in jackYes
Power
Power consumption (typical)0.4 W
Technical data
TypeFor modem, ISDN systems or PDA
Humidity0–80% relative humidity, non-condensing
ColourGrey
Side ASub-D male 9pin x4
Power consumption0.6W
Packaging volume0.0023m³
Compatibility USBUSB 2.0
Weight0.594kg
Side BUSB-B female
SignalData
Data transmission rate115.2Kb/s
Power supplyBus power supply (supply via power supply unit is optional)
Length packaging0.239m
Height packaging0.160m
Width packaging0.059m
VariantSupports serial port
Weight & dimensions
Width80 mm
Depth125 mm
Height25 mm
Weight391 g


Product data sheet
Datasheet for Aten UC2324, EAN: 4710423773110

Questions & answers

What is the delivery time of Aten UC2324 USB-to-Serial RS-232 Hub 4-Port?

The article Aten UC2324 USB-to-Serial RS-232 Hub 4-Port is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten UC2324 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Aten UC2324 USB-to-Serial RS-232 Hub 4-Port always at the best possible price. We can give you a discount of 2% on Aten UC2324 USB-to-Serial RS-232 Hub 4-Port if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
