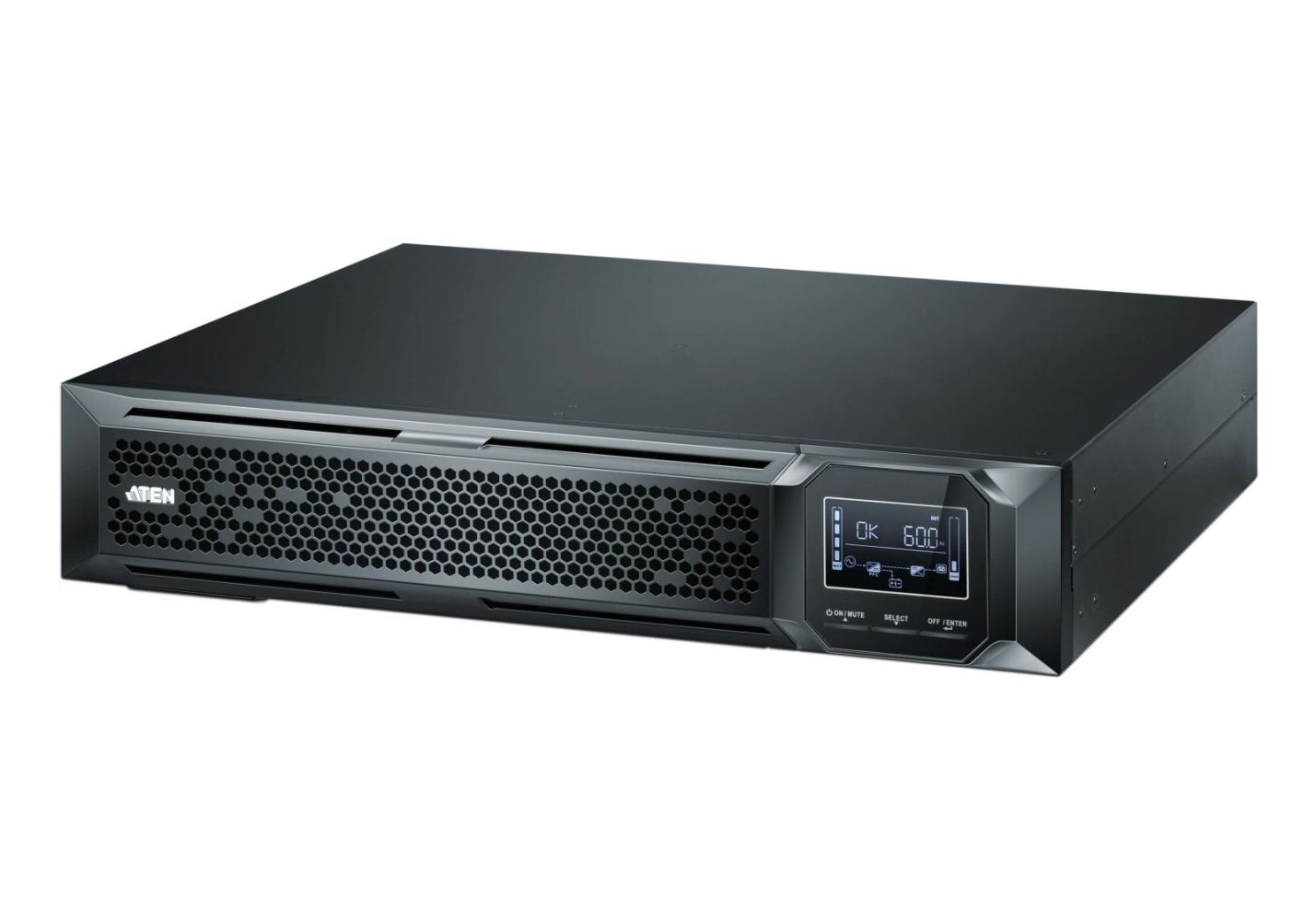

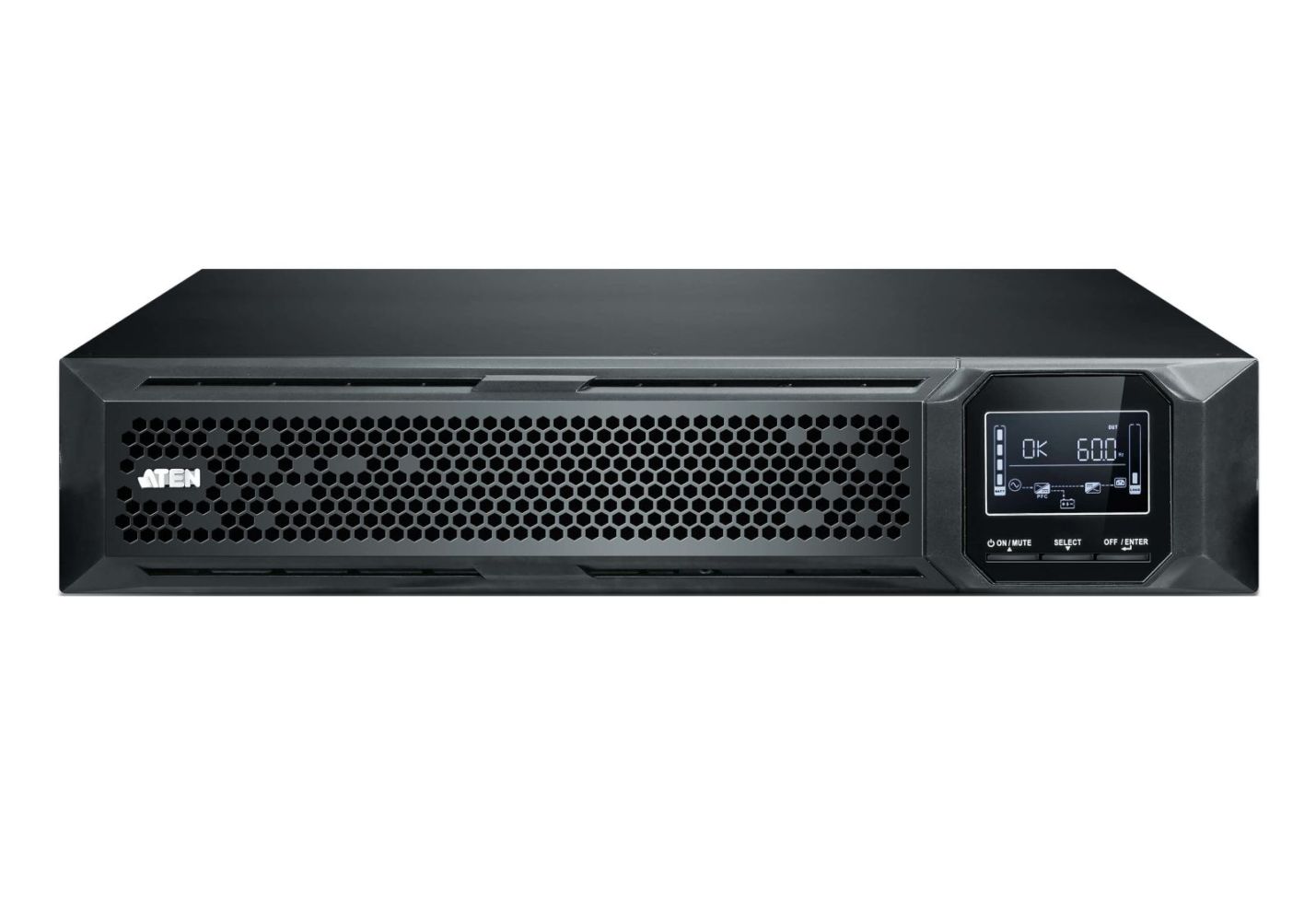

ATEN Professional online UPS/230V 50/60Hz,1000VA
|
-35% 455,05 EUR 699,50 EUR |
|
|
( 541,51 EUR incl. VAT ) ≈ £383.15 | ≈ $511.02 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1298722 |
| Mfg Part No: | OL1000HV-AT-G |
| UPC/EAN: | 4719264647963 |
| Weight: | 0.2 kg |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of battery cells | 2 |
| Typical backup time at full load | 2.95 min |
| Typical backup time at half load | 10.1 min |
| Battery recharge time | 3 h |
| Charging current | 2 A |
| Cold start | |
| Certificates | |
| Certification | CE RoHS |
| Design | |
| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Cooling type | Active |
| Product colour | Black |
| Built-in fan | |
| LED indicators | |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1 kVA |
| Output power | 1000 W |
| Waveform | Sine |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Response time | 4 ms |
| Efficiency | 88% |
| Efficiency (ECO mode) | 96% |
| Crest factor | 3:1 |
| Noise level | 50 dB |
| ECO mode | |
| Logistics data | |
| Master (outer) case net weight | 13.4 kg |
| Harmonized System (HS) code | 85078000 |
| Master (outer) case width | 240 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 600 mm |
| Master (outer) case gross weight | 18.5 kg |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Packaging content | |
| Cables included | Output power cable, Power load cable, RS-232, USB cable |
| Manual | |
| Packaging data | |
| Package width | 88 mm |
| Package depth | 438 mm |
| Package height | 410 mm |
| Package weight | 18.5 kg |

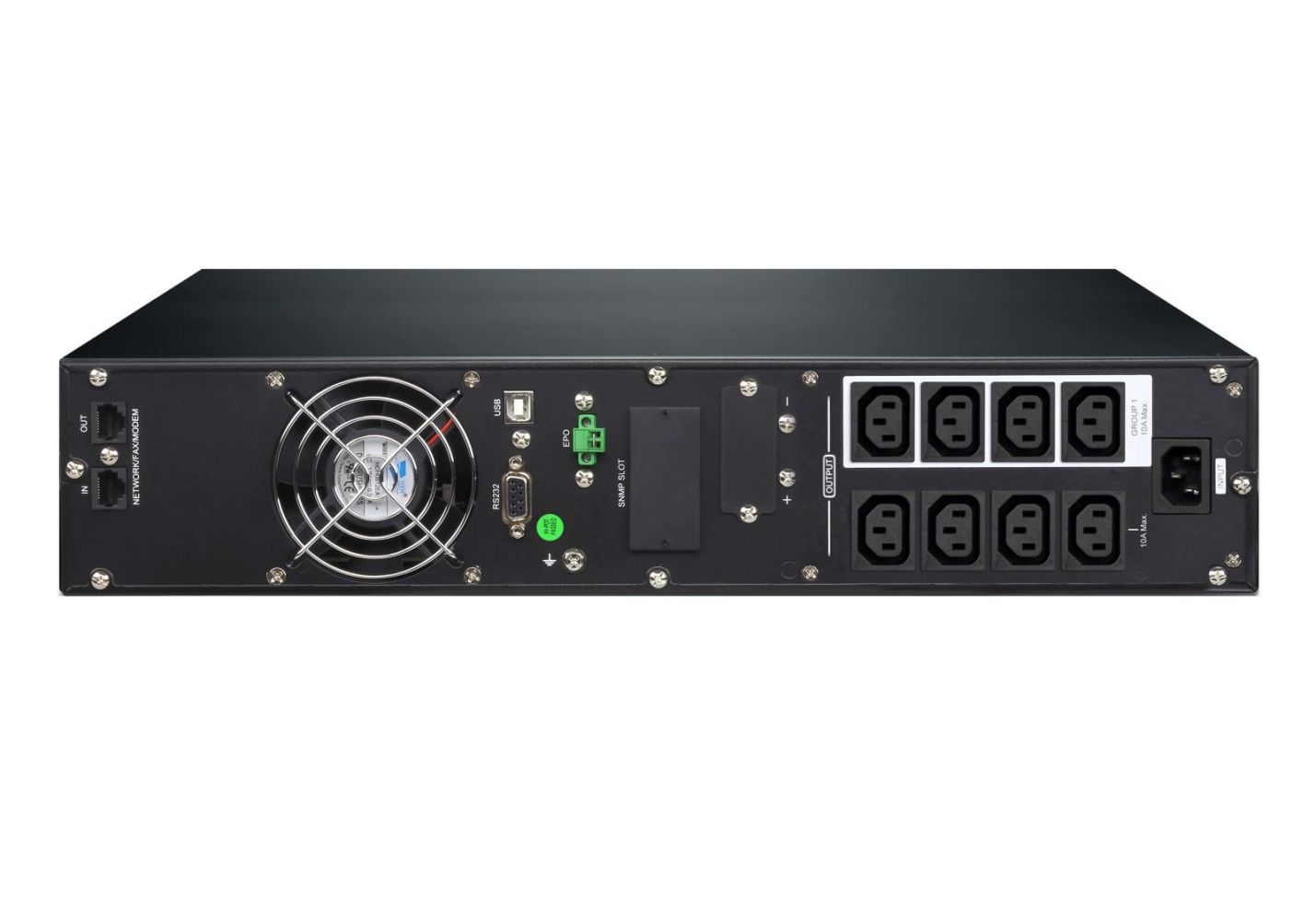

| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | |
| Serial interface | |
| Weight & dimensions | |
| Width | 88 mm |
| Depth | 438 mm |
| Height | 410 mm |
| Weight | 13.4 kg |
