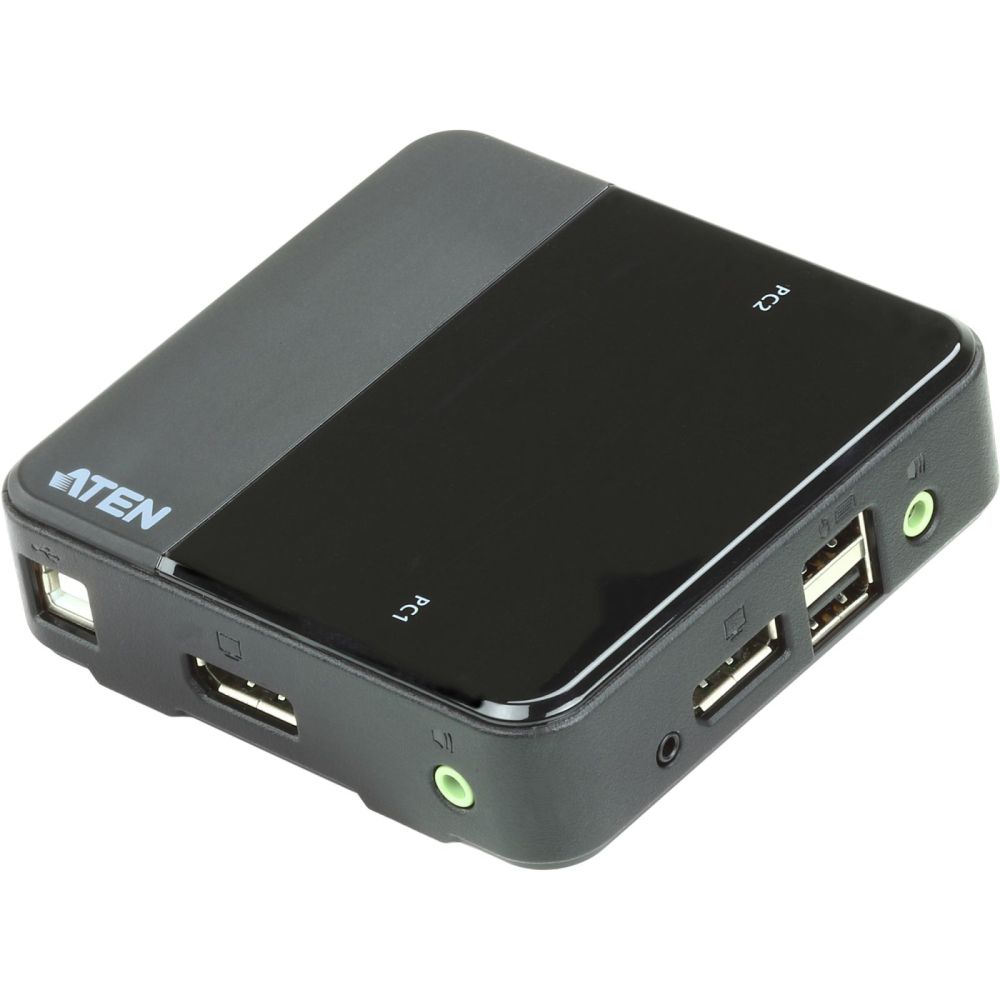

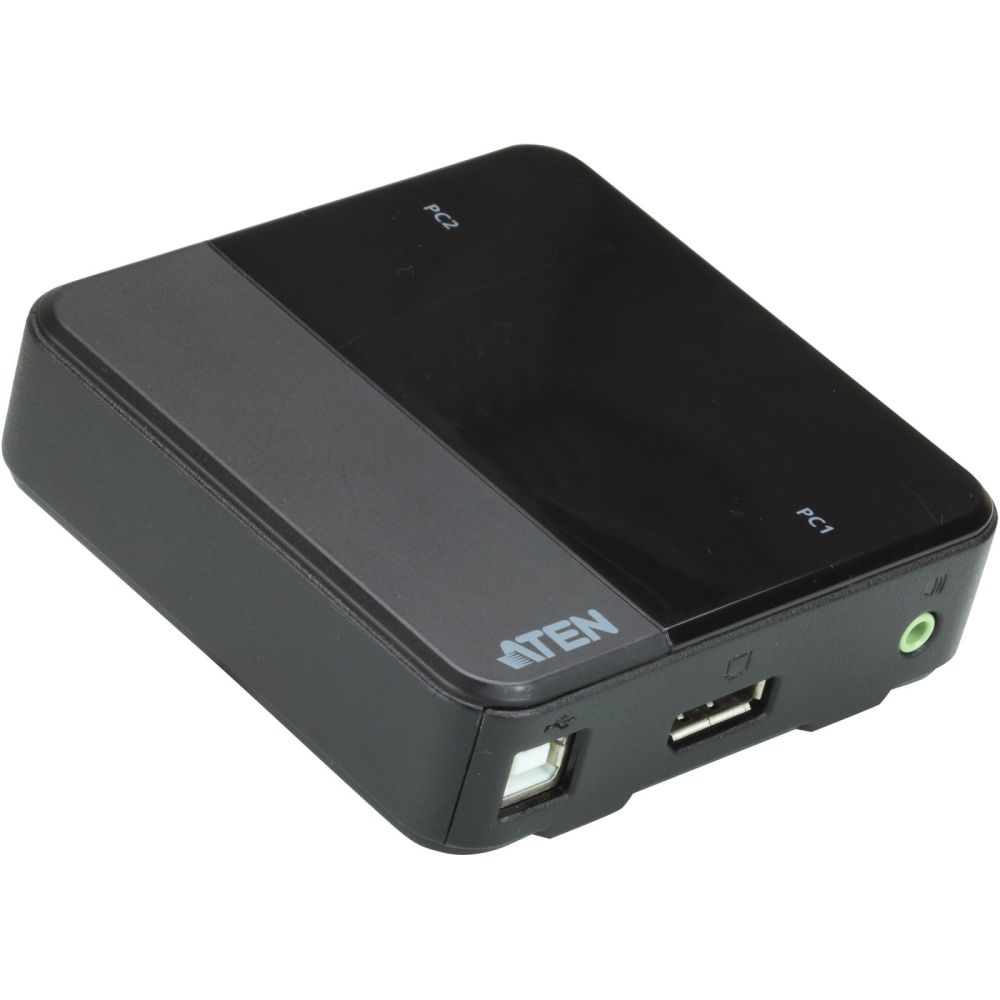

ATEN 2 port USB DisplayPort KVM Switch 4K UHD Supported content_copy

*Order-Based, Non-Cancellable* With the ever-growing need for higher video quality and the development of DisplayPort technology, 4K-capable computers and displays are now widely used in graphically demanding and commercial applications. By providing up to 4K resolution, ATEN's CS782DP easily fits into these demanding scenarios and technological advances.

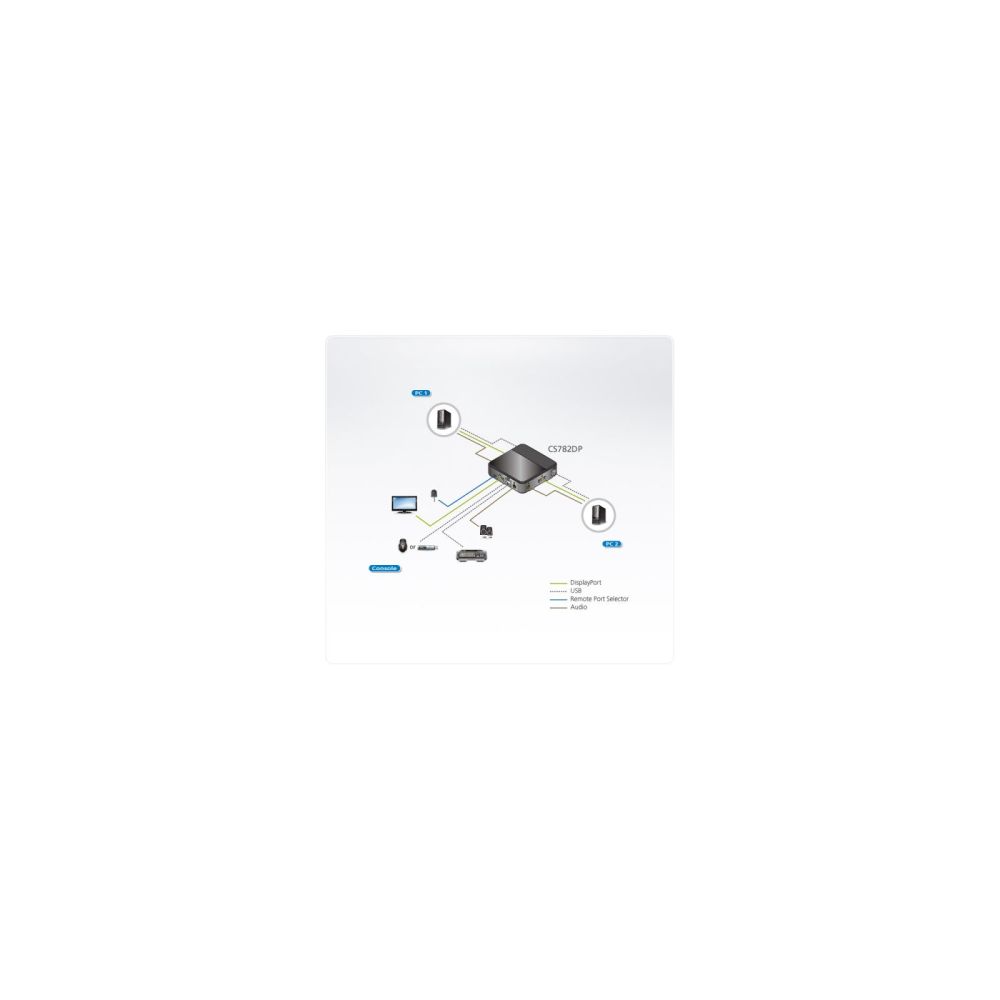

ATEN's CS782DP 2-Port USB DisplayPort KVM Switch features 4K video resolution, allowing users to access two 4K-capable computers via a single USB keyboard, USB mouse and DisplayPort video console.
The CS782DP offers three convenient switching methods - via a remote port selector, via mouse or using hot keys - for flexible access to any computer connected to the installation. The product even provides excellent audio support for a holistic multimedia solution. To round out the entire experience, the CS782DP is also ideal for any work environment thanks to its streamlined, space-saving design.
With its rich feature set, the CS782DP is designed to exceed all requirements in graphic design, animation and video editing applications. Scope of delivery
1x CS782DP 2-Port USB DisplayPort KVM Switch 2x LIN5-20K1-K12G DisplayPort Cables 2x LIN6-04U1-V1BG USB Cables 2x LIN5-0205-21CG audio Cables 1x Remote Port Selector 1x User Instruction

Design
Product colour	Black
Housing material	Plastic
Rack mounting
LED indicators
Hot keys
Display
Built-in display
Logistics data
Master (outer) case net weight	5.43 kg
Harmonized System (HS) code	85176200
Master (outer) case width	328 mm
Master (outer) case length	497 mm
Master (outer) case height	196 mm
Master (outer) case gross weight	7.71 kg
Products per master (outer) case	10 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Packaging content
Quick installation guide
Manual
Packaging data
Package width	59 mm
Package depth	239 mm
Package height	175 mm
Package weight	687 g
Performance
HD type	4K Ultra HD
Maximum resolution	4096 x 2160 pixels
Video bandwidth	60 Hz
Scan interval	3,5,10,20 s
Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPorts quantity	2
USB 2.0 Type-B ports quantity	2
Console ports	3.5mm headphone, DisplayPort, USB A
USB connector type	USB Type-A, USB Type-B
Headphone outputs	1
Number of microphone inputs	1
Audio connections
Power
Power source	DC
Input voltage	5 V
Power consumption (typical)	2.18 W
Weight & dimensions
Width	93 mm
Depth	93.7 mm
Height	26.8 mm
Weight	543 g

---
