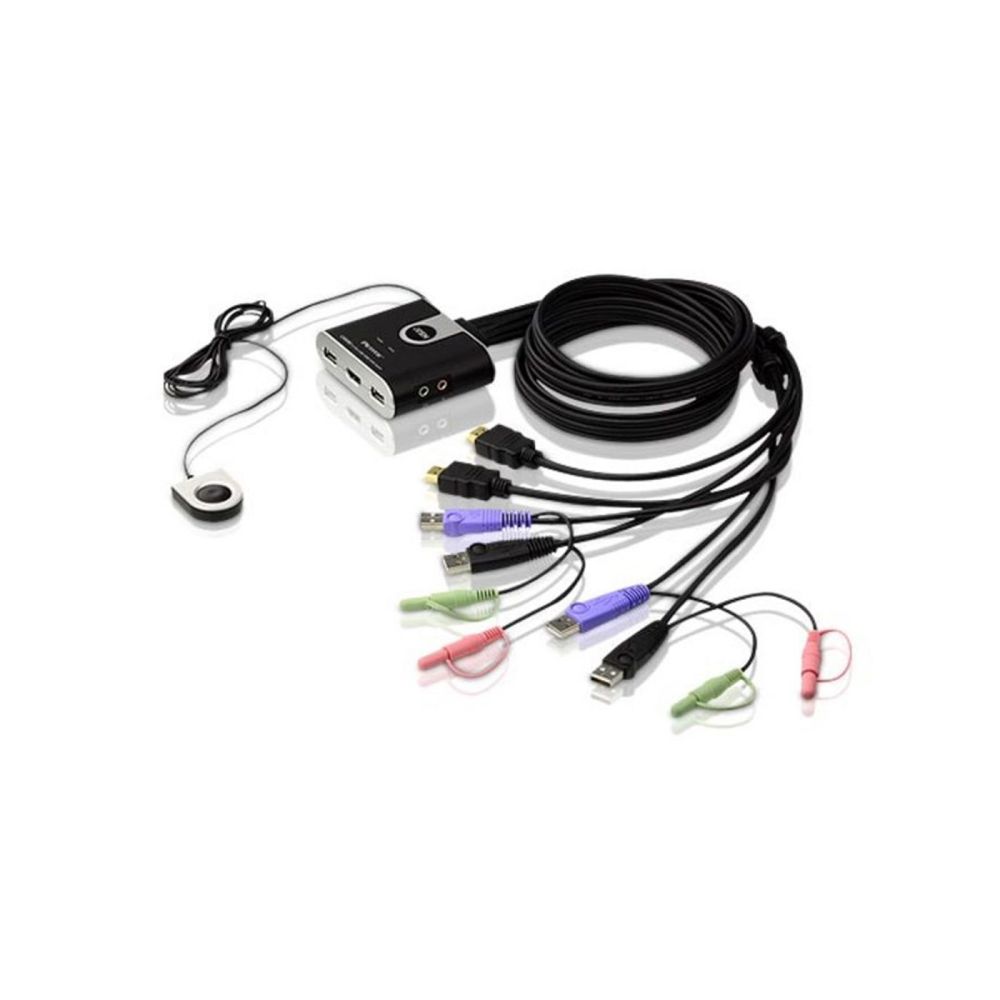

Aten CS692 2-Port USB HDMI KVM switch with audio
|
56,84 EUR 57,82 EUR |
|
|
( 67,64 EUR incl. VAT ) ≈ £47.86 | ≈ $63.83 plus delivery charges: 53,00 € |
|
| in stockinfo_outline | |
| In Stock: >5 pieces | |
| End-Of-Life: | 11. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 859563 |
| Mfg Part No: | CS692 |
| UPC/EAN: | 4710423776814 |
| Weight: | 0.536 kg |
Product information for Aten CS692:
Device Type: KVM / audio switch - 2 ports, Type: Desktop, Ports: 2 x KVM / audio, Num. KVM Local Users: 1 local user, keyboard / mouse interface: USB, Max Resolution: 1920 x 1200 / 1080p, features: firmware upgradable, USB powered, HDCP compliant, Status Indicators: Port status, Interfaces: Audio / Video: 3 x HDMI - HDMI Type A 19 pin | USB: 6 x USB Type A 4-pin | Audio: 3 x line-out - mini-phone stereo 3.5 mm | Audio: 3 x line-in / microphone - mini phone stereo 3.5 mm, Power Consumption Operational: 2.65 Watt, width: 8.2 cm, depth: 6.7 cm, height: 2.7 cm, weight: 410 g, Cables Included: 2 x keyboard / mouse / video / audio cable - 1.2 m, Operating Temperature Min: 0 ° C, Max. Operating temperature: 50 ° C, Humidity Range Operating: 0 - 80% (non-condensing), Min. Storage temperature: -20 ° C, Max. Storage temperature: 60 ° C
| Design | |
| Product colour | Black |
| Housing material | Plastic |
| Rack mounting | |
| LED indicators | |
| Push button | |
| Hot keys | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 4.09 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 395 mm |
| Master (outer) case length | 405 mm |
| Master (outer) case height | 182 mm |
| Master (outer) case gross weight | 6.13 kg |
| Products per master (outer) case | 10 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Quick installation guide | |
| Manual | |
| Packaging data | |
| Package width | 70 mm |
| Package depth | 163 mm |
| Package height | 235 mm |
| Package weight | 550 g |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 3,5,10,20 s |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB 2.0 Type-A hub ports quantity | 4 |
| USB connector type | USB Type-A |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| Audio connections | |
| Power | |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 0.72 W |
| Weight & dimensions | |
| Width | 82.4 mm |
| Depth | 66.5 mm |
| Height | 25.2 mm |
| Weight | 409 g |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of Aten CS692 2-Port USB HDMI KVM switch with audio?
The article Aten CS692 2-Port USB HDMI KVM switch with audio is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CS692 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Aten CS692 2-Port USB HDMI KVM switch with audio always at the best possible price. We can give you a discount of 2% on Aten CS692 2-Port USB HDMI KVM switch with audio if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
