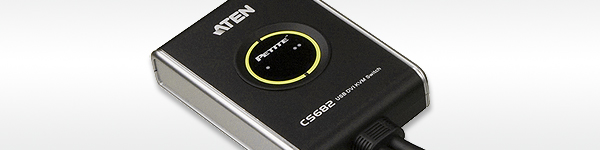

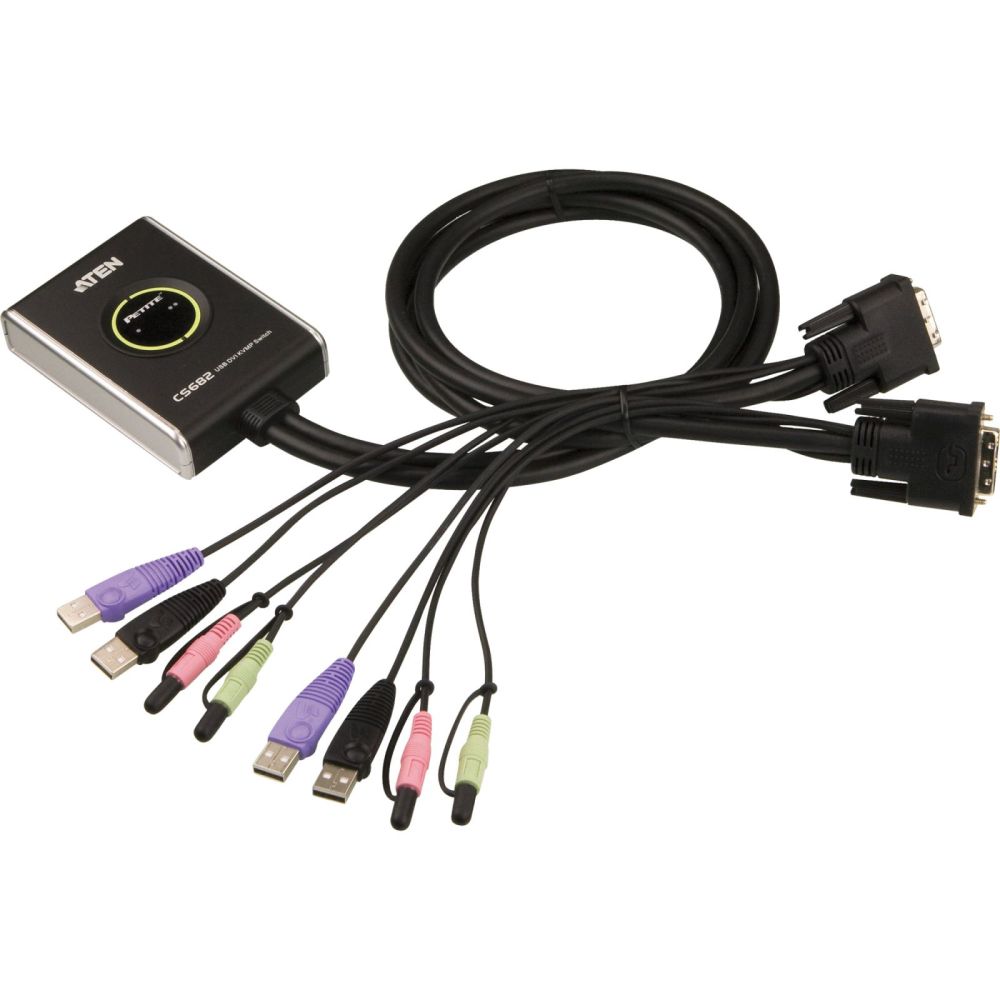

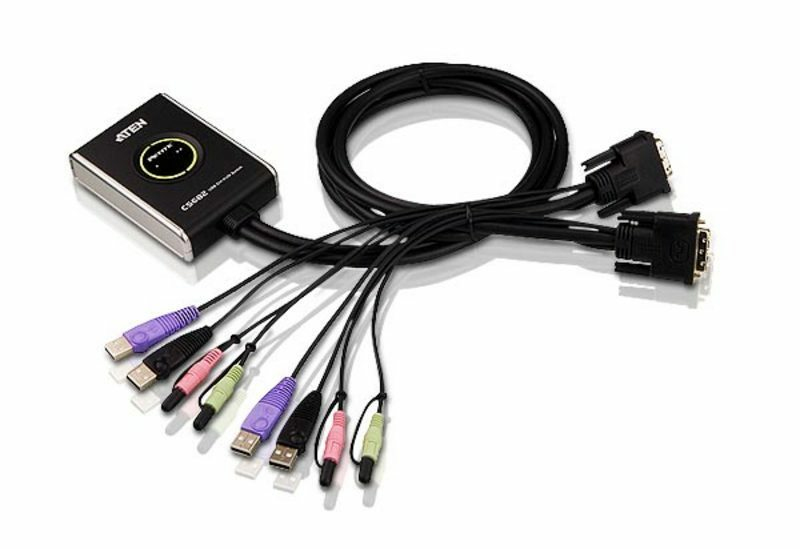

ATEN CS682 - KVM / audio / USB switch - 2 ports - desktop content_copy

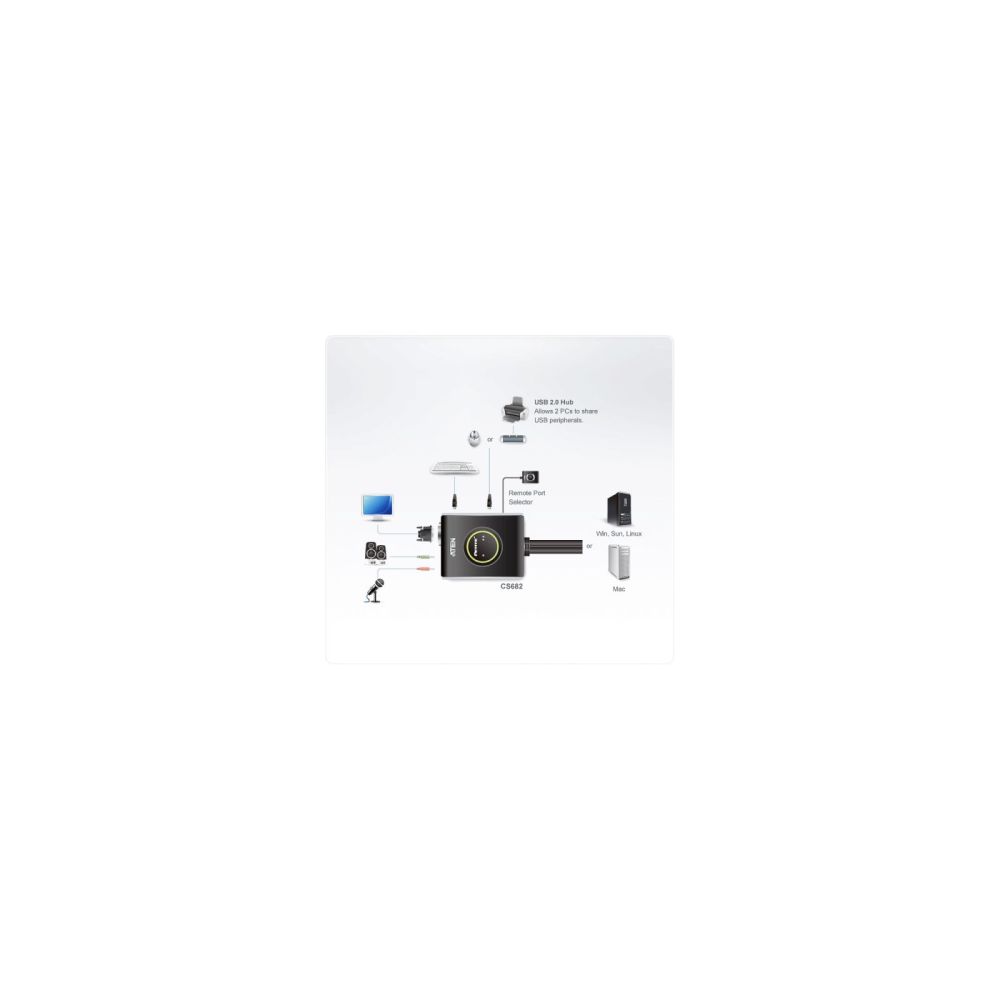

The CS682 takes a giant step forward from prior models in the Petite series, by offering DVI functionality, USB 2.0 peripheral sharing, and a rich bass experience for 2.1 surround systems. Another feature of the CS682 is the implementation of a remote port selector. This means that you can now control port switching from the desktop while the switch itself can be placed in a convenient, out of the way, location. Furthermore, the CS682 features enhanced Video DynaSync technology, which stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution. Also, in addition to hotkeys, the CS682 offers the mouse port-switching function - simply double-click on the scroll wheel of a USB mouse to change ports. Finally, the CS682's power on detection feature means that if one of the computers is powered off, switch will automatically switch to the other powered-on computer.Featuring an unbeatable combination of DVI functionality, USB 2.0 peripheral sharing convenience, and enhanced user-friendly operations, the CS682 allows users to keep up with the latest innovations in desktop multimedia applications.

Design
Product colour	Black
Rack mounting
LED indicators
Display
Built-in display
Logistics data
Master (outer) case net weight	4.6 kg
Harmonized System (HS) code	85176200
Master (outer) case width	395 mm
Master (outer) case length	405 mm
Master (outer) case height	182 mm
Master (outer) case gross weight	6.61 kg
Products per master (outer) case	10 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Packaging content
Quick installation guide
Manual
Packaging data
Package width	70 mm
Package depth	163 mm
Package height	235 mm
Package weight	590 g
Performance
HD type	WUXGA
Maximum resolution	1920 x 1200 pixels
Video bandwidth	60 Hz
Scan interval	3,5,10,20 s
Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DVI-D
DVI-D ports quantity	2
Console ports	3.5mm headphone, 3.5mm mic, DVI-D, USB A
Console USB ports quantity	2
USB 2.0 Type-A hub ports quantity	4
USB connector type	USB Type-A, USB Type-B
Headphone outputs	3
Number of microphone inputs	3
Audio connections
Power
Power source	DC
Input voltage	5 V
Power consumption (typical)	1.9 W
Weight & dimensions
Width	111.5 mm
Depth	78 mm
Height	24 mm
Weight	460 g

---
