ATEN KVM Switch CS22U-HF 2 Port USB/HDMI Cable content_copy

The CS22HF 2-Port USB FHD HDMI Cable KVM Switch is a control unit that allows access to two computers from a single USB and HDMI console while offering video quality up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz. With the CS22HF, you can quickly and effortlessly switch between two USB HDMI computers via the pushbutton on the remote port selector. The CS22HF supports multiplatform operations which allow you to switch between two different operating system PCs.

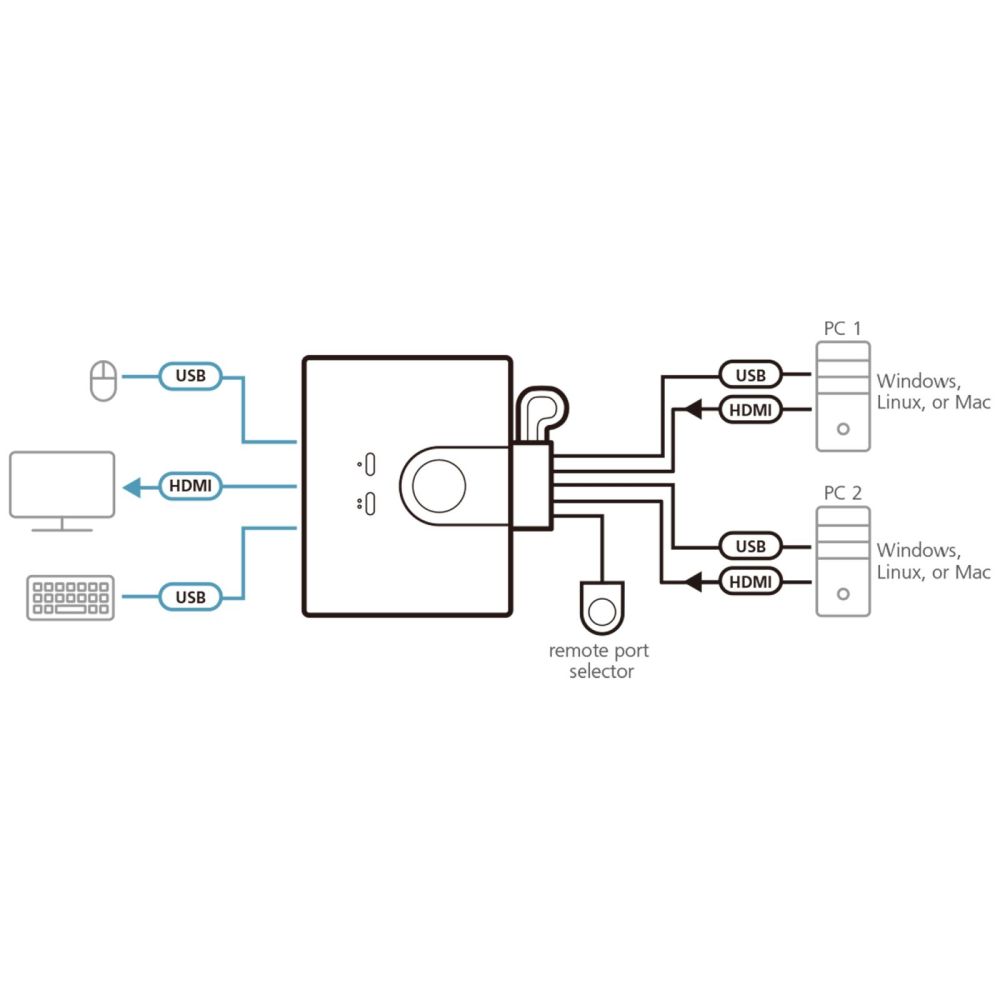

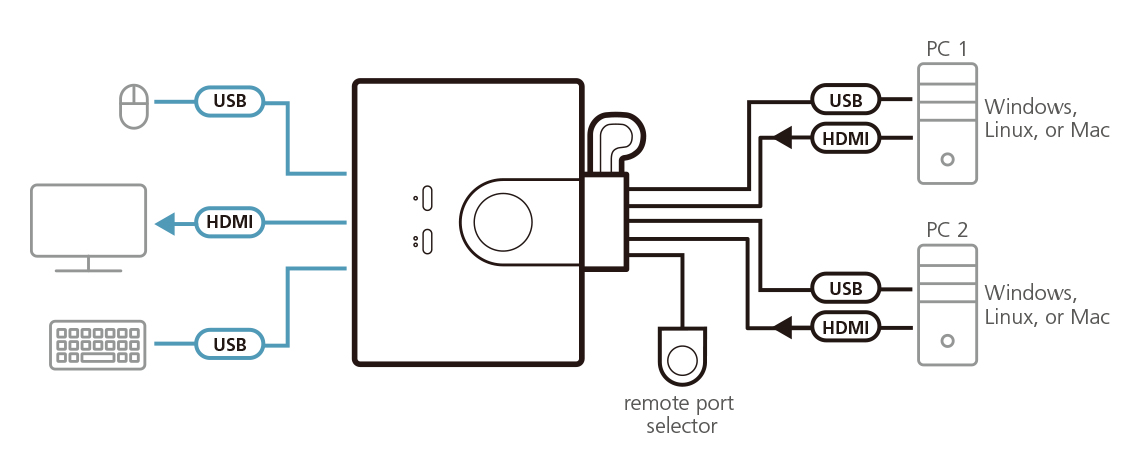

Moreover, the compact and bus-powered design allows for an efficient and tidy installation, providing an ideal space saving solution to keep your desk well-organized. This plug and play switch is ideal for people who need quick control to multitask between two computers on a desktop in any environment.One KVM console controls two computers with USB and HDMI interface
Superior video quality – up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz

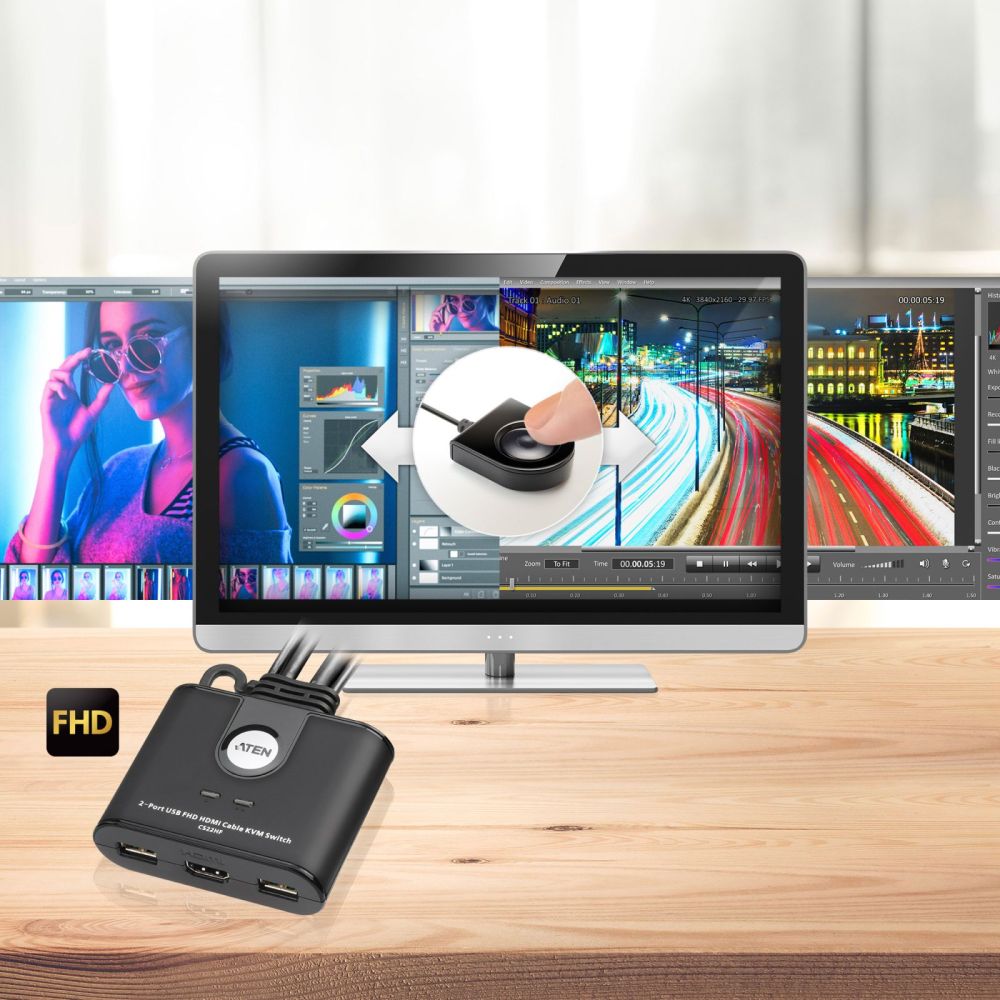

Computer selection via Remote Port Selector
HDMI compliant; HDCP 1.4 compliant
Multiplatform support – Windows, Mac, and Linux

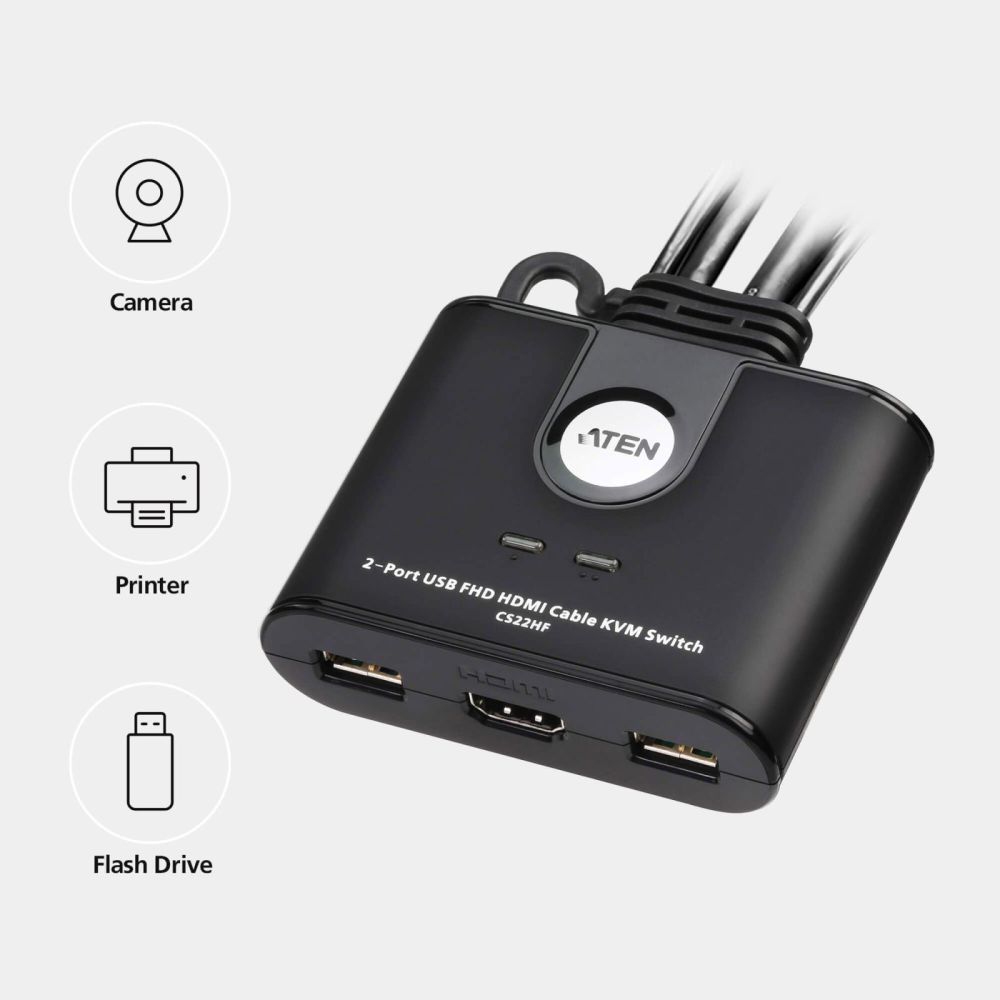

The console USB ports can be used for USB peripheral sharing
Supports USB hot-plugging
Bus-powered
Package Contents:1x CS22HF 2-Port USB FHD HDMI Cable KVM Switch
1x user instructions
Computer Connections2
Port SelectionRemote Port Selector
Connectors
Console Ports1 x HDMI Female
2 x USB Type A Female
KVM Ports2 x HDMI Male
2 x USB Type A Male
LEDs
Selected2 (Green)
Cable Length
Computer2 x 1.2 m
Remote Port Selector1.8 m
Video1920 x 1080 @ 60 Hz; 1920 X 1200 @ 60Hz
Power ConsumptionDC5V:1.518W:11BTU
Environmental
Operating Temperature0-50°C
Storage Temperature-20-60°C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingPlastic
Weight0.26 kg ( 0.57 lb )
Dimensions (L x W x H)8.24 x 6.65 x 2.52 cm
(3.24 x 2.62 x 0.99 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Design
Product colour	Black
Housing material	Plastic
Cable length	1.2 m
Remote switch cable length	1.8 m
Rack mounting
LED indicators
Display
Built-in display
Logistics data
Harmonized System (HS) code	85176200
Master (outer) case width	328 mm
Master (outer) case length	389 mm
Master (outer) case height	330 mm
Master (outer) case gross weight	7.9 kg
Master (outer) case volume	42192.1 cm³
Products per master (outer) case	20 pc(s)
Country of origin	Taiwan
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Packaging content
Packaging content	1x CS22HF 2-Port USB FHD HDMI Cable KVM Switch 1x user instructions
Packaging data
Package width	55 mm
Package depth	155 mm
Package height	223 mm
Package volume	1982.18 cm³
Package weight	360 g
Package type	Box
Performance
HD type	Full HD
Maximum resolution	1920 x 1200 pixels
Video bandwidth	60 Hz
HDCP
Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
HDMI ports quantity	1
Console ports	HDMI, USB A
USB connector type	USB Type-A
DC-in jack
Power
Input voltage	5 V
Power consumption (typical)	1.518 W
System requirements
Windows operating systems supported
Linux operating systems supported
Mac operating systems supported
Technical data
Video outputs per console	HDMI x1
Packaging volume	0.0019m³
Cable length f. computer	1.2m
Number of CPU	2
Peripheral outputs per console	USB-A female x2
Length packaging	0.155m
Weight	0.360kg
Design	Wired
Complies with HDMI standard	1.4
Type 1	KVM switch
Screen connectors per console	1
Width packaging	0.055m
Number of consoles	1
Periphery inputs per CPU	USB-A male x1
Data rate	480Mb/s
USB specification	USB 2.0
Type 2	2-fold HDMI KVM
Video inputs per CPU	HDMI x1
Audio outputs per console	Without
Height packaging	0.223m
Audio per CPU	Without
Max. resolution	1920x1200 / 60Hz
Incl. KVM cableset	Fixed
Cable remote control
USB peripherals
Extension (daisy chain or cascading)
Audio microphone
Audio loudspeakers
Weight & dimensions
Width	66.5 mm
Depth	82.4 mm
Height	25.2 mm
Weight	260 g

---
