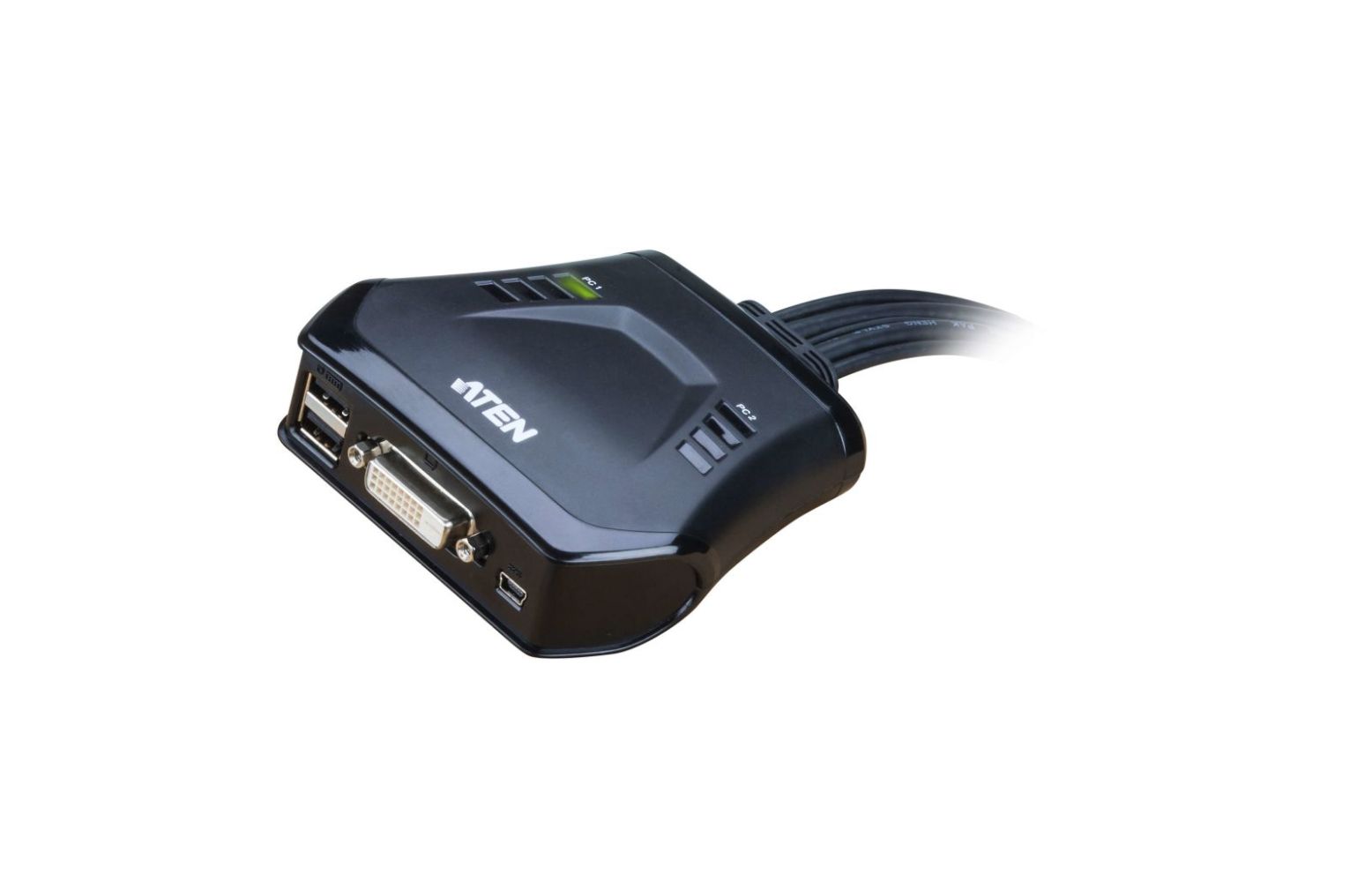

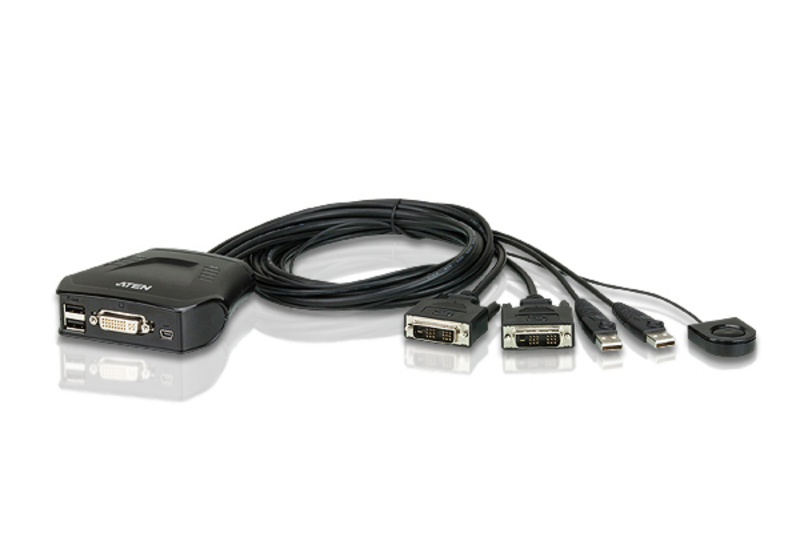

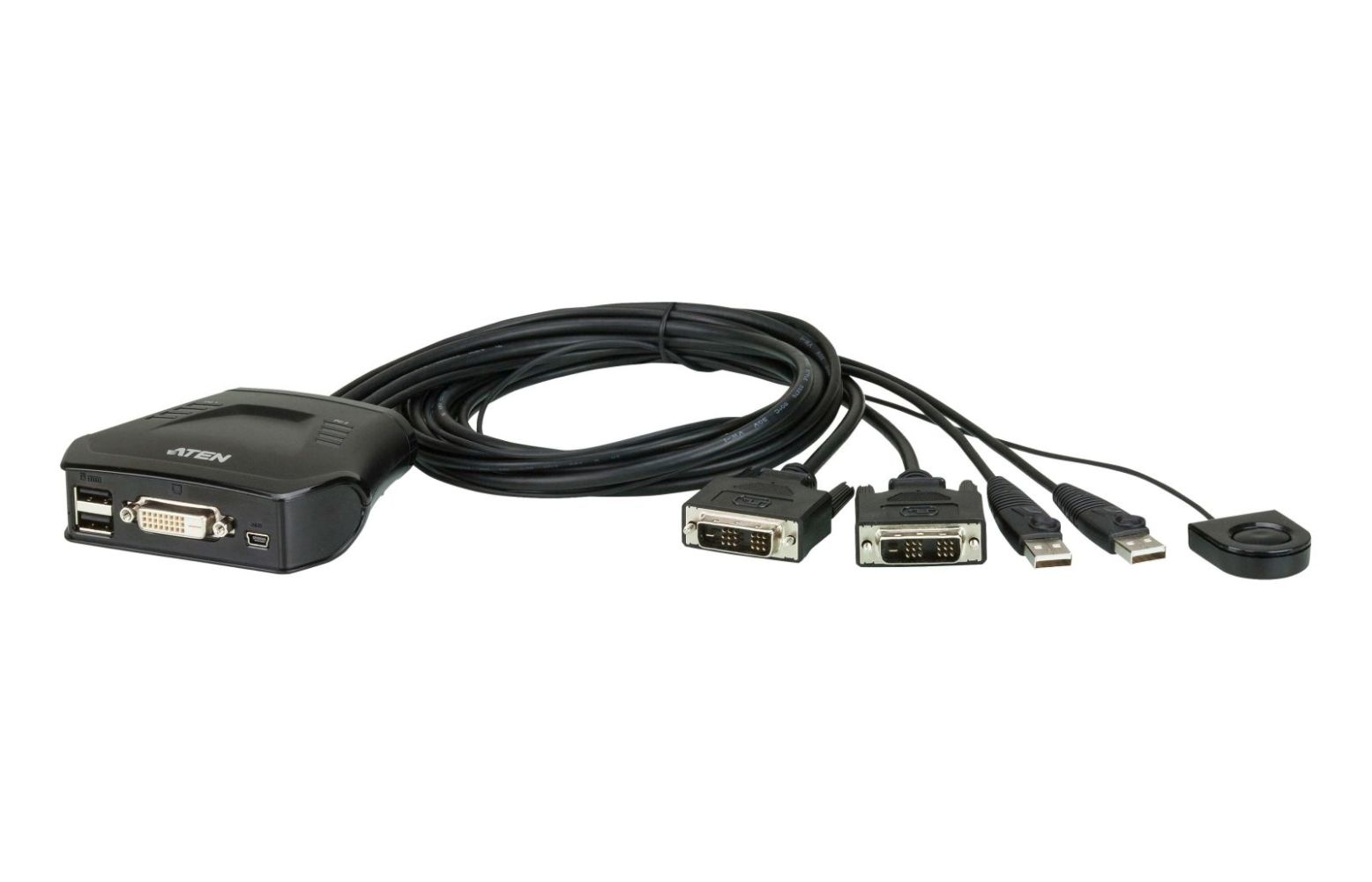

ATEN CS22D 2-Port USB DVI KVM Switch
|
-7% 37,38 EUR 40,18 EUR |
|
|
( 44,48 EUR incl. VAT ) ≈ £31.47 | ≈ $41.98 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 557960 |
| Mfg Part No: | CS22D-AT |
| UPC/EAN: | 4719264640315 |
| Weight: | 0.7 kg |
Product information for Aten CS22D-AT:
*Order based, Non-Cancellable*, The CS22D 2-Port USB KVM Switch for DVI Graphics is a device that allows two computers to be controlled from a single console (keyboard, monitor and mouse). With the CS22D, you can easily select the computer you want using the independent port selector switch.
Its compact design makes the CS22U ideal for desktop applications based on different platforms. Box contents:
1 x CS22D USB KVM switch with 2 ports for DVI graphics. 1 x user manual
Its compact design makes the CS22U ideal for desktop applications based on different platforms. Box contents:
1 x CS22D USB KVM switch with 2 ports for DVI graphics. 1 x user manual
| Design | |
| Product colour | Black |
| Rack mounting | |
| LED indicators | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 6.8 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 328 mm |
| Master (outer) case length | 389 mm |
| Master (outer) case height | 330 mm |
| Master (outer) case gross weight | 9.06 kg |
| Products per master (outer) case | 20 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Quick installation guide | |
| Packaging data | |
| Package width | 55 mm |
| Package depth | 155 mm |
| Package height | 223 mm |
| Package weight | 408 g |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| DVI-D ports quantity | 2 |
| Console ports | DVI-D, USB A, Mini-USB B |
| Power | |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 0.93 W |
| Weight & dimensions | |
| Width | 99.5 mm |
| Depth | 96.6 mm |
| Height | 30.1 mm |
| Weight | 340 g |
Questions & answers
What is the delivery time of ATEN CS22D 2-Port USB DVI KVM Switch?
The article ATEN CS22D 2-Port USB DVI KVM Switch is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CS22D-AT to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN CS22D 2-Port USB DVI KVM Switch always at the best possible price. We can give you a discount of 2% on ATEN CS22D 2-Port USB DVI KVM Switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
