Aten KVM Switch 4/3-way Audio/DP/USB, Dual Port, Display Port, Triple Display content_copy

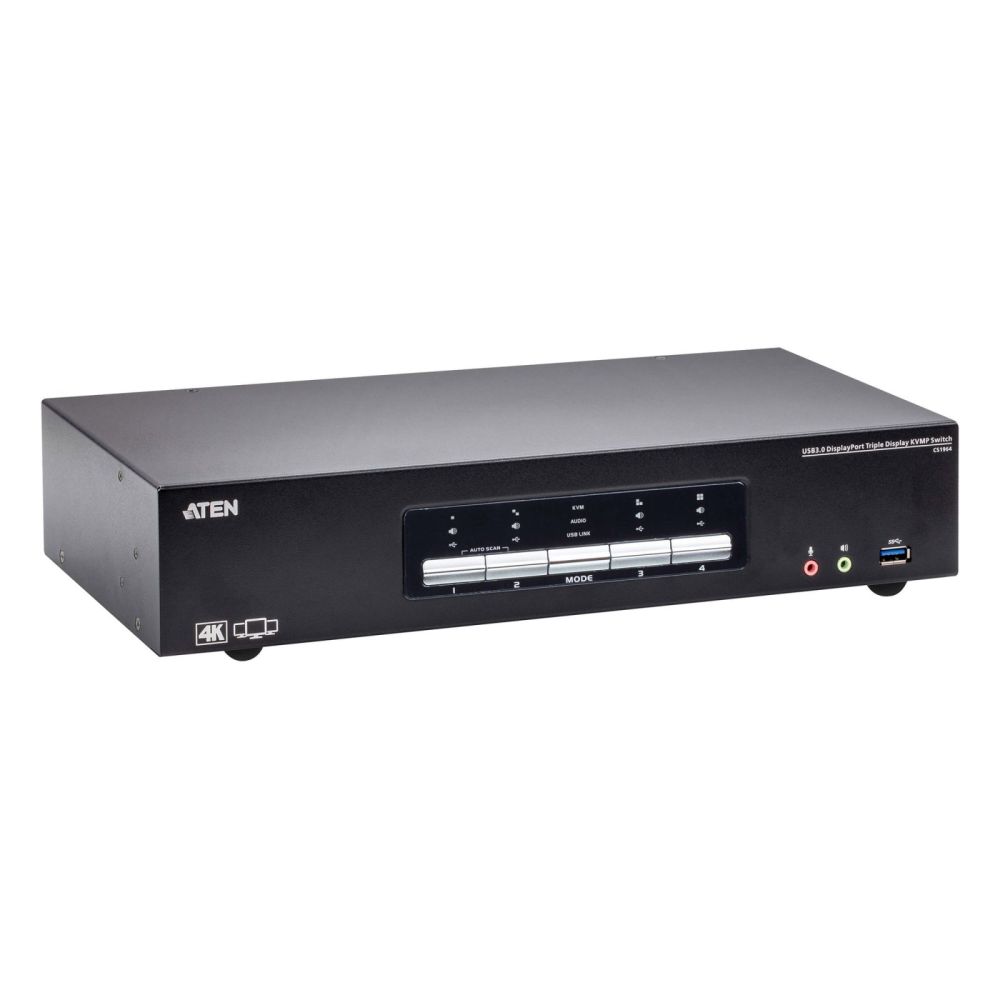

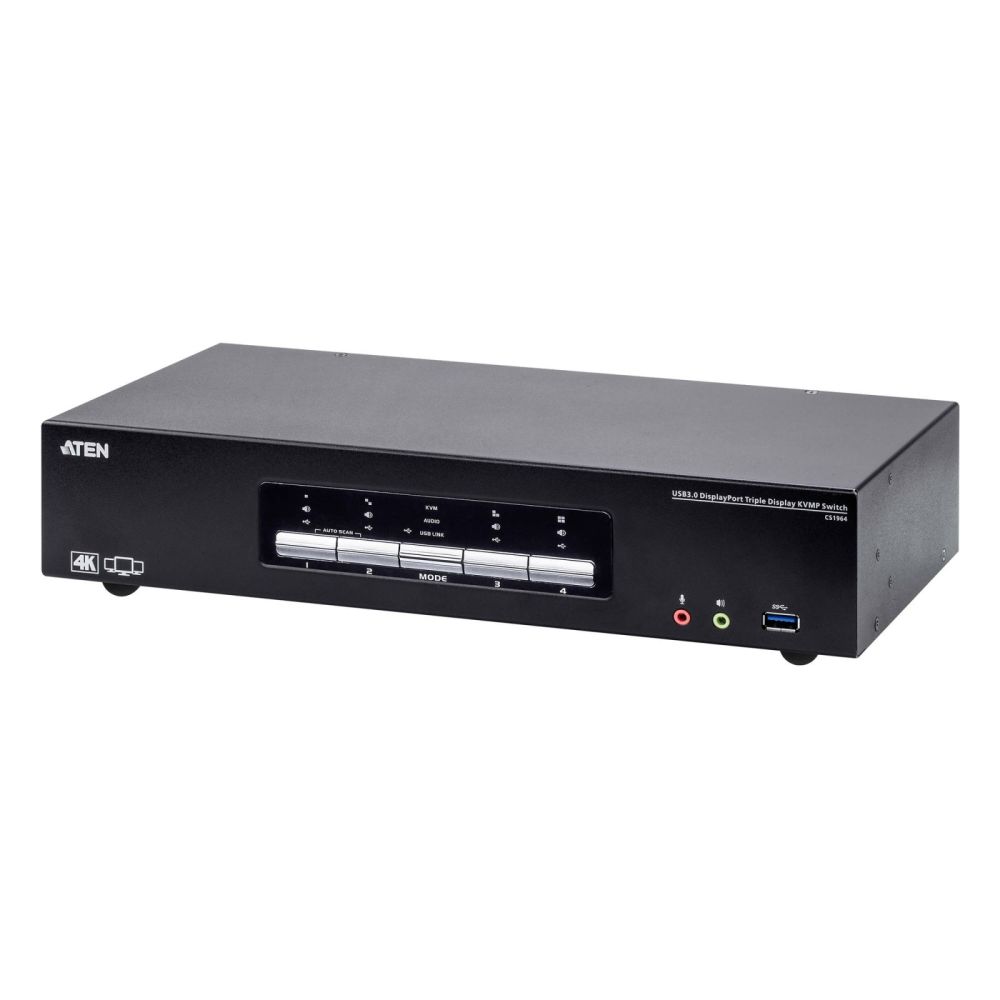

*Order based, non-cancellable*, The ATEN CS1964 optimizes your desktop so you can effortlessly manage a triple-display multimedia workstation with instant, user-friendly access to four computers from a single USB keyboard, USB mouse, and three HDMI monitors with resolutions up to 4K DCI (4096 x 2160 at 60 Hz).
The CS1964 features ATEN's patented Video DynaSync™ technology, which optimizes screen resolution, speeds up switching between systems, and ensures that windows opened on an extended desktop are not reset to the default configurations on the main display when switching between ports, enabling smooth and uninterrupted operation. It features a USB 3.1 GEN hub for data transfer rates of up to 5 Gbps, allowing you to easily speed up multimedia operations, as well as N-key rollover that supports up to 15 simultaneous keystrokes without ghosting or glitches. Superior video quality – 4096 x 2160 at 60 Hz and 3840 x 2160 at 60 Hz 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rate Hex display – connect a second CS1964 device for two triple display setups controlled by one operator Supports Video DynaSync™ Computer selection via push buttons, hotkeys, mouse and RS-232 commands Package contents
1x 4-port USB 3.0 4K DisplayPort triple display KVMP™ switch 6x LIN5-20K1-K13G DisplayPort 1.2 cables 2x LIN6-11C1-E12G USB 3.0 cables 2x LIN5-0205-21CG audio cables 2x LIN5-0205-21DG audio cables 1x 0AD8-8012-33MG Power Supply 1x LIN2-418K-E12G Power Cable 1x User Guide Note: The supplied cable kits are designed to connect two computer ports only. Optional cable kits (2L-7D02UDPX6) are available with a separate purchase for the remaining computer port connection.

Design
Product colour	Black
Housing material	Metal
LED indicators
Push button
Hot keys
Display
Built-in display
Logistics data
Master (outer) case net weight	10.7 kg
Harmonized System (HS) code	85176200
Master (outer) case width	420 mm
Master (outer) case length	555 mm
Master (outer) case height	258 mm
Master (outer) case gross weight	13 kg
Products per master (outer) case	3 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Storage relative humidity (H-H)	0 - 80%
Packaging content
Quick installation guide
Manual
Packaging data
Package width	131 mm
Package depth	540 mm
Package height	233 mm
Package weight	4.03 kg
Performance
HD type	4K Ultra HD
Maximum resolution	4096 x 2160 pixels
Video bandwidth	60 Hz
Scan interval	1,5,99 s

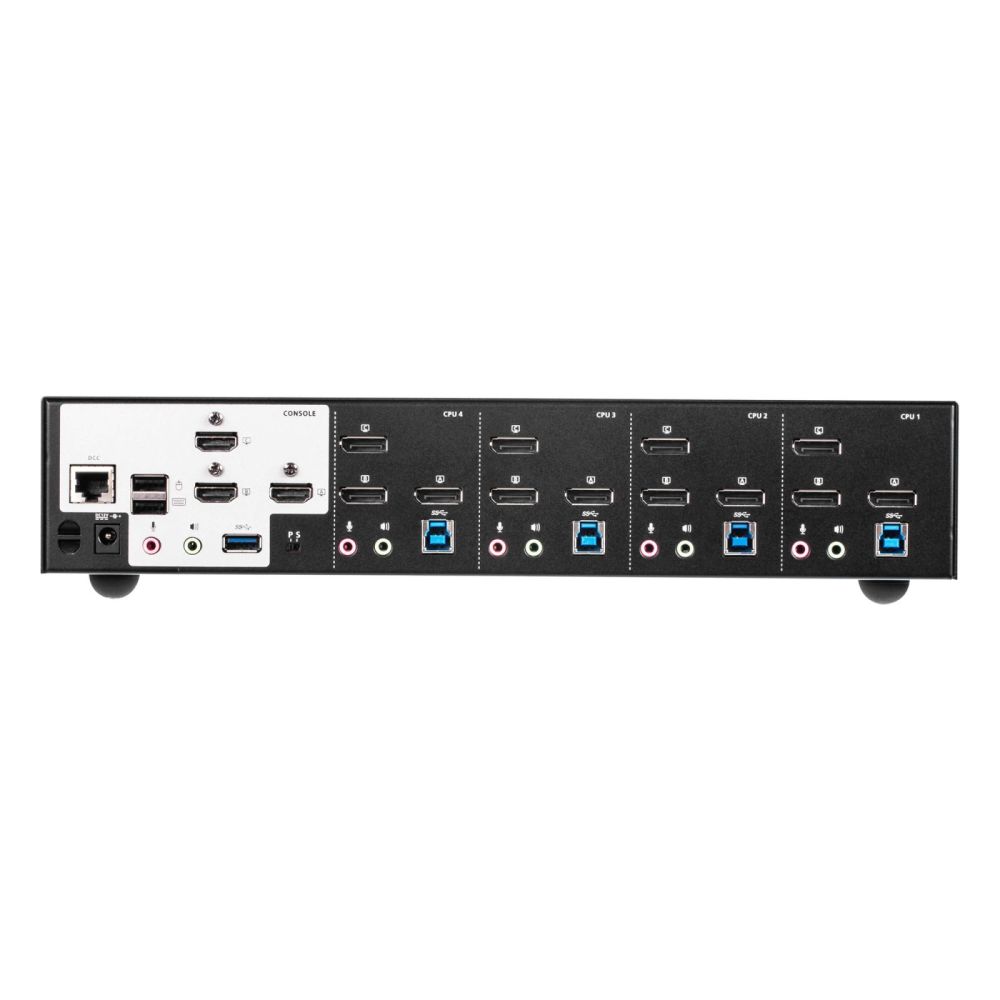

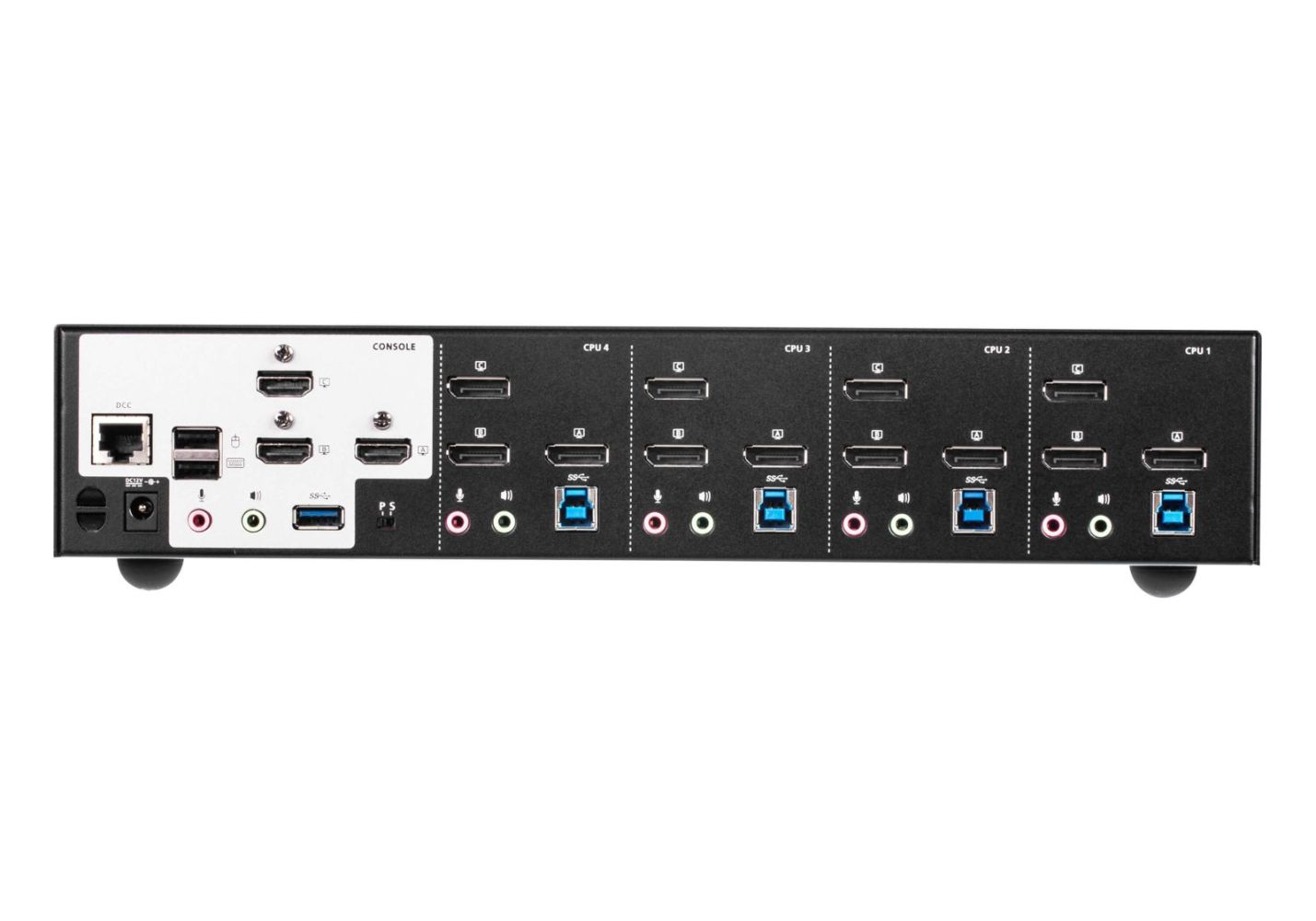

Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPorts quantity	12
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	4
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
Console USB ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
USB connector type	USB Type-A, USB Type-B
Headphone outputs	6
Number of microphone inputs	6
USB hub
Audio connections
DC-in jack
Power
Power source	DC
Input voltage	12 V
Power consumption (typical)	15.49 W
System requirements
Windows operating systems supported
Weight & dimensions
Width	335 mm
Depth	156 mm
Height	65.5 mm
Weight	3.57 kg

---
