ATEN KVM Switch 4P USB 3.0 DisplayPort Dual View K content_copy

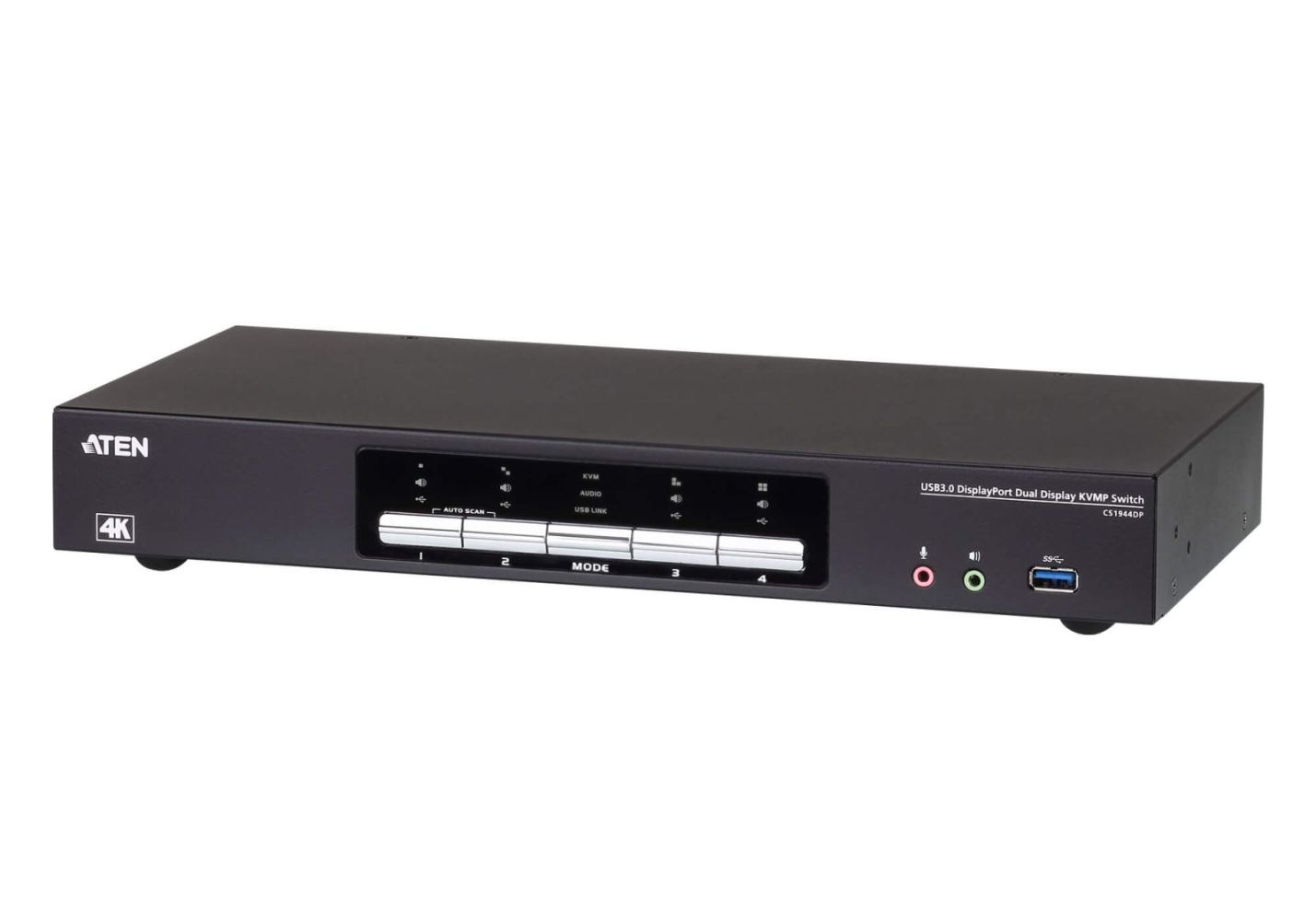

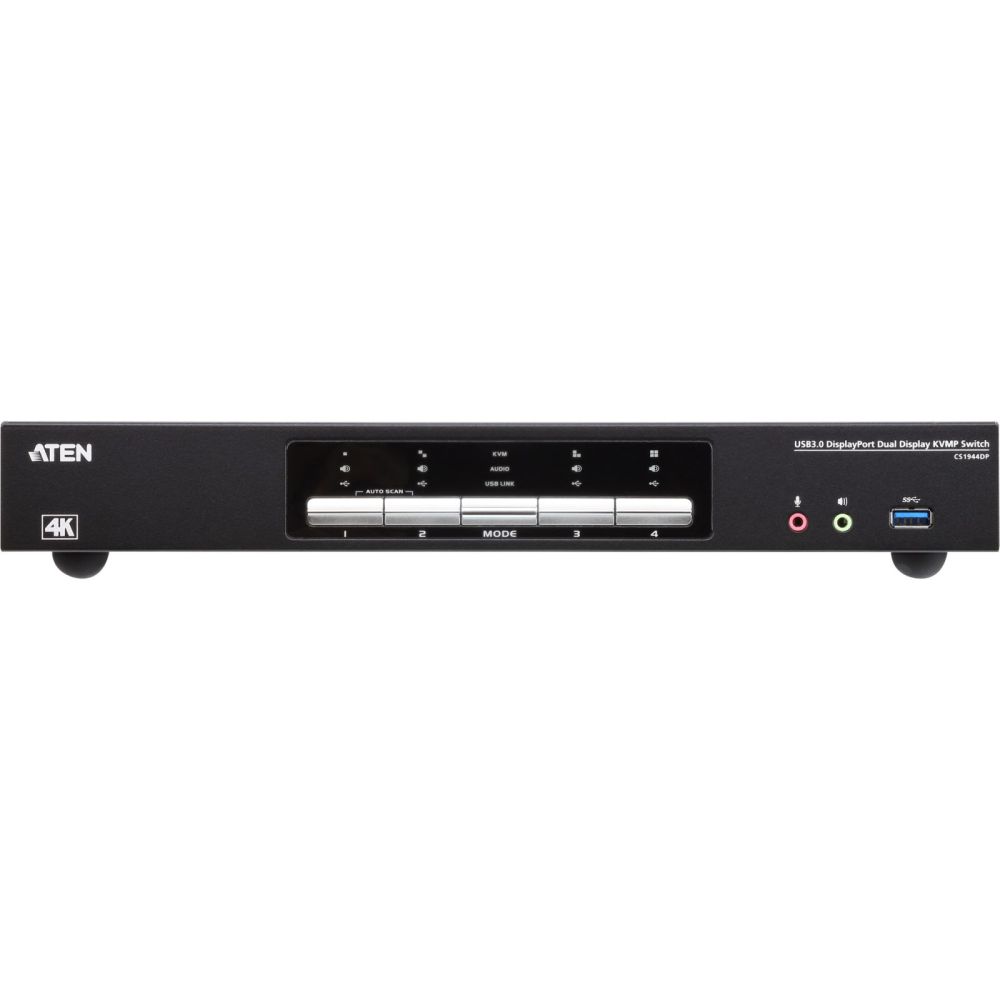

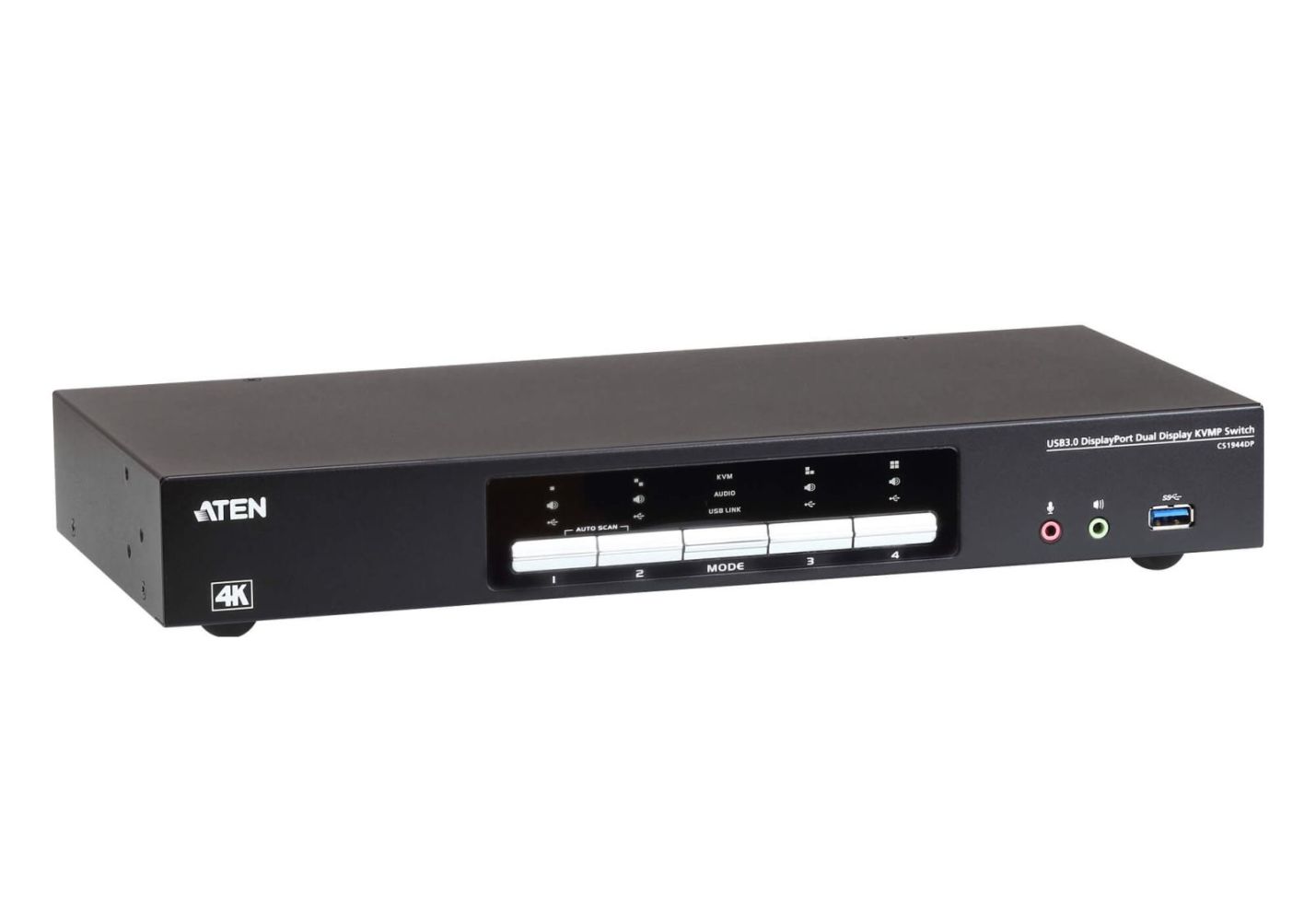

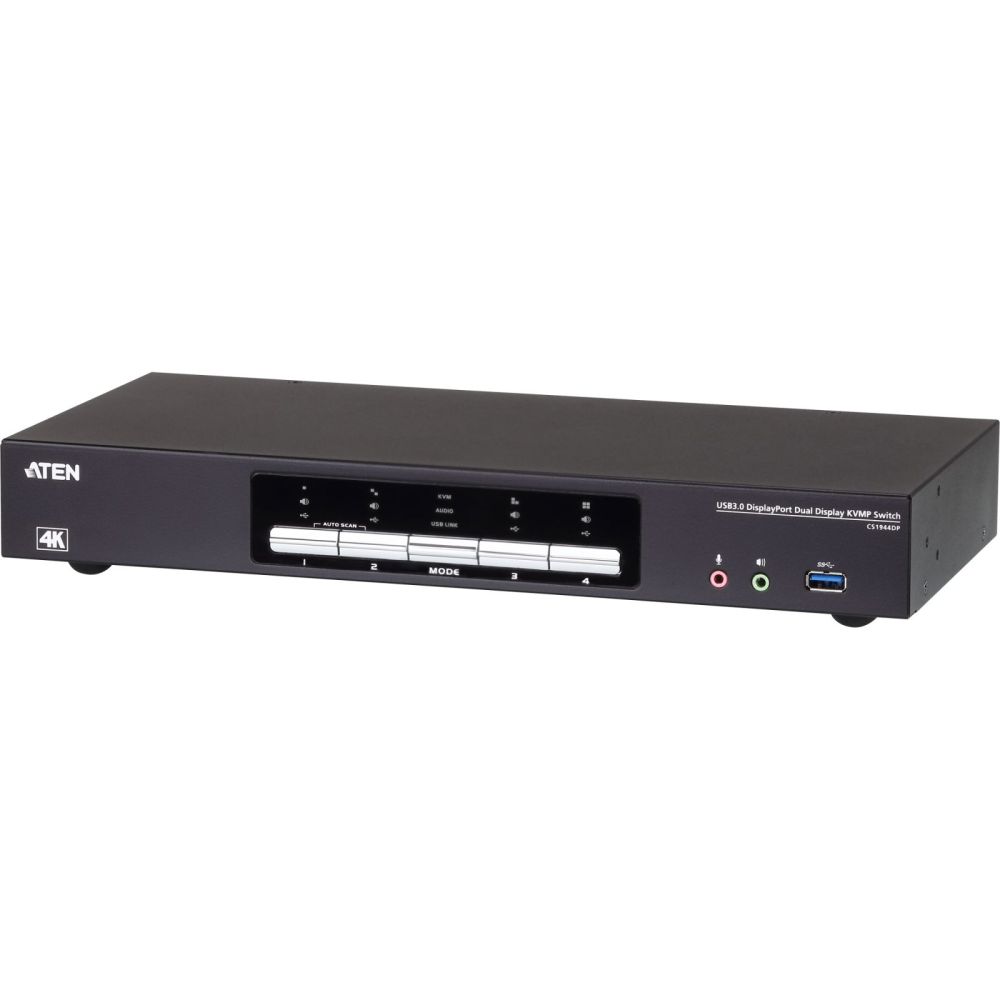

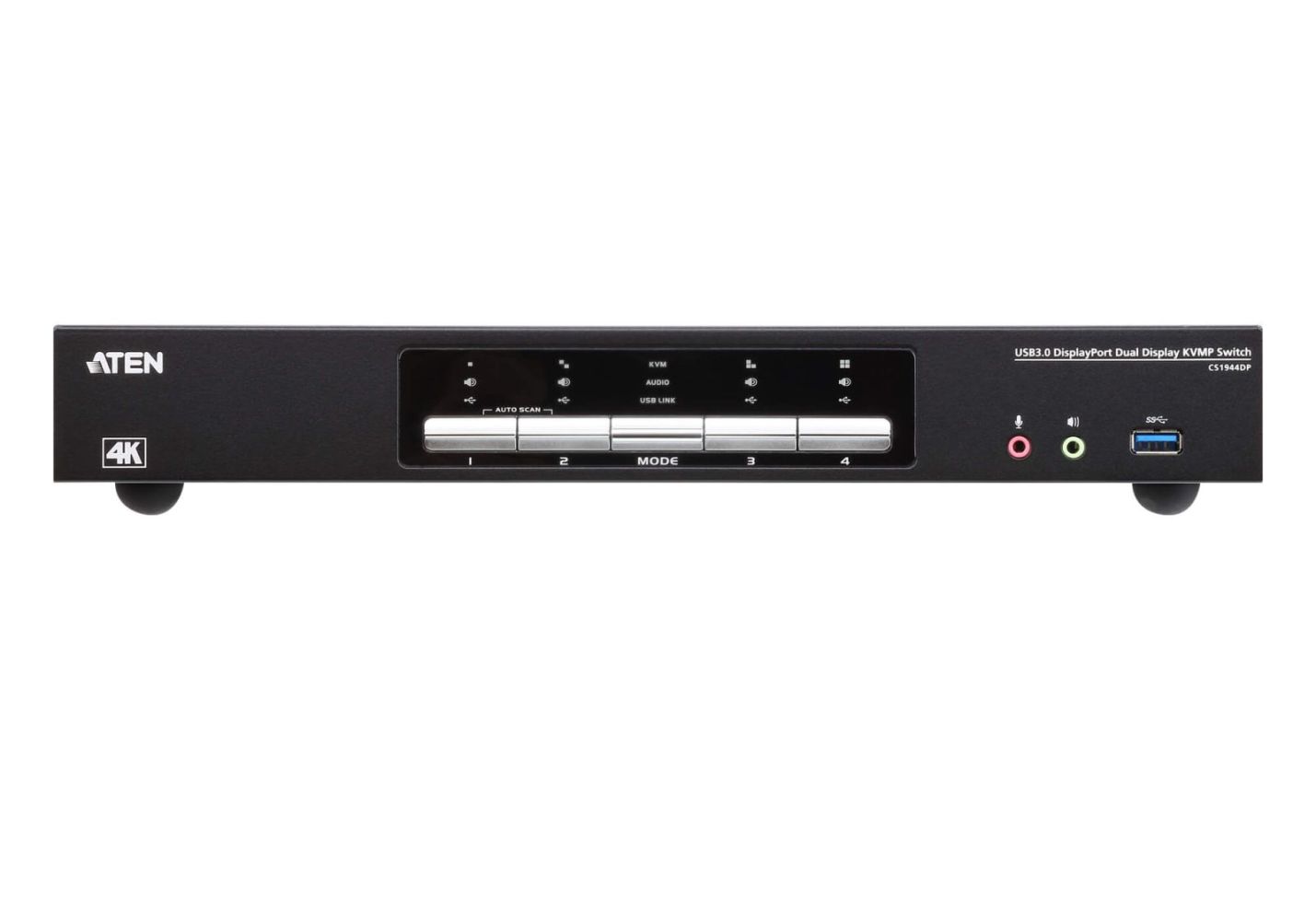

The ATEN CS1944DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1944DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1944DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.
Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1944DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.One USB keyboard and mouse controls two/four DisplayPort computers and share two USB peripherals
Supports Quad Display by connecting two Dual Display KVM switches
Supports superior video quality – Up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz)
Computer Selection via front panel, hotkeys, mouse, and RS-232 commands
2- Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Supports DisplayPort Dual-Mode technology (DP++)*
Supports MST (Multi-Stream Transport)
Supports Console keyboard emulation / bypass feature
Supports Console mouse emulation / bypass feature
Independent switching of KVM, USB, and Audio
Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
HDCP Compliant
Supports HD audio (HD audio through DisplayPort cannot be switched independently)
Power on detection
Firmware upgradable

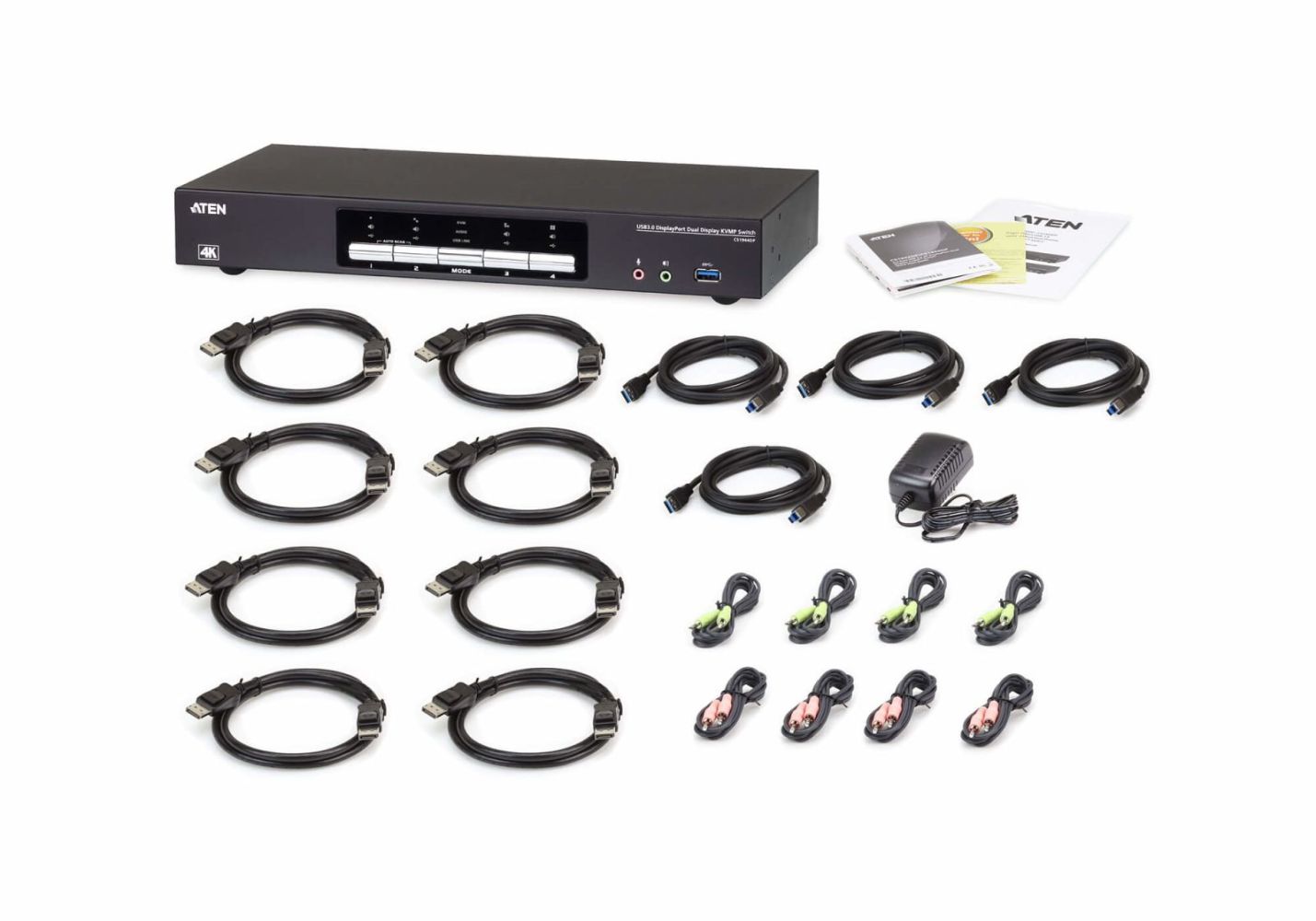

Package Contents:1x 4-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
8x DisplayPort 1.2 Cables
4x USB 3.0 Cables
8x Audio Cables
1x Power Adapter
1x User Instructions
Computer Connections4
Port SelectionHotkey, Pushbutton, Mouse, RS-232 Commands
Video4096 x 2160 @ 60Hz

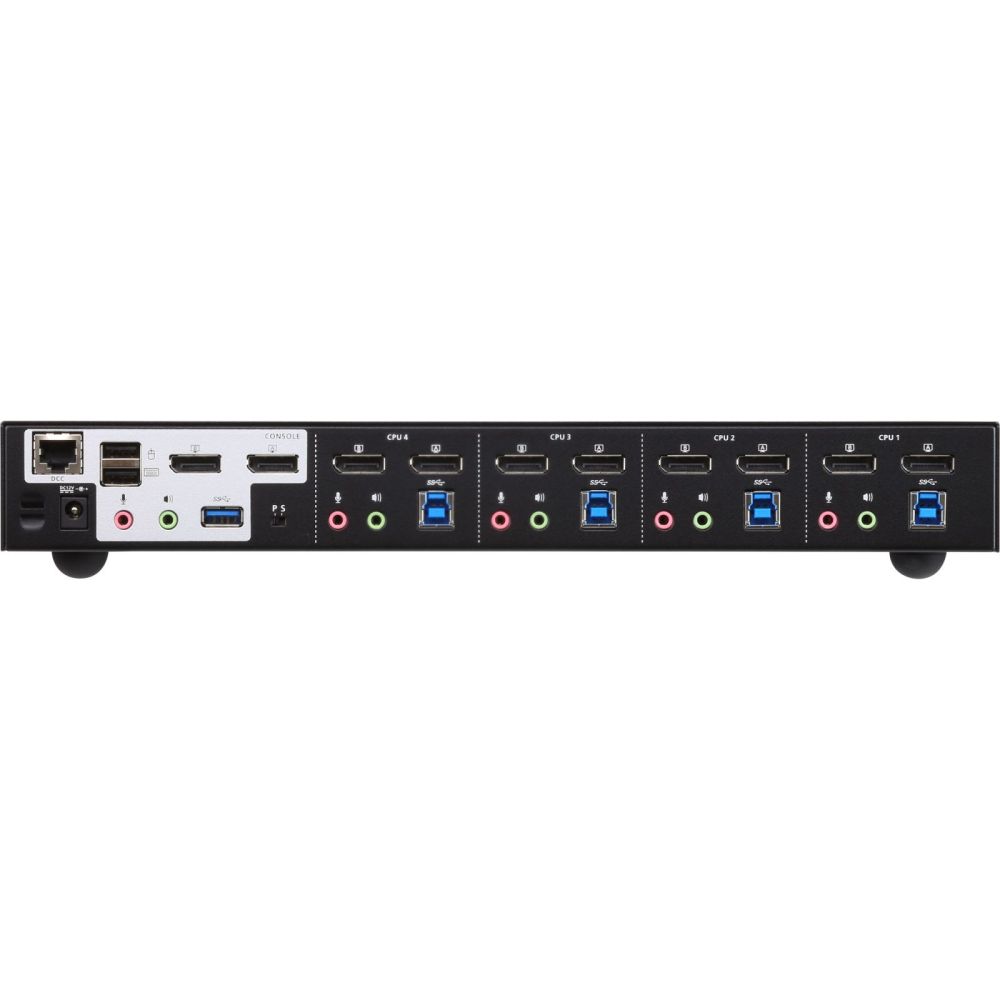

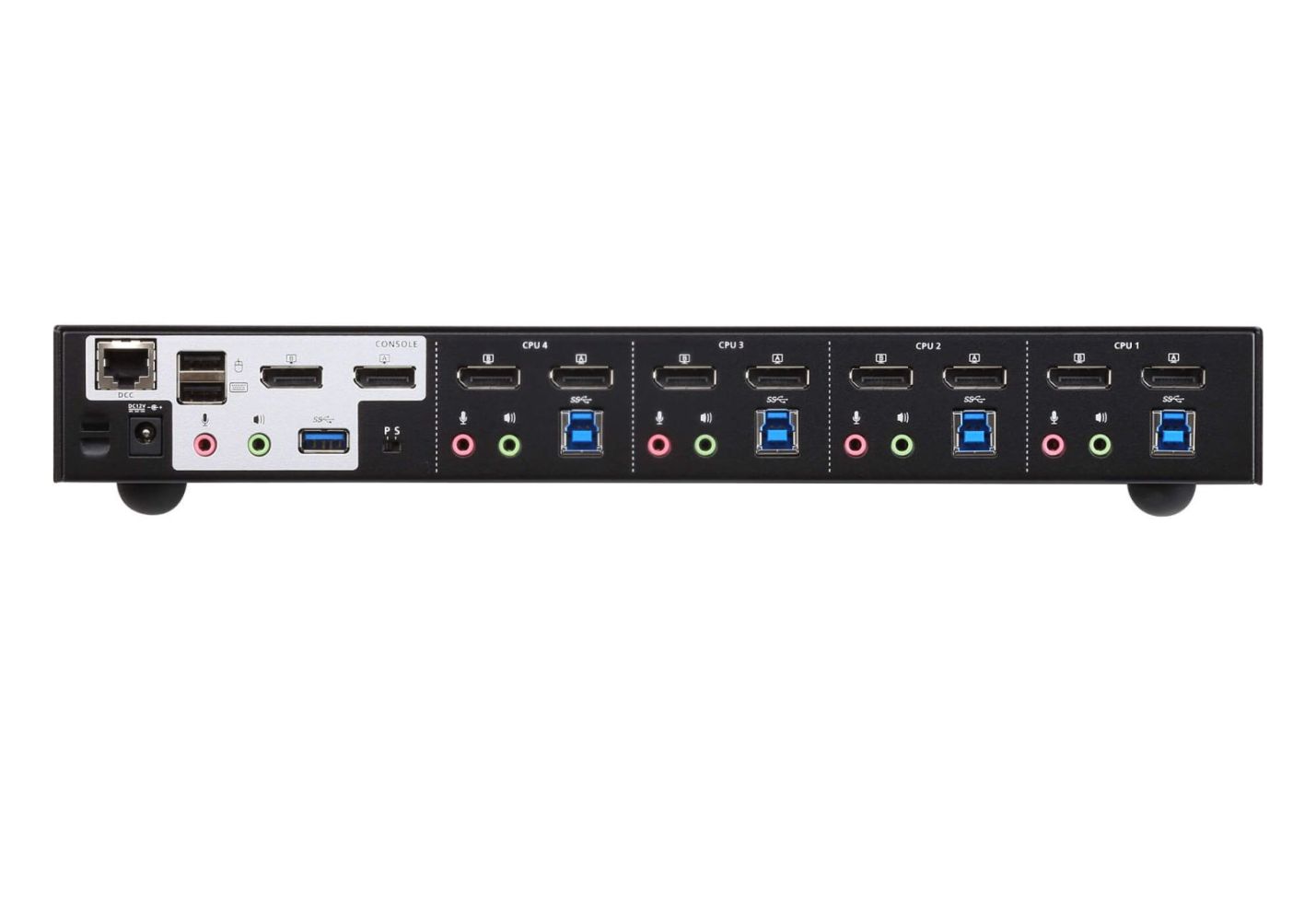

Connectors
Console Ports2 x USB Type A Female
2 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
KVM (Computer) Ports4 x USB3.1 Gen1 Type B Female (Blue)
8 x DisplayPort Female (Black)
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink)
Daisy Chain Ports1 x RJ-45 Female
Power1 x DC Jack
USB Hub2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Switches
Selected5 x Pushbutton
Station Selection1 x Slide Switch
Emulation
Keyboard / MouseUSB
Scan Interval1-99 seconds (default: 5 seconds)
Power ConsumptionDC12V:5.76W:84BTU
Environmental
Operating Temperature0–50°C
Storage Temperature-20–60°C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingMetal
Weight1.51 kg ( 3.33 lb )
Dimensions (L x W x H)33.50 x 15.66 x 4.40 cm
(13.19 x 6.17 x 1.73 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Design
Product colour	Black
Housing material	Metal
LED indicators
Push button
Hot keys
Display
Built-in display
Logistics data
Master (outer) case net weight	10.4 kg
Harmonized System (HS) code	85176200
Master (outer) case width	375 mm
Master (outer) case length	565 mm
Master (outer) case height	258 mm
Master (outer) case gross weight	13.2 kg
Products per master (outer) case	3 pc(s)
Network
Ethernet LAN (RJ-45) ports	1
Ethernet LAN
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Packaging content
Cables included	Audio (3.5mm), DisplayPort, USB
Manual
AC adapter included
Packaging data
Package width	116 mm
Package depth	540 mm
Package height	233 mm
Package weight	4.21 kg
Performance
HD type	4K Ultra HD
Maximum resolution	4096 x 2160 pixels
Video bandwidth	60 Hz
Scan interval	1,99 s
Firmware upgradeable
Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPorts quantity	10
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	4
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
Headphone outputs	6
Number of microphone inputs	6
USB hub
Audio connections
DC-in jack
Power
Power source	DC
Input voltage	12 V
Power consumption (typical)	6.125 W
Sustainability
Compliance certificates	RoHS
Technical data
Packaging volume	0.0146m³
Type 2	4-fold DisplayPort KVM
Weight	4.185kg
USB specification	USB 3.2 Gen.1
Max. resolution	4096x2160 / 60Hz
Video inputs per CPU	DisplayPort x2
Data rate	5Gb/s
Number of CPU	4
Width packaging	0.116m
Design	Desktop
Type 1	KVM switch
Length packaging	0.540m
DisplayPort standard	1.2
Height packaging	0.233m
Front panel buttons
Incl. KVM cableset
USB peripherals
Weight & dimensions
Width	156.6 mm
Depth	335 mm
Height	44 mm
Weight	3.46 kg

---
