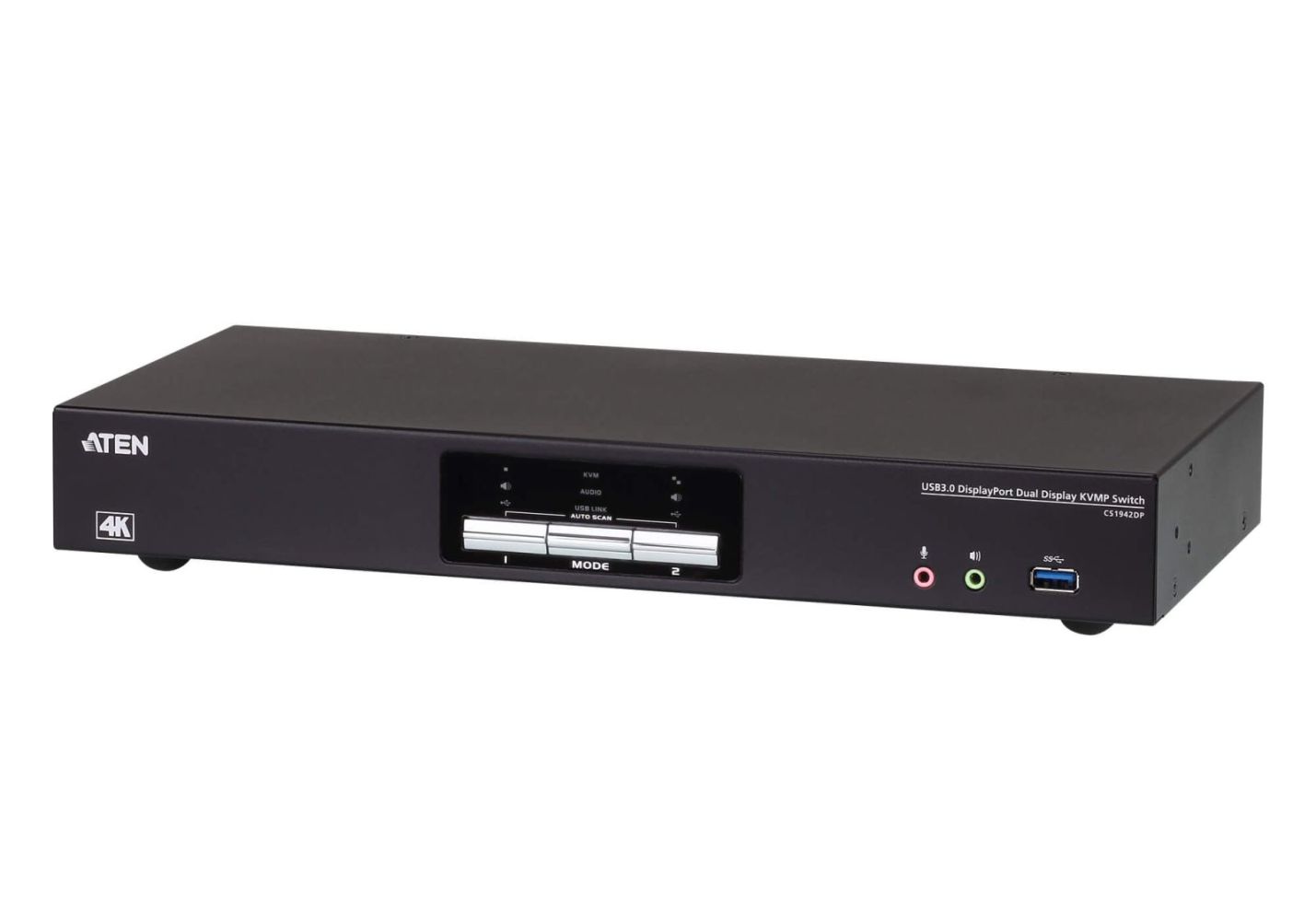

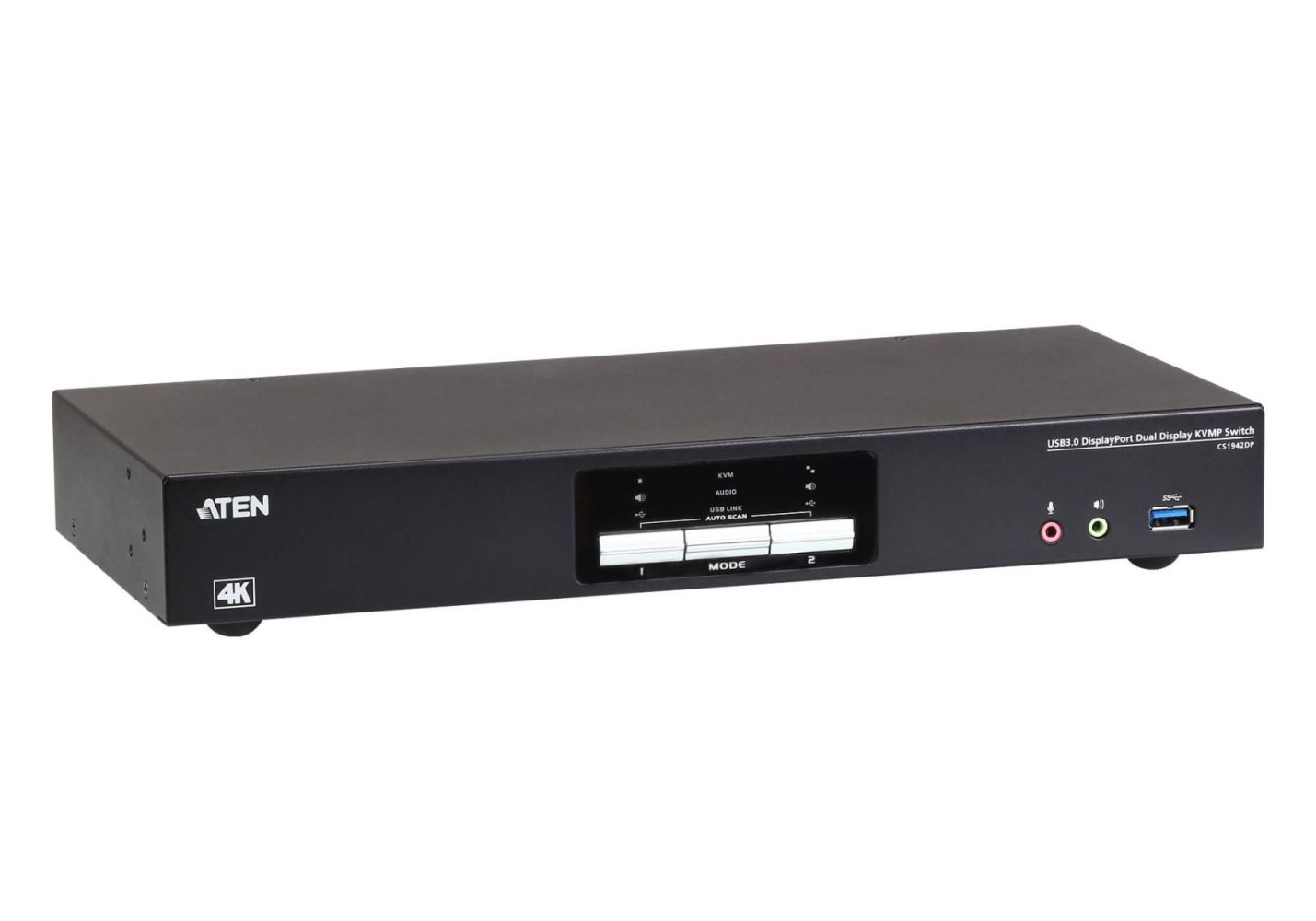

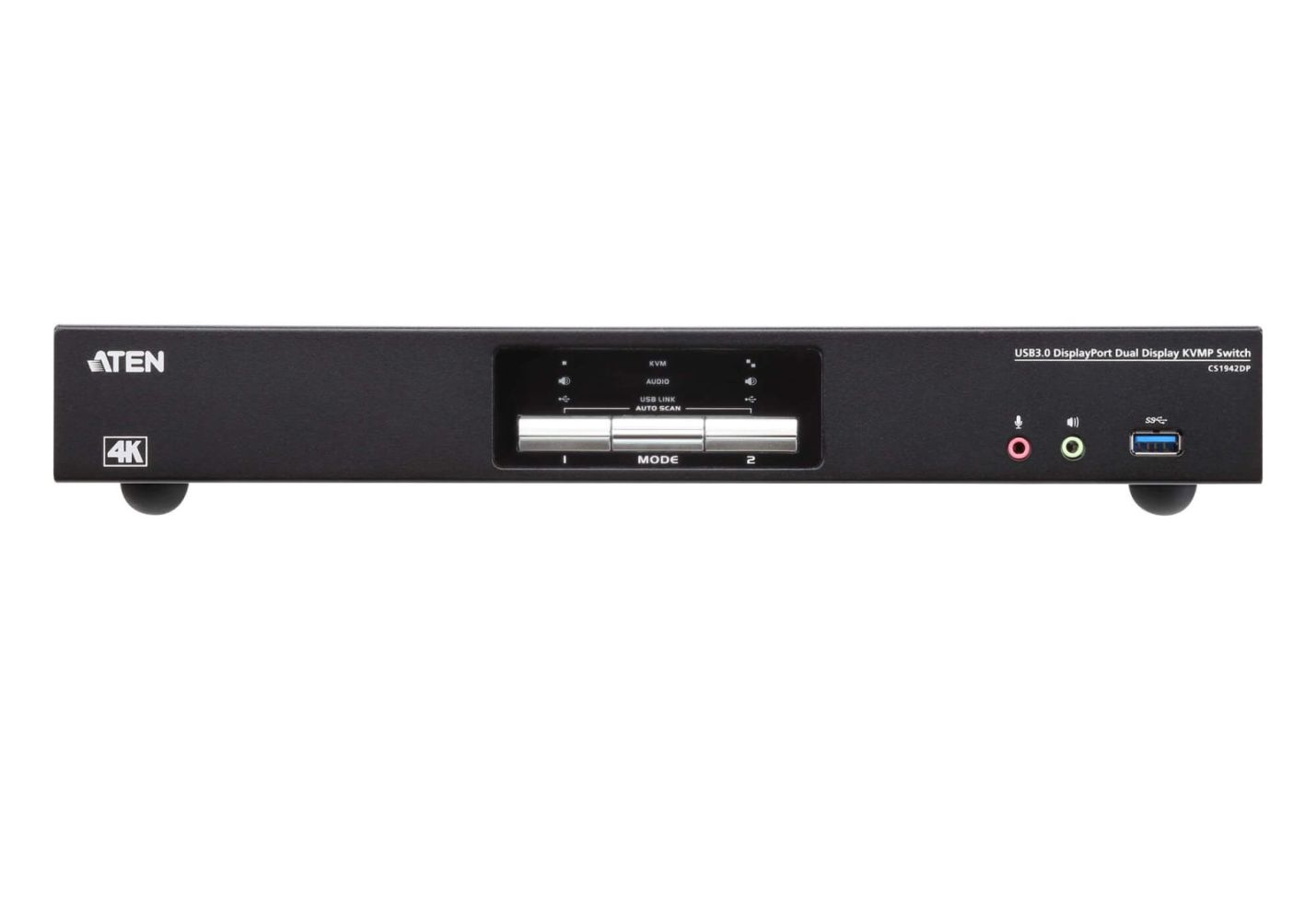

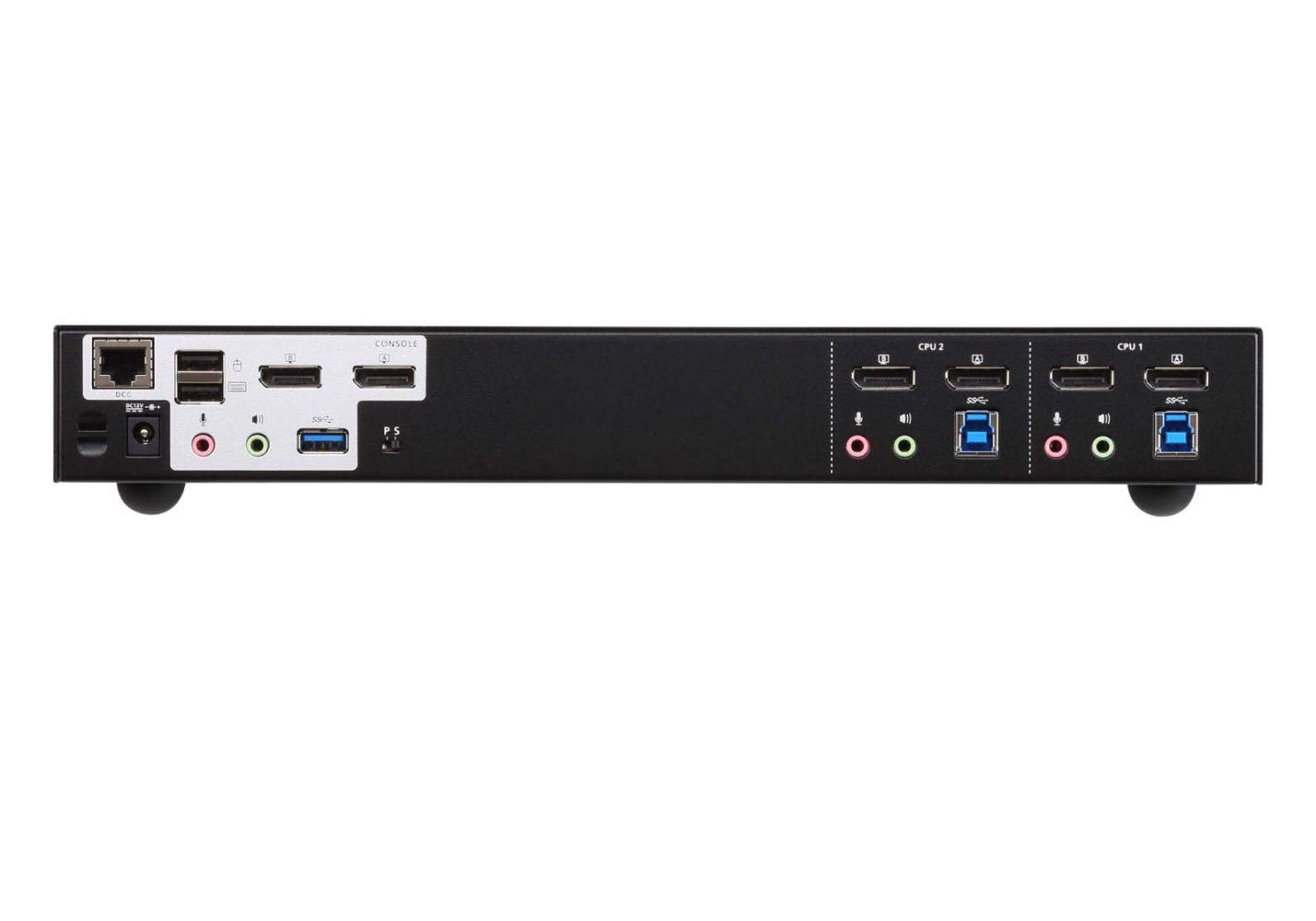

ATEN KVM Switch 2P USB 3.0 DisplayPort Dual View K
|
-34% 257,83 EUR 390,45 EUR |
|
|
( 306,82 EUR incl. VAT ) ≈ £217.09 | ≈ $289.54 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1483767 |
| Mfg Part No: | CS1942DP-AT-G |
| UPC/EAN: | 4719264645952 |
| Weight: | 2.5 kg |
Product information for Aten CS1942DP-AT-G:
*Order-Based, Non-Cancellable*, The ATEN CS1942DP Desktop KVM Switch helps you organize your desktop. Especially when managing a multimedia workstation in a large enterprise, the CS1942DP provides instant access to two or four computers via a single USB keyboard, USB mouse and two DisplayPort monitors.
Expanded video support offers a more defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 at 60 Hz). Thanks to the dual display capability, you can enjoy a larger screen and easily switch between two or four DisplayPort systems. Additionally, the CS1942DP offers unprecedented data transfer rates of up to 5Gbps with its integrated USB 3.1 Gen 1 hub, allowing you to maximize multimedia operations. Scope of delivery

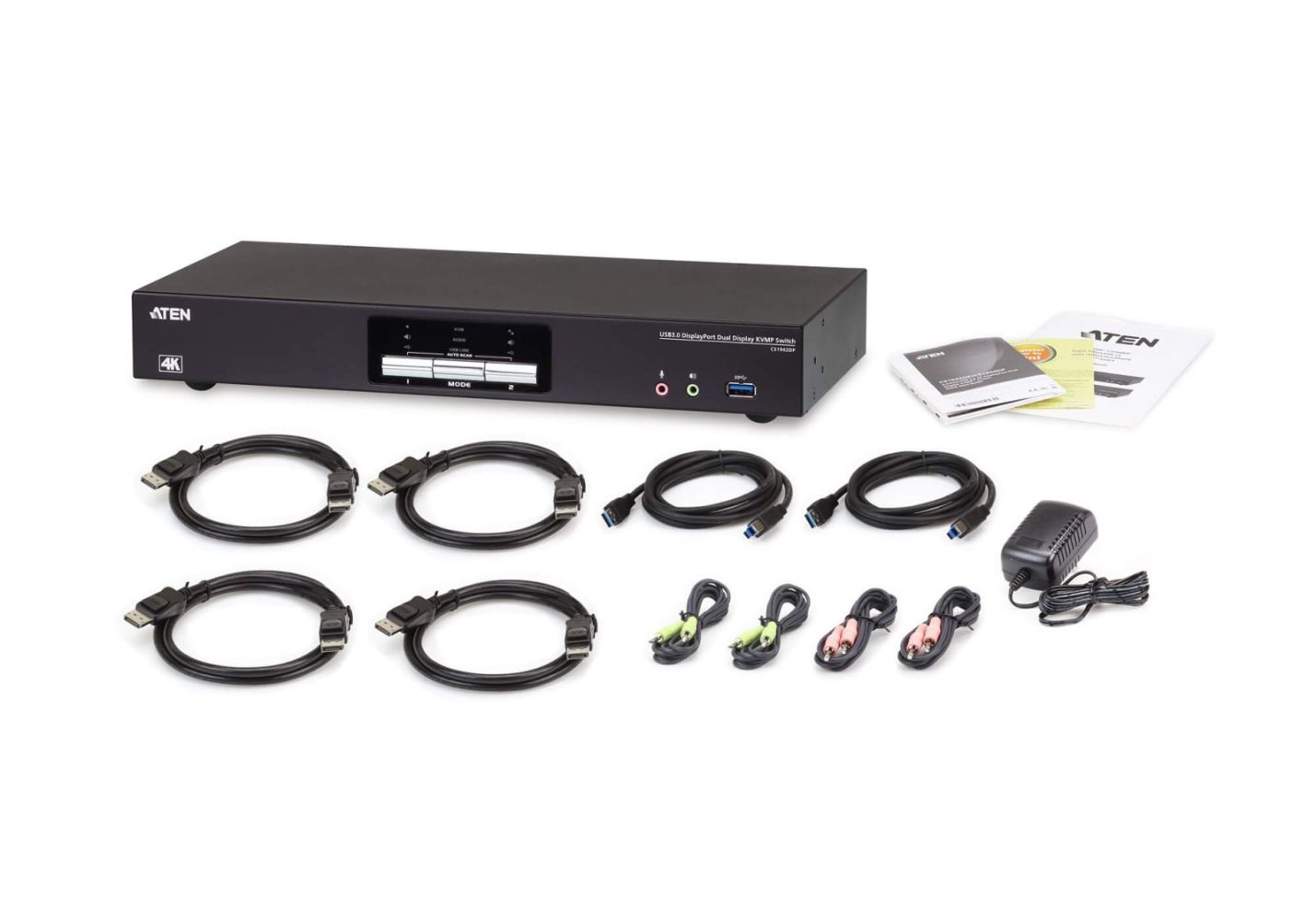

1x 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch 4x LIN5-20K1-K13G DisplayPort 1.2 cable 2x LIN6-11C1-E12G USB 3.0 cable 4x LIN5-0205-21CG/LIN5-0205-21DG audio cable 1x LIN2-418K-E12G Power Adapter 1x User Guide
Designed to meet the ever-increasing demand for dual display, ultra-fast data transfer rates and lossless 4K video resolution, the CS1942DP is specifically designed for use in areas such as design, financial trading and video post-production.
Expanded video support offers a more defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 at 60 Hz). Thanks to the dual display capability, you can enjoy a larger screen and easily switch between two or four DisplayPort systems. Additionally, the CS1942DP offers unprecedented data transfer rates of up to 5Gbps with its integrated USB 3.1 Gen 1 hub, allowing you to maximize multimedia operations. Scope of delivery
1x 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch 4x LIN5-20K1-K13G DisplayPort 1.2 cable 2x LIN6-11C1-E12G USB 3.0 cable 4x LIN5-0205-21CG/LIN5-0205-21DG audio cable 1x LIN2-418K-E12G Power Adapter 1x User Guide
Designed to meet the ever-increasing demand for dual display, ultra-fast data transfer rates and lossless 4K video resolution, the CS1942DP is specifically designed for use in areas such as design, financial trading and video post-production.
| Design | |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | |
| LED indicators | |
| Push button | |
| Hot keys | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 8.22 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 11.2 kg |
| Products per master (outer) case | 3 pc(s) |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Cables included | Audio (3.5mm), DisplayPort to Mini DisplayPort, USB |
| Manual | |
| AC adapter included | |
| Packaging data | |
| Package width | 116 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 3.36 kg |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,99 s |
| Auto scan delay (min) | 1 s |
| Auto scan delay (max) | 99 s |
| HDCP | |
| Daisy chain | |
| Firmware upgradeable | |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 6 |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Headphone outputs | 4 |
| Number of microphone inputs | 4 |
| USB hub | |
| DC-in jack | |
| Power | |
| Power source | DC |
| Input voltage | 12 V |
| Power consumption (typical) | 3.48 W |
| Weight & dimensions | |
| Width | 156.6 mm |
| Depth | 335 mm |
| Height | 44 mm |
| Weight | 2.74 kg |
