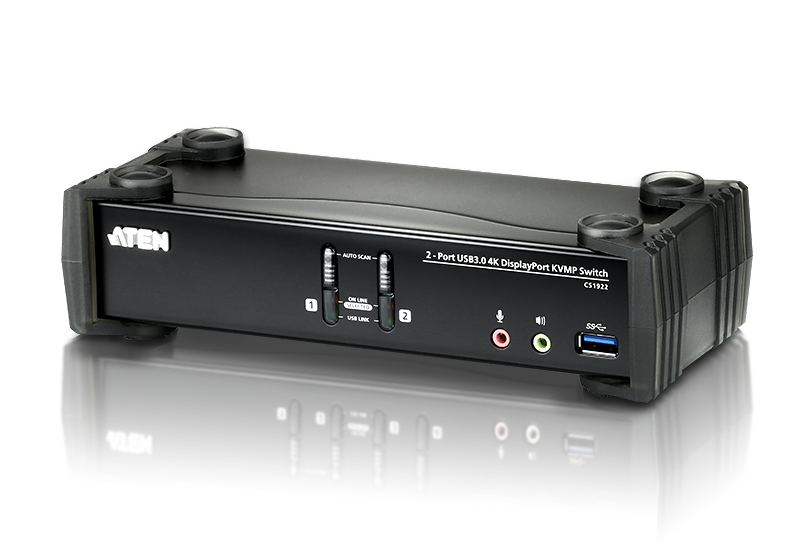

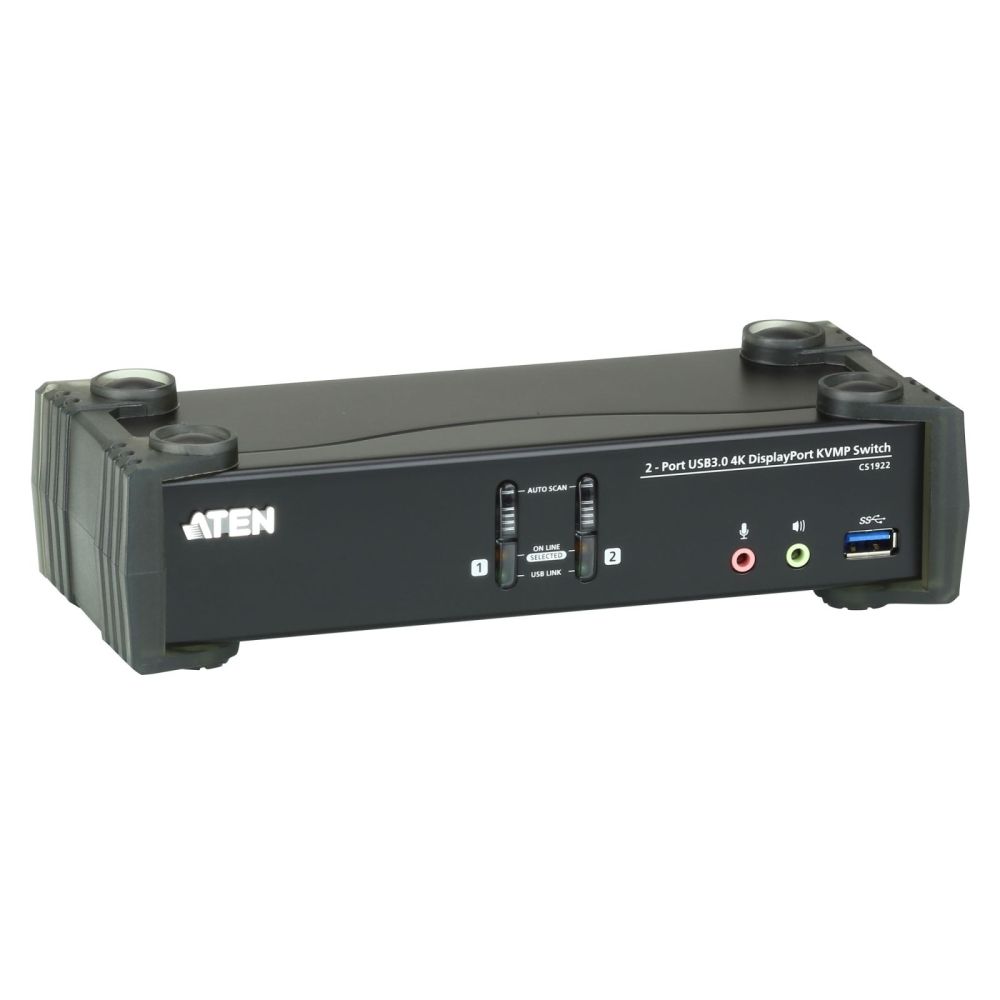

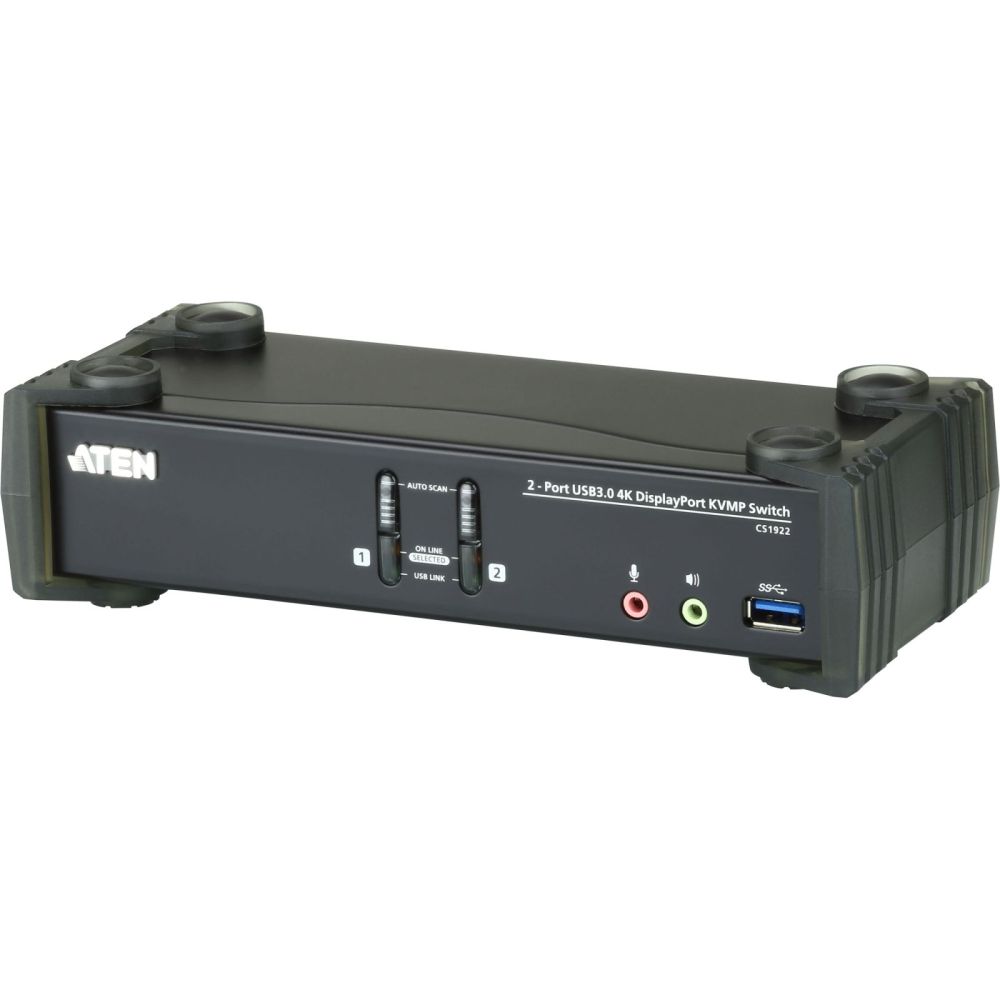

Aten CS1922 2-Port USB 3.0 4K DisplayPort KVM Switch

Your rating:
Average rating
product review for Aten CS1922 2-Port USB 3.0 4K DisplayPort KVM Switch
( 5 / 5 ) 2 ratings

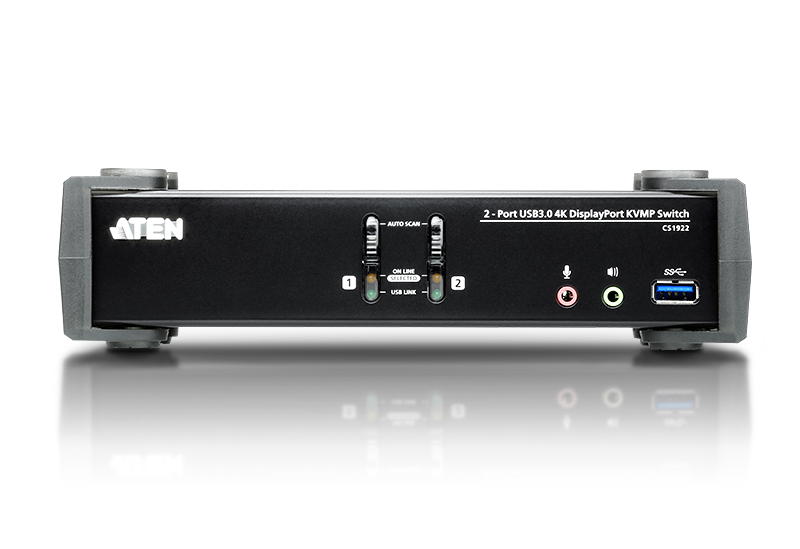

Aten CS1922
This image may differ from the desired article.
Aten CS1922Aten CS1922Aten CS1922Aten CS1922Aten CS1922Aten CS1922Aten CS1922Aten CS1922Aten CS1922
137,37 EUR
( 163,47 EUR incl. VAT )
≈ £114.43  |  ≈ $150.69
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >10 pieces
1x Aten CS1922 2-Port USB 3.0 4K DisplayPort KVM Switch
Datasheet:file_download Download
Lieske Part No.:1550273
Mfg Part No: CS1922
UPC/EAN: 4719264644764
Weight:1.865 kg

Product information for Aten CS1922:

The ATEN CS1922 2-Port USB 3.0 4K DisplayPort KVMP Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality and transfer speeds on modern computers. The ATEN CS1922 offers an unprecedented performance of delivering 4K resolution, the next generation USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and enhanced user-friendly operations.

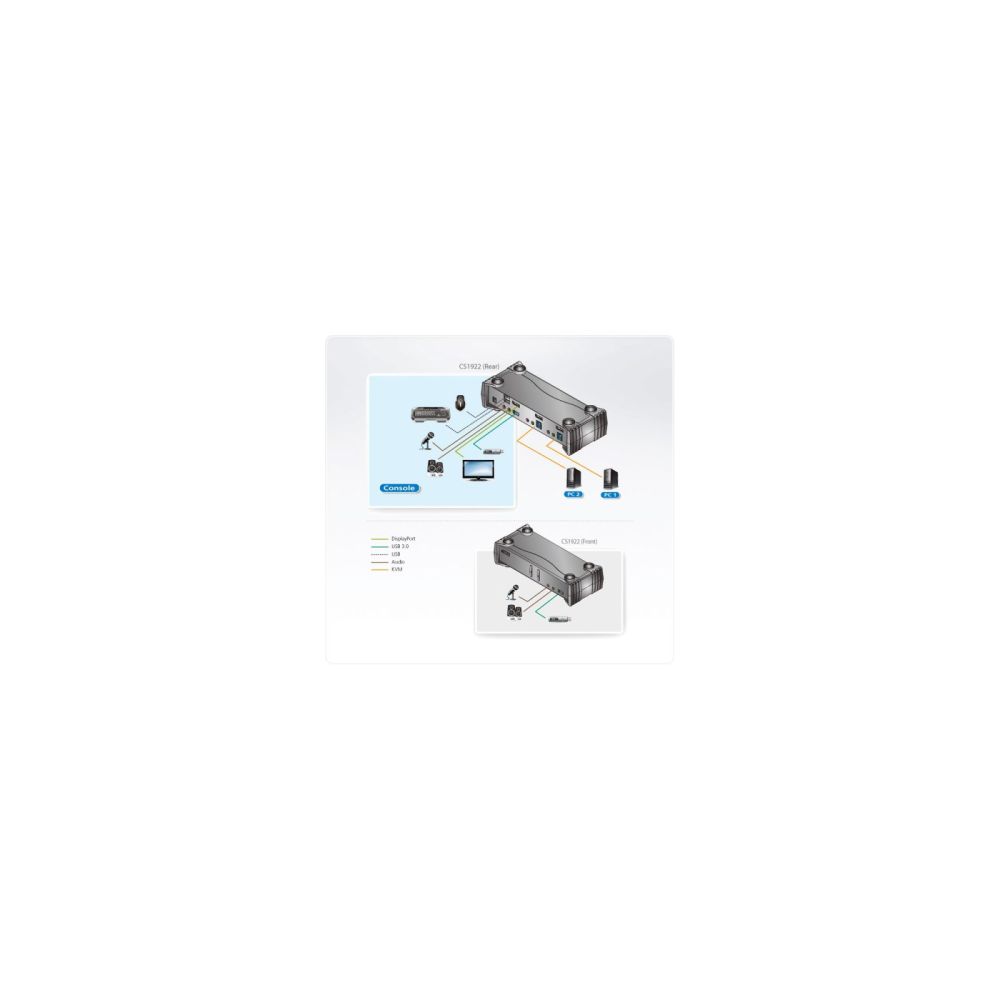

As a KVM switch, the CS1922 allows users to access two DisplayPort computers from a single USB keyboard, USB mouse and monitor console. Doing so with ease, the CS1922 provides three convenient switching methods – using front panel pushbuttons, mouse, or hotkeys for flexible access to any computer connected to the installation.
The unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a print server, modem splitter, etc.
With its rich feature set, the CS1922 is designed to surpass all requirements in graphic design, animation, and video-editing applications. Such as CAD/CAM (computer aided design/manufacturing). The CS1922 allows you to share the audio from each of the connected computers. HD audio transmitted by DisplayPort would offer you a different experience.
Features:2-port DisplayPort KVMP Switch with USB 3.1 Gen1 hub and 2.1 surround sound audio
One USB console controls 2 computers and 2 USB peripherals
Computer selection via front panel pushbuttons, hotkeys and mouse*
Independent switching of KVM, USB, and Audio focus
Superior video quality – 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz)
2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
DisplayPort 1.2 compliant, HDCP compliant
Supports HD audio through DisplayPort**
Full bass response for high-quality 2.1 channel surround sound systems
Power On Detection – if a computer is powered off, the CS1922 automatically switches to the next powered-on computer
Multi-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector*
Dual-Mode DisplayPort technology (DP++) supports HDMI and DVI signals via an externally powered DisplayPort-to-HDMI/DVI DP++ adapter *
*
Hot pluggable – add or remove computers without powering down the switch
Keyboard emulation/bypass feature supports most gaming keyboard
Mouse emulation/bypass feature supports most mouse drivers and multifunction mice
Multi-platform support – Windows, Mac and Linux
Multilingual keyboard mapping supports English, Japanese, French and German keyboards
Mac keyboard support and emulation*
Auto Scan Mode for monitoring all computers
Firmware upgradeable
Note:* Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
** HD audio through DisplayPort cannot be switched independently.
* MST requires two monitors capable of DisplayPort 1.2 daisy-chaining, or use of a powered DisplayPort MST Hub. The PC source must be DisplayPort 1.2 compliant. A DisplayPort v1.1a display can be the last display in a DisplayPort v1.2 chain.
*
* Dual-Mode DisplayPort technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility.
* PC keyboard combinations emulate Mac keyboards. Mac keyboards only work with their own operating system.
Specification:Computer Connections: 2
Port Selection: Hotkey, Pushbutton, Mouse

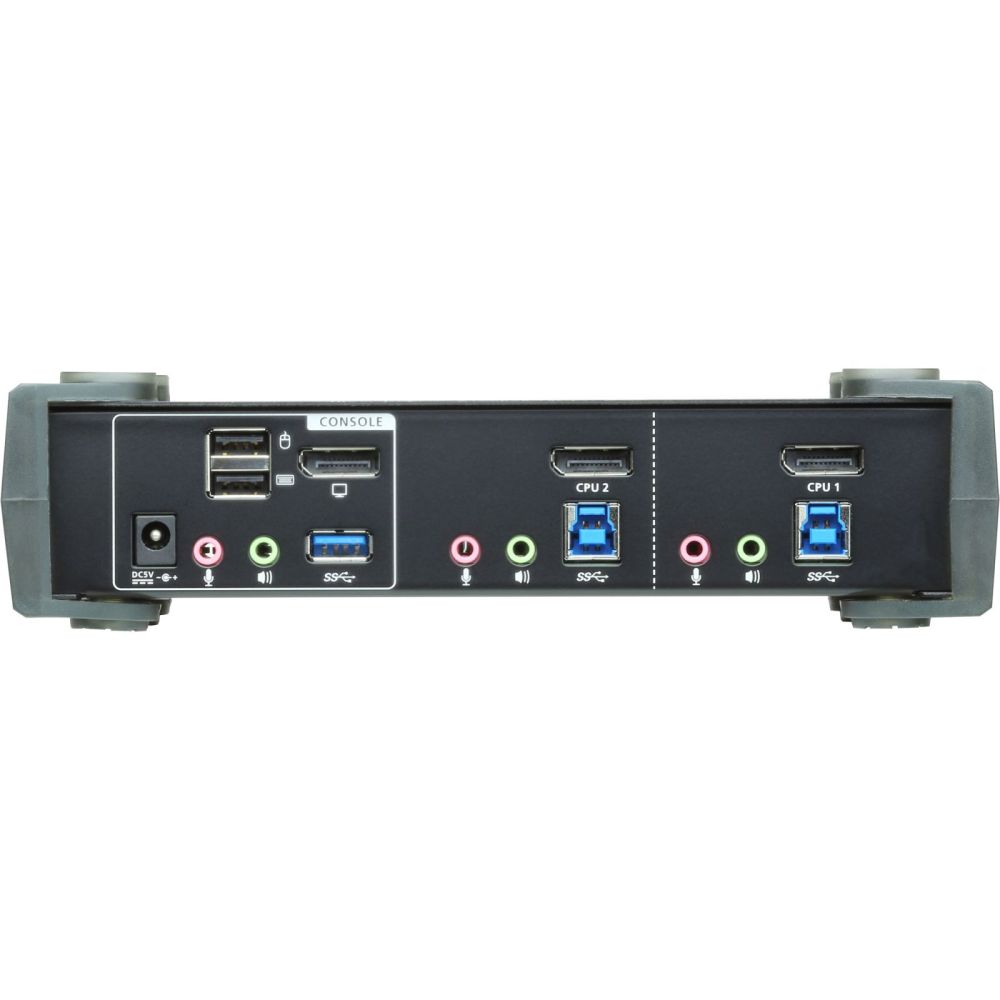

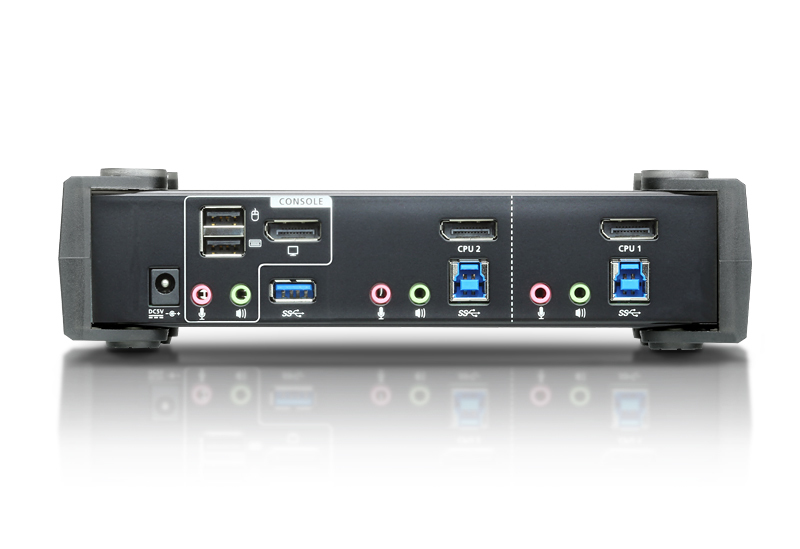

Connectors:Console Ports:2 x USB Type A Female (Black)
1 x DisplayPort Female (Black)
2 x Mini Stereo Jack Female (Green; 1 x front, 1 x rear)
2 x Mini Stereo Jack Female (Pink; 1 x front, 1 x rear)
KVM- (Computer) Ports:2 x USB 3.1 Gen1 Type B Female (Blue)
2 x DisplayPort Female (Black)
2 x Mini Stereo Jack Female (Green)
2 x Mini Stereo Jack Female (Pink)
Power: 1 x DC Jack
USB-Hub: 2 x USB 3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)

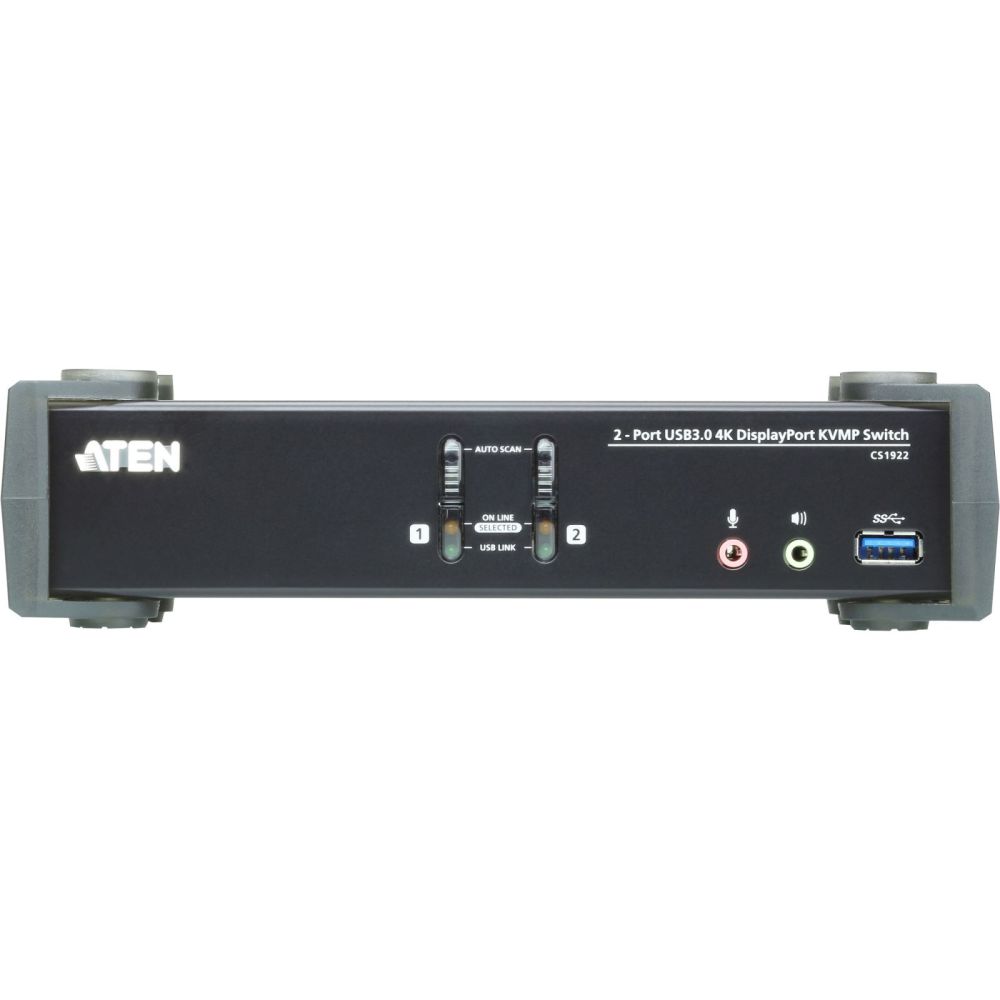

Switches:Selected: 2 x Pushbutton
LEDs:On Line /Selected: 2 (Orange)
USB-Link: 2 (Green)
Emulation:Keyboard / Mouse: USB
Video: 4096 x 2160 @ 60Hz
Power Consumption: DC 5.0V; 3.3W
Scan Interval: 1-99 Seconds (Default: 5 sec.)
Environmental:Operating Temperature: 0-50°C
Storage Temperature: -20-60°C
Humidity: 0-80% RH, Non-condensing
Physical Properties:Housing: Metal, Plastic
Weight: 0,73 kg
Dimensions (L x W x H): 21,00 x 8,80 x 5,55 cm

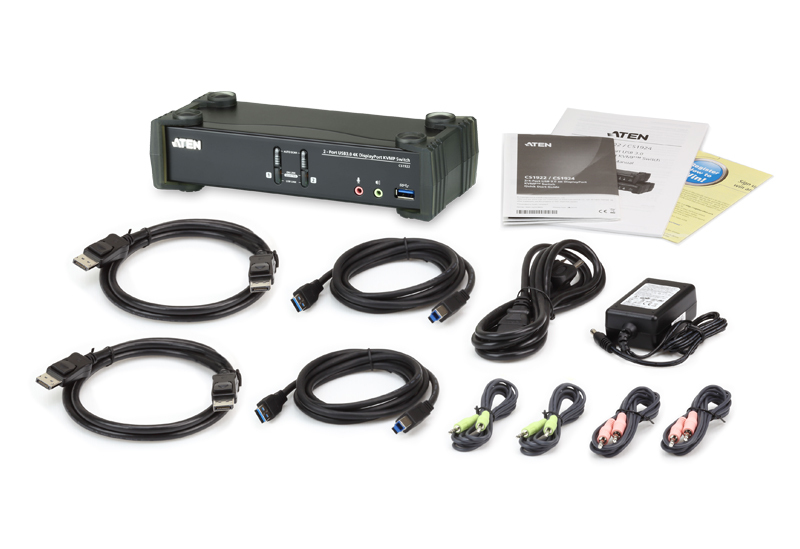

Package Contents:1x 2-Port USB 3.0 4K DisplayPort KVMP Switch
2x DisplayPort Cables
2x USB 3.0 Cables
4x Audio Cables
1x Power Adapter
1x User Instructions

Design
Product colourBlack
Housing materialMetal, Plastic
LED indicatorsOperation, USB
Push buttonYes
Display
Built-in displayNo
Logistics data
Master (outer) case net weight7.1 kg
Harmonized System (HS) code85176200
Master (outer) case width292 mm
Master (outer) case length517 mm
Master (outer) case height194 mm
Master (outer) case gross weight9.8 kg
Products per master (outer) case5 pc(s)
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
Packaging content
Cables includedAudio (3.5mm), DisplayPort, USB
ManualYes
AC adapter includedYes
Packaging data
Package width100 mm
Package depth283 mm
Package height173 mm
Package weight1.86 kg
Performance
HD type4K Ultra HD
Maximum resolution4096 x 2160 pixels
Scan interval1,99 s
HDCPYes
Hot-Plug supportYes
Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
DisplayPorts quantity3
Console ports3.5mm mic, DisplayPort, USB B
Console USB ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity2
USB connector typeUSB Type-B
USB version3.2 Gen 1 (3.1 Gen 1)
Headphone outputs4
Number of microphone inputs4
USB hubYes
Audio connectionsYes
DC-in jackYes
Power
Power sourceDC
Output voltage5 V
Power consumption (typical)2 W
External power adapterYes
System requirements
Windows operating systems supportedYes
Linux operating systems supportedYes
Mac operating systems supportedYes
Technical data
Packaging volume0.0049m³
DesignDesktop
Height packaging0.173m
Length packaging0.283m
Weight1.865kg
Max. resolution4096x2160 / 60Hz
Data rate5Gb/s
USB specificationUSB 3.2 Gen.1
DisplayPort standard1.2
Type 22-fold DisplayPort KVM
Video inputs per CPUDisplayPort x1
Number of CPU2
Type 1KVM switch
Width packaging0.100m
Incl. KVM cablesetYes
USB peripheralsYes
Front panel buttonsYes
Weight & dimensions
Width88 mm
Depth210 mm
Height55.5 mm
Weight1.42 kg


Product data sheet
Datasheet for Aten CS1922, EAN: 4719264644764
