ATEN CS1824 KVMP Switch - USB 3.0 4K HDMI Dual Dis
|
305,30 EUR 316,81 EUR |
|
|
( 363,31 EUR incl. VAT ) ≈ £254.93 | ≈ $342.24 plus delivery charges: 55,00 € |
|
| On order · Expected to be available from 16.11.2026info_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 946665 |
| Mfg Part No: | CS1824 |
| UPC/EAN: | 4719264649424 |
| Weight: | 2.5 kg |
Product information for Aten CS1824:

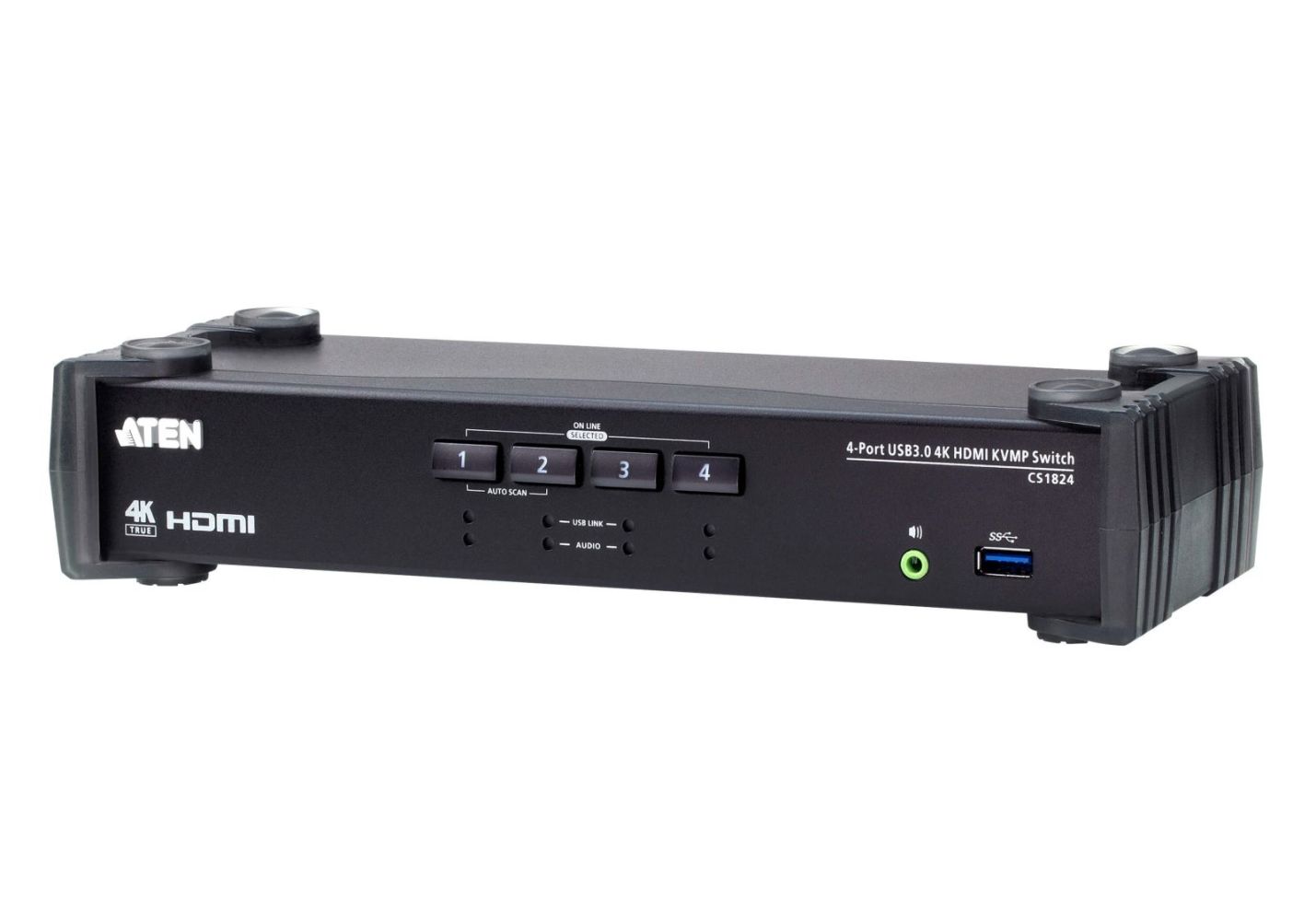

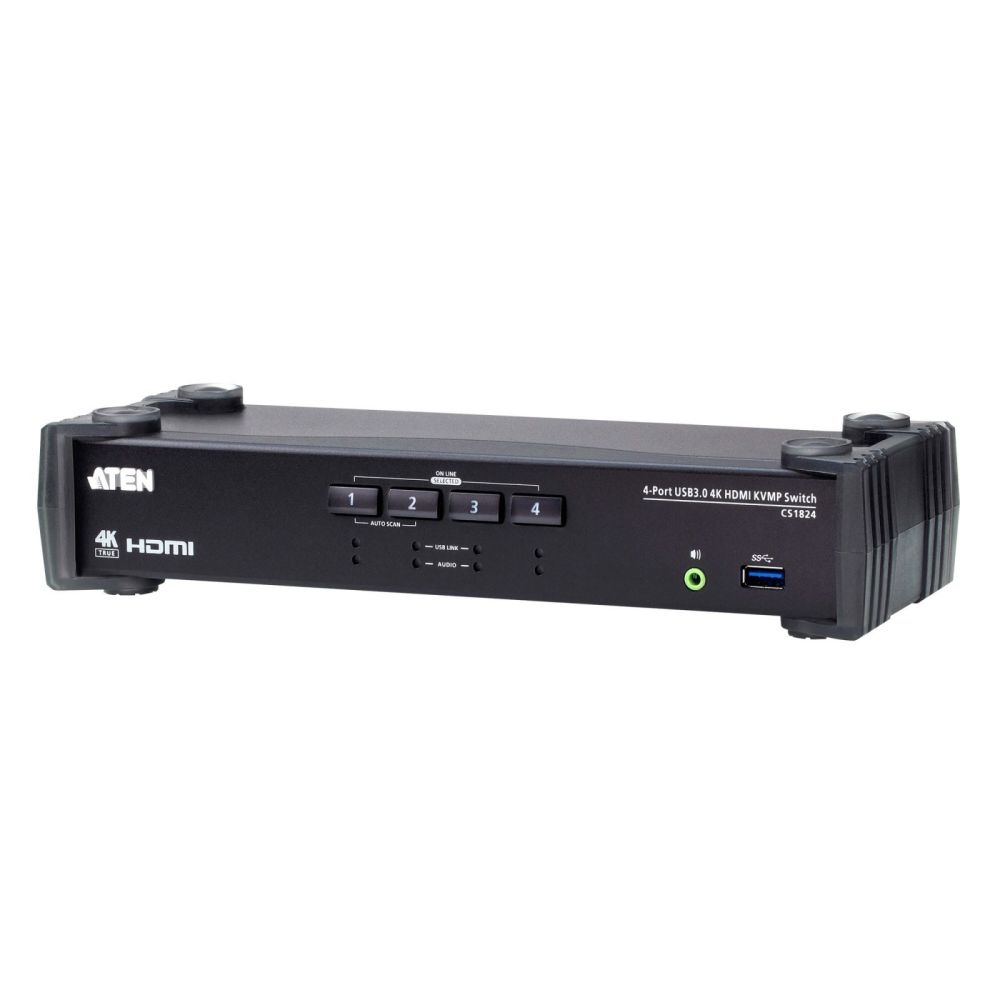

The ATEN CS1824 KVMP™ Switch offers effortless management of four HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1824 optimizes user experience of multitasking.
With patented ATEN technology – Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1824 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1824 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1824 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.One USB keyboard/mouse and one HDMI monitor control four computers and share two USB peripherals
Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Audio Mixer Modes – mixes up to two audio sources as audio output
Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
ATEN default EDID mode – smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
Independent switching of KVM, USB peripheral, and stereo audio focus2
HDMI 2.0 compliant; HDCP 2.2 compliant
Supports HD Audio2
Power on detection
Firmware upgradable
Note:
1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
2. HD audio through HDMI channel cannot be switched independently
Package Contents1x CS1824 4-Port USB 3.0 4K HDMI KVMP™ Switch
4x HDMI 2.0 Cables
4x USB 3.0 Cables
4x Audio Cables
1x Power Adapter
1x User Instructions
Computer Connections4
Port SelectionHotkey, Pushbutton, Mouse, RS-232 Commands
Connectors

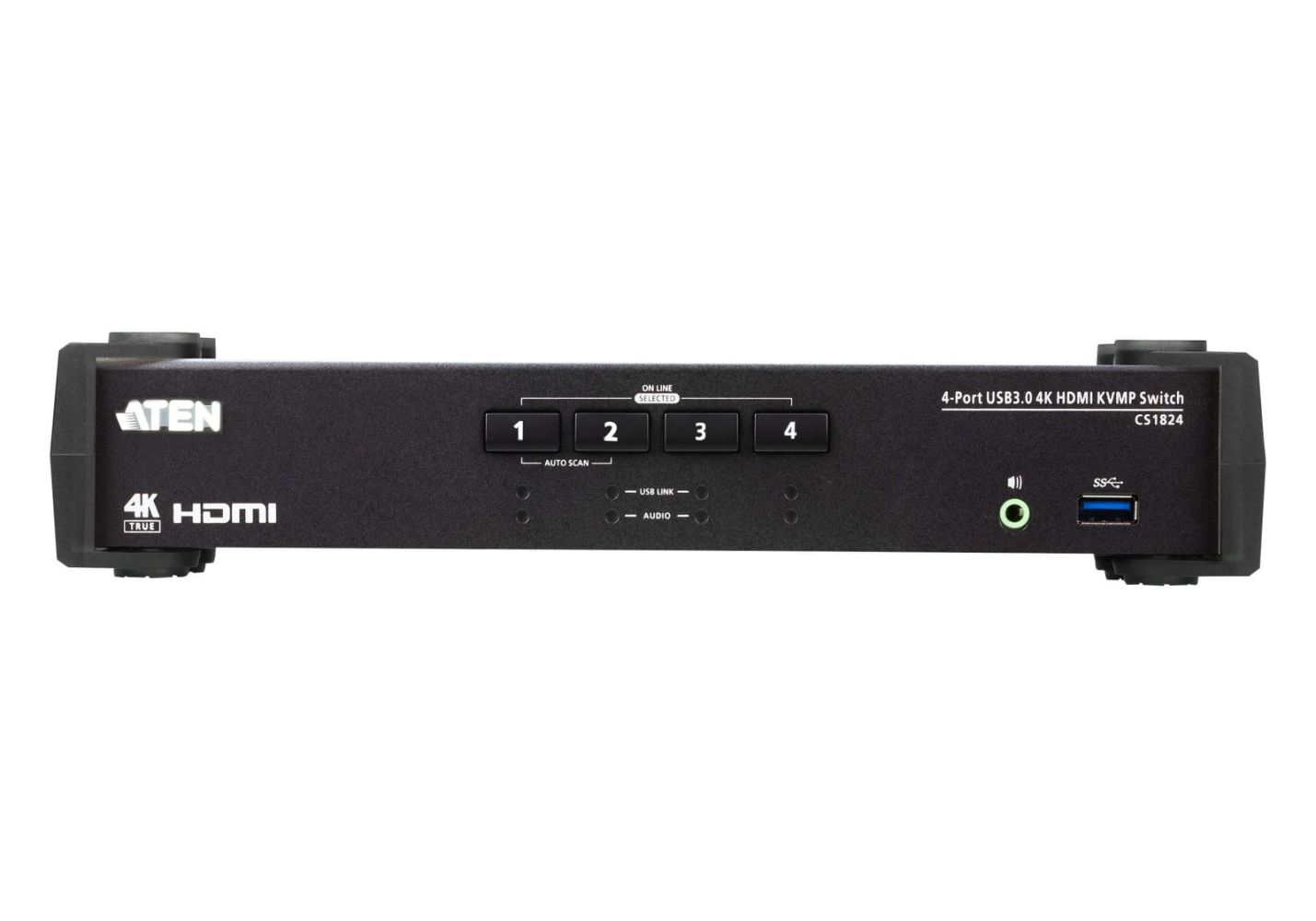

Console Ports2 x USB Type A Female
1 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)

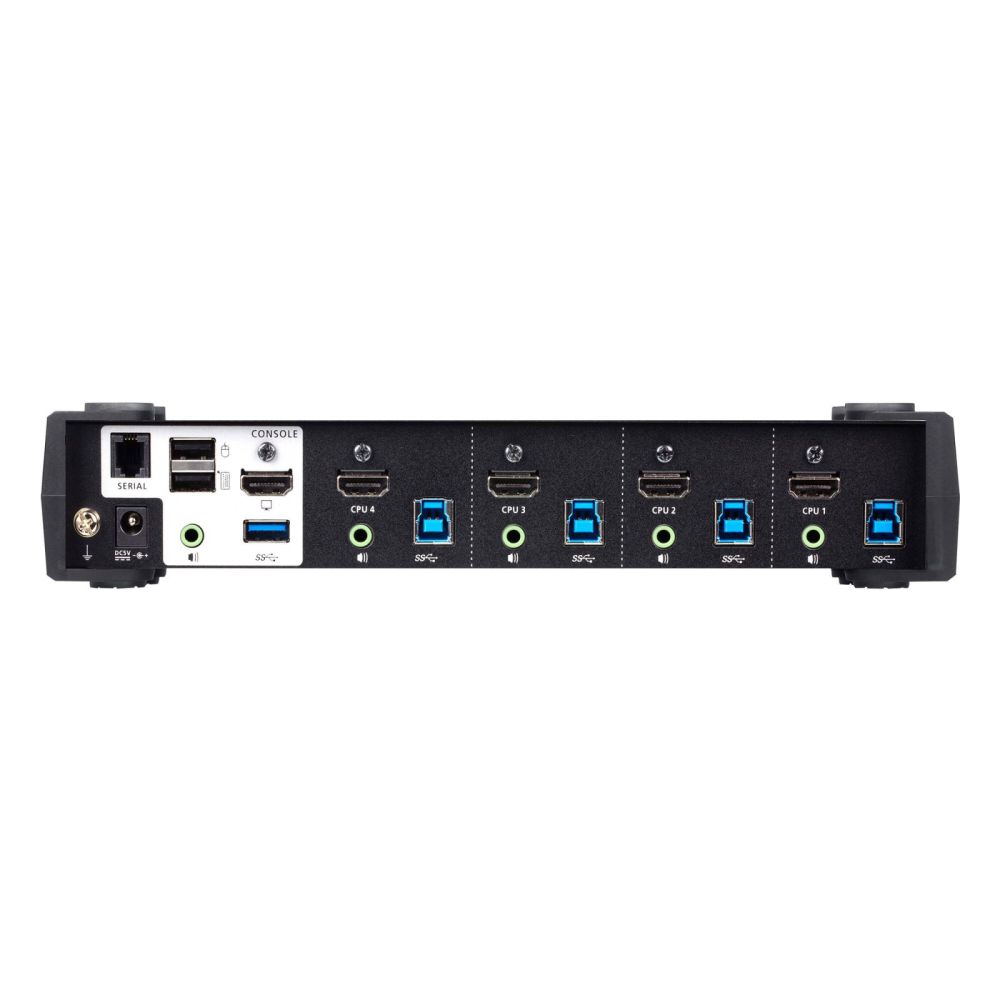

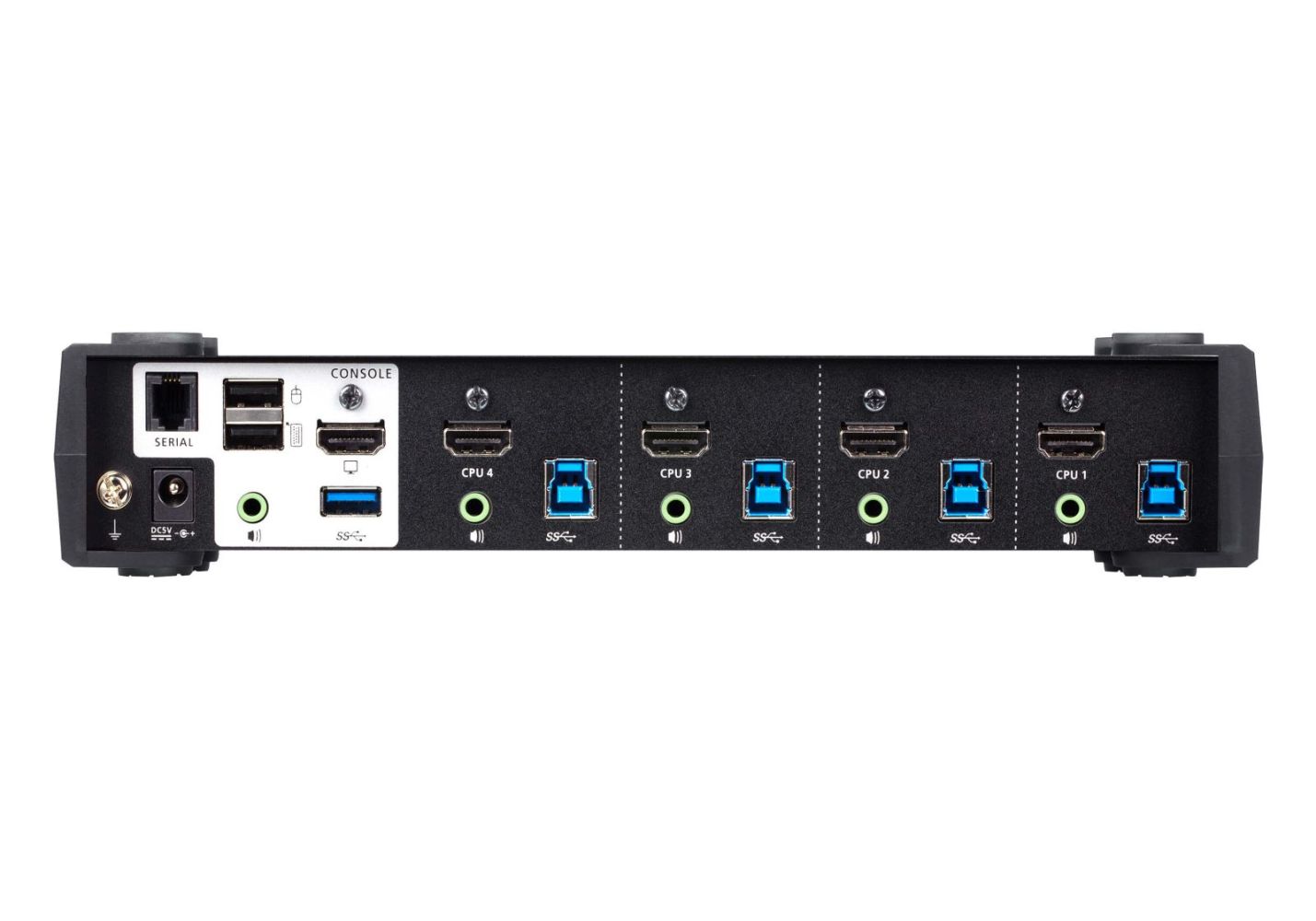

KVM (Computer) Ports4 x USB3.1 Gen1 Type B Female (Blue)
4 x HDMI Female (Black)
4 x 3.5mm Audio Jack Female (Green)
Serial1 x RJ-11 Female
Power1 x DC Jack
USB Hub2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Switches
Selected4 x Pushbutton
LEDs
On Line /Selected4 (Orange)
USB Link4 (Green)
Audio4 (Green)
Emulation
Keyboard / MouseUSB
Video4096 x 2160 @ 60Hz
Scan Interval1-99 Seconds (Default: 5 sec.)
Power ConsumptionDC5V:2.535W:54.5BTU
Environmental
Operating Temperature0-40°C
Storage Temperature-20-60°C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingMetal, Plastic
Weight0.94 kg ( 2.07 lb )
Dimensions (L x W x H)27.00 x 8.80 x 5.55 cm
(10.63 x 3.46 x 2.19 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
With patented ATEN technology – Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1824 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1824 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1824 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.One USB keyboard/mouse and one HDMI monitor control four computers and share two USB peripherals
Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Audio Mixer Modes – mixes up to two audio sources as audio output
Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
ATEN default EDID mode – smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
Independent switching of KVM, USB peripheral, and stereo audio focus2
HDMI 2.0 compliant; HDCP 2.2 compliant
Supports HD Audio2
Power on detection
Firmware upgradable
Note:
1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
2. HD audio through HDMI channel cannot be switched independently
Package Contents1x CS1824 4-Port USB 3.0 4K HDMI KVMP™ Switch
4x HDMI 2.0 Cables
4x USB 3.0 Cables
4x Audio Cables
1x Power Adapter
1x User Instructions
Computer Connections4
Port SelectionHotkey, Pushbutton, Mouse, RS-232 Commands
Connectors
Console Ports2 x USB Type A Female
1 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
KVM (Computer) Ports4 x USB3.1 Gen1 Type B Female (Blue)
4 x HDMI Female (Black)
4 x 3.5mm Audio Jack Female (Green)
Serial1 x RJ-11 Female
Power1 x DC Jack
USB Hub2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Switches
Selected4 x Pushbutton
LEDs
On Line /Selected4 (Orange)
USB Link4 (Green)
Audio4 (Green)
Emulation
Keyboard / MouseUSB
Video4096 x 2160 @ 60Hz
Scan Interval1-99 Seconds (Default: 5 sec.)
Power ConsumptionDC5V:2.535W:54.5BTU
Environmental
Operating Temperature0-40°C
Storage Temperature-20-60°C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingMetal, Plastic
Weight0.94 kg ( 2.07 lb )
Dimensions (L x W x H)27.00 x 8.80 x 5.55 cm
(10.63 x 3.46 x 2.19 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
| Design | |
| Product colour | Black |
| Housing material | Metal, Plastic |
| LED indicators | |
| Push button | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 11.2 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 342 mm |
| Master (outer) case length | 512 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case gross weight | 13.2 kg |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging data | |
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Package weight | 2.54 kg |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,99 s |
| HDCP | |
| Firmware upgradeable | |
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 5 |
| HDMI version | 2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| Console USB ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Serial ports quantity | 1 |
| Headphone outputs | 6 |
| USB hub | |
| Audio connections | |
| DC-in jack | |
| Power | |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 2.535 W |
| Sustainability | |
| Compliance certificates | RoHS |
| Technical data | |
| Type 2 | 4-fold HDMI KVM |
| Complies with HDMI standard | 2.0 |
| Data rate | 5Gb/s |
| Video inputs per CPU | HDMI x1 |
| Max. resolution | 4096x2160 / 60Hz |
| USB specification | USB 3.2 Gen.1 |
| Design | Desktop |
| Type 1 | KVM switch |
| Length packaging | 0.325m |
| Number of CPU | 4 |
| Width packaging | 0.098m |
| Weight | 2.500kg |
| Packaging volume | 0.0067m³ |
| Height packaging | 0.210m |
| Incl. KVM cableset | |
| USB peripherals | |
| Front panel buttons | |
| Weight & dimensions | |
| Width | 88 mm |
| Depth | 270 mm |
| Height | 55.5 mm |
| Weight | 2.24 kg |
Questions & answers
What is the delivery time of ATEN CS1824 KVMP Switch - USB 3.0 4K HDMI Dual Dis?
The article ATEN CS1824 KVMP Switch - USB 3.0 4K HDMI Dual Dis is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CS1824 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN CS1824 KVMP Switch - USB 3.0 4K HDMI Dual Dis always at the best possible price. We can give you a discount of 2% on ATEN CS1824 KVMP Switch - USB 3.0 4K HDMI Dual Dis if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
