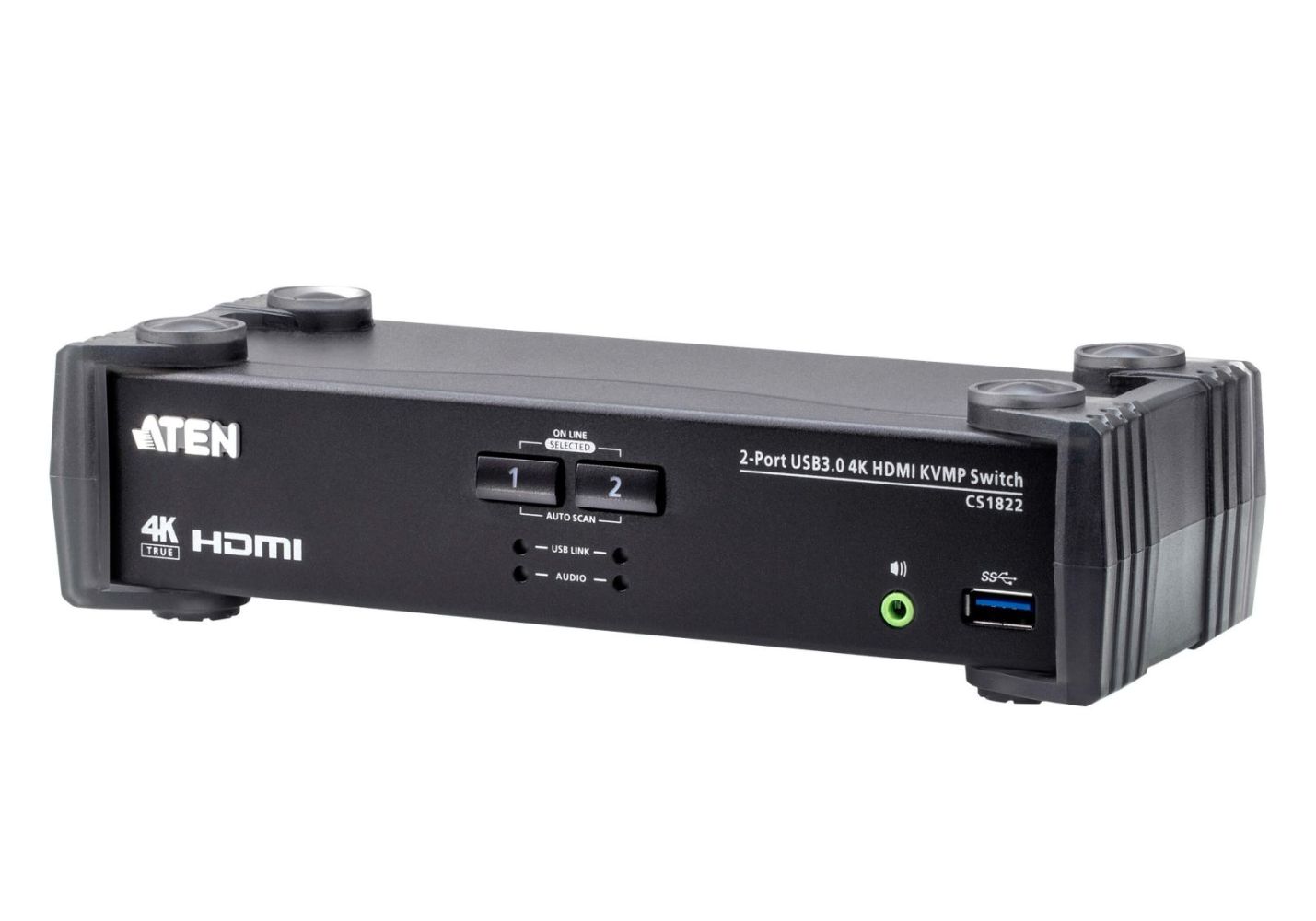

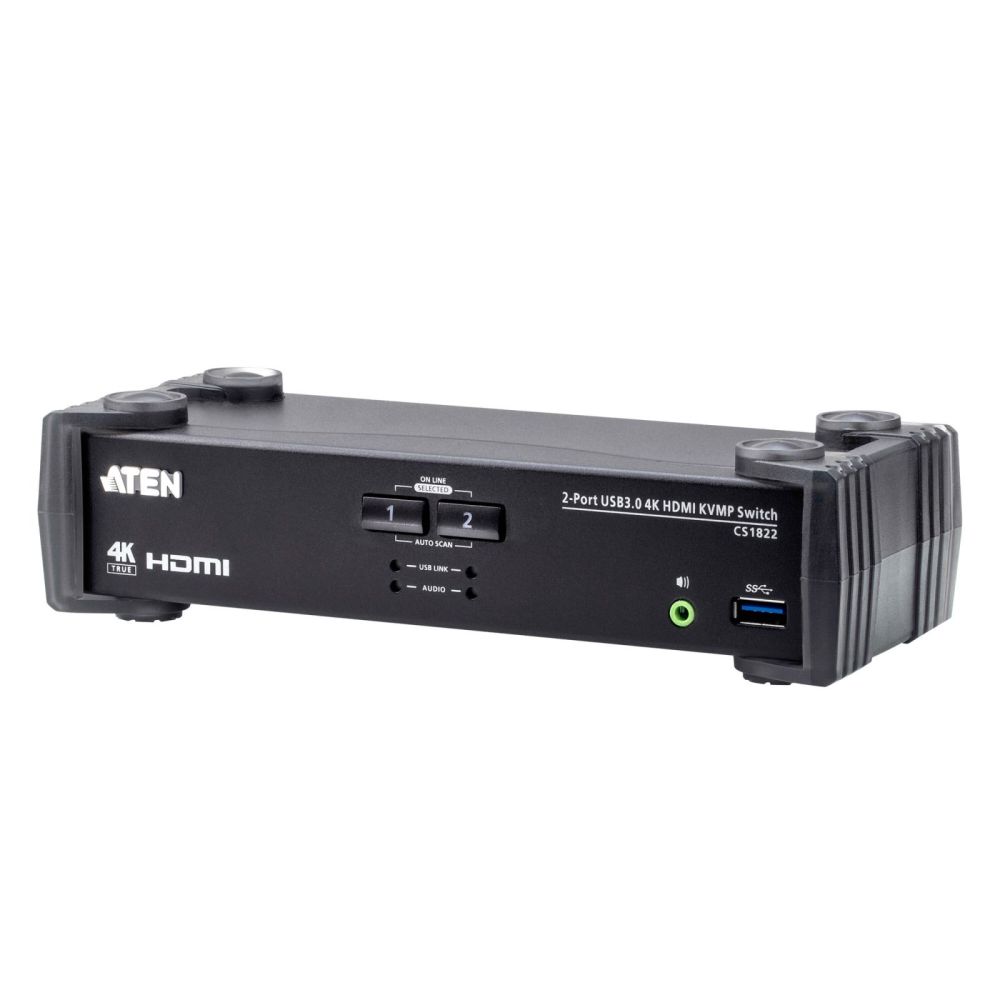

ATEN CS1822 2-Port USB 3.0 HDMI KVM Switch
|
239,10 EUR 239,12 EUR |
|
|
( 284,53 EUR incl. VAT ) ≈ £199.65 | ≈ $268.03 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1975624 |
| Mfg Part No: | CS1822 |
| UPC/EAN: | 4719264649417 |
| Weight: | 1.829 kg |
Product information for Aten CS1822:
The ATEN CS1822 KVMP™ Switch offers effortless management of two HDMI interface computers from a single USB keyboard, mouse and HDMI monitor. Supporting the most superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), the CS1822 optimizes user experience of multitasking.
With patented ATEN technology – Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1822 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1822 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1822 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.One USB keyboard/mouse and one HDMI monitor control two computers and share two USB peripherals
Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Audio Mixer Modes – mixes up to two audio sources as audio output
Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
ATEN default EDID mode – smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
Independent switching of KVM, USB peripheral, and stereo audio focus2
HDMI 2.0 compliant; HDCP 2.2 compliant
Supports HD Audio2
Power on detection
Firmware upgradable
>Note:
1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
2. HD audio through HDMI channel cannot be switched independently
Package Contents1x CS1822 2-Port USB 3.0 4K HDMI KVMP™ Switch
2x HDMI 2.0 Cables
2x USB 3.0 Cables
2x Audio Cables
1x Power Adapter
1x User Instructions
Computer Connections2
Port SelectionHotkey, Pushbutton, Mouse, RS-232 Commands
Connectors

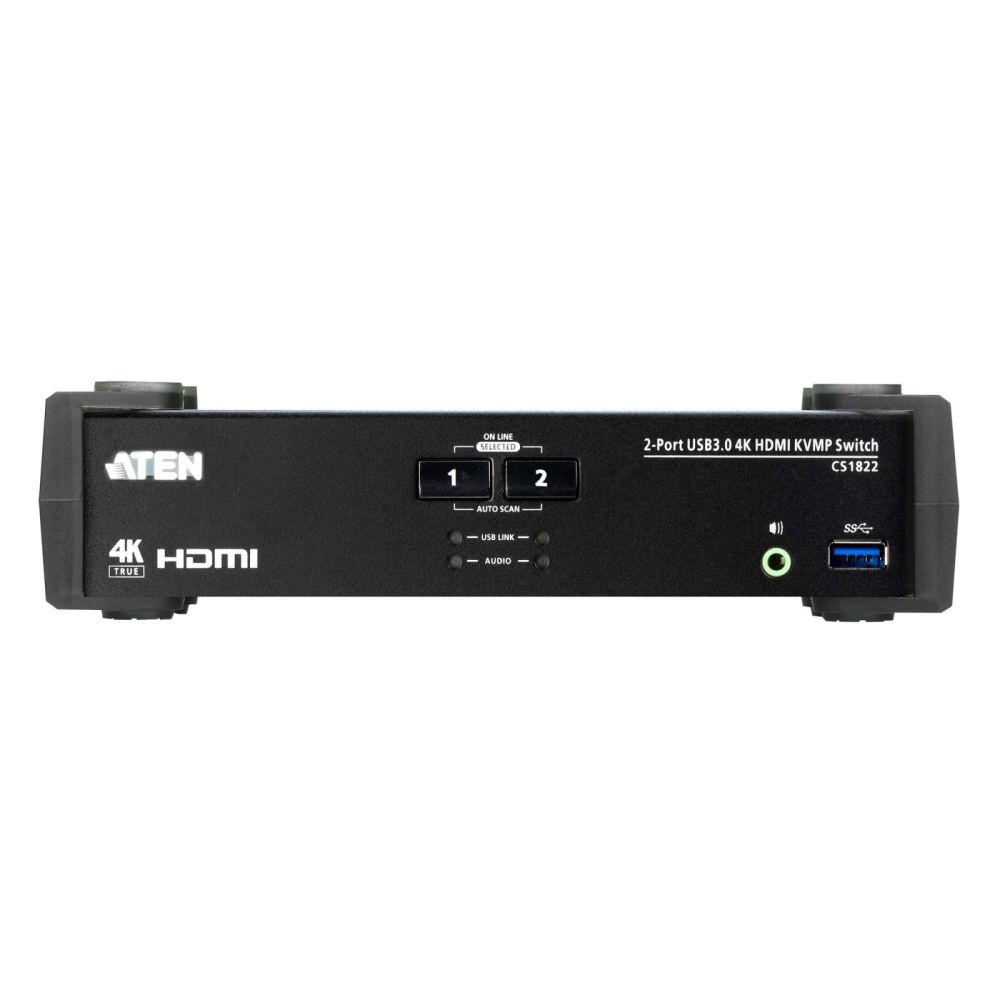

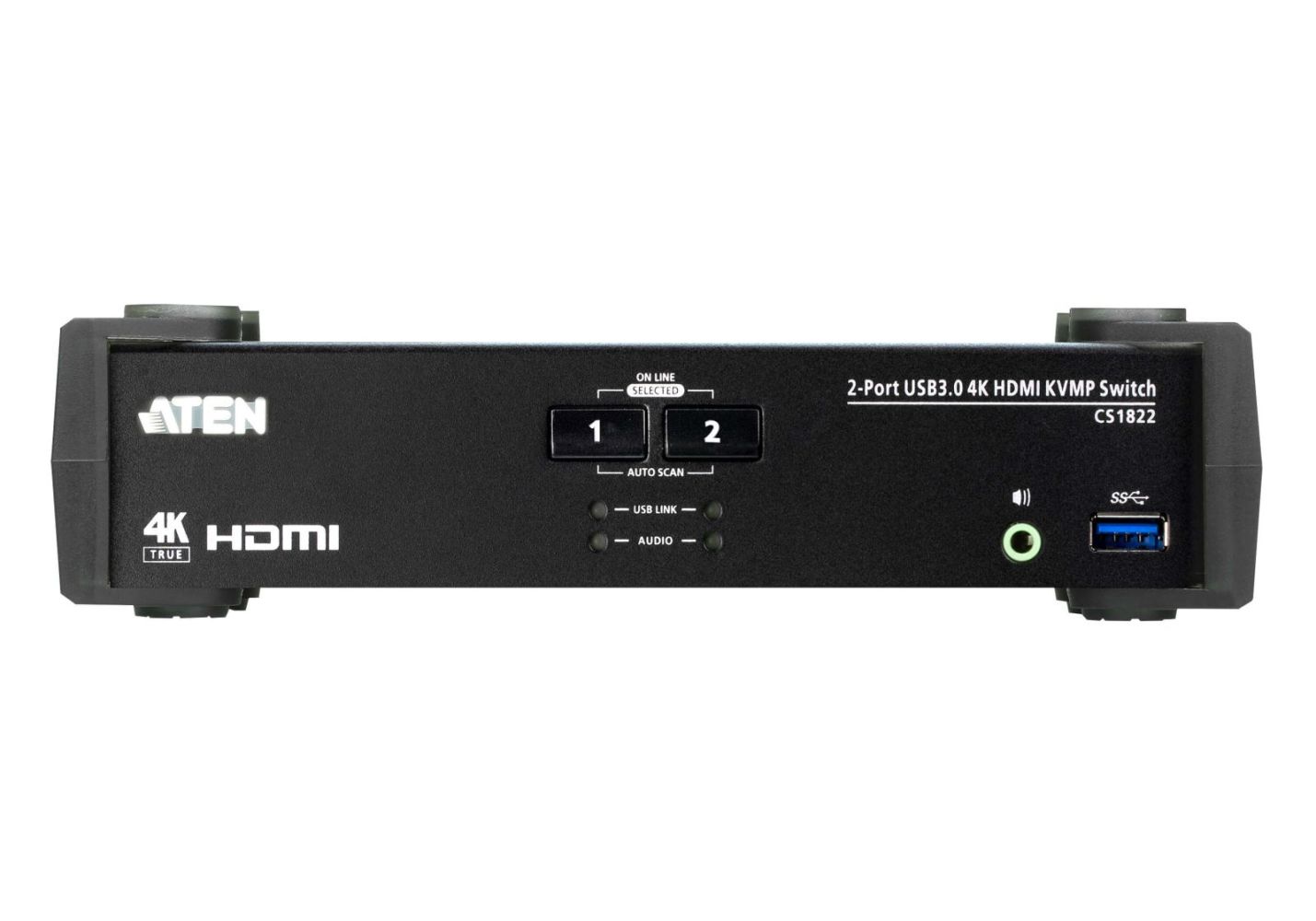

Console Ports2 x USB Type A Female
1 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)

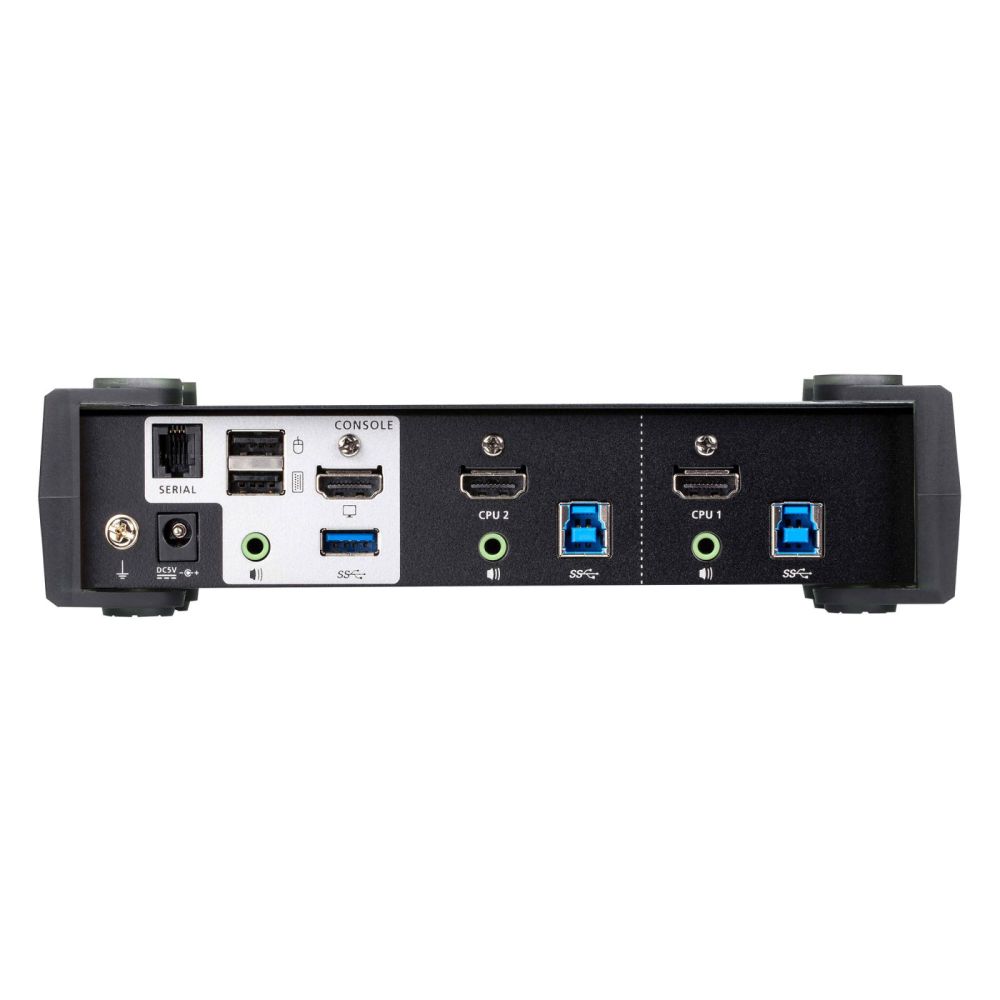

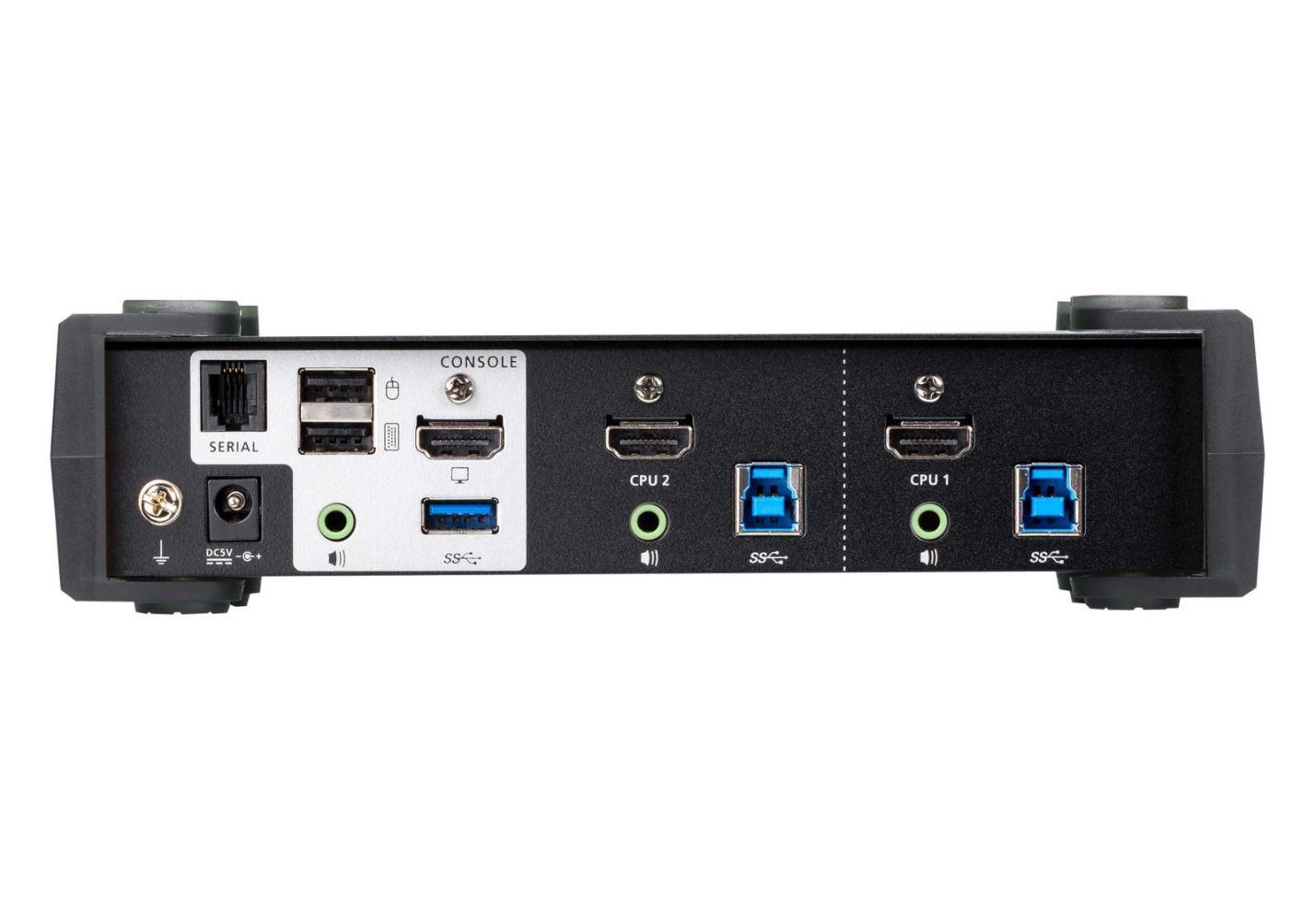

KVM (Computer) Ports2 x USB3.1 Gen1 Type B Female (Blue)
2 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green)
Serial1 x RJ-11 Female
Power1 x DC Jack
USB Hub2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Switches
Selected2 x Pushbutton
LEDs
On Line /Selected2 (Orange)
USB Link2 (Green)
Audio2 (Green)
Emulation
Keyboard / MouseUSB
Video4096 x 2160 @ 60Hz
Scan Interval1-99 Seconds (Default: 5 sec.)
Power ConsumptionDC5V:1.78W:50.97BTU
Environmental
Operating Temperature0-40°C
Storage Temperature-20-60°C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingMetal, Plastic
Weight0.74 kg ( 1.63 lb )
Dimensions (L x W x H)21.00 x 8.80 x 5.55 cm
(8.27 x 3.46 x 2.19 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
With patented ATEN technology – Video DynaSync™, users can enjoy better display resolution and faster switching between systems. What’s more, the default EDID mode is available for smooth power-up, high-quality display and eliminates monitor compatibility issue.
In addition, the CS1822 features Audio Mixer Mode which mixes audio sources from any two connected computers as audio output, benefiting users to be notified without missing any system alert even the KVM focus is set on other computers. With a built-in USB 3.1 Gen 1 hub, the CS1822 delivers data transfer rates up to 5 Gbps, allowing you to accelerate multimedia operations and share USB peripherals with ease.
Integrating these outstanding functionalities, the CS1822 provides a great advantage for those doing CGI work, graphic design, video post production, etc. to operate multiple tasks smoothly.One USB keyboard/mouse and one HDMI monitor control two computers and share two USB peripherals
Supports superior video quality – 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
Video DynaSync™ – an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
Built-in 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
Audio Mixer Modes – mixes up to two audio sources as audio output
Computer selection via pushbuttons, hotkeys, mouse1, and RS-232 commands
ATEN default EDID mode – smooth power-up, high-quality display and resolution optimization to eliminate compatibility issue
Independent switching of KVM, USB peripheral, and stereo audio focus2
HDMI 2.0 compliant; HDCP 2.2 compliant
Supports HD Audio2
Power on detection
Firmware upgradable
>Note:
1. Mouse port switching is only supported under mouse emulation mode and by USB 3-key wheel mice.
2. HD audio through HDMI channel cannot be switched independently
Package Contents1x CS1822 2-Port USB 3.0 4K HDMI KVMP™ Switch
2x HDMI 2.0 Cables
2x USB 3.0 Cables
2x Audio Cables
1x Power Adapter
1x User Instructions
Computer Connections2
Port SelectionHotkey, Pushbutton, Mouse, RS-232 Commands
Connectors
Console Ports2 x USB Type A Female
1 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
KVM (Computer) Ports2 x USB3.1 Gen1 Type B Female (Blue)
2 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green)
Serial1 x RJ-11 Female
Power1 x DC Jack
USB Hub2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
Switches
Selected2 x Pushbutton
LEDs
On Line /Selected2 (Orange)
USB Link2 (Green)
Audio2 (Green)
Emulation
Keyboard / MouseUSB
Video4096 x 2160 @ 60Hz
Scan Interval1-99 Seconds (Default: 5 sec.)
Power ConsumptionDC5V:1.78W:50.97BTU
Environmental
Operating Temperature0-40°C
Storage Temperature-20-60°C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingMetal, Plastic
Weight0.74 kg ( 1.63 lb )
Dimensions (L x W x H)21.00 x 8.80 x 5.55 cm
(8.27 x 3.46 x 2.19 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
| Design | |
| Product colour | Black |
| Housing material | Metal, Plastic |
| LED indicators | |
| Push button | |
| Hot keys | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 6.95 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 292 mm |
| Master (outer) case length | 517 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 9.6 kg |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Quick installation guide | |
| Manual | |
| Packaging data | |
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.83 kg |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,99 s |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Headphone outputs | 3 |
| Number of microphone inputs | 1 |
| USB hub | |
| Audio connections | |
| DC-in jack | |
| Power | |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 1.78 W |
| System requirements | |
| Windows operating systems supported | |
| Linux operating systems supported | |
| Mac operating systems supported | |
| Technical data | |
| Height packaging | 0.173m |
| Packaging volume | 0.0049m³ |
| Complies with HDMI standard | 2.0 |
| Data rate | 5Gb/s |
| Video inputs per CPU | HDMI x1 |
| USB specification | USB 3.2 Gen.1 |
| Max. resolution | 4096x2160 / 60Hz |
| Weight | 1.829kg |
| Type 1 | KVM switch |
| Length packaging | 0.283m |
| Design | Desktop |
| Number of CPU | 2 |
| Width packaging | 0.100m |
| Type 2 | 2-fold HDMI KVM |
| Front panel buttons | |
| USB peripherals | |
| Incl. KVM cableset | |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 88 mm |
| Height | 55.5 mm |
| Weight | 1.39 kg |
Questions & answers
What is the delivery time of ATEN CS1822 2-Port USB 3.0 HDMI KVM Switch?
The article ATEN CS1822 2-Port USB 3.0 HDMI KVM Switch is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CS1822 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN CS1822 2-Port USB 3.0 HDMI KVM Switch always at the best possible price. We can give you a discount of 2% on ATEN CS1822 2-Port USB 3.0 HDMI KVM Switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
