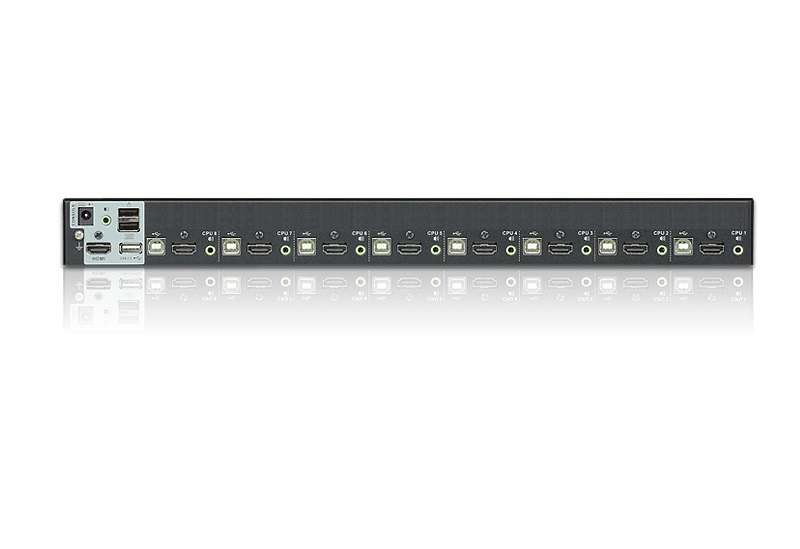

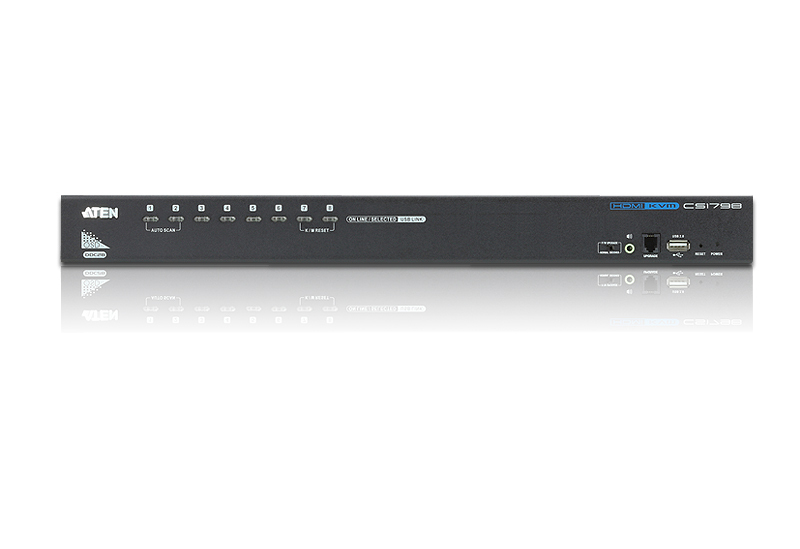

ATEN 8-Port USB - HDMI KVM Switch w/USB Peripheral port
|
-19% 460,49 EUR 566,49 EUR |
|
|
( 547,98 EUR incl. VAT ) ≈ £387.73 | ≈ $517.13 plus delivery charges: 83,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 18. Sep 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 742784 |
| Mfg Part No: | CS1798 |
| UPC/EAN: | 4719264641596 |
| Weight: | 5.189 kg |
Product information for Aten CS1798:
Auflösung up to 1080p / 1920 x 1200@60Hz,
Console: 1xHDMI Buchse ,1xAudio Buchse, 2x USB Buchse,
PC 1-8:je (1xHDMI Buchse, 1xUSB, 1xAudio)
Package Contents: 2x 2L-7D02UH
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 13.9 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 427 mm |
| Master (outer) case length | 519 mm |
| Master (outer) case height | 348 mm |
| Master (outer) case gross weight | 16.7 kg |
| Products per master (outer) case | 3 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Quick installation guide | |
| Manual | |
| Packaging data | |
| Package width | 133 mm |
| Package depth | 499 mm |
| Package height | 324 mm |
| Package weight | 5.22 kg |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,255 s |
| Ports & interfaces | |
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| USB 2.0 Type-B ports quantity | 8 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Headphone outputs | 9 |
| Number of microphone inputs | 1 |
| USB hub | |
| Audio connections | |
| DC-in jack | |
| Power | |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 8.56 W |
| System requirements | |
| Windows operating systems supported | |
| Linux operating systems supported | |
| Mac operating systems supported | |
| Weight & dimensions | |
| Width | 432.4 mm |
| Depth | 257.2 mm |
| Height | 440 mm |
| Weight | 4.63 kg |
