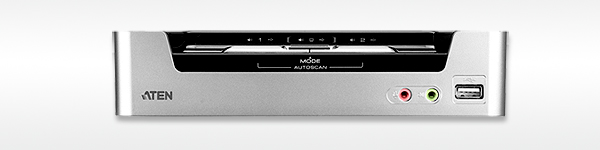

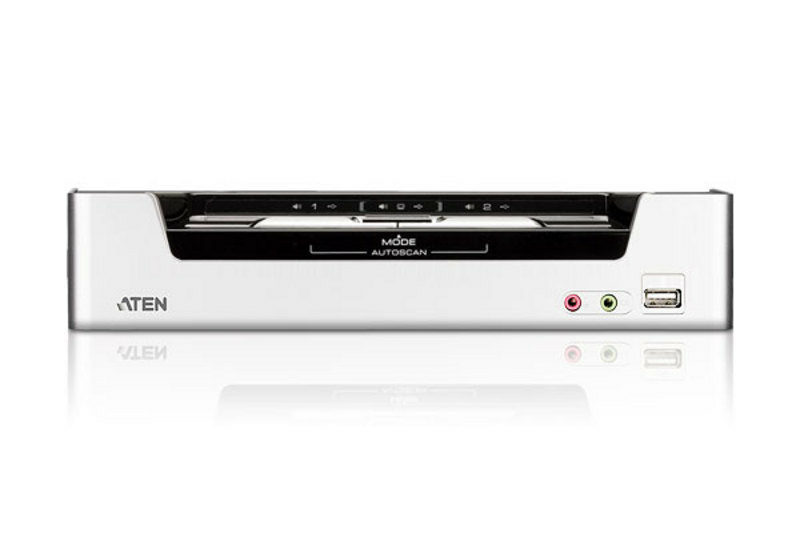

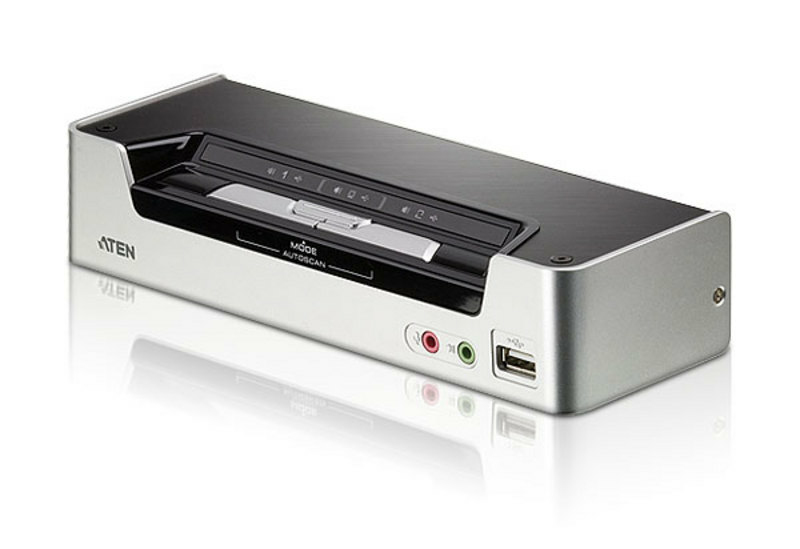

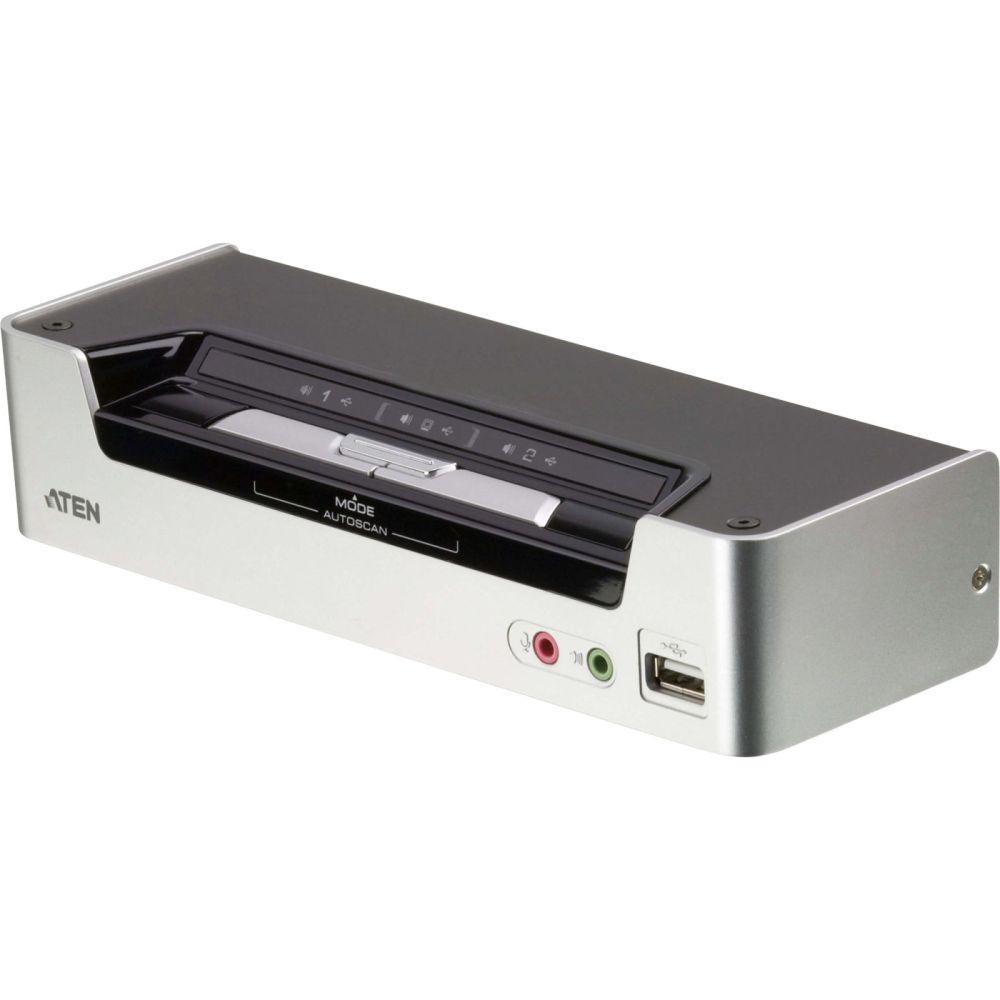

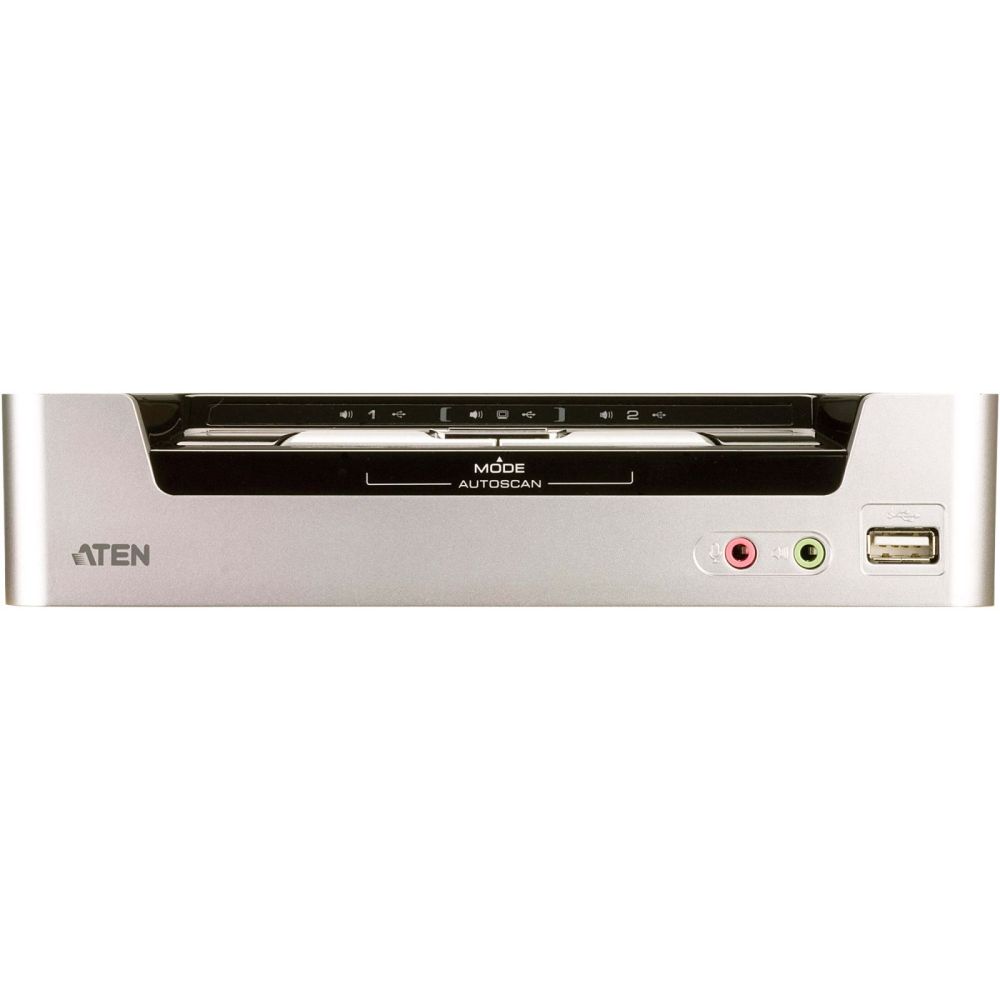

ATEN CubiQ CS1792 - KVM / audio switch - 2 ports - desktop
|
-28% 129,79 EUR 180,00 EUR |
|
|
( 154,45 EUR incl. VAT ) ≈ £109.28 | ≈ $145.75 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 651990 |
| Mfg Part No: | CS1792 |
| UPC/EAN: | 4710423775701 |
| Weight: | 1.37 kg |
Product information for Aten CS1792:

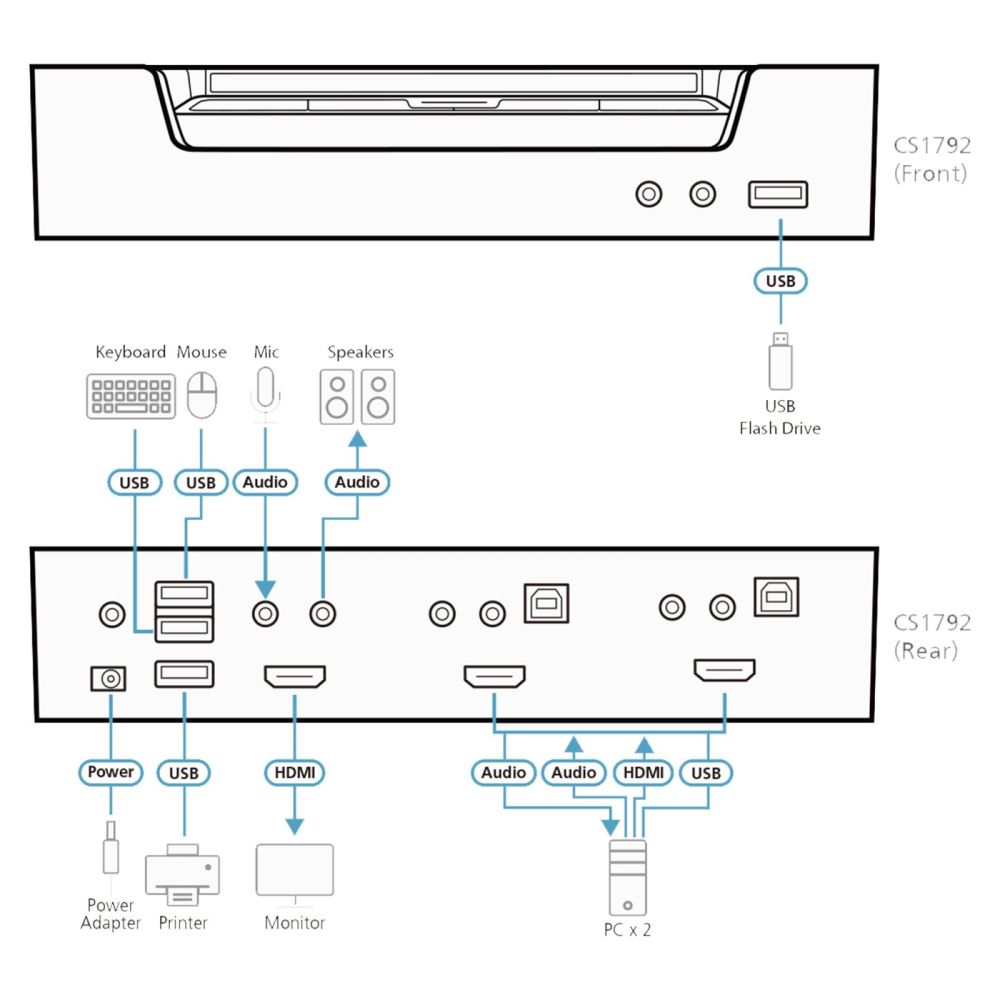

Device type: KVM/Audio switch - 2 ports,Type: Desktop,Ports: 2 x KVM/Audio,No. Local KVM users: 1 local user,Keyboard/mouse interface: USB,Max resolution: 1920 x 1200 / 1080p,Features: Firmware upgradeable, HDCP compatible, Video DynaSync,Product certifications: USB 2.0,Integrated peripherals: USB hub,Interfaces: Keyboard and mouse: 2 x USB Type B, 4-pin ¦ Audio / Video: 2 x HDMI - HDMI Type A, 19-pin ¦ Audio: 2 x line-out - Mini-Phone Stereo 3.5 mm ¦ Microphone: 2 x input - Mini-Phone Stereo 3.5 mm ¦ 1 x Mini-Phone 3.5 mm, 4-pin - Management ¦ Hi-Speed USB: 2 x USB Type A, 4-pin ¦ Keyboard and mouse: 2 x USB Type A, 4 -pin ¦ Audio / Video : 1 x HDMI - HDMI type A, 19-pin ¦ Audio : 2 x line-out - Mini-Phone Stereo 3.5 mm ¦ Microphone : 2 x input - Mini-Phone Stereo 3.5 mm, power supply device: power supply - external, power consumption during operation: 3.2 watts, width: 20.5 cm, depth: 7.3 cm, height: 4.5 cm, weight: 420 g, cables included: 2 x keyboard / mouse / video / audio cable ¦ 1 x Data cable ¦ 1 x keyboard/mouse adapter,Product certifications: RoHS,Min operating temperature: 0°C,Max. Operating temperature: 50 °C, permissible humidity during operation: 0 - 80%
| Design | |
| Product colour | Black, Grey |
| Housing material | Metal, Plastic |
| LED indicators | |
| Hot keys | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 5.2 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 232 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 283 mm |
| Master (outer) case gross weight | 7.3 kg |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Quick installation guide | |
| Manual | |
| Packaging data | |
| Package width | 95 mm |
| Package depth | 265 mm |
| Package height | 220 mm |
| Package weight | 1.37 kg |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,99 s |

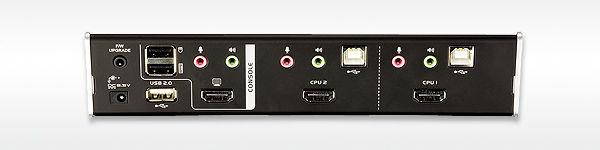

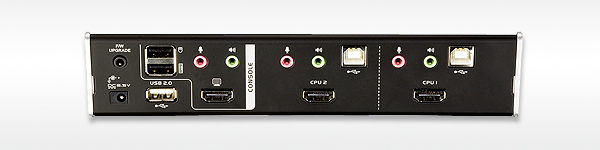

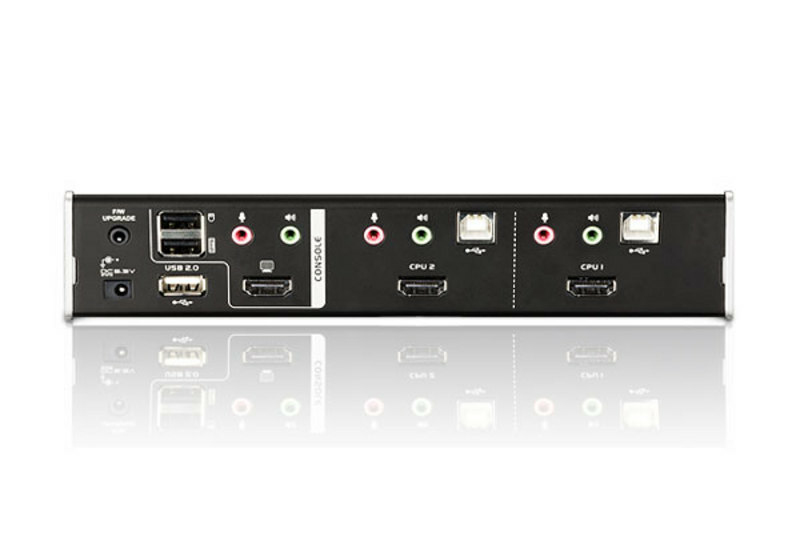

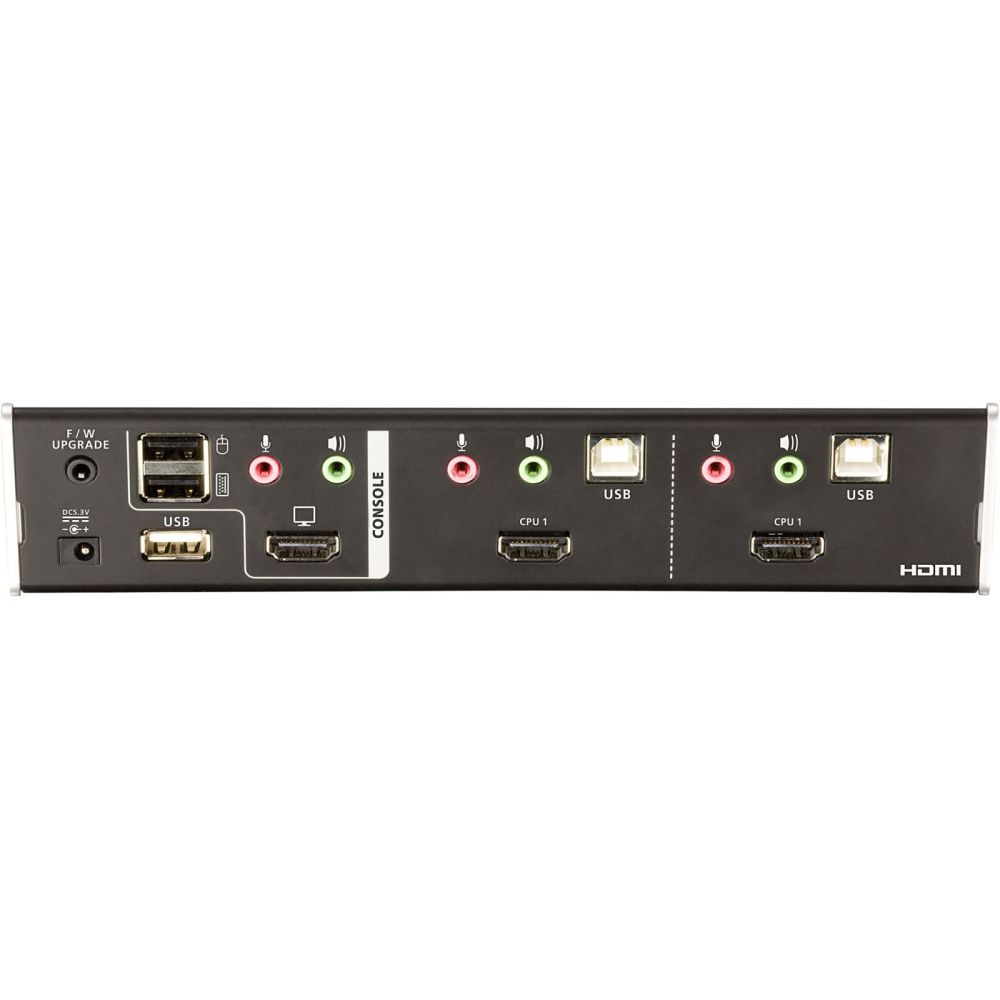

| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Headphone outputs | 4 |
| Number of microphone inputs | 4 |
| USB hub | |
| Audio connections | |
| DC-in jack | |
| Power | |
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 5.35 W |
| System requirements | |
| Windows operating systems supported | |
| Linux operating systems supported | |
| Mac operating systems supported | |
| Technical data | |
| Weight | 1.370kg |
| Length packaging | 0.265m |
| Data rate | 480Mb/s |
| Height packaging | 0.220m |
| Video inputs per CPU | HDMI x1 |
| Type 2 | 2-fold HDMI KVM |
| Number of CPU | 2 |
| Type 1 | KVM switch |
| Width packaging | 0.095m |
| Max. resolution | 1920x1200 / 1080p |
| Packaging volume | 0.0055m³ |
| Design | Desktop |
| USB specification | USB 2.0 |
| Incl. KVM cableset | |
| USB peripherals | |
| Front panel buttons | |
| Weight & dimensions | |
| Width | 206.3 mm |
| Depth | 72.4 mm |
| Height | 44 mm |
| Weight | 1.04 kg |
Questions & answers
What is the delivery time of ATEN CubiQ CS1792 - KVM / audio switch - 2 ports - desktop?
The article ATEN CubiQ CS1792 - KVM / audio switch - 2 ports - desktop is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CS1792 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN CubiQ CS1792 - KVM / audio switch - 2 ports - desktop always at the best possible price. We can give you a discount of 2% on ATEN CubiQ CS1792 - KVM / audio switch - 2 ports - desktop if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
