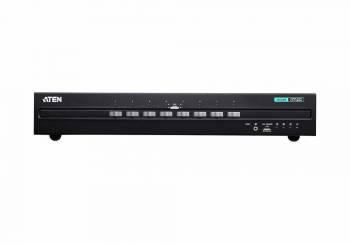

Aten KVM switch 8-way audio/HDMI, USB, secure
|
512,61 EUR 512,61 EUR |
|
|
( 610,01 EUR incl. VAT ) ≈ £431.62 | ≈ $575.66 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1289676 |
| Mfg Part No: | CS1188H |
| UPC/EAN: | 4719264646706 |
| Weight: | 4 kg |
Product information for Aten CS1188H:
*Order based, non-cancellable* Compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) Security requirements Permanent housing Intrusion detection renders the ATEN PSS PP v3.0 Secure KVM Switches unusable if physical tampering is detected Configurable USB device filtering CAC Port can be configured to allow or deny whitelisted or blacklisted devices via the admin login function or a Windows-based application. Superior video quality up to 4K (3840 x 2160 at 30Hz) Package Contents: 1x CS1188H 8 -Port USB HDMI Secure KVM Switch 1x LIN2-418K-E12G Power Cable 1x User Manual
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | |
| Push button | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 9.54 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 427 mm |
| Master (outer) case length | 519 mm |
| Master (outer) case height | 348 mm |
| Master (outer) case gross weight | 12.6 kg |
| Products per master (outer) case | 3 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Cables included | AC |
| Quick installation guide | |
| Manual | |
| Packaging data | |
| Package width | 133 mm |
| Package depth | 499 mm |
| Package height | 324 mm |
| Package weight | 3.93 kg |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 30 Hz |

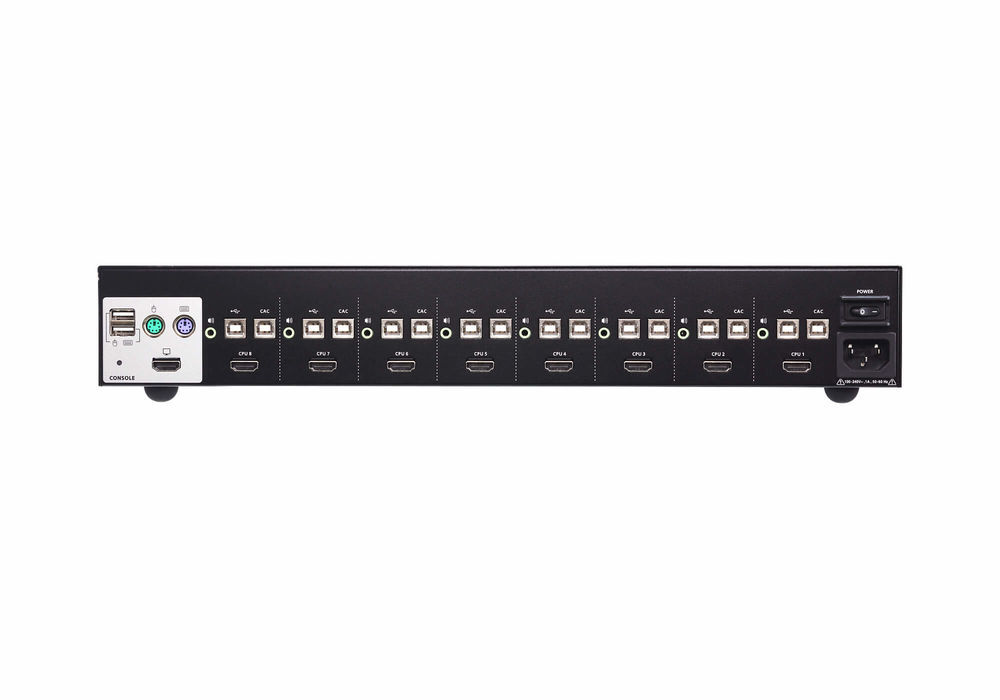

| Ports & interfaces | |
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 9 |
| USB 2.0 Type-B ports quantity | 16 |
| Console ports | 3.5mm headphone, HDMI, PS/2, USB A |
| Console USB ports quantity | 2 |
| USB connector type | USB Type-B |
| PS/2 ports quantity | 2 |
| Headphone outputs | 8 |
| Audio connections | |
| Power | |
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 5.7 W |
| Sustainability | |
| Compliance certificates | RoHS |
| System requirements | |
| Windows operating systems supported | |
| Weight & dimensions | |
| Width | 204.9 mm |
| Depth | 432.4 mm |
| Height | 65.5 mm |
| Weight | 3.18 kg |
Questions & answers
What is the delivery time of Aten KVM switch 8-way audio/HDMI, USB, secure?
The article Aten KVM switch 8-way audio/HDMI, USB, secure is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CS1188H to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Aten KVM switch 8-way audio/HDMI, USB, secure always at the best possible price. We can give you a discount of 2% on Aten KVM switch 8-way audio/HDMI, USB, secure if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
