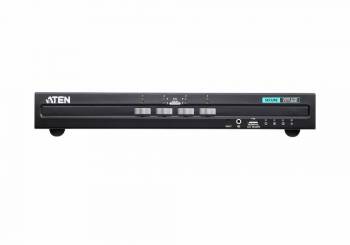

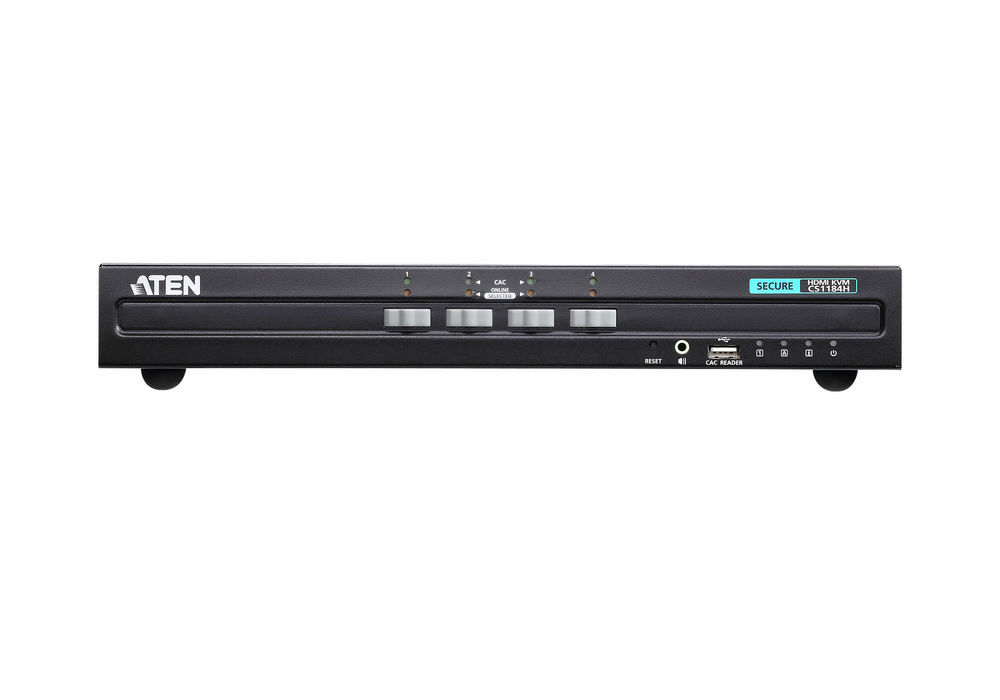

Aten KVM switch 4-way audio/HDMI, USB, secure
|
374,67 EUR 374,67 EUR |
|
|
( 445,86 EUR incl. VAT ) ≈ £315.47 | ≈ $420.75 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1289680 |
| Mfg Part No: | CS1184H |
| UPC/EAN: | 4719264646546 |
| Weight: | 2.5 kg |
Product information for Aten CS1184H:
*Order based, non-cancellable* Compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) Security requirements Permanent housing Intrusion detection renders the ATEN PSS PP v3.0 Secure KVM Switches unusable if physical tampering is detected Configurable USB device filtering CAC Port can be configured to allow or deny whitelisted or blacklisted devices via the admin login function or a Windows-based application. Superior video quality up to 4K (3840 x 2160 at 30Hz) Package Contents: 1x CS1184H 4 -Port USB HDMI Secure KVM Switch 1x LIN2-418K-E12G Power Cable 1x User Manual
| Design | |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | |
| LED indicators | |
| Push button | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 5.82 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 375 mm |
| Master (outer) case length | 565 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 7.48 kg |
| Products per master (outer) case | 3 pc(s) |
| Network | |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Cables included | AC |
| Quick installation guide | |
| Packaging data | |
| Package width | 116 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 2.5 kg |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |

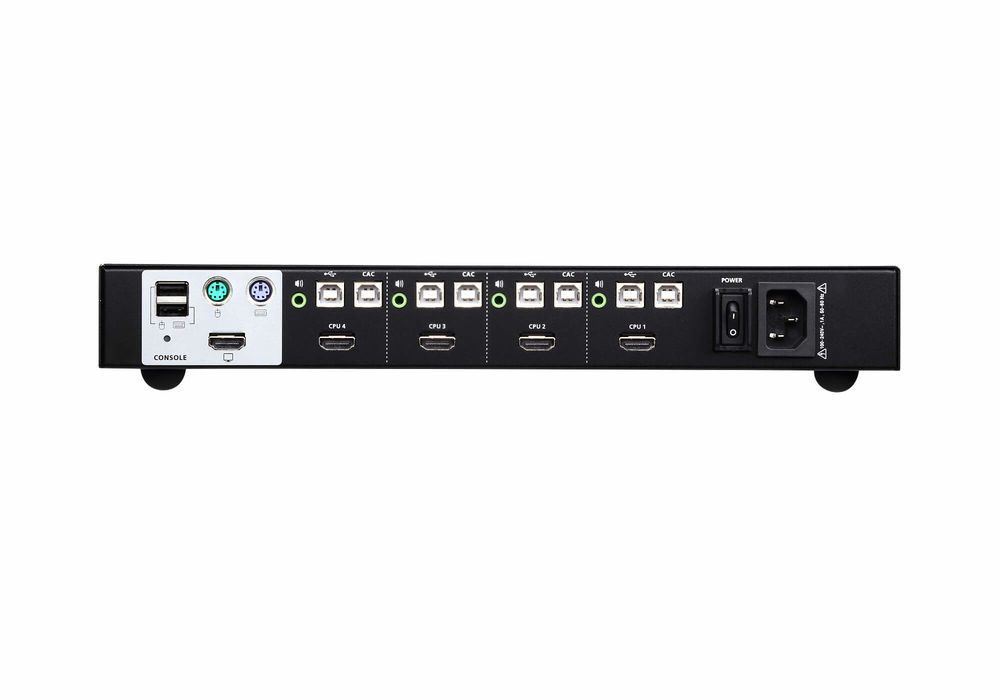

| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| USB 2.0 Type-B ports quantity | 8 |
| Console ports | HDMI, PS/2, USB A |
| Console USB ports quantity | 2 |
| Headphone outputs | 4 |
| Audio connections | |
| Power | |
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Sustainability | |
| Compliance certificates | RoHS |
| System requirements | |
| Windows operating systems supported | |
| Weight & dimensions | |
| Width | 335 mm |
| Depth | 163.4 mm |
| Height | 44 mm |
| Weight | 1.94 kg |
