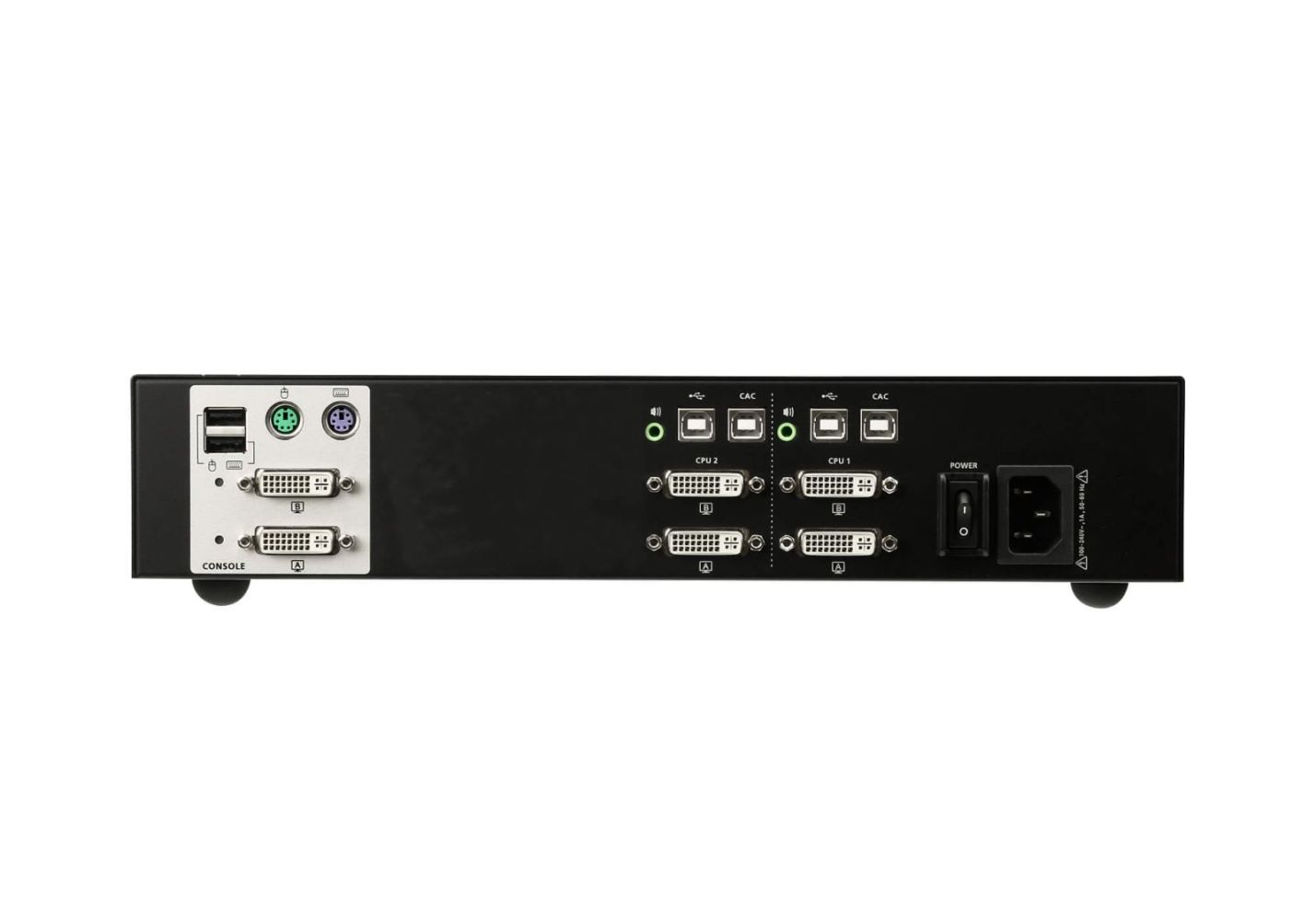

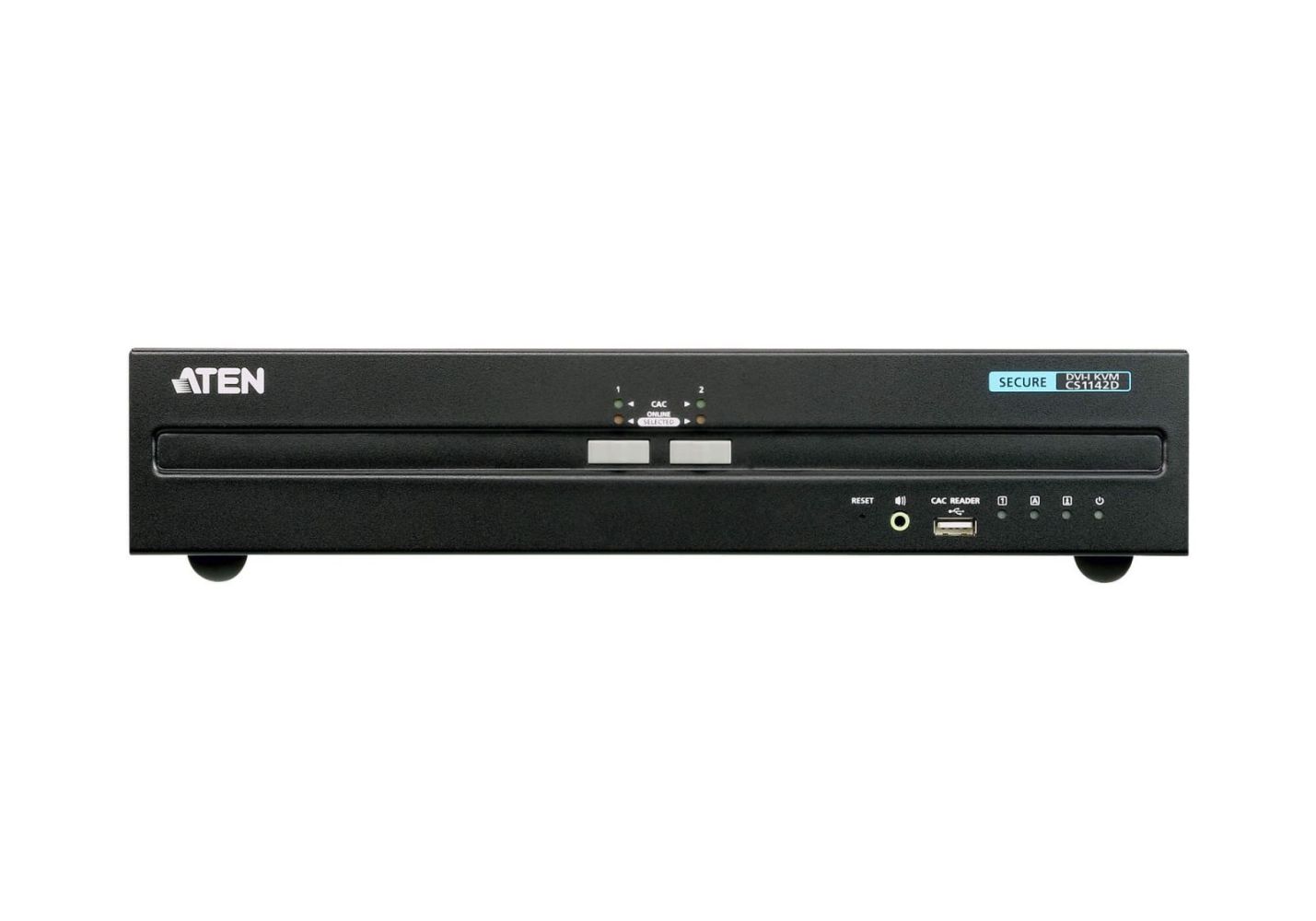

ATEN CS1142D 2-Port USB DVI Dual Display Secure KVM
|
-26% 430,16 EUR 583,70 EUR |
|
|
( 511,89 EUR incl. VAT ) ≈ £362.19 | ≈ $483.07 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| End-Of-Life: | 15. Aug 2026 |
|---|---|
| Datasheet: | file_download Download |
| Lieske Part No.: | 1109226 |
| Mfg Part No: | CS1142D-AT |
| UPC/EAN: | 4719264646638 |
| Weight: | 3 kg |
Product information for Aten CS1142D-AT:
*Order based, non-cancellable* Compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) Security requirements Permanent housing Intrusion detection renders the ATEN PSS PP v3.0 Secure KVM Switches unusable if physical tampering is detected Configurable USB device filtering CAC Port can be configured to allow or deny whitelisted or blacklisted devices via the admin login function or a Windows-based application Superior video quality up to 4K (3840 x 2160 at 30 Hz), 2560 x 1600 (DVI -Dual-Link), 1920 x 1200 (DVI-Single-Link) and 2048 x 1536 (DVI-A) Scope of delivery 1x CS1142D 2-Port USB DVI Dual Display Secure KVM Switch 1x LIN2-418K-E12G power cable 1x user manual
| Design | |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | |
| LED indicators | |
| Push button | |
| Cable lock slot | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 7.11 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 555 mm |
| Master (outer) case height | 258 mm |
| Master (outer) case gross weight | 9.78 kg |
| Products per master (outer) case | 3 pc(s) |
| Network | |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Cables included | AC |
| Packaging data | |
| Package width | 131 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 2.93 kg |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Ports & interfaces | |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| DVI-D ports quantity | 4 |
| USB 2.0 Type-B ports quantity | 4 |
| Console ports | DVI-D, PS/2, USB A |
| Console USB ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Headphone outputs | 3 |
| USB hub | |
| Power | |
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1 A |
| Power consumption (typical) | 5.8 W |
| Sustainability | |
| Compliance certificates | RoHS |
| System requirements | |
| Windows operating systems supported | |
| Weight & dimensions | |
| Width | 335 mm |
| Depth | 163.9 mm |
| Height | 65.5 mm |
| Weight | 2.37 kg |
Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.
Questions & answers
What is the delivery time of ATEN CS1142D 2-Port USB DVI Dual Display Secure KVM?
The article ATEN CS1142D 2-Port USB DVI Dual Display Secure KVM is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CS1142D-AT to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN CS1142D 2-Port USB DVI Dual Display Secure KVM always at the best possible price. We can give you a discount of 2% on ATEN CS1142D 2-Port USB DVI Dual Display Secure KVM if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
