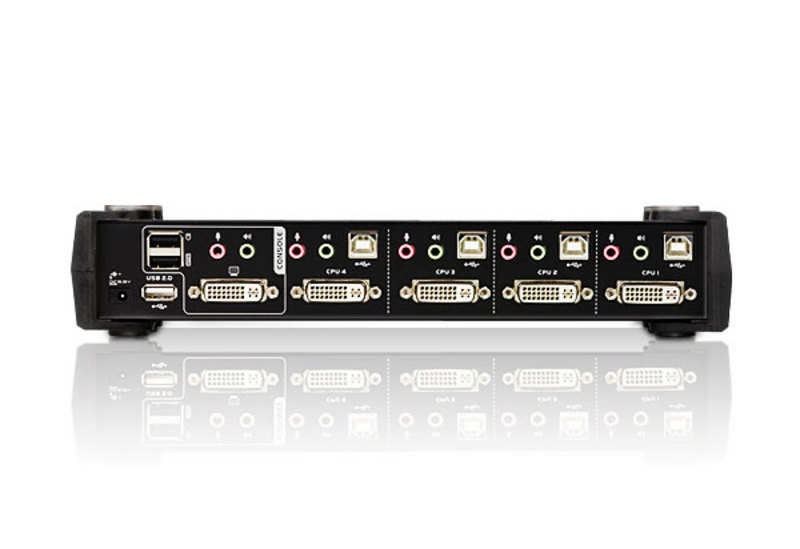

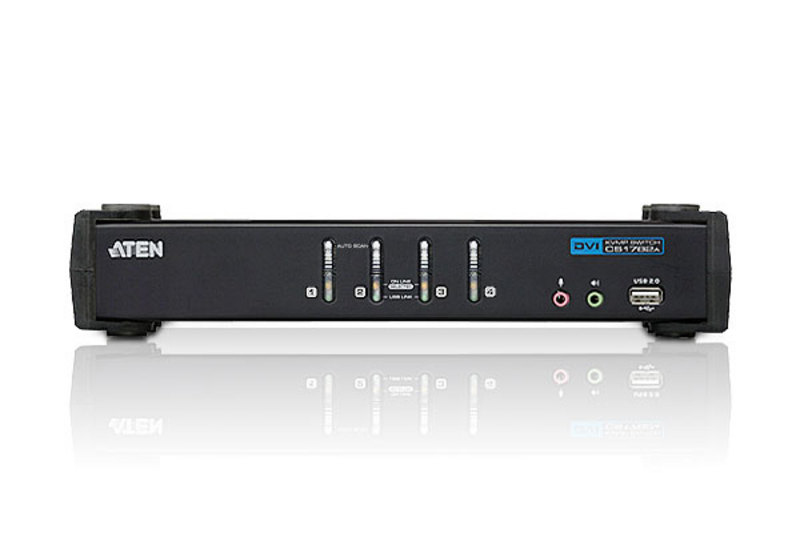

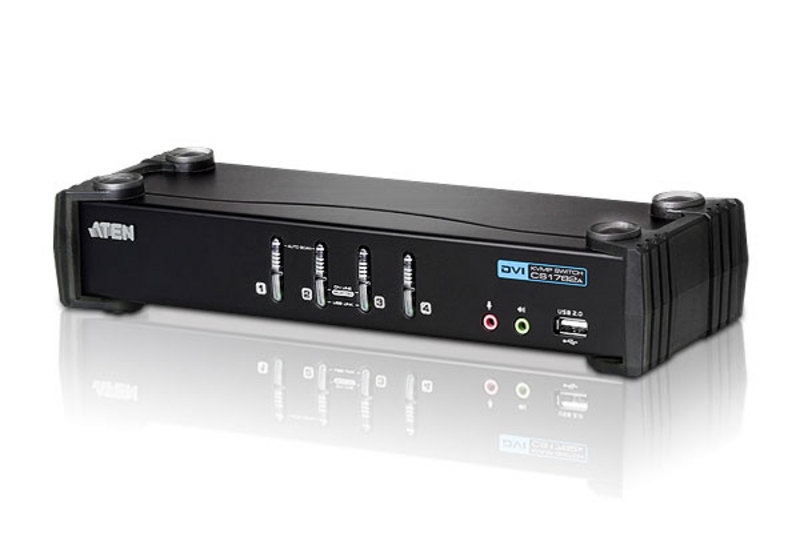

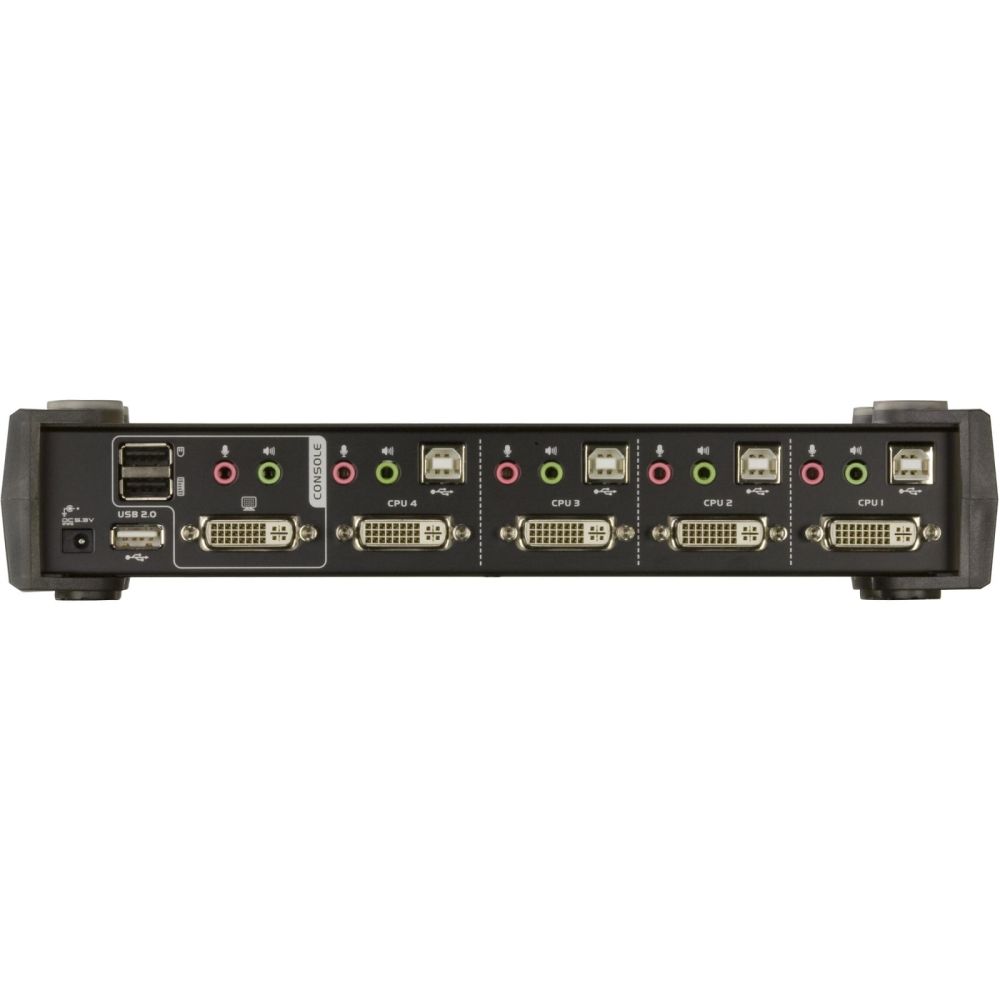

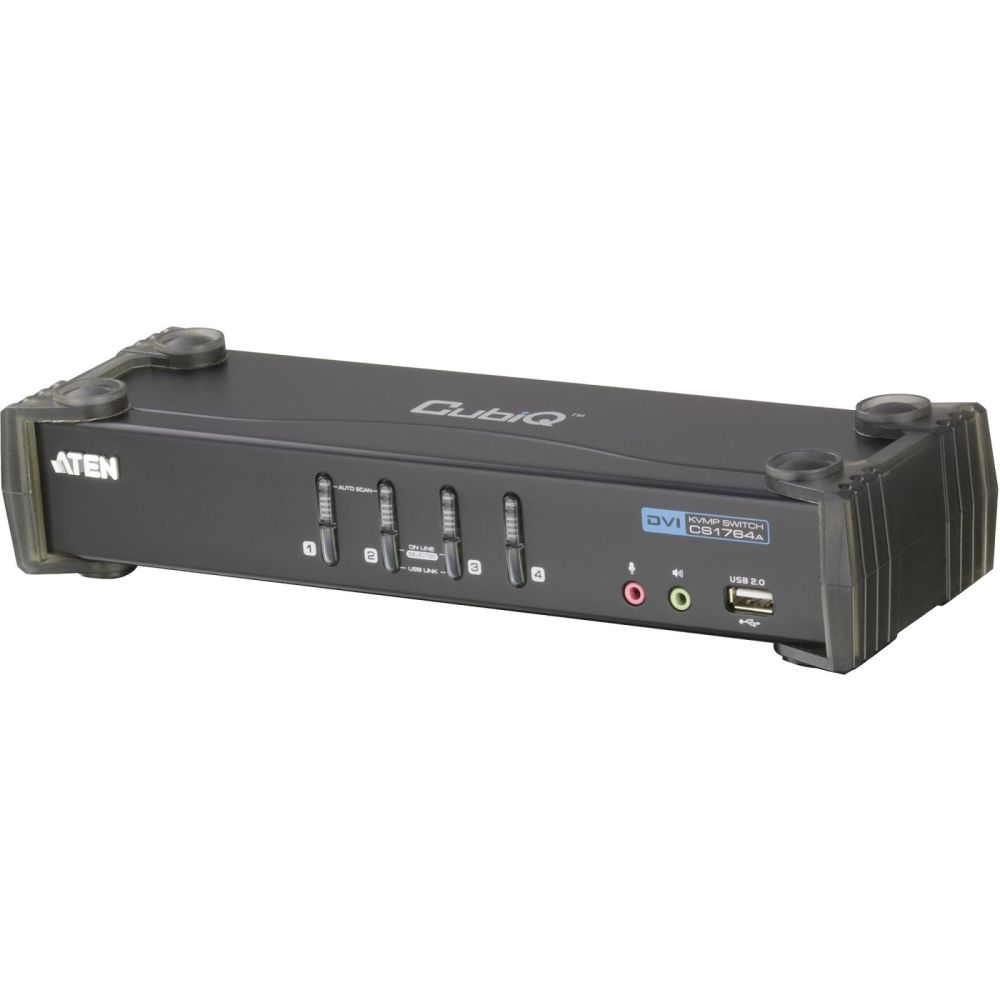

ATEN CS1764A KVM Switch DVI USB Audio USB Hub 4 Ports
|
150,23 EUR 153,16 EUR |
|
|
( 178,77 EUR incl. VAT ) ≈ £126.49 | ≈ $168.71 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 770021 |
| Mfg Part No: | CS-1764 |
| UPC/EAN: | 4710423776449 |
| Weight: | 2.404 kg |
Product information for Aten CS-1764:
Device Type: audio switch - 4 ports, Type: Desktop Ports: 4 x KVM / audio, no. KVM Local Users Qty: 1 local user, keyboard-/mouse: USB Max Resolution: 1920 x 1200 Features: Firmware upgradable, built-in Hi-Speed ​​USB Hub with 2 ports, HDCP compatible, video DynaSync, Built-in Devices: USB Hub Interfaces: Display / video: 4 x DVI-Analog/Digital - 29 pin combined DVI | Hi-Speed ​​USB: 2 x USB Type B, 4 pin | Audio: 4 x mini-phone stereo 3.5 mm | Microphone: 4 x mini-phone 3.5 mm | Display / video: 1 x DVI-Analog/Digital - 29 pin combined DVI | Keyboard: 1 x USB - USB Type A 4-pin | Mouse: 1 x USB - USB Type A 4-pin | Audio: 2 x mini-phone stereo 3.5 mm | Microphone: 2 x mini-phone 3.5 mm | Hi-Speed ​​USB: USB Type A, 4-pole, Power Device: Power adapter - external, Power Consumption Operational: 9 Watt, Width: 27 cm Depth: 8.7 cm, height: 5.5 cm, weight: 0.94 kg, Min Operating Temperature: 0 ° C Max Operating temperature: 50 ° C Humidity Range Operating: 0 - 80%
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | |
| Push button | |
| Hot keys | |
| Display | |
| Built-in display | |
| Logistics data | |
| Master (outer) case net weight | 10.5 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 342 mm |
| Master (outer) case length | 512 mm |
| Master (outer) case height | 232 mm |
| Master (outer) case gross weight | 12.7 kg |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Quick installation guide | |
| Manual | |
| Packaging data | |
| Package width | 98 mm |
| Package depth | 325 mm |
| Package height | 210 mm |
| Package weight | 2.41 kg |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,5,99 s |
| DDC2B support | |
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 4 |
| USB 2.0 Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| Console USB ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-B |
| Headphone outputs | 6 |
| Number of microphone inputs | 6 |
| USB hub | |
| Audio connections | |
| DC-in jack | |
| Power | |
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 4.8 W |
| Weight & dimensions | |
| Width | 270 mm |
| Depth | 88 mm |
| Height | 55.5 mm |
| Weight | 2.1 kg |
Questions & answers
What is the delivery time of ATEN CS1764A KVM Switch DVI USB Audio USB Hub 4 Ports?
The article ATEN CS1764A KVM Switch DVI USB Audio USB Hub 4 Ports is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CS-1764 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN CS1764A KVM Switch DVI USB Audio USB Hub 4 Ports always at the best possible price. We can give you a discount of 2% on ATEN CS1764A KVM Switch DVI USB Audio USB Hub 4 Ports if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
