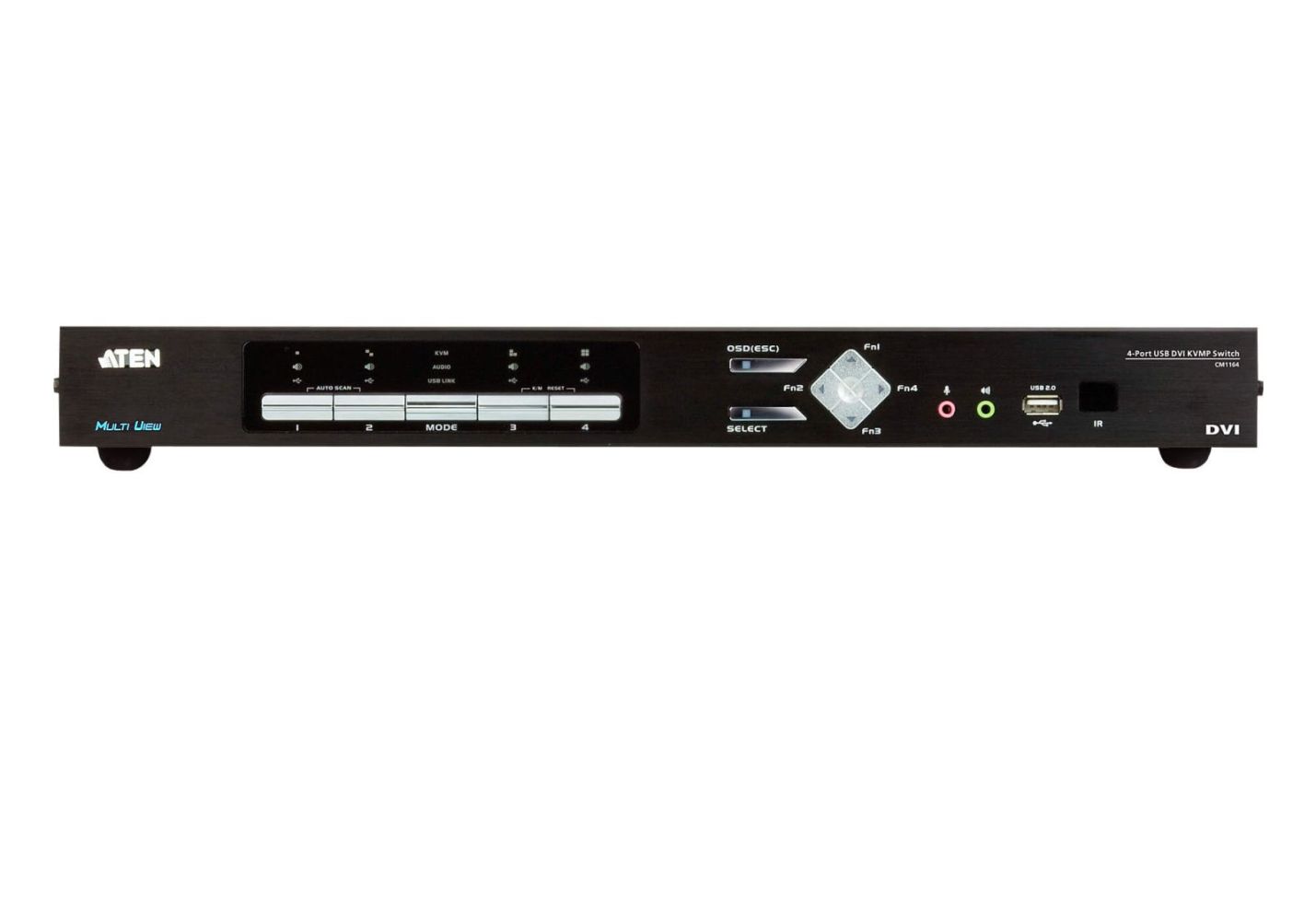

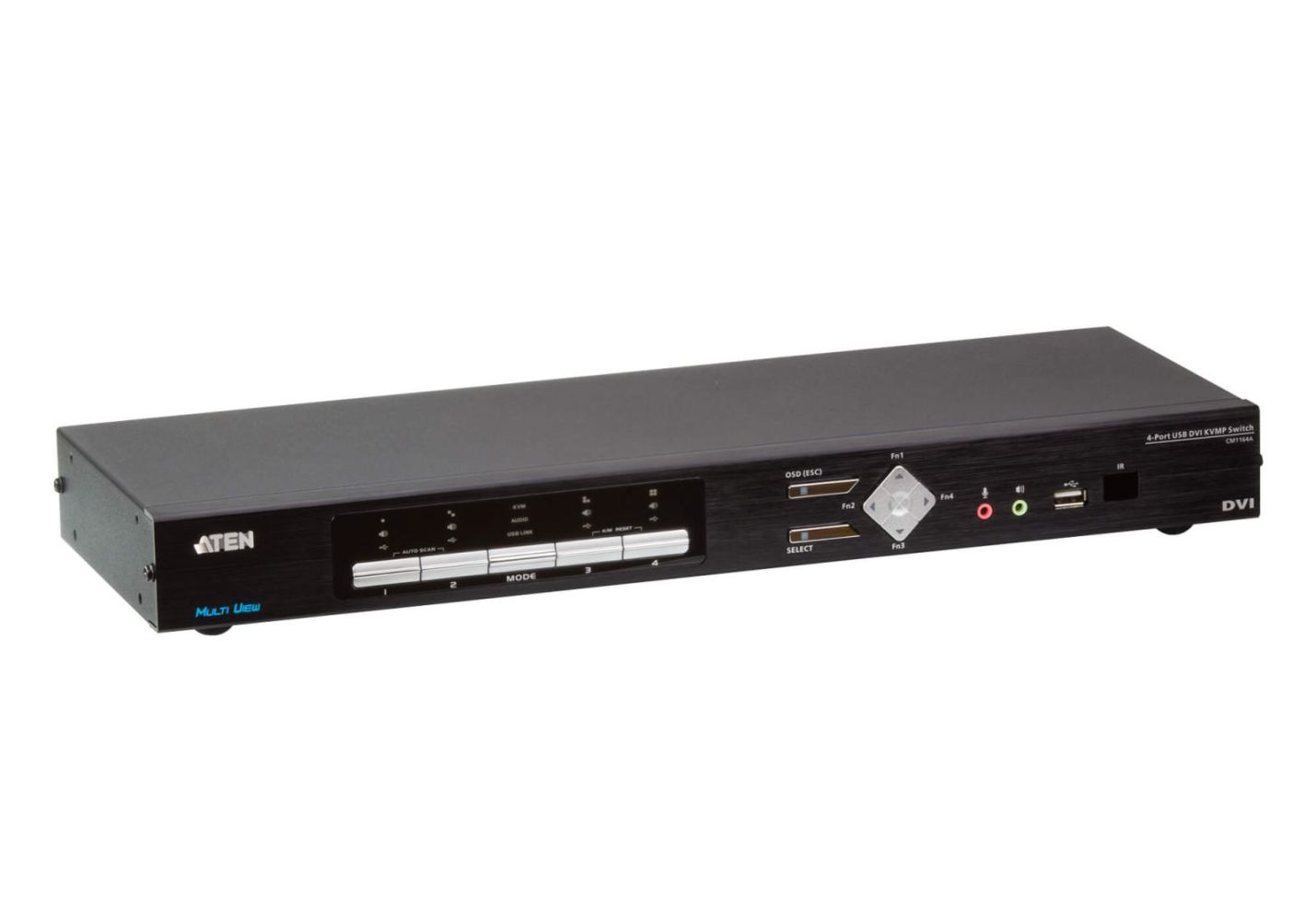

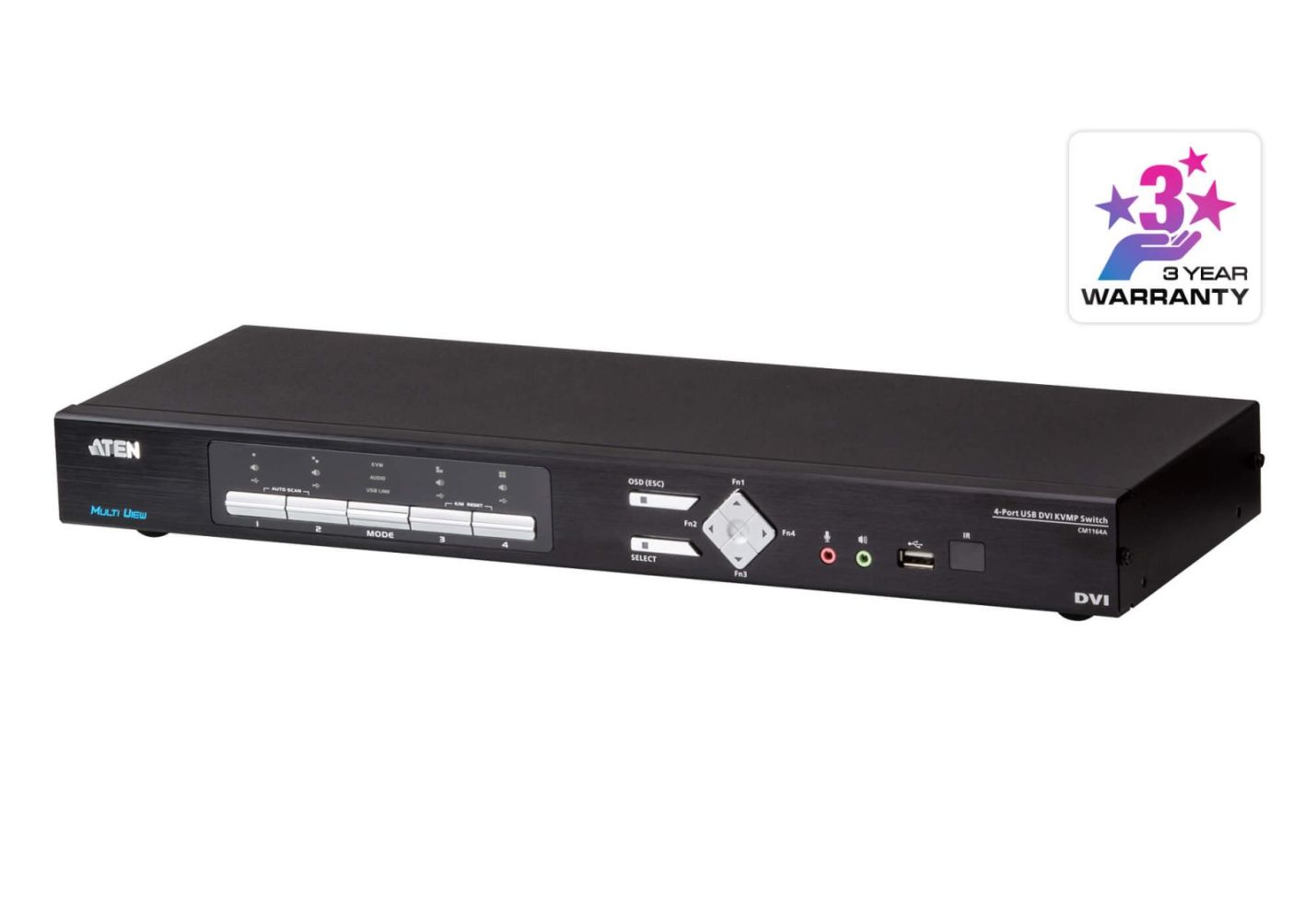

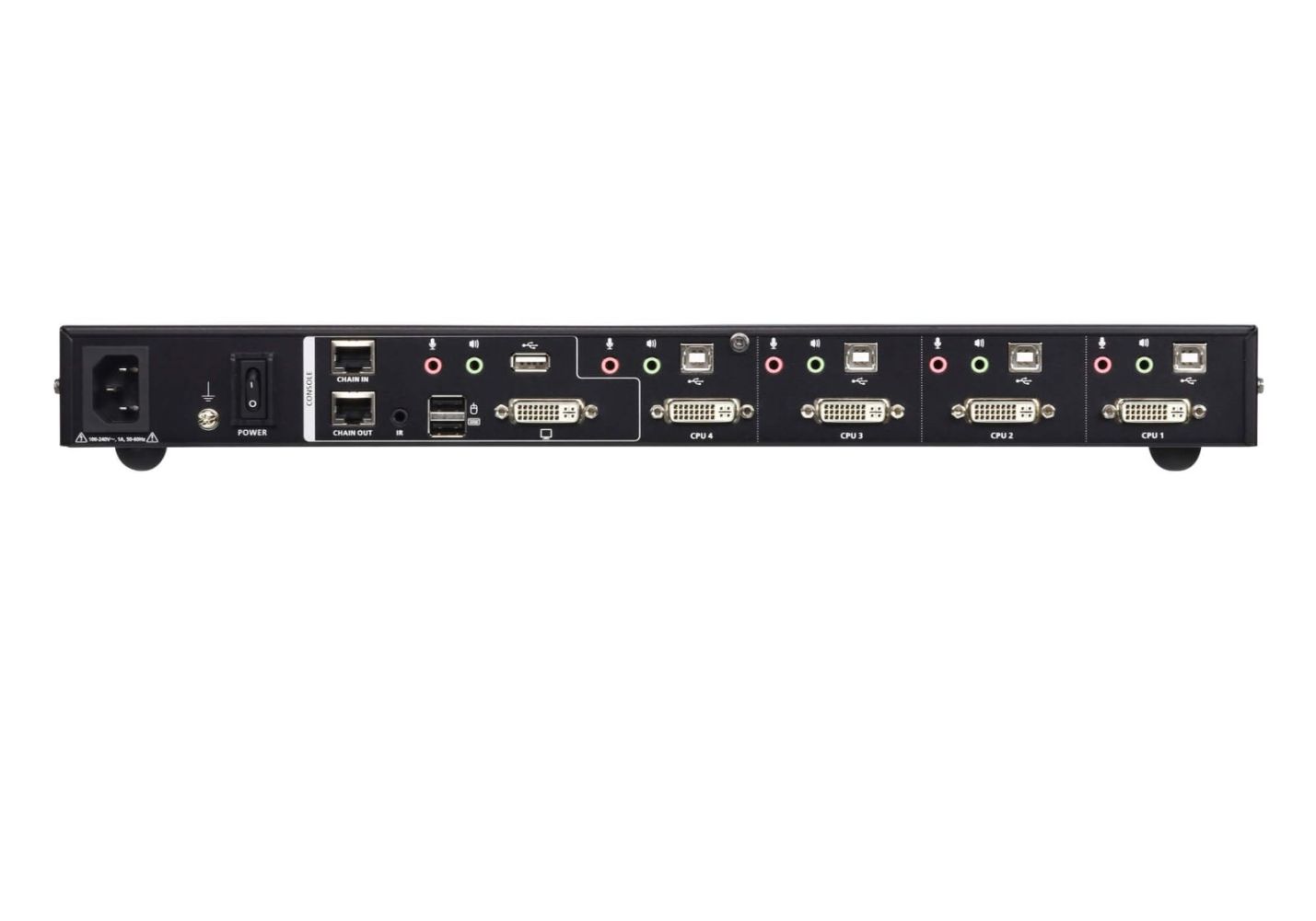

ATEN CM1164A 4-Port USB DVI Multi-View KVMP Switch
|
-19% 1.913,92 EUR 2.357,69 EUR |
|
|
( 2.277,56 EUR incl. VAT ) ≈ £1,611.52 | ≈ $2,149.33 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1110759 |
| Mfg Part No: | CM1164A-AT-G |
| UPC/EAN: | 4719264646867 |
| Weight: | 4.4 kg |
Product information for Aten CM1164A-AT-G:
| Design | |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| Rack mounting | |
| Cascadable | |
| LED indicators | |
| Push button | |
| Hot keys | |
| Display | |
| Built-in display | |
| On Screen Display (OSD) | |
| Logistics data | |
| Master (outer) case net weight | 11.9 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 555 mm |
| Master (outer) case height | 255 mm |
| Master (outer) case gross weight | 14.1 kg |
| Products per master (outer) case | 3 pc(s) |
| Network | |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging content | |
| Cables included | KVM |
| Manual | |
| AC adapter included | |
| Rack mount kit | |
| Packaging data | |
| Package width | 131 mm |
| Package depth | 540 mm |
| Package height | 233 mm |
| Package weight | 4.43 kg |
| Performance | |
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 5,10,15,30,60,90 s |
| HDCP | |
| Daisy chain | |
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| DVI-D ports quantity | 5 |
| USB 2.0 Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, DVI-D, RJ–45, USB A |
| Console USB ports quantity | 2 |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Headphone outputs | 6 |
| Number of microphone inputs | 6 |
| USB hub | |
| Audio connections | |
| Power | |
| Power source | AC |
| Input voltage | 110 - 220 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 9.7 W |
| Sustainability | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 437.2 mm |
| Depth | 164 mm |
| Height | 44 mm |
| Weight | 3.98 kg |
Questions & answers
What is the delivery time of ATEN CM1164A 4-Port USB DVI Multi-View KVMP Switch?
The article ATEN CM1164A 4-Port USB DVI Multi-View KVMP Switch is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CM1164A-AT-G to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you ATEN CM1164A 4-Port USB DVI Multi-View KVMP Switch always at the best possible price. We can give you a discount of 2% on ATEN CM1164A 4-Port USB DVI Multi-View KVMP Switch if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
