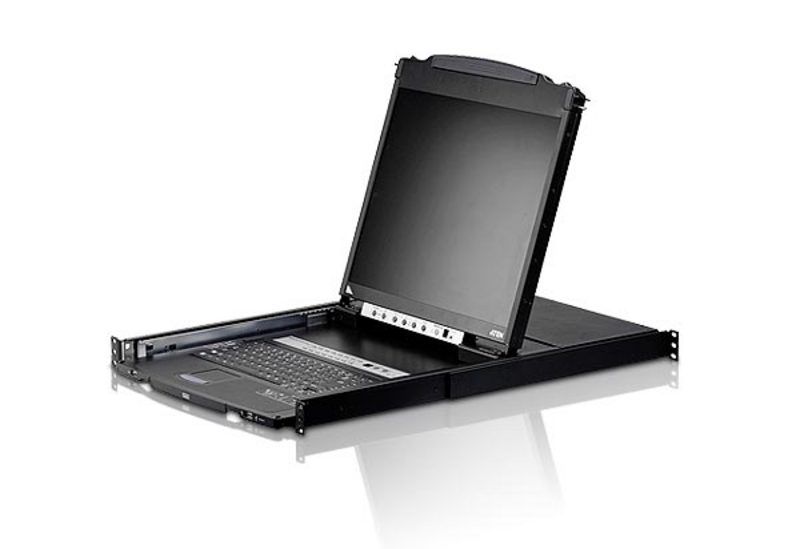

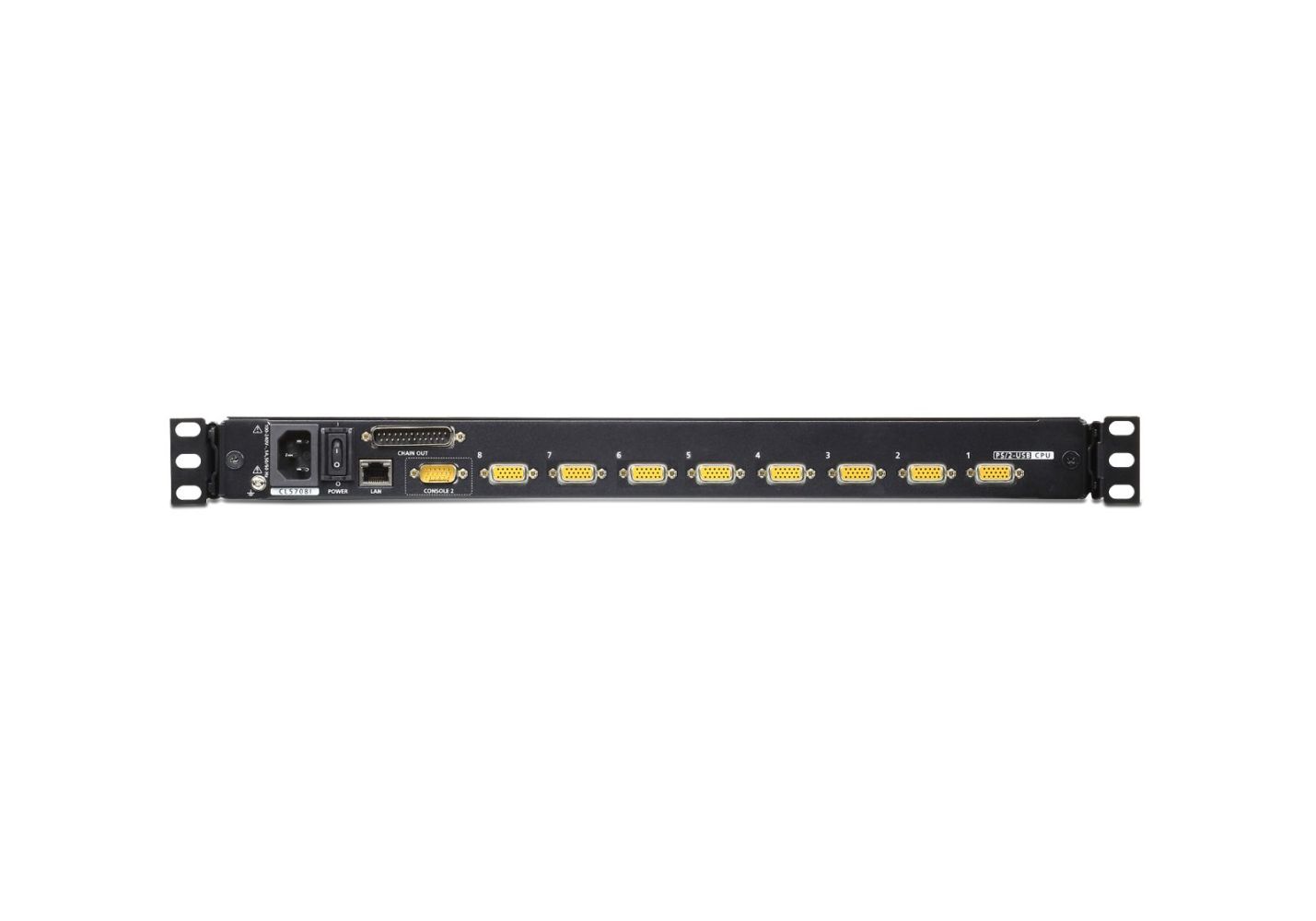

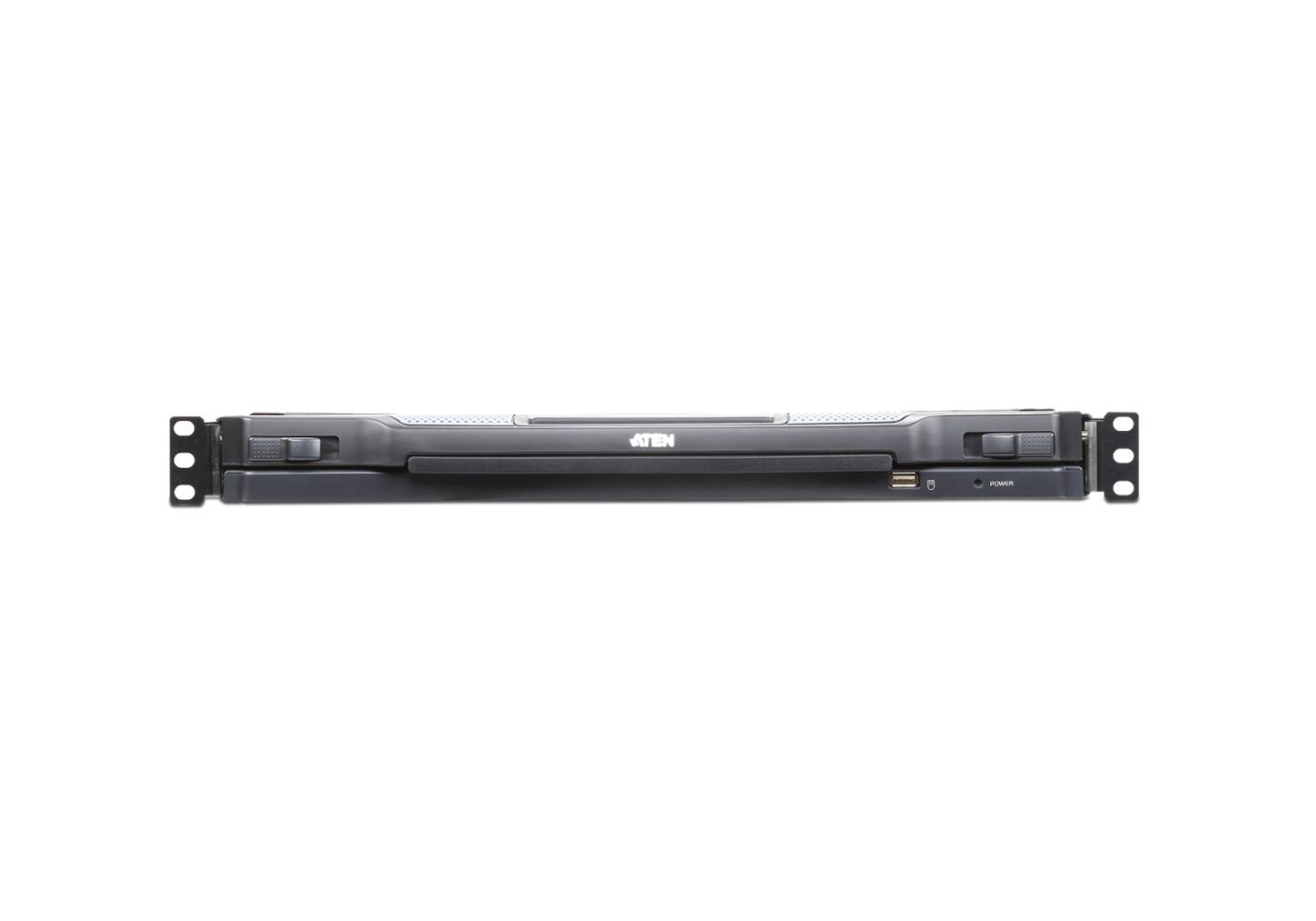

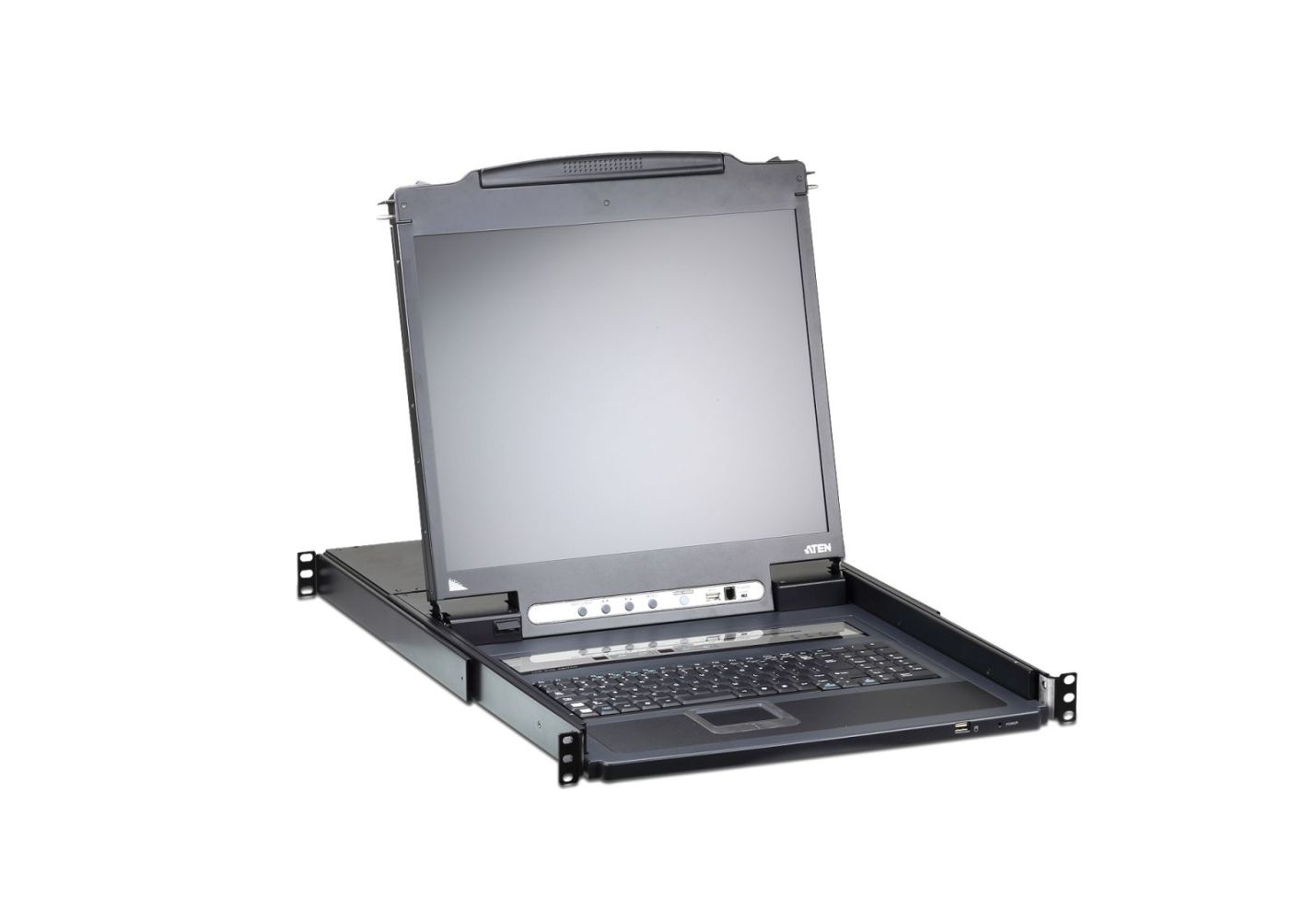

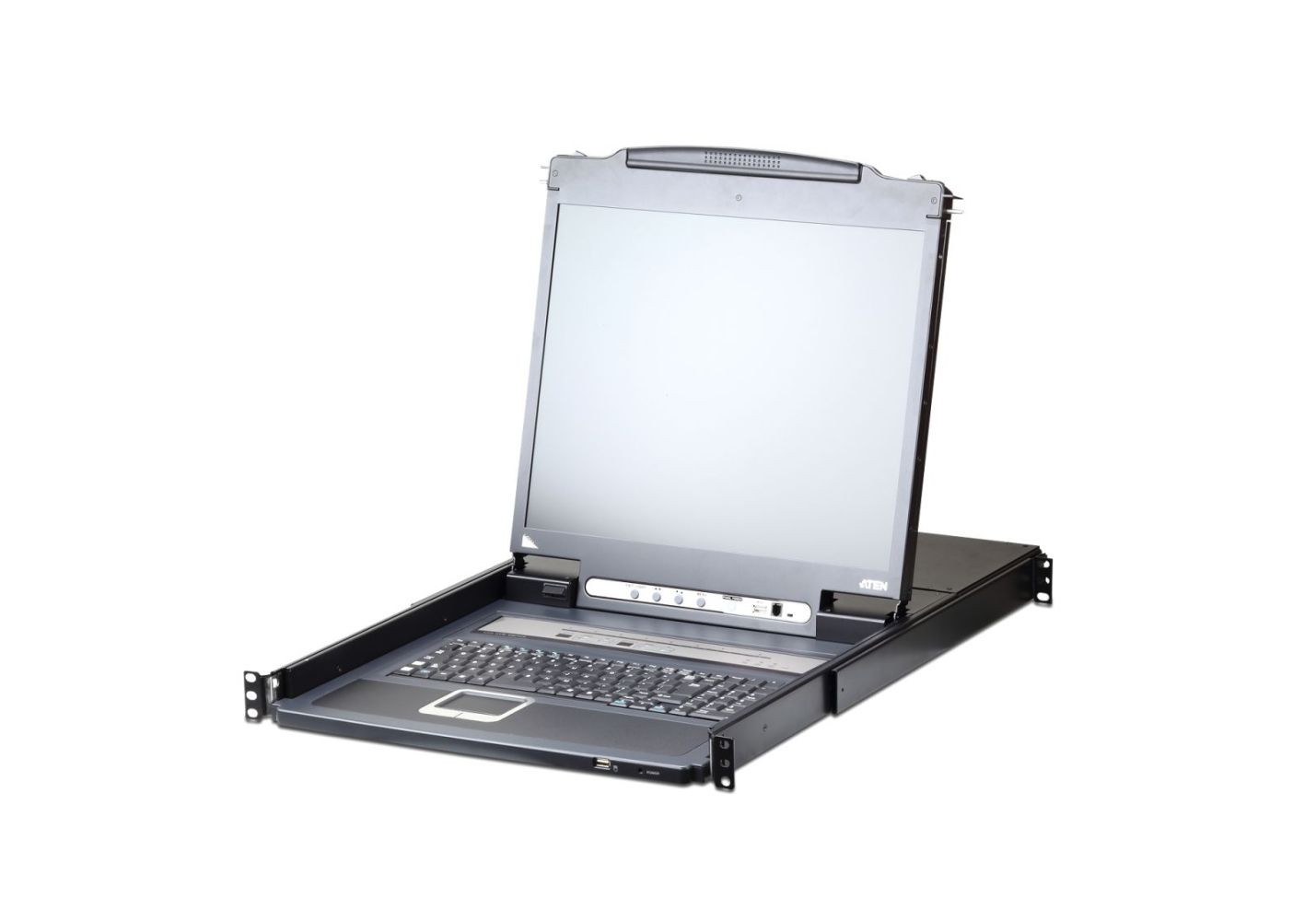

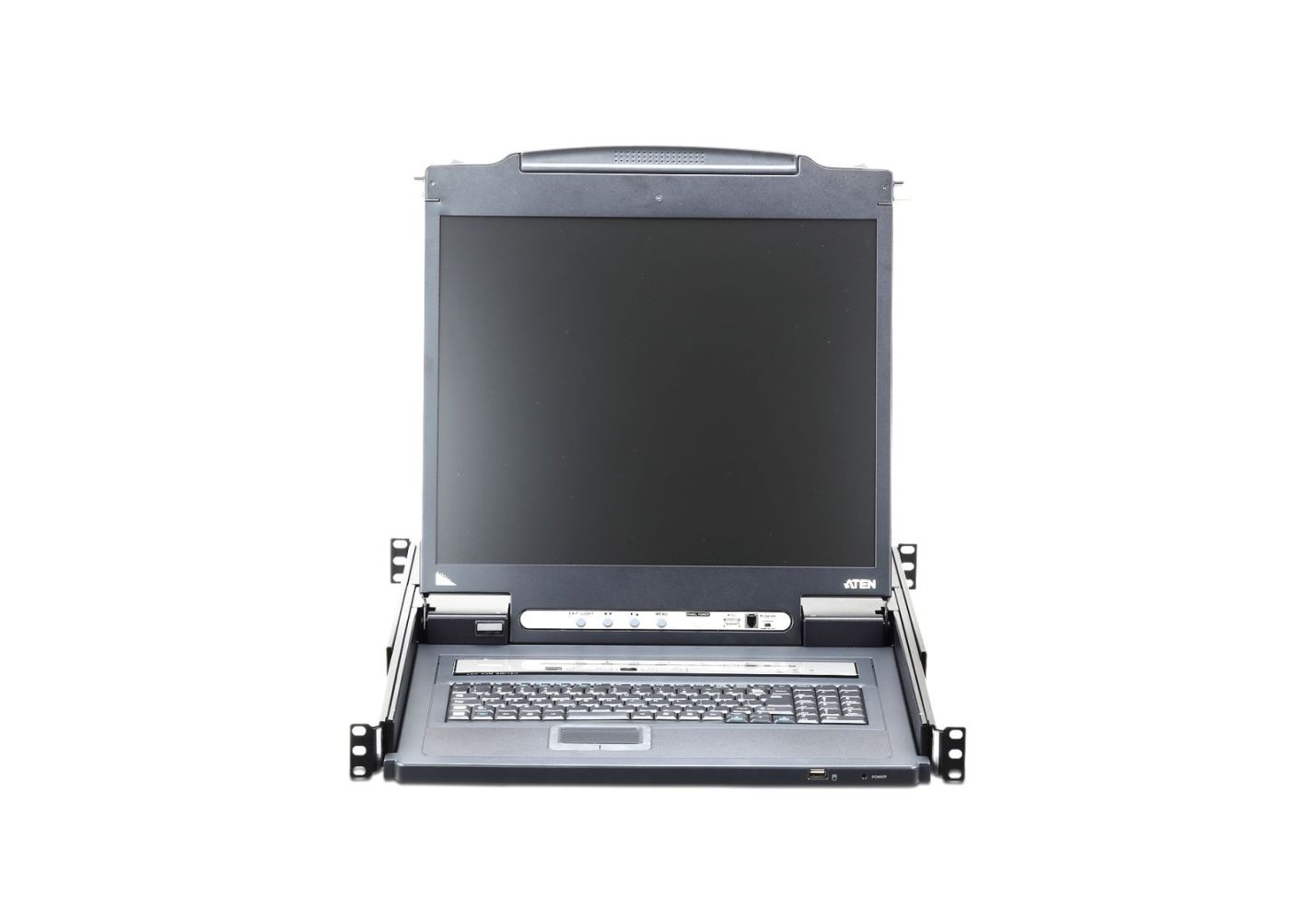

Aten KVM / TFT 8-way, 19 1U, incl.KVM / TFT 19, German,
|
1.270,05 EUR |
|
|
( 1.511,36 EUR incl. VAT ) ≈ £1,059.22 | ≈ $1,418.65 plus delivery charges: 148,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 332259 |
| Mfg Part No: | CL5808N |
| UPC/EAN: | 4710469344022 |
| Weight: | 18.62 kg |
Further Racksystems 31+HE from AtenFurther products in category Racksystems 31+HE
All products of Aten
Product information for Aten CL5808N:
| Display | |
| Display diagonal | 48.3 cm (19") |
| Display | LCD |
| On Screen Display (OSD) | |
| Keyboard | |
| Keyboard language | Italian |
| Keyboard layout | QWERTY |
| Hot keys | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging content | |
| Cables included | AC, KVM |
| Manual | |
| Rack mount kit | |
| Ports & interfaces | |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Power | |
| Input current | 1 A |
| System requirements | |
| Windows operating systems supported | |
| Mac operating systems supported | |
| Linux operating systems supported | |
| Technical data | |
| Weight | 18.620kg |
| Resolution integrated display | 1280x1024 |
| Type 2 | 8-port VGA Dual Rail |
| Display diagonal | 19" |
| TP Network | Without |
| Periphery inputs per CPU | SPHD-15 female x1 (on USB, PS/2) |
| Video inputs per CPU | SPHD female (to VGA) x1 |
| Screen connectors per console | 1 |
| Number of consoles | 1x external + 1x (integrated) |
| Height packaging | 0.135m |
| Max. resolution | 1920x1200 / 60Hz |
| Peripheral outputs per console | USB for integrated console x2, SPHD connector (to USB or PS/2) |
| Keyboard layout | DE (German) |
| Data rate | 480Mb/s |
| Design | Rack-Mount |
| Video outputs per console | SPHD male x1 (to VGA) |
| USB specification | USB 2.0 |
| Type 1 | KVM Display Console |
| Length packaging | 0.833m |
| Fiber optic network | Without |
| Number of CPU | 8 |
| Audio outputs per console | Without |
| Packaging volume | 0.0751m³ |
| Width packaging | 0.668m |
| Audio loudspeakers | |
| Audio microphone | |
| USB peripherals | |
| Extension (daisy chain or cascading) | |
| Technical details | |
| Product colour | Black |
| Operating relative humidity (H-H) | 0 - 80% |
| Maximum resolution | 1920 x 1200 pixels |
| Security algorithms | 128-bit RC4, RSA, SSL/TLS |
| Number of computers controlled | 8 |
| Rack capacity | 1U |
| Hot-Plug support | |
| Rack mounting | |
| Daisy chain | |
| LED indicators | |
| Push button | |
| Weight & dimensions | |
| Width | 689.2 mm |
| Height | 44 mm |
| Depth | 480 mm |
| Weight | 13.4 kg |
Questions & answers
What is the delivery time of Aten KVM / TFT 8-way, 19 1U, incl.KVM / TFT 19, German,?
The article Aten KVM / TFT 8-way, 19 1U, incl.KVM / TFT 19, German, is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Aten CL5808N to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Aten KVM / TFT 8-way, 19 1U, incl.KVM / TFT 19, German, always at the best possible price. We can give you a discount of 2% on Aten KVM / TFT 8-way, 19 1U, incl.KVM / TFT 19, German, if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
