Aten KVM/TFT 16-fold, 48,3 cm ( 19 inch ) 1U, incl. KVM/TFT 48,3 cm ( 19 inch ), German, Black
|
1.680,36 EUR |
|
|
( 1.999,63 EUR incl. VAT ) ≈ £1,414.86 | ≈ $1,887.04 plus delivery charges: 148,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 227290 |
| Mfg Part No: | CL1316N |
| UPC/EAN: | 4719264642418 |
| Weight: | 12.77 kg |
Further Racksystems 31+HE from AtenFurther products in category Racksystems 31+HE
All products of Aten
Product information for Aten CL1316N:
Aten KVM/TFT 16-fold, 48,3 cm ( 19 inch ) 1U, incl.KVM/TFT 48,3 cm ( 19 inch ), German, Black
- Order-related order * Black, 48,3 cm ( 19 inch ) LCD: 1280 x 1024@75Hz; DDC2B,

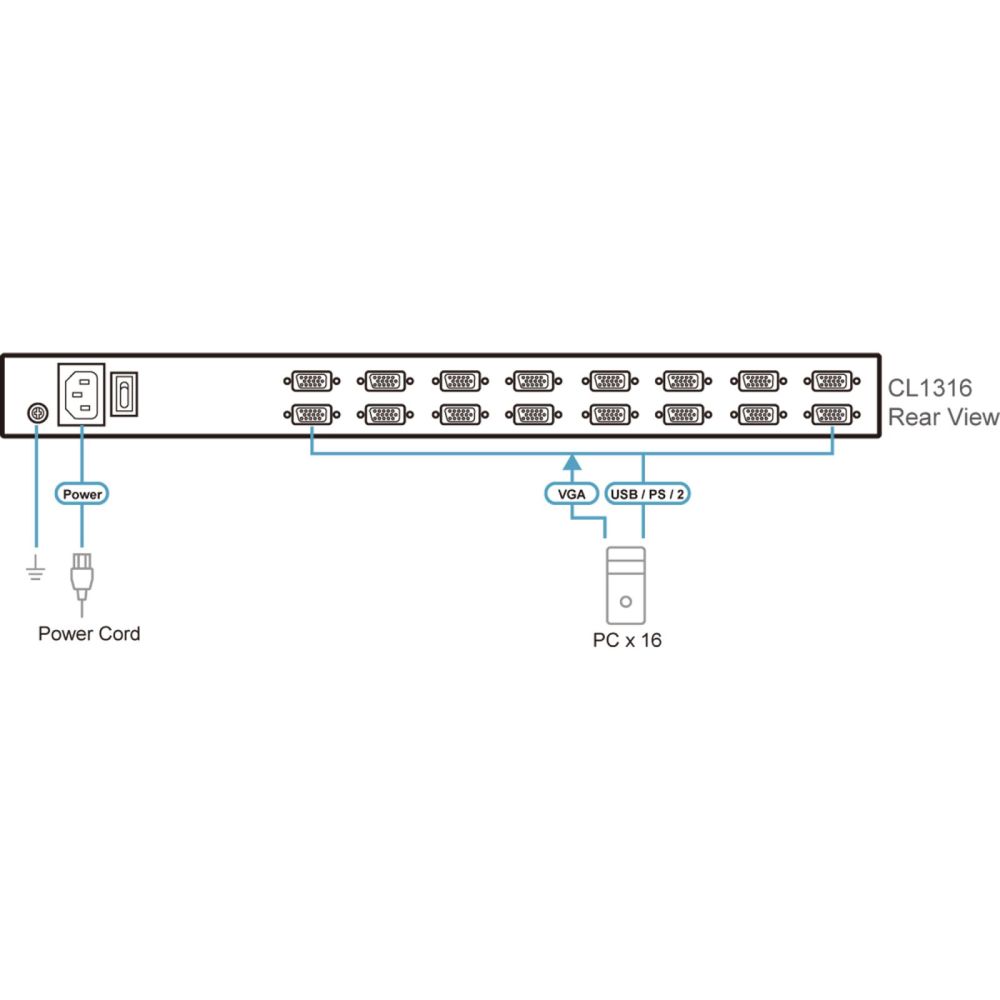

PC 1-16: 16xSPHD-15 sockets
The following cables are included: 2x 2L-5202U
| Display | |
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Display | LCD |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.294 x 0.294 mm |
| Response time | 5 ms |
| Display number of colours | 16.78 million colours |
| On Screen Display (OSD) | |
| Keyboard | |
| Keyboard language | US English |
| Keyboard layout | QWERTY |
| Built-in touchpad | |
| Hot keys | |
| Logistics data | |
| Master (outer) case net weight | 13.3 kg |
| Master (outer) case width | 668 mm |
| Master (outer) case length | 833 mm |
| Master (outer) case height | 135 mm |
| Master (outer) case gross weight | 16.3 kg |
| Products per master (outer) case | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging content | |
| Cables included | AC, KVM |
| Manual | |
| Packaging data | |
| Package weight | 16.3 kg |
| Package width | 668 mm |
| Package depth | 833 mm |
| Package height | 135 mm |
| Power | |
| Power consumption (typical) | 26.1 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| Input current | 1 A |
| Technical details | |
| Material | Metal, Plastic |
| Product colour | Black |
| Operating relative humidity (H-H) | 0 - 80% |
| Maximum resolution | 1920 x 1200 pixels |
| Connector type | SPHD |
| Number of computers controlled | 16 |
| Rack capacity | 1U |
| Hot-Plug support | |
| Rack mounting | |
| Daisy chain | |
| Weight & dimensions | |
| Width | 689 mm |
| Height | 44 mm |
| Depth | 483 mm |
| Weight | 13.3 kg |
