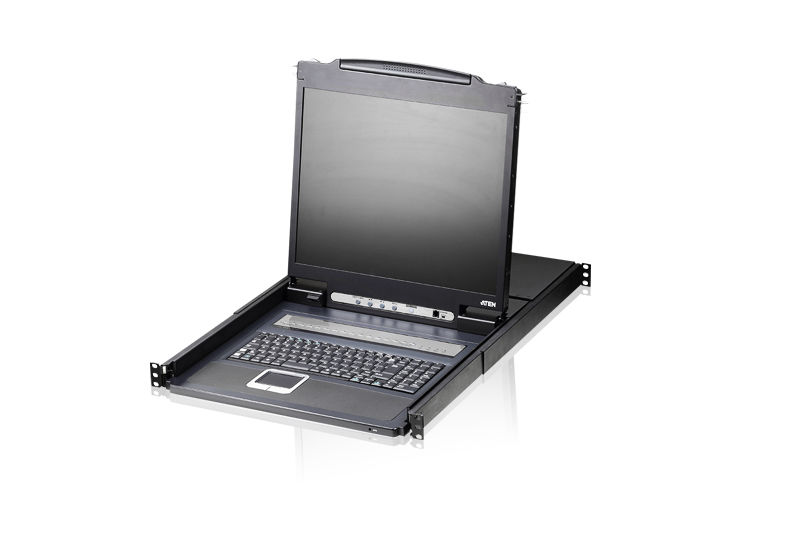

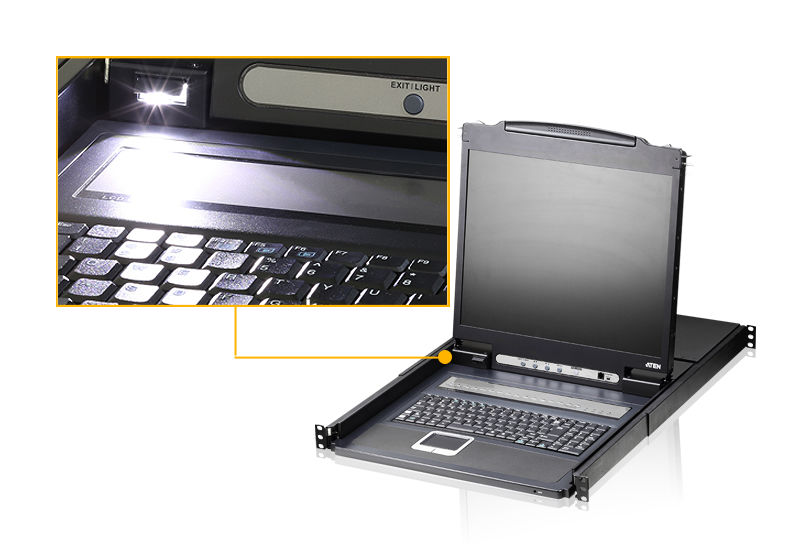

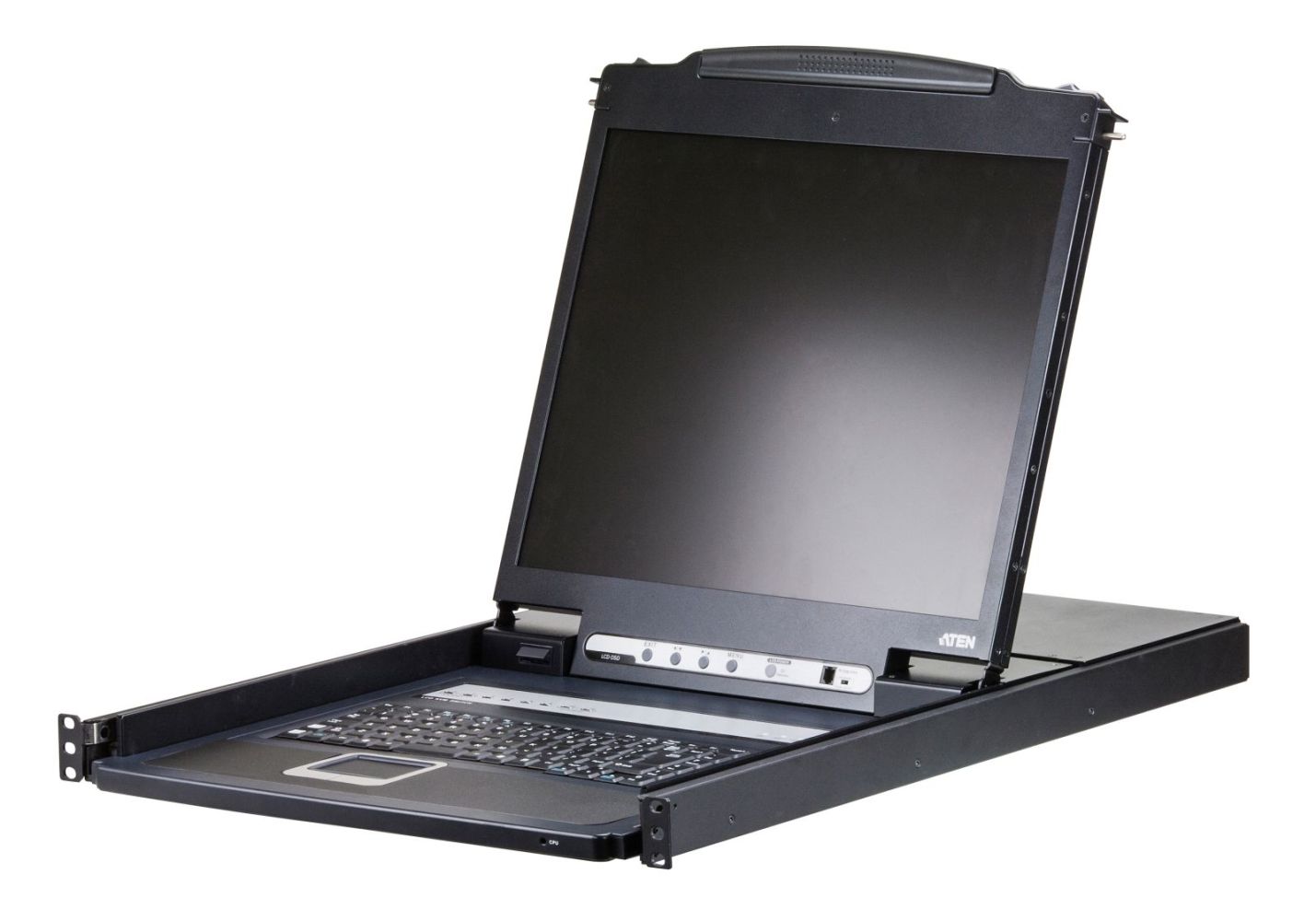

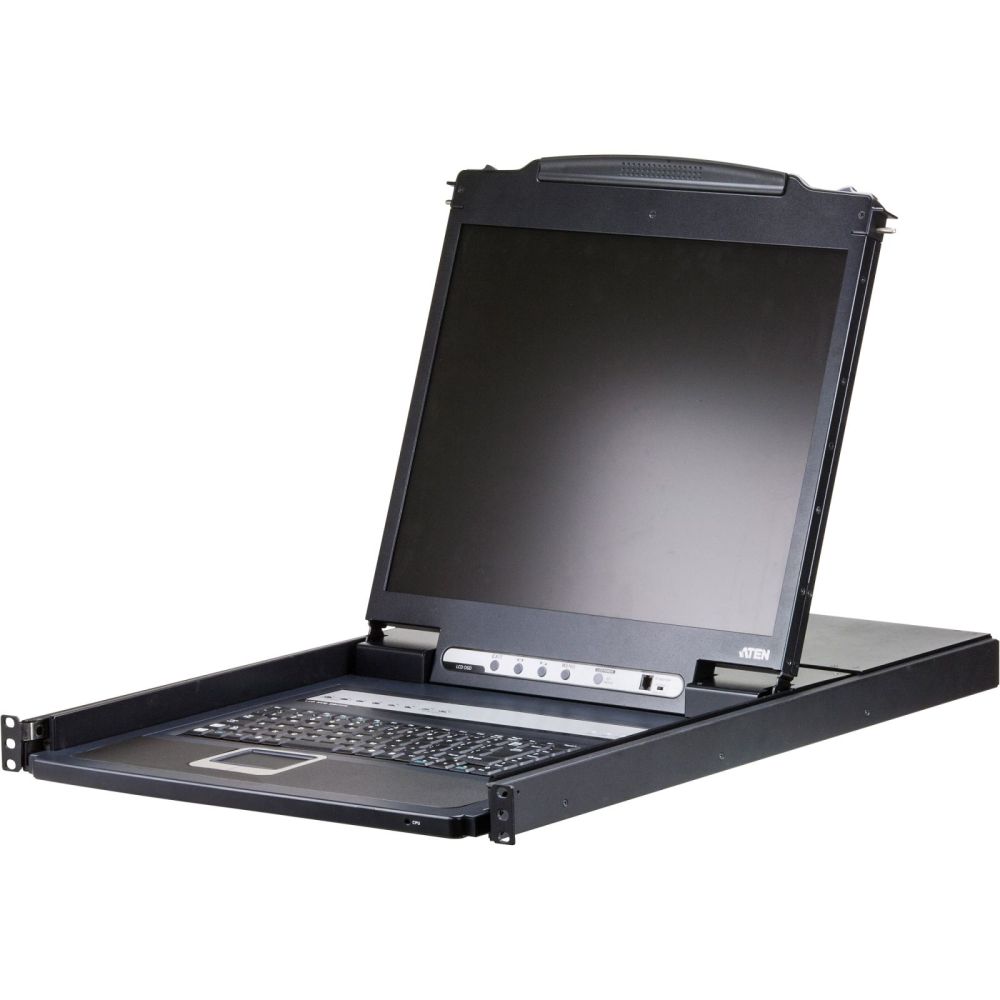

Aten KVM/TFT 8-fold, 48,3 cm ( 19 inch ) 1U, incl. KVM/TFT 48,3 cm ( 19 inch ), German, Black
|
-8% 749,28 EUR 814,86 EUR |
|
|
( 891,64 EUR incl. VAT ) ≈ £624.90 | ≈ $836.95 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 589380 |
| Mfg Part No: | CL1308N |
| UPC/EAN: | 4710469343926 |
| Weight: | 15.95 kg |
Product information for Aten CL1308N:
Aten KVM/TFT 8-fold, 48,3 cm ( 19 inch ) 1U, incl.KVM/TFT 48,3 cm ( 19 inch ), German, Black
- Order-related order * Black, 48,3 cm ( 19 inch ) LCD: 1280 x 1024@75Hz; DDC2B,

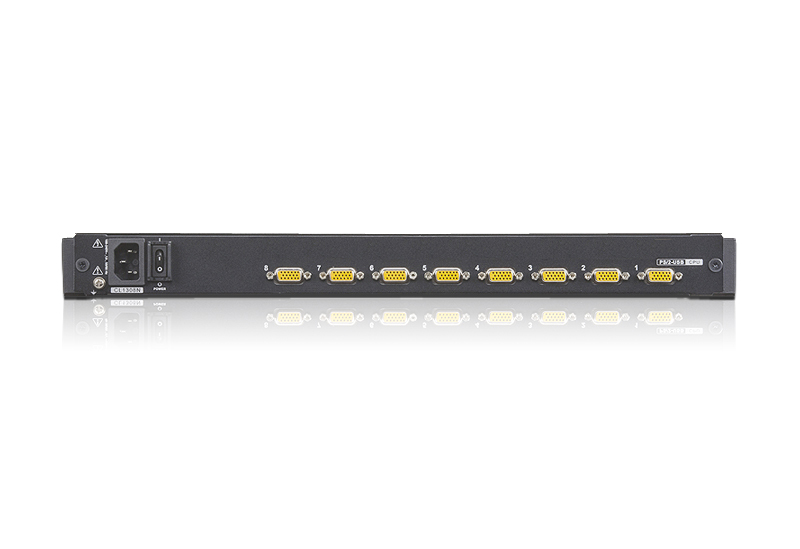

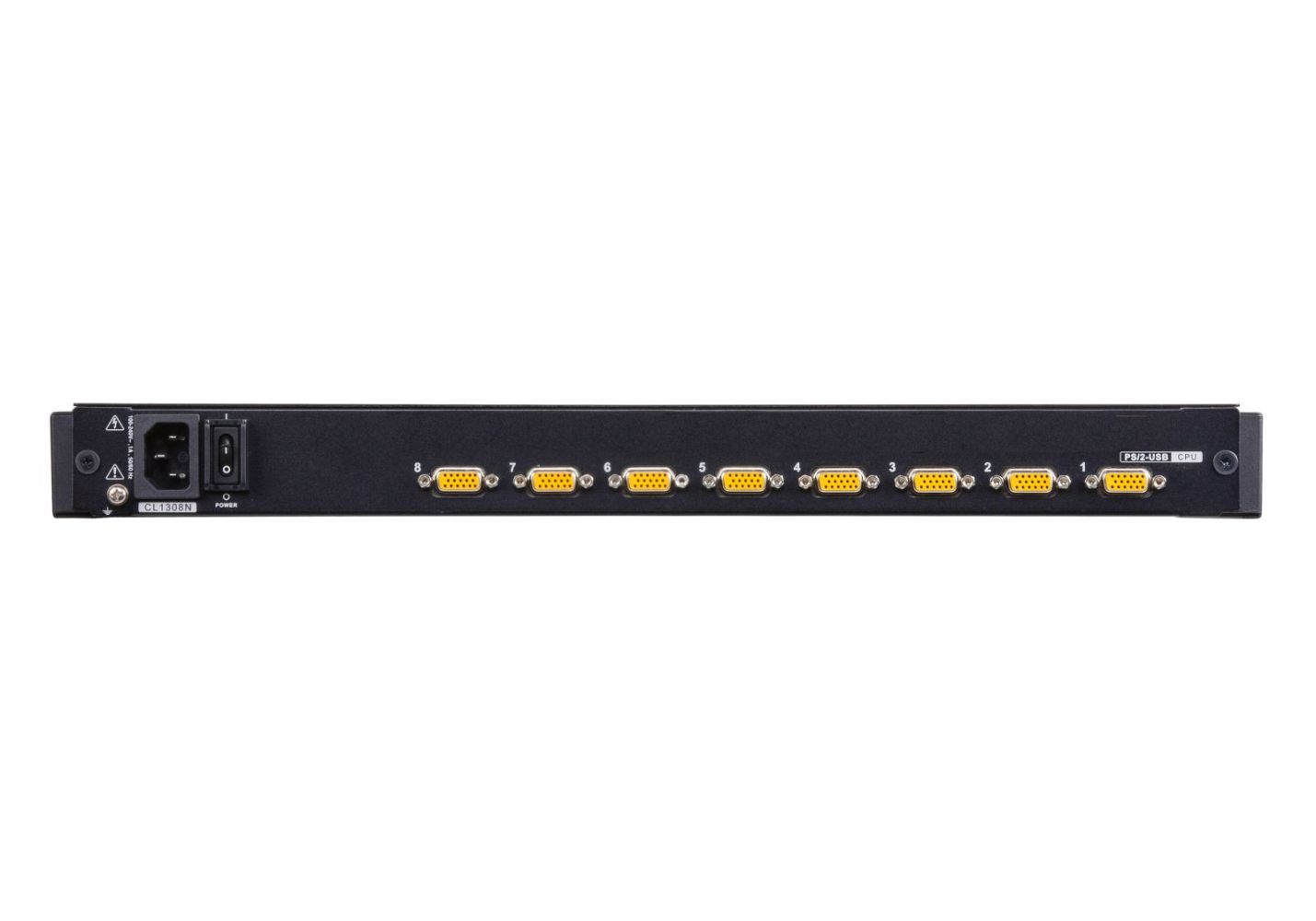

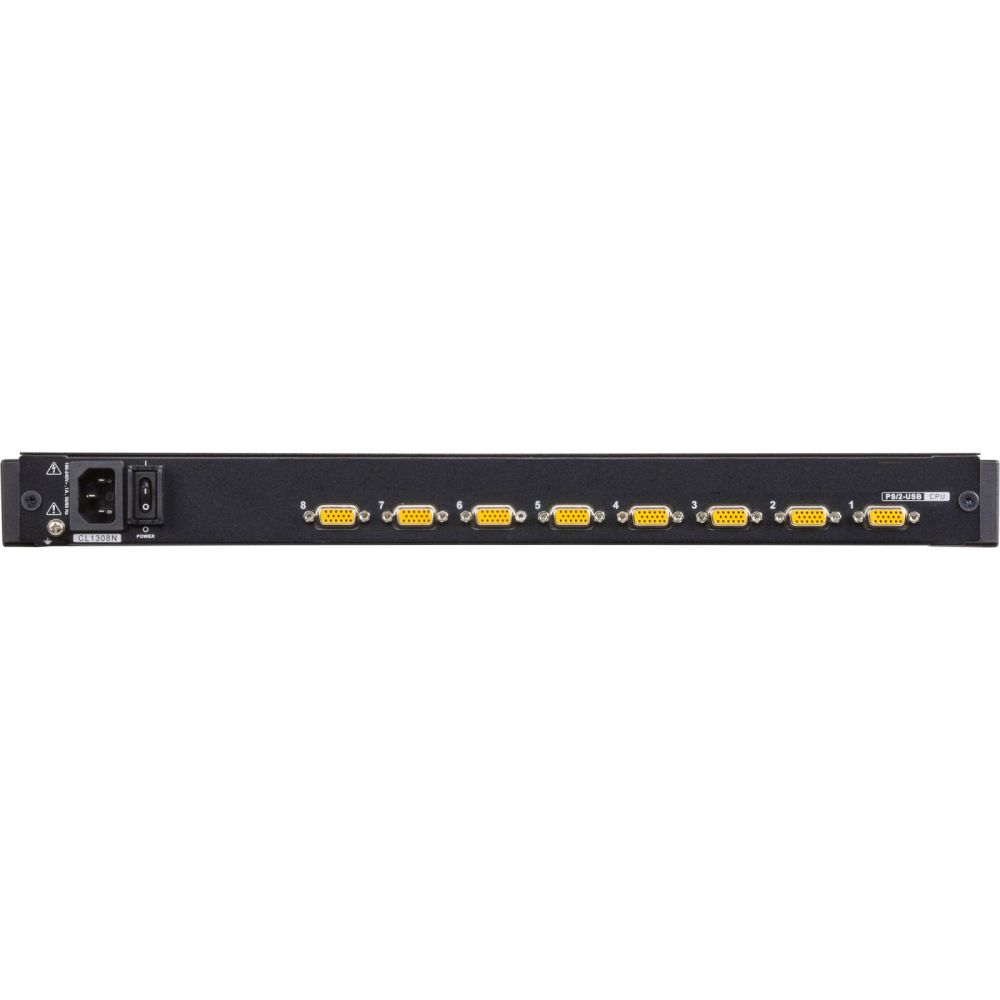

PC 1-8: 8xSPHD-15 sockets
The following cables are included: 2x 2L-5202U
| Display | |
| Display diagonal | 48.3 cm (19") |
| Display | LCD |
| On Screen Display (OSD) | |
| Keyboard | |
| Keyboard language | German |
| Keyboard layout | QWERTZ |
| Hot keys | |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging content | |
| Cables included | AC, KVM |
| Quick installation guide | |
| Manual | |
| Rack mount kit | |
| Ports & interfaces | |
| Keyboard port type | PS/2 |
| Mouse port type | USB |
| Video port type | VGA |
| Power | |
| Power consumption (typical) | 22 W |
| Input current | 1 A |
| System requirements | |
| Windows operating systems supported | |
| Mac operating systems supported | |
| Linux operating systems supported | |
| Technical data | |
| Audio outputs per console | Without |
| Width packaging | 0.670m |
| Fiber optic network | Without |
| Periphery inputs per CPU | SPHD-15 female x1 (on USB, PS/2) |
| Weight | 15.950kg |
| Audio per CPU | Without |
| Length packaging | 0.835m |
| Height packaging | 0.140m |
| Screen connectors per console | Without |
| Design | Rack-Mount |
| Number of consoles | 1 (integrated) |
| Max. resolution | 1920x1200 / 60Hz |
| Peripheral outputs per console | Without |
| TP Network | Without |
| Resolution integrated display | 1280x1024 |
| Packaging volume | 0.0784m³ |
| Type 2 | 8-ports VGA Single Rail |
| Video inputs per CPU | SPHD female (to VGA) x1 |
| Type 1 | LCD KVM Switch |
| Number of CPU | 8 |
| Video outputs per console | Without |
| Keyboard layout | DE (German) |
| Display diagonal | 19" |
| Extension (daisy chain or cascading) | |
| Audio microphone | |
| USB peripherals | |
| Audio loudspeakers | |
| Technical details | |
| Product colour | Black |
| Operating relative humidity (H-H) | 0 - 80% |
| Maximum resolution | 1280 x 1024 pixels |
| Number of computers controlled | 128 |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
| Hot-Plug support | |
| Rack mounting | |
| LED indicators | |
| Push button | |
| Weight & dimensions | |
| Width | 689.2 mm |
| Height | 44 mm |
| Depth | 483 mm |
| Weight | 12.6 kg |
