ATEN CE820 USB HDMI HDBaseT 2.0 KVM Ext. without Ethernet port content_copy

CE820-ATA is identical in construction to CE820, but without Ethernet connection.
The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet*, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

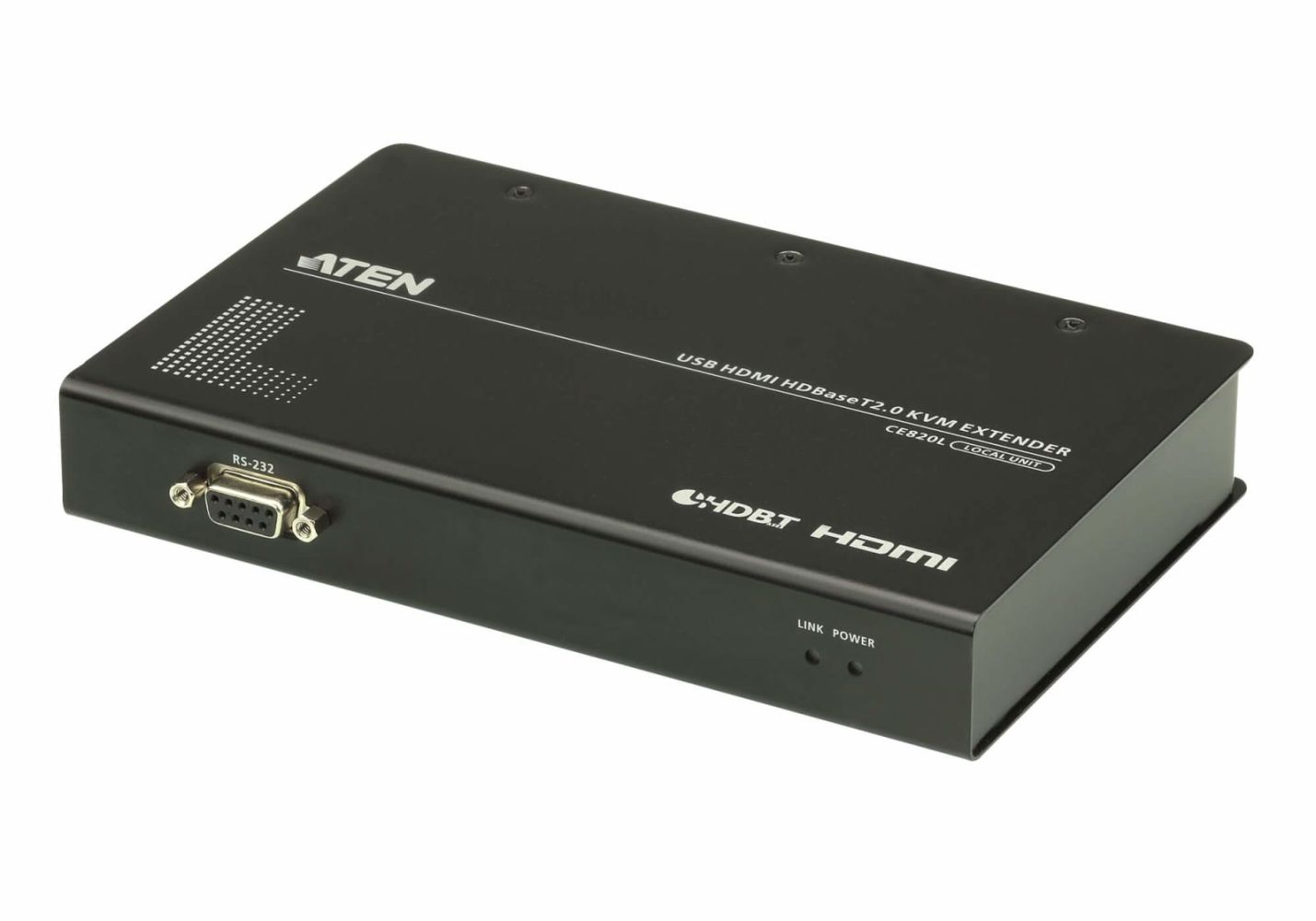

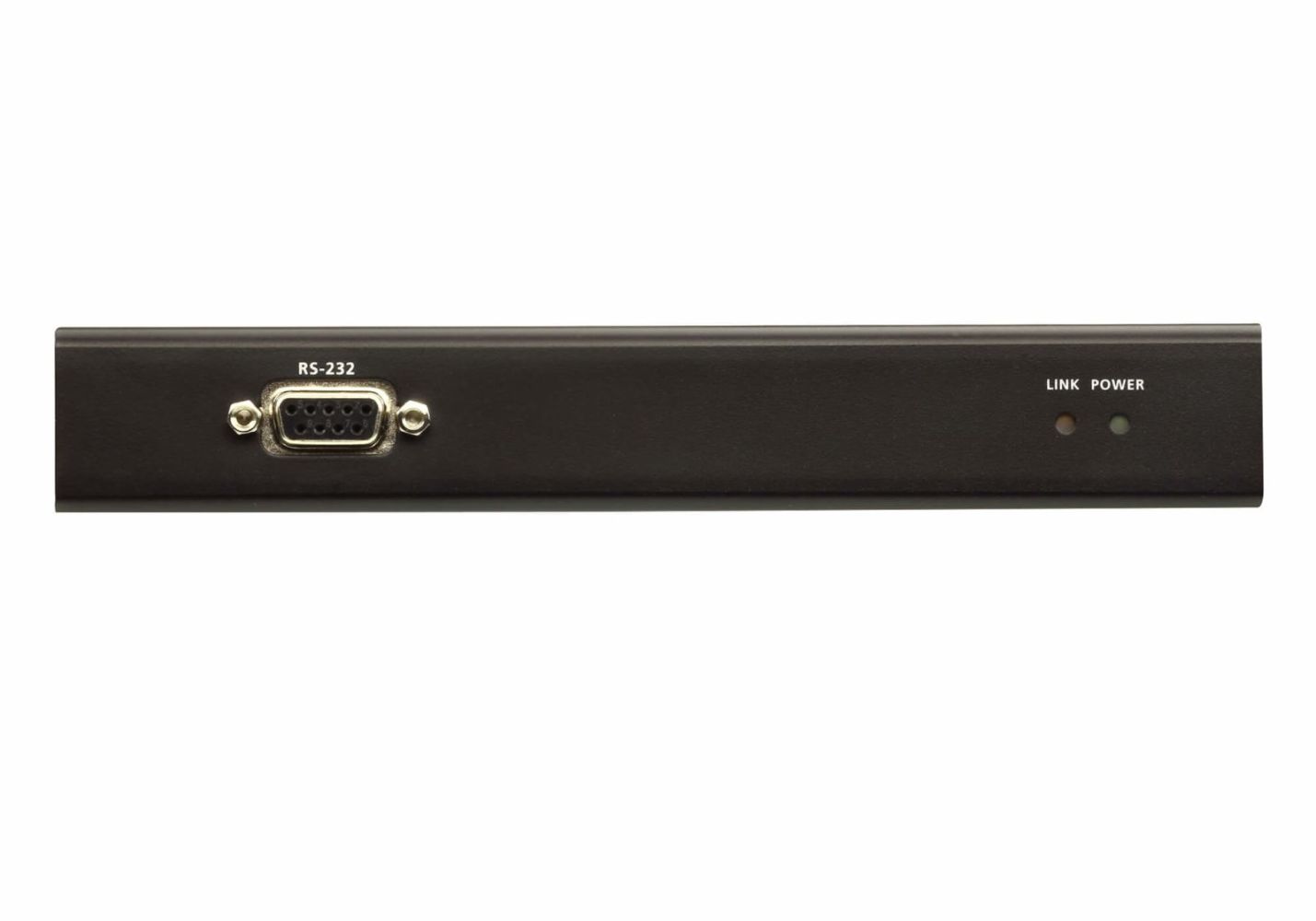

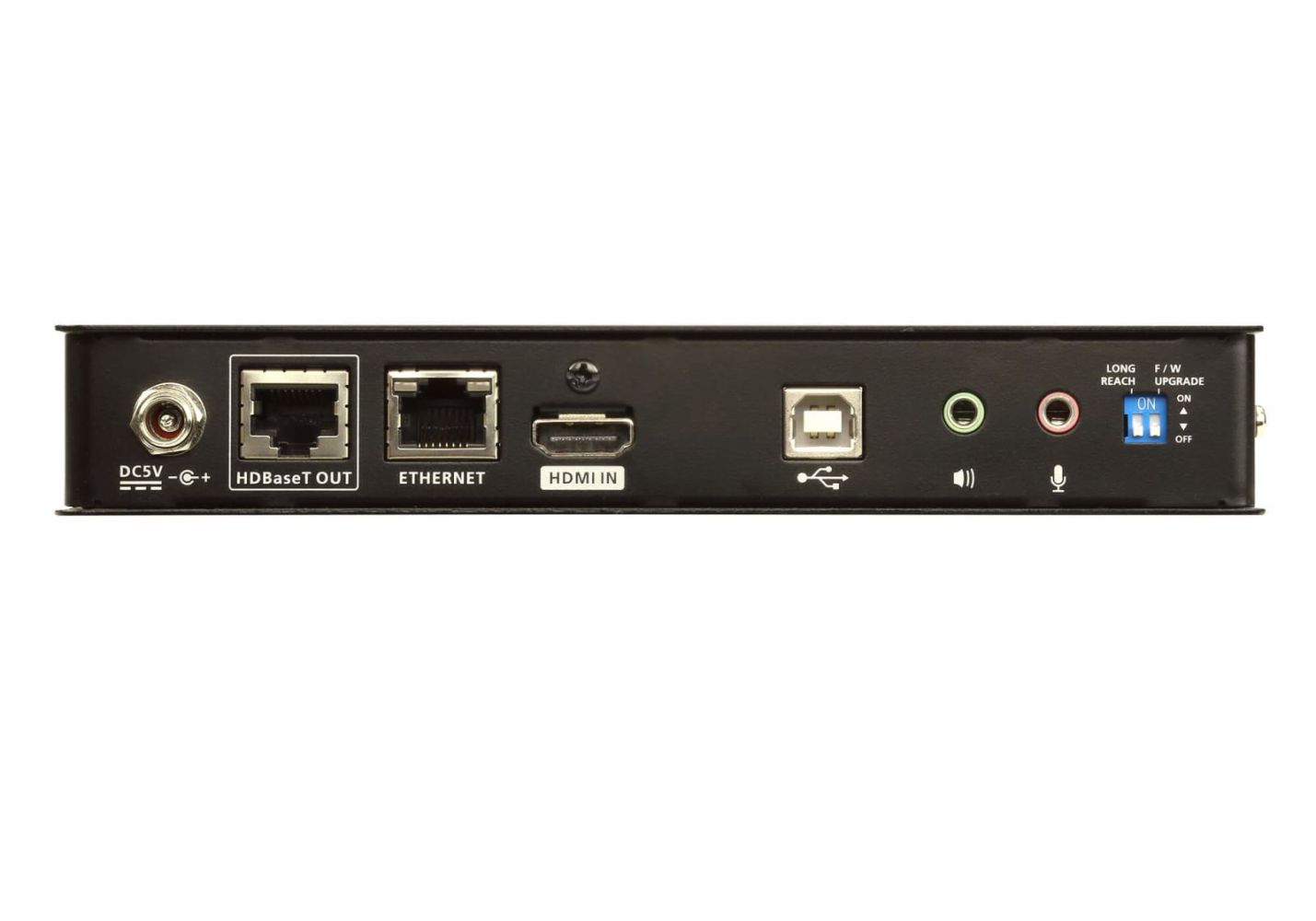

Package Contents1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)

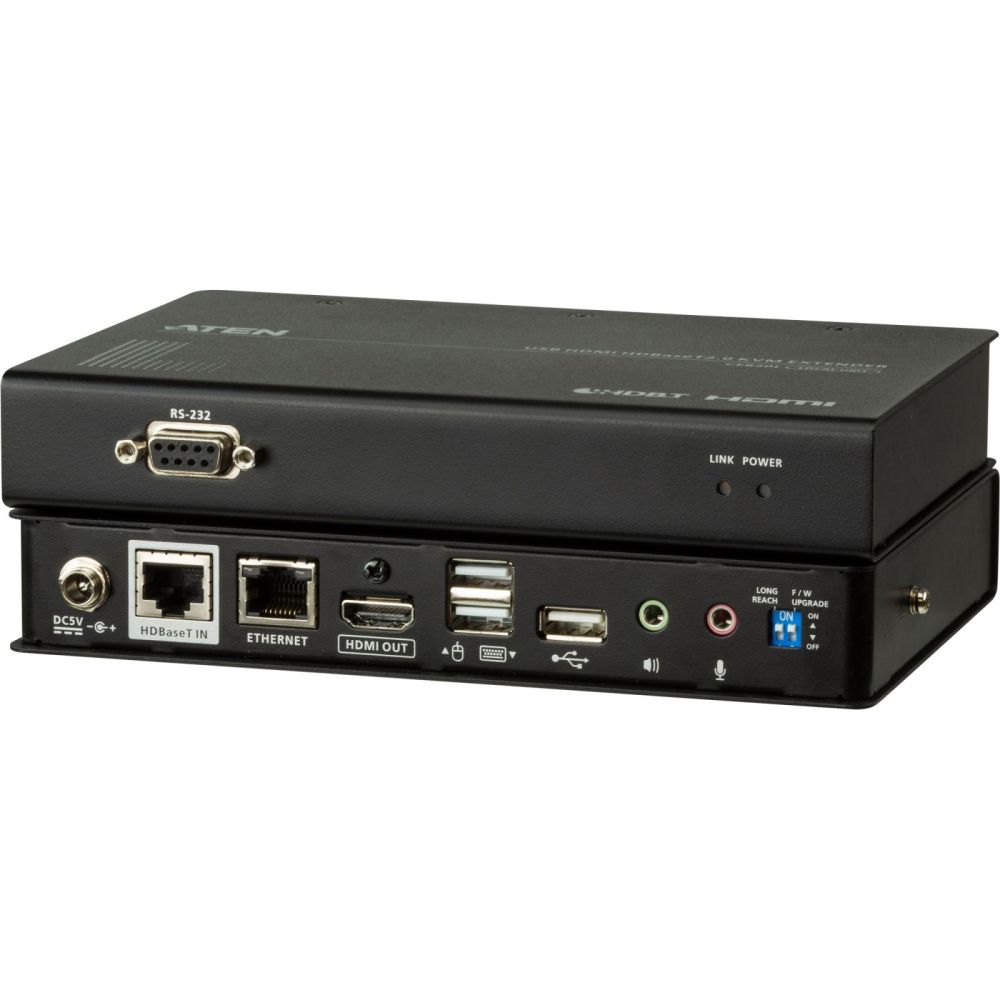

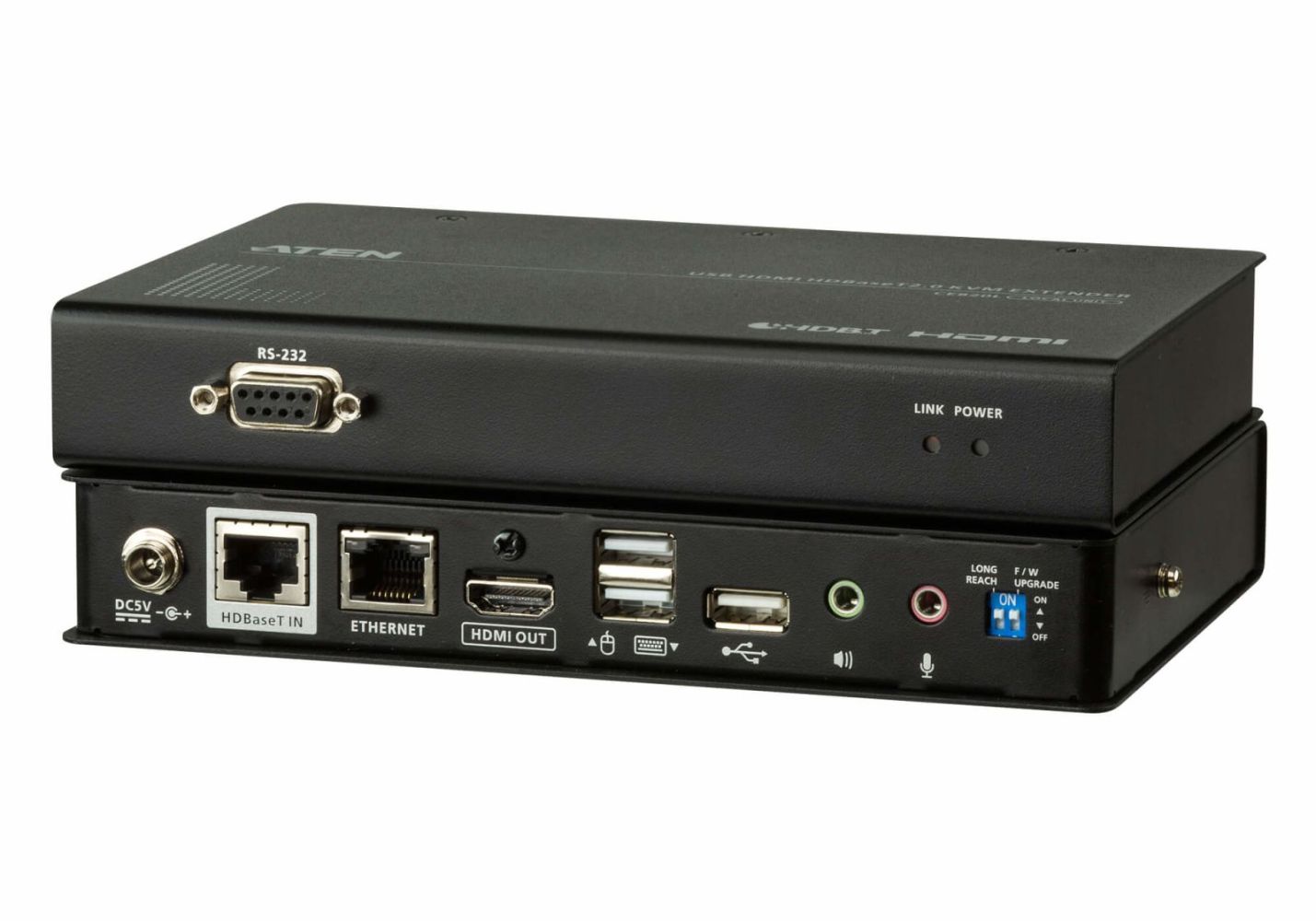

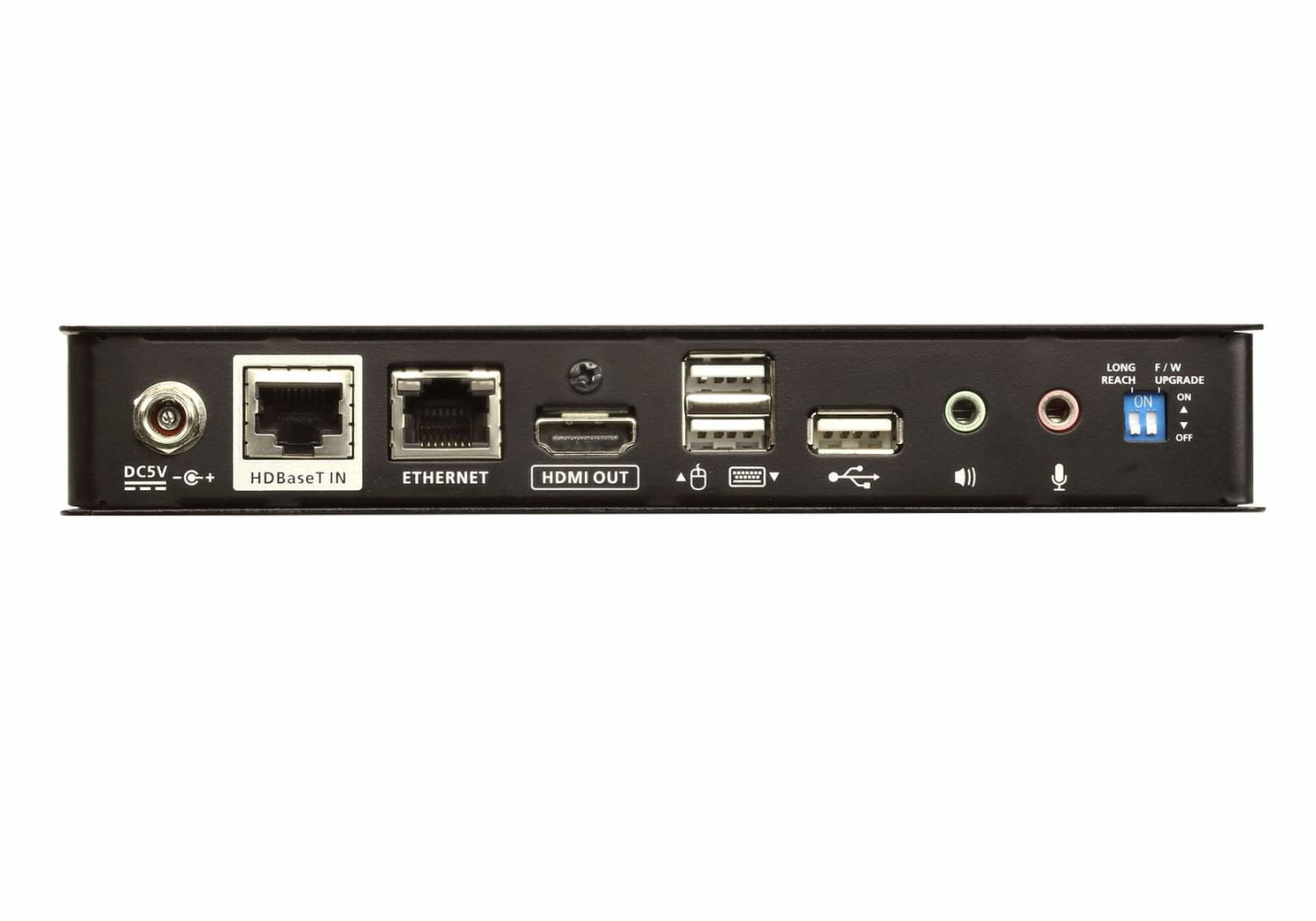

1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
1x HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
2x Power Adapters
2x Mounting Kits
1x User Instructions
Supports HDBaseT™ 2.0 technologyExtends video, audio, USB, RS-232, and Ethernet1 signals via a single Cat6 / 6a cable / 2L-2910 Cat 6 cable
Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
Status detection and LED indication for HDBaseT™ signal transmission on remote unit
EDID Buffer for smooth power-up and the highest quality display
HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible
Long distance with superior video quality: HDBaseT™ Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910), HDBaseT™ Long-Reach mode up to 1080P @ 150 m
Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snap
Supports individual 2-channel stereo audio and USB 2.0 full speed ports

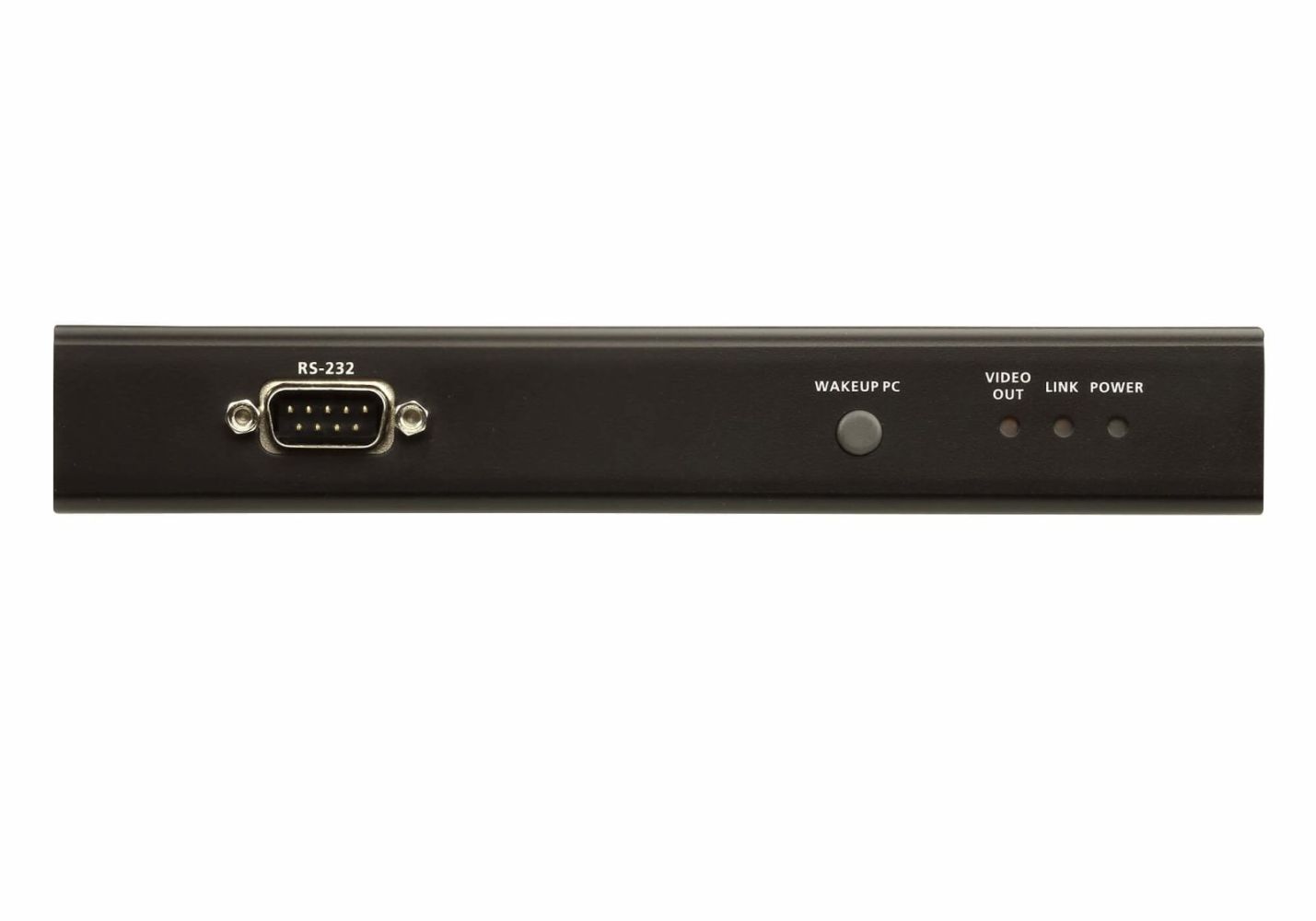

Supports PC wakeup function via single pushbutton through RS-232 channel (The computer has to support Wake Up Ring for this function to work.)
Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	150 m
Cable types supported	Cat5e, Cat6, Cat6a
Maximum digital resolution	4096 x 2160 pixels
Product colour	Black
Material	Metal
LED indicators	Link, Power, Video
Rack mounting
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Ports & interfaces
USB 2.0 ports quantity	4
PC Audio in
PC Audio out
Power
AC adapter output voltage	5 V
Power consumption (transmitter) (max)	2.87 W
Power consumption (receiver) (max)	5.37 W
Receiver
Receiver local video port type	HDMI
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1
Technical data
Type 1	KVM Extender
Max. distance	100m
Length packaging	0.327m
Weight	2.162kg
Max. resolution	4096x2160 / 60Hz
Height packaging	0.210m
Type 2	HDMI Extender Bundle
Width packaging	0.100m
Packaging volume	0.0067m³
Transmitter
Transmitter video port type	HDMI
Transmitter local video port type	HDMI
Transmitter local keyboard/mouse port type	USB
RJ-45 ports quantity (transmitter)	1
Transmitter local video port
Weight & dimensions
Transmitter width	18.2 cm
Transmitter depth	12.2 cm
Transmitter height	2.87 cm
Transmitter weight	630 g
Receiver width	18.2 cm
Receiver depth	12.2 cm
Receiver height	2.87 cm
Receiver weight	650 g

---
