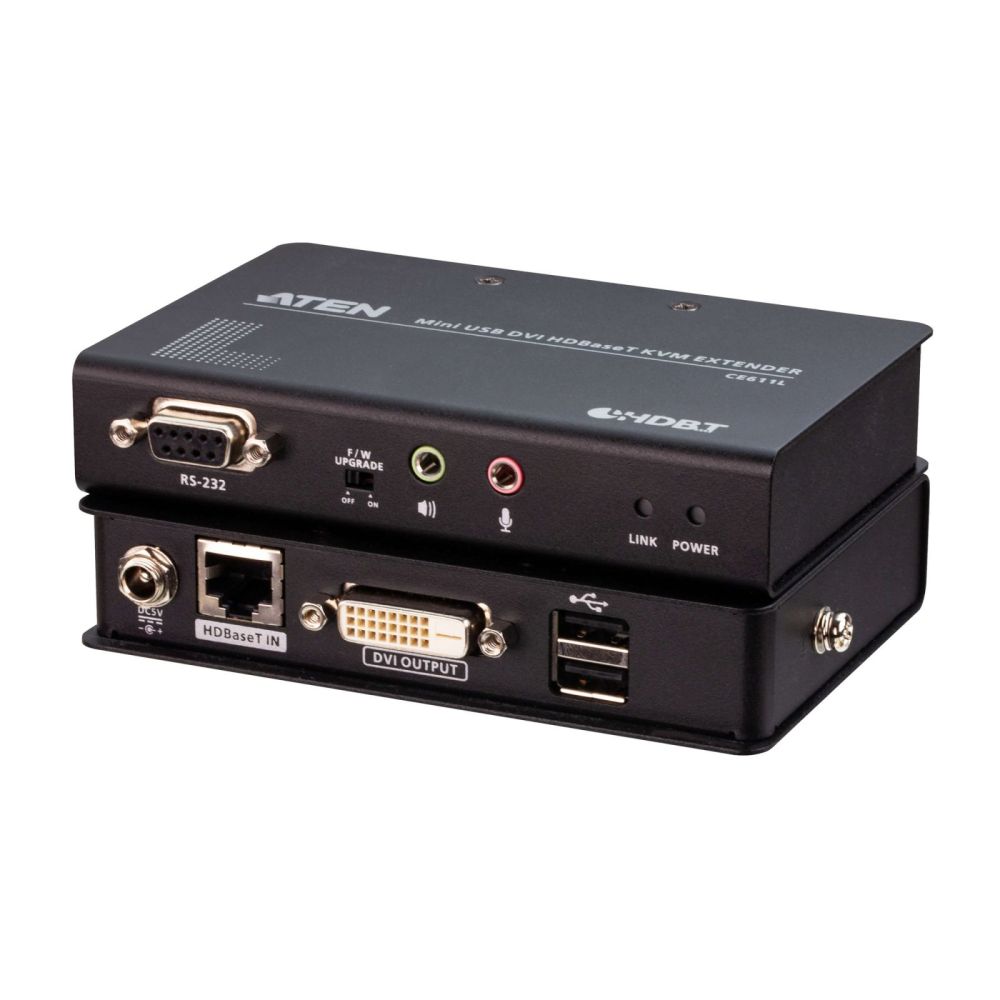

Aten KVM extender, 100mtr.1xPC, 1xMon., DVI, USB, mini
|
-26% 344,22 EUR 464,34 EUR |
|
|
( 409,62 EUR incl. VAT ) ≈ £289.83 | ≈ $386.56 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1289693 |
| Mfg Part No: | CE611 |
| UPC/EAN: | 4719264648427 |
| Weight: | 1.17 kg |
Product information for Aten CE611:

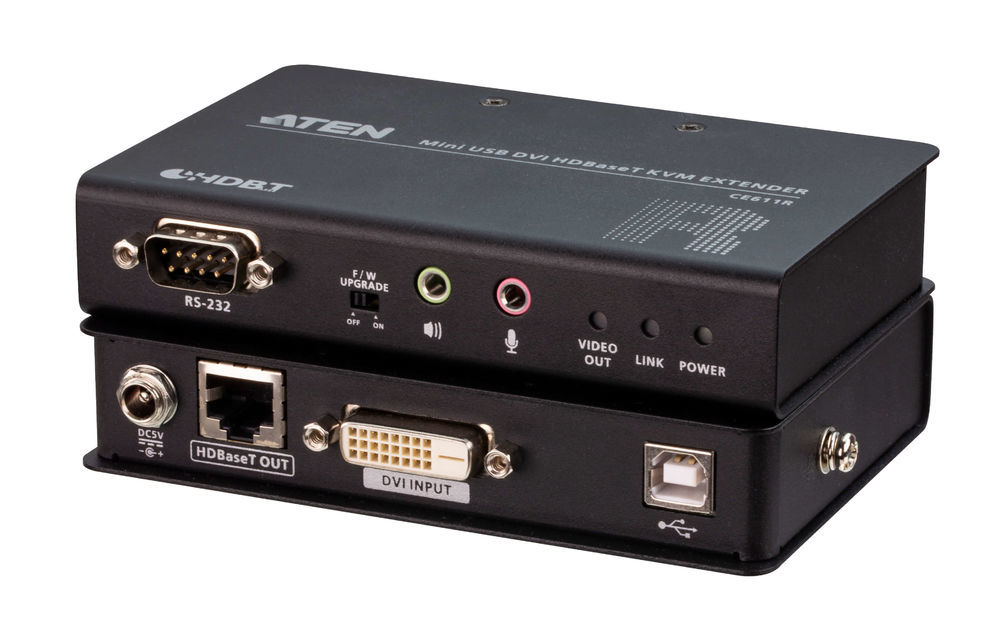

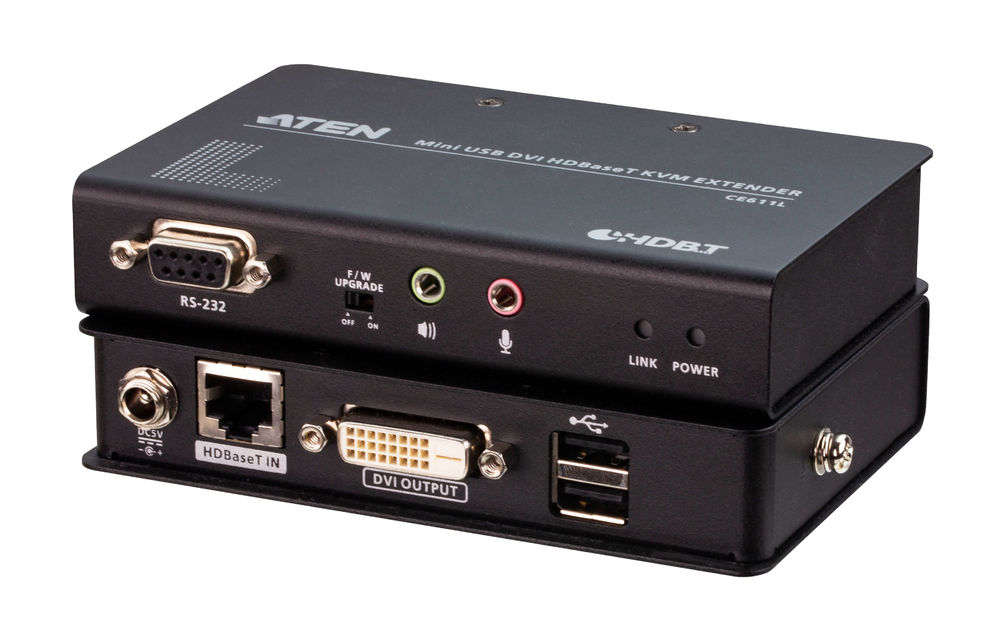

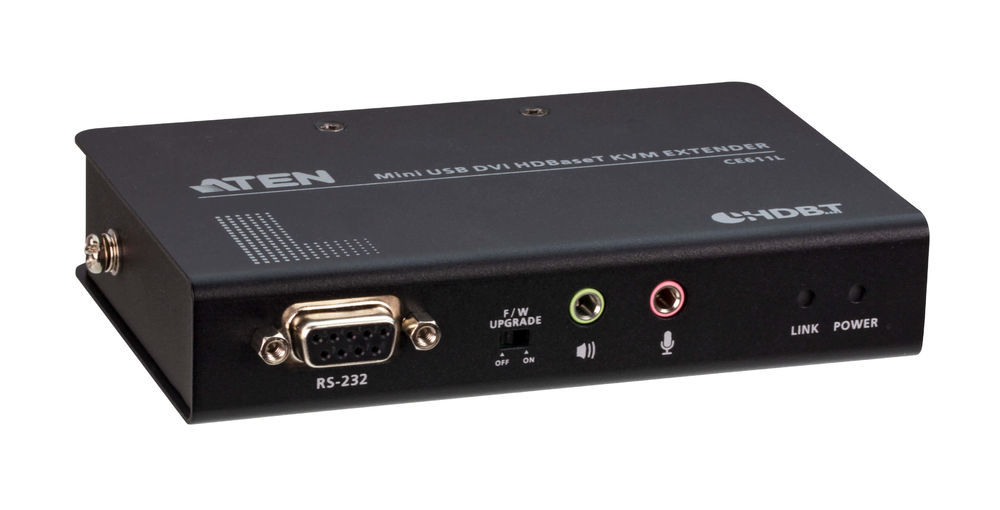

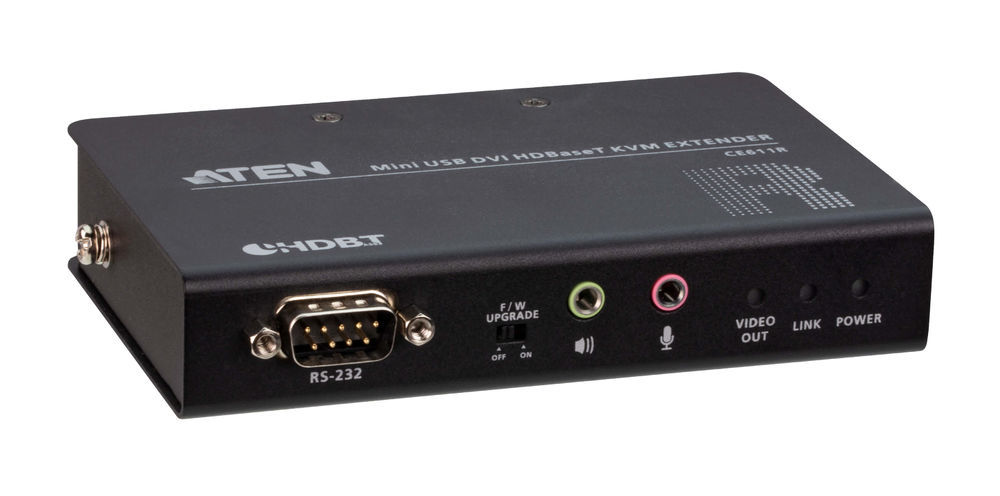

*Order based, non-cancellable*, Transmitter/Receiver Set, Extends video, audio, USB and RS-232 signals over a single Cat6 / 6a / ATEN 2L-2910 Cat 6 cable Superior video quality over long distances up to 1920 x 1200 at 100 m (Cat6 / 6a cable / ATEN 2L-2910 Cat 6 cable) USB 2.0 full speed ports ensures fast transmission speeds for peripheral devices Supports individual 2-channel stereo audio for high-quality audio applications Scope of delivery 1x CE611L Mini USB DVI HDBaseT KVM Extender (local device) 1x CE611R Mini USB DVI HDBaseT KVM extender (remote device) 2x 0AD8-1F05-26M1 power supplies 1x user manual
| Features | |
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat6, Cat6a |
| Maximum digital resolution | 1920 x 1200 pixels |
| Supported resolutions | 1920x1200 1920x1080 1600x1200 |
| Product colour | Black |
| Material | Metal |
| Certification | RoHS |
| LED indicators | |
| Logistics data | |
| Master (outer) case net weight | 5.25 kg |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case width | 292 mm |
| Master (outer) case length | 517 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 6.32 kg |
| Products per master (outer) case | 5 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Other features | |
| Firmware upgradeable | |
| Packaging content | |
| AC adapter included | |
| Manual | |
| Packaging data | |
| Package width | 100 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.18 kg |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB data transfer rates | 480 Mbit/s |
| RS-232 ports | 2 |
| RJ-45 ports quantity | 2 |
| PC Audio in | |
| PC Audio out | |
| Power | |
| Power consumption (transmitter) (max) | 2.494 W |
| Power consumption (receiver) (max) | 4.816 W |

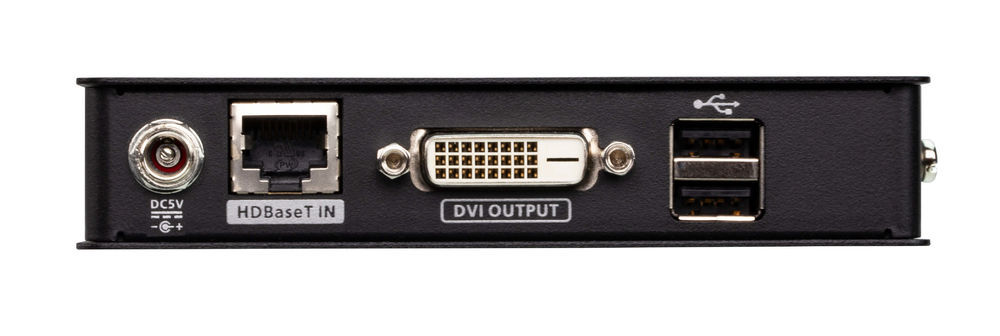

| Receiver | |
| Receiver local video port type | DVI-D |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Technical data | |
| Width packaging | 0.100m |
| Length packaging | 0.283m |
| Height packaging | 0.173m |
| Weight | 1.075kg |
| Packaging volume | 0.0049m³ |
| Type 2 | DVI Extender Bundle |
| Max. distance | 100m |
| Type 1 | KVM Extender |
| Technical details | |
| Weight | 1.05 kg |

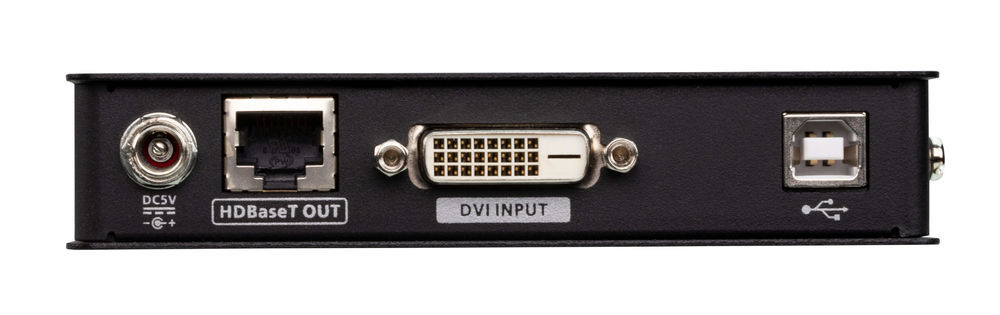

| Transmitter | |
| Transmitter video port type | DVI-D |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Weight & dimensions | |
| Transmitter width | 12.8 cm |
| Transmitter depth | 8.69 cm |
| Transmitter height | 2.5 cm |
| Transmitter weight | 350 g |
| Receiver width | 12.8 cm |
| Receiver depth | 8.69 cm |
| Receiver height | 2.5 cm |
| Receiver weight | 340 g |
